Toyota YARIS 挡泥板和扰流板 — Figure 7601

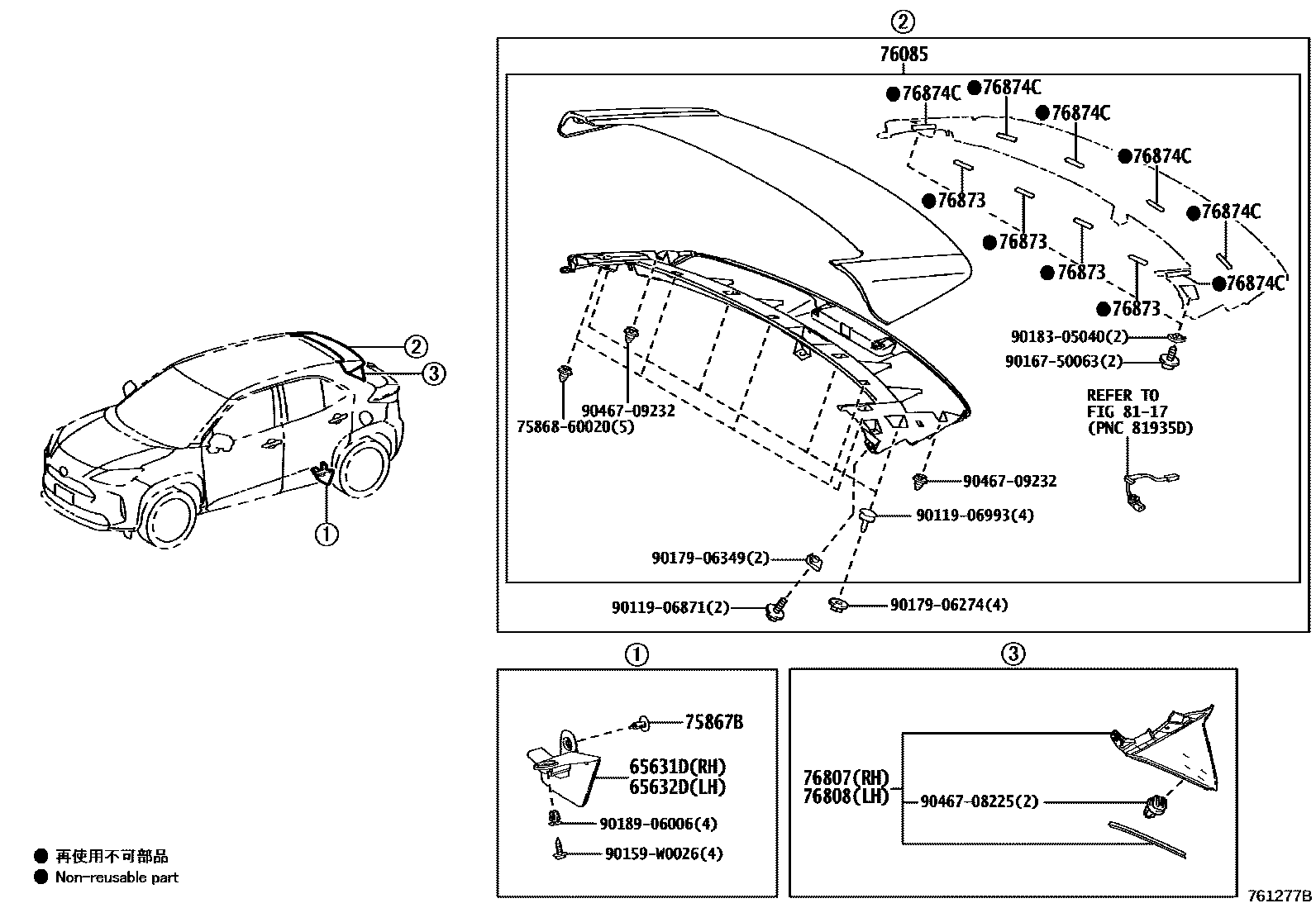

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-K2010 |
| 65632D | Left rear wheel house front panel | 65632-K2010 |
| 75867B | Door sill panel protective strip clip | 75867-30140 |
| 76085 | Rear spoiler sub-assembly | 76085-0D910 |
| 76807 | Right rear spoiler protection strip sub-assembly | 76807-0D010 |
| 76808 | Left rear spoiler protection strip sub-assembly | 76808-0D010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-0D130 |
| 76874C | PROTECTEUR, BECQUET ARR, NO.3 | 76874-0D080 |
