Toyota YARIS 侧防护条 — Figure 7503

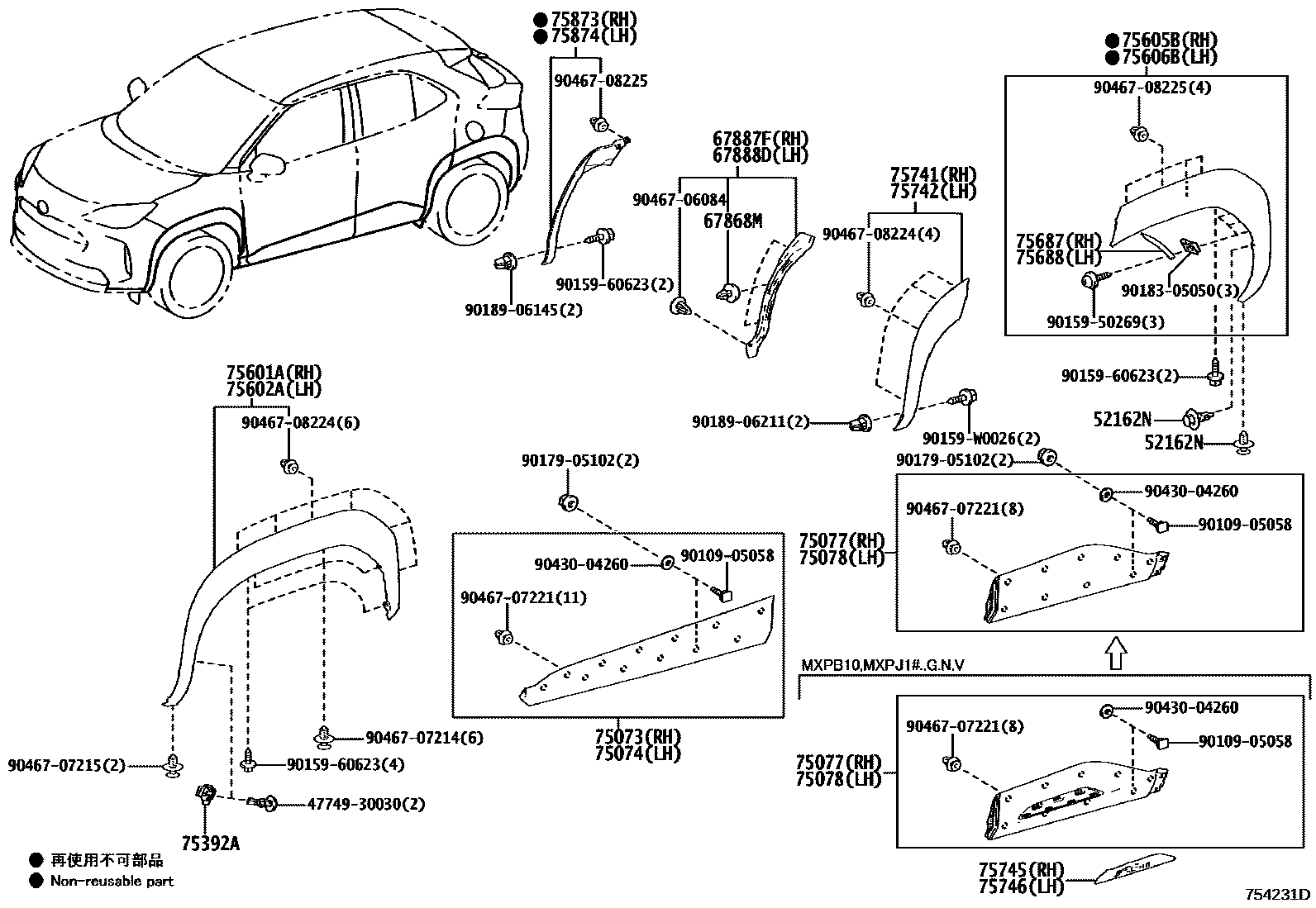

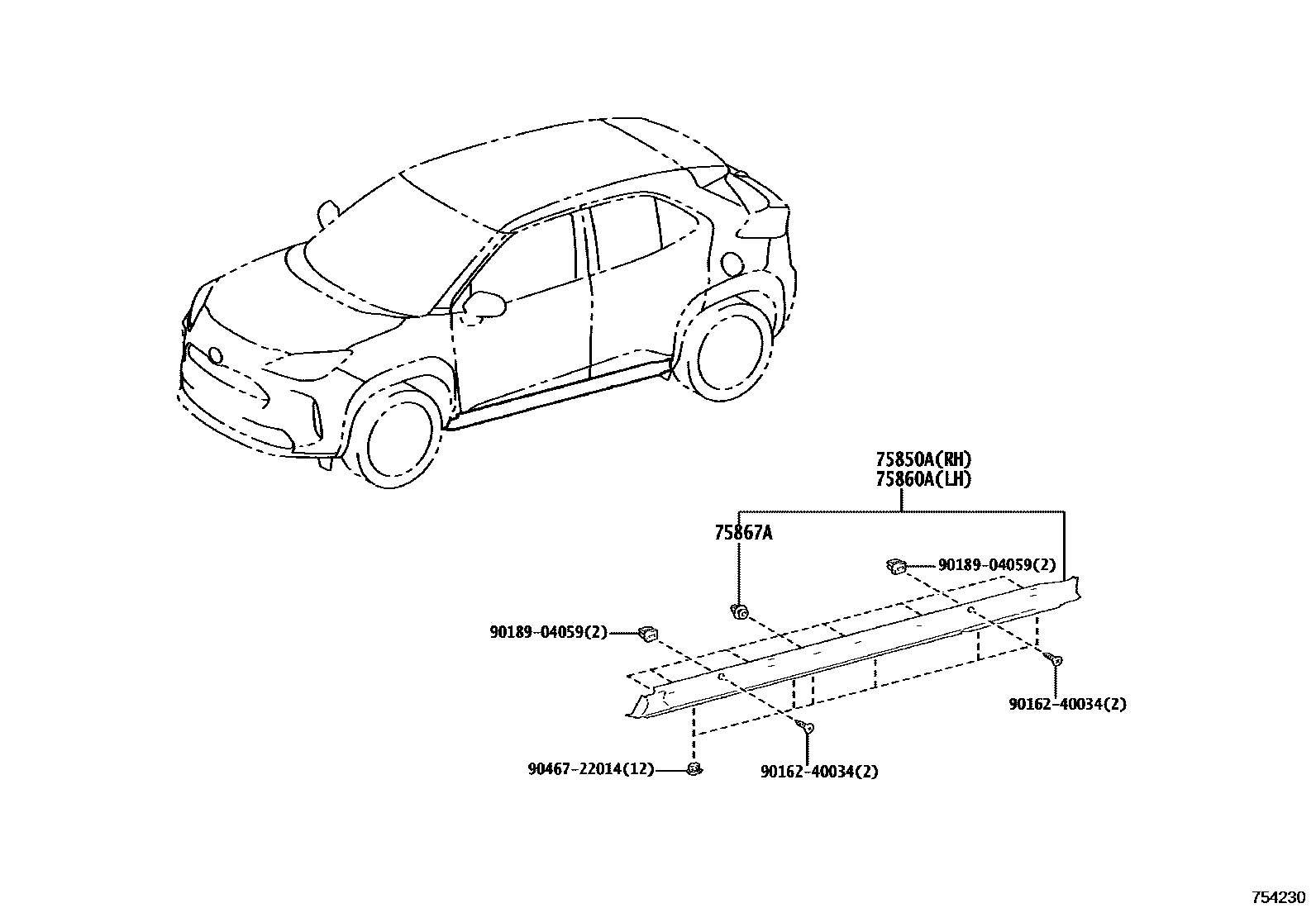

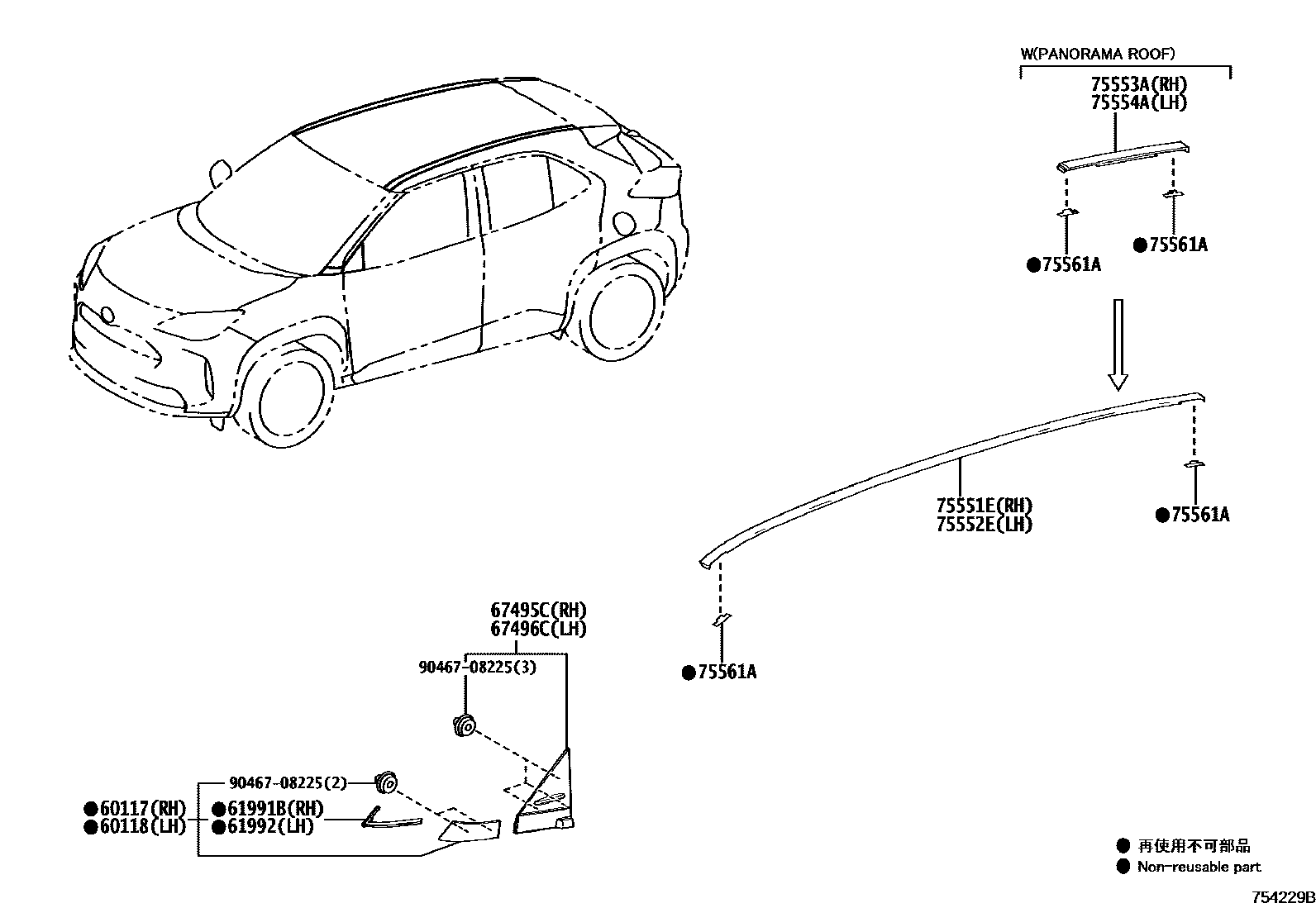

Toyota YARIS EPC diagram 7503, 侧防护条, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52162N | PARTIE, PARE-CHOCS ARR | 52161-16010 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-K2010 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-K2010 |
| 61991B | PROTECTEUR, CACHE MONTANT AVANT, MD | 61991-K2010 |
| 61992 | PROTECTEUR, CACHE MONTANT AVANT, MG | 61992-K2010 |
| 67495C | Right front door front lower door frame upper cover | 67495-K2010 |
| 67496C | Left front door front lower door frame upper cover | 67496-K2010 |
| 67868M | Car door seal strip clip | 67867-12150 |
| 67887F | Right rear door seal No. 2 | 67887-K2010 |
| 67888D | Left rear door seal No. 2 | 67888-K2010 |
| 75073 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MD | 75073-K2010 |
| 75074 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MG | 75074-K2010 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-0D010 · 75077-0D020 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-0D010 · 75078-0D020 |
| 75392A | No. 1 outer protective strip fixings | 53879-30060 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-0D420 · 75551-0D430 · 75551-K2010 · 75551-K2011 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-0D370 · 75552-0D430 · 75552-K2010 · 75552-K2011 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-0D100 · 75553-0D110 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-0D100 · 75554-0D110 |
| 75561A | Roof drain channel side decorative strip clip | 75561-0D110 |
| 75601A | Right front fender protection strip sub-assembly | 75601-0D010 |
| 75602A | Left front fender protection strip sub-assembly | 75602-0D010 |
| 75605B | Right side enclosure outer protective strip sub-assembly | 75605-K2010 · 75605-K2011 |
| 75606B | Left side enclosure outer protective strip sub-assembly | 75606-K2010 · 75606-K2011 |
| 75687 | Right rear side panel lower protective strip protection device | 75687-52010 |
| 75688 | Left rear side panel lower protective strip protection device | 75688-52010 |
| 75741 | Right rear door outer protective strip | 75087-0D010 |
| 75742 | Left rear door outer protective strip | 75088-0D010 |
| 75850A | Right body door sill panel protective strip assembly | 75850-K2010 |
| 75860A | Left body door sill panel protective strip assembly | 75860-K2010 |
| 75867A | Door sill panel protective strip clip | 75867-30130 |
| 75873 | Right side panel wheel mouth protection strip | 75873-0D010 |
| 75874 | Left side panel wheel mouth protection strip | 75874-0D010 |
