Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

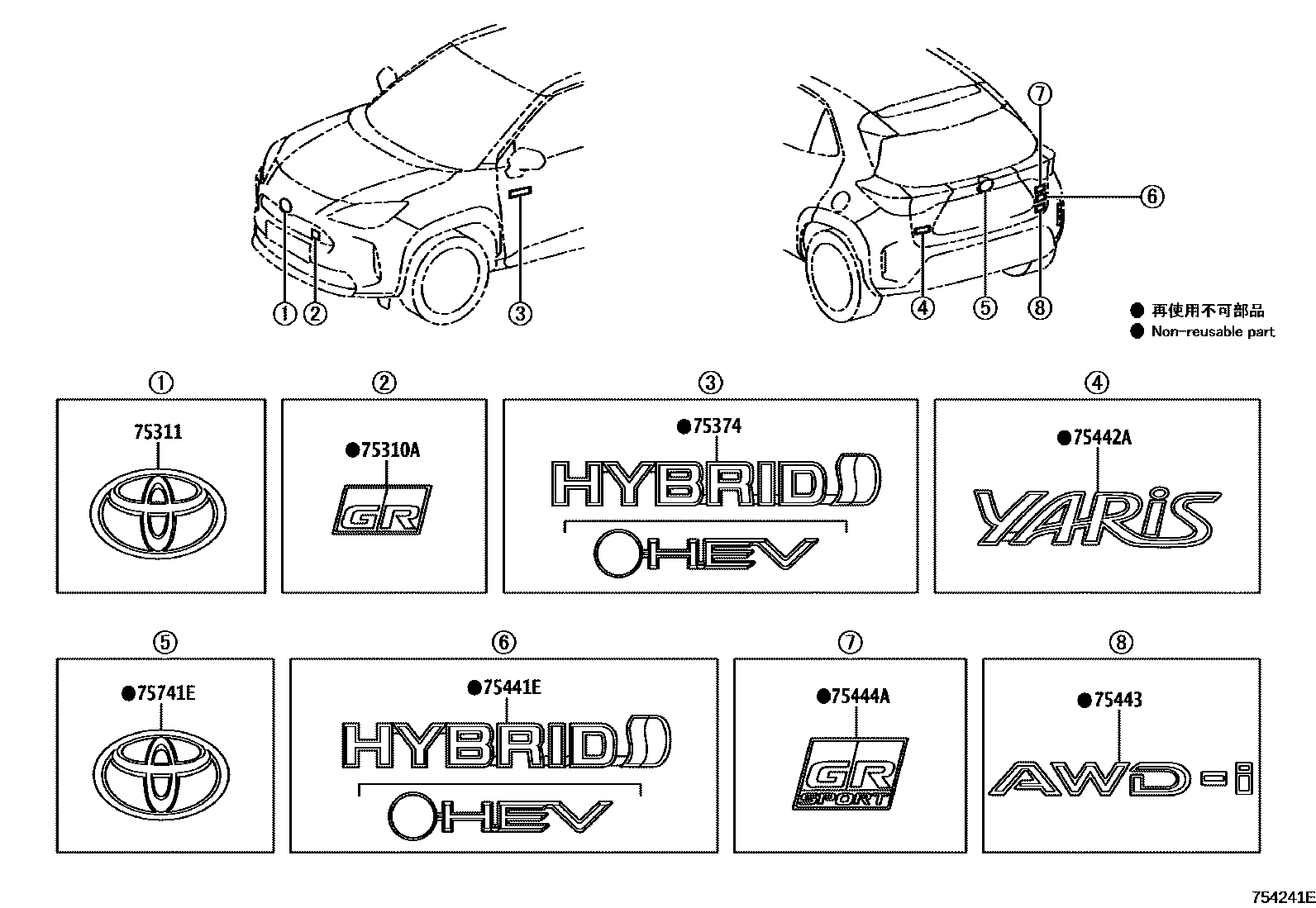

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754241E
丰田徽标和铭牌(车外和车内) — 754241E (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52090
75311Radiator grille (or front panel) plate75301-02190 · 75310-0D010 · 75310-52190 · 75403-0D030
75374side panel sign75374-0D060 · 75374-0D070 · 75440-F4010
75441EBack door No. 1 nameplate75440-F4010 · 75441-K2010
75442ANo. 2 nameplate on back door75442-K2010
75443No. 3 nameplate on back door75443-YY410 · 75445-F4010
75444ANo. 4 nameplate on back door75430-52060
75741Elogo75403-48010 · 90975-02140 · 90975-W2008 · 90975-W2023
