Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 16 PNC and OE references.

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745676E
警示铭牌(车外和车内) — 745676E (202107 – 999999)

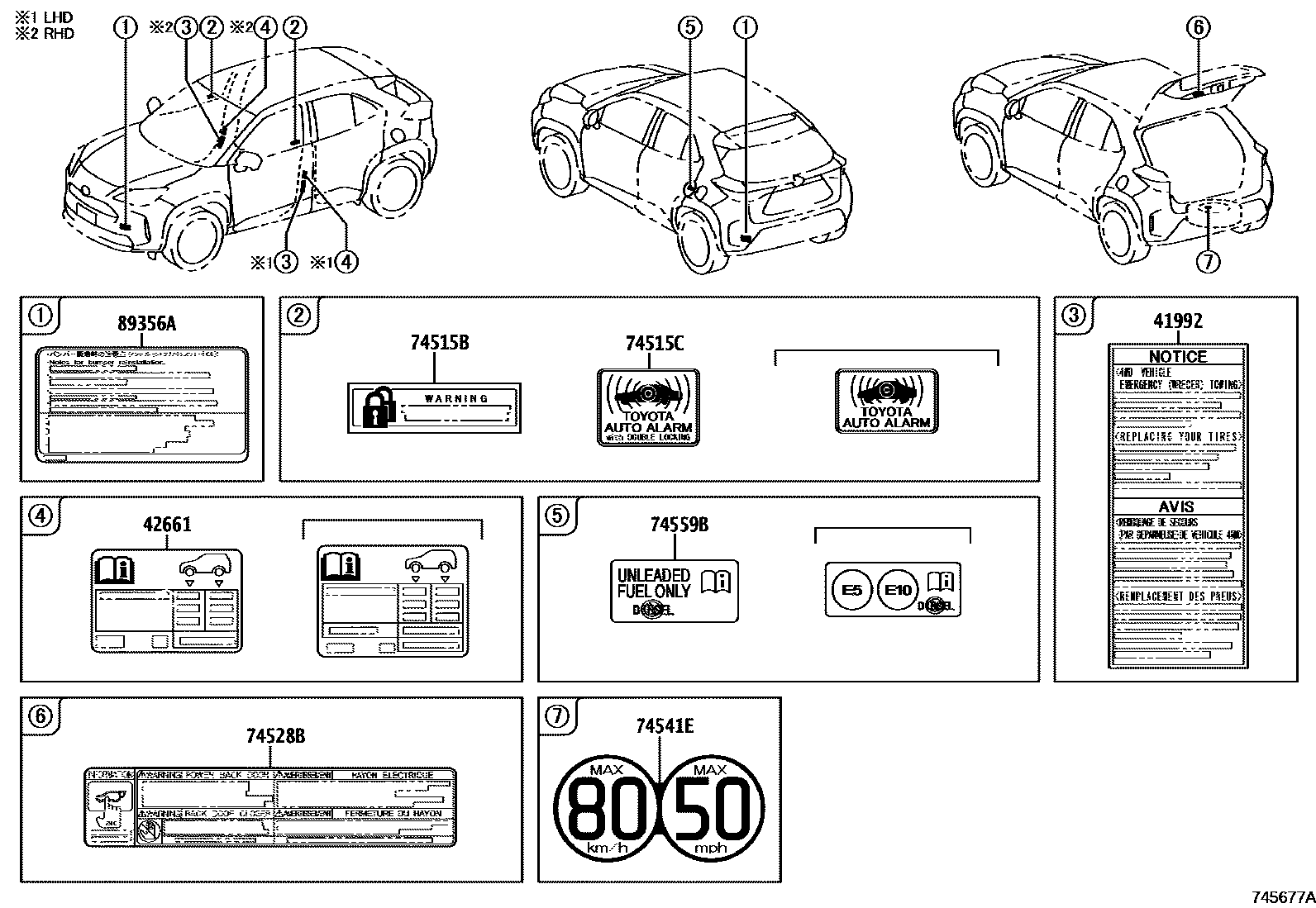

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745677A
警示铭牌(车外和车内) — 745677A (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
11293Dengine warning label11293-36070
16793EETIQUETTE, PRECAUTION VENT REFROIDISSEMENT16793-36030
288A2ETIQUETTE, EMPLACEMENT BATT288A2-15020
41992Differential attention label41992-48020
42661ETIQUETTE, INFORMATIONS PRESSION PNEUS42661-0DB00 · 42661-0DB10 · 42661-0DB20 · 42661-0DB30 · 42661-0DB40 · 42661-0DB50
47288Brake Fluid Caution Label47288-64010
74515BAnti-theft warning nameplate74515-0D010
74515CAnti-theft warning information label74515-33020 · 74515-42010
74528BBack door warning label74528-02010
74541ESmall spare tire warning plate42668-0F030
74559Bfuel information label74559-0D060 · 74559-11030 · 74559-20140
82685Dwarning nameplate82684-48010
88723ECooler maintenance warning label7454B-0D010 · 88723-0D310 · 88723-K0030 · 88723-K0040 · 88723-K0050 · 88723-K0060
88733APLAQUETTE D'INSTRUCTIONS D'ENTRETIEN DE CLIMATISEUR88733-0H010
89356AETIQUETTE RENSEIGNEMENTS GABARIT89356-47020
G9275No. 1 battery warning labelG9275-K0030
