Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

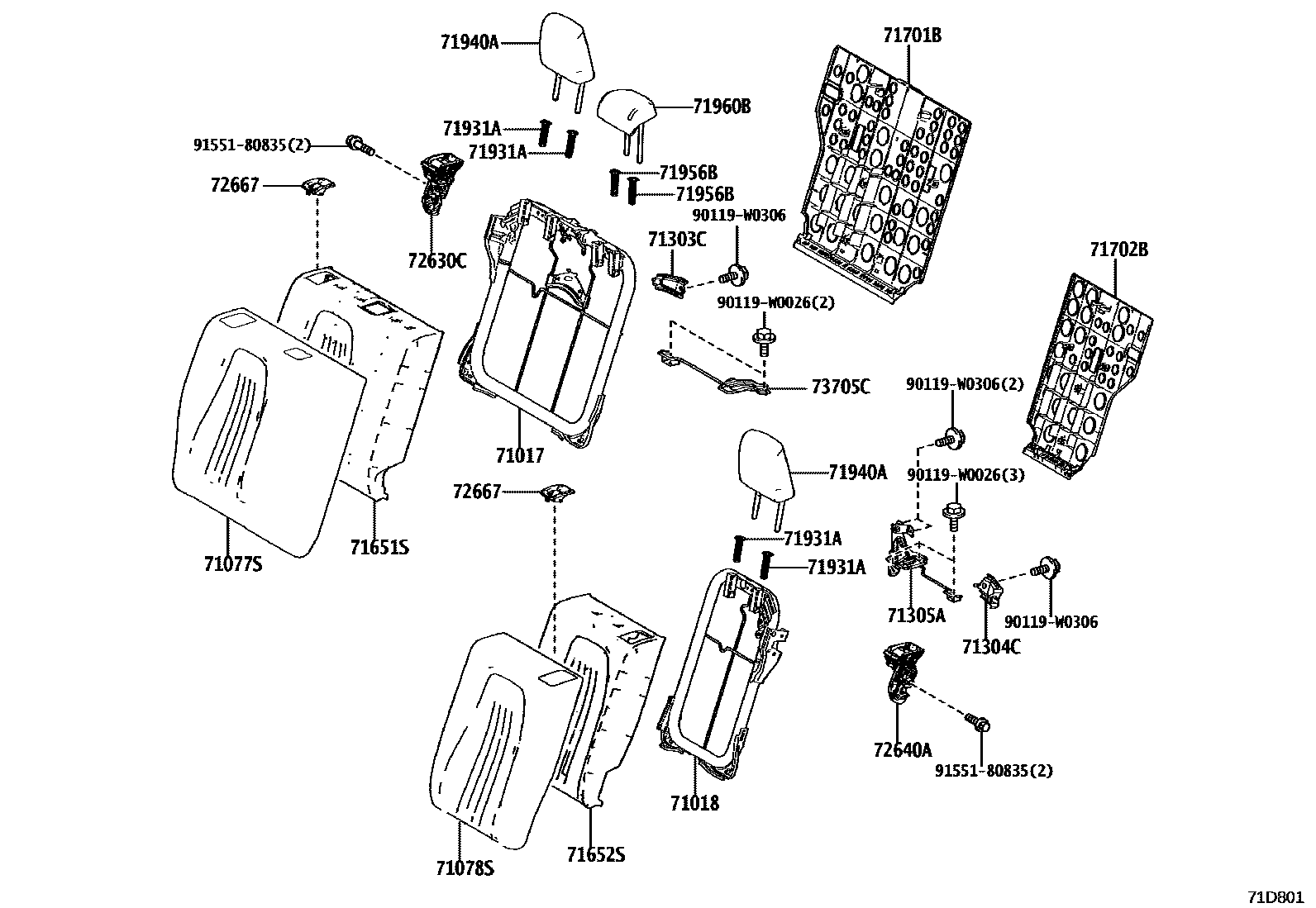

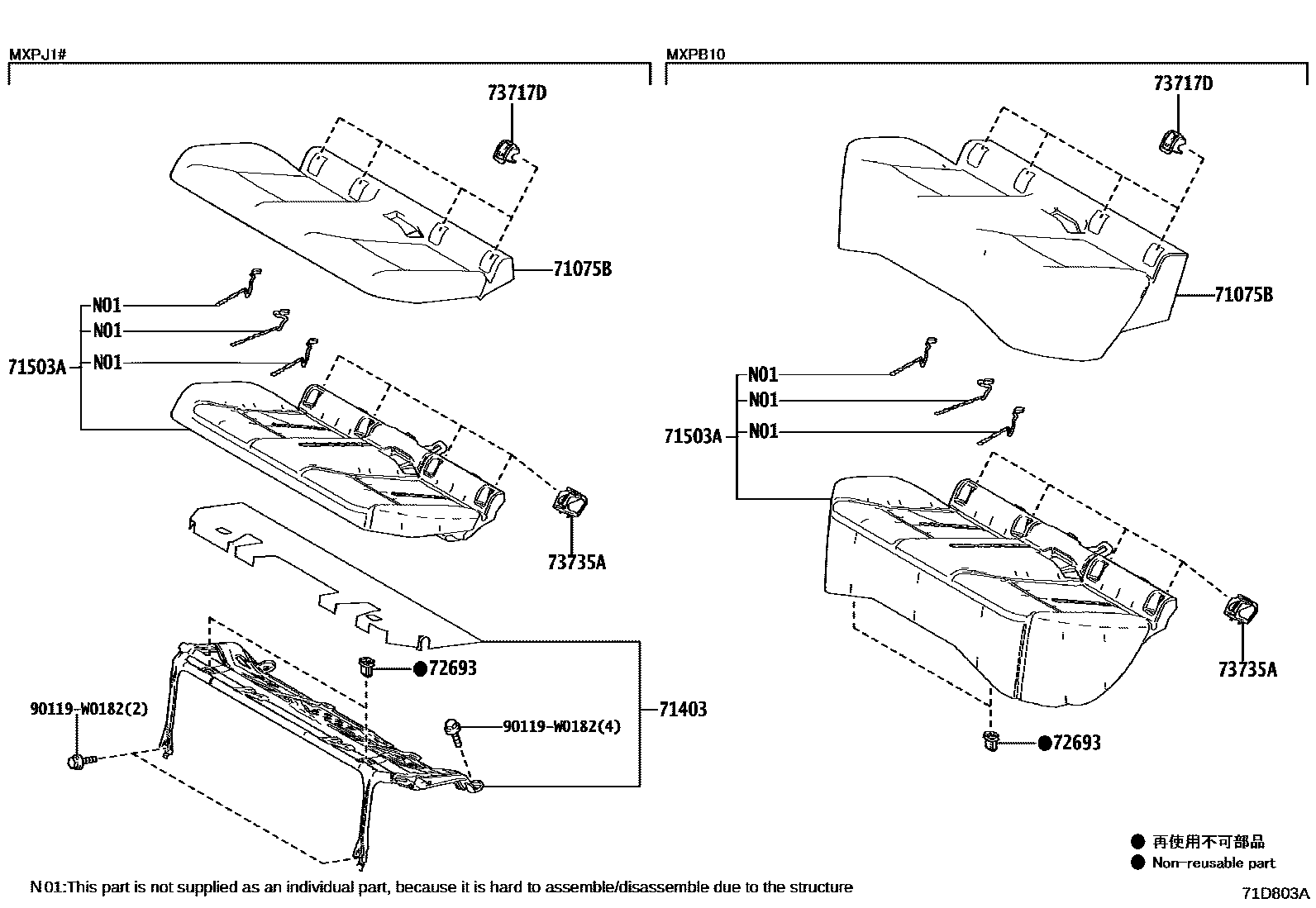

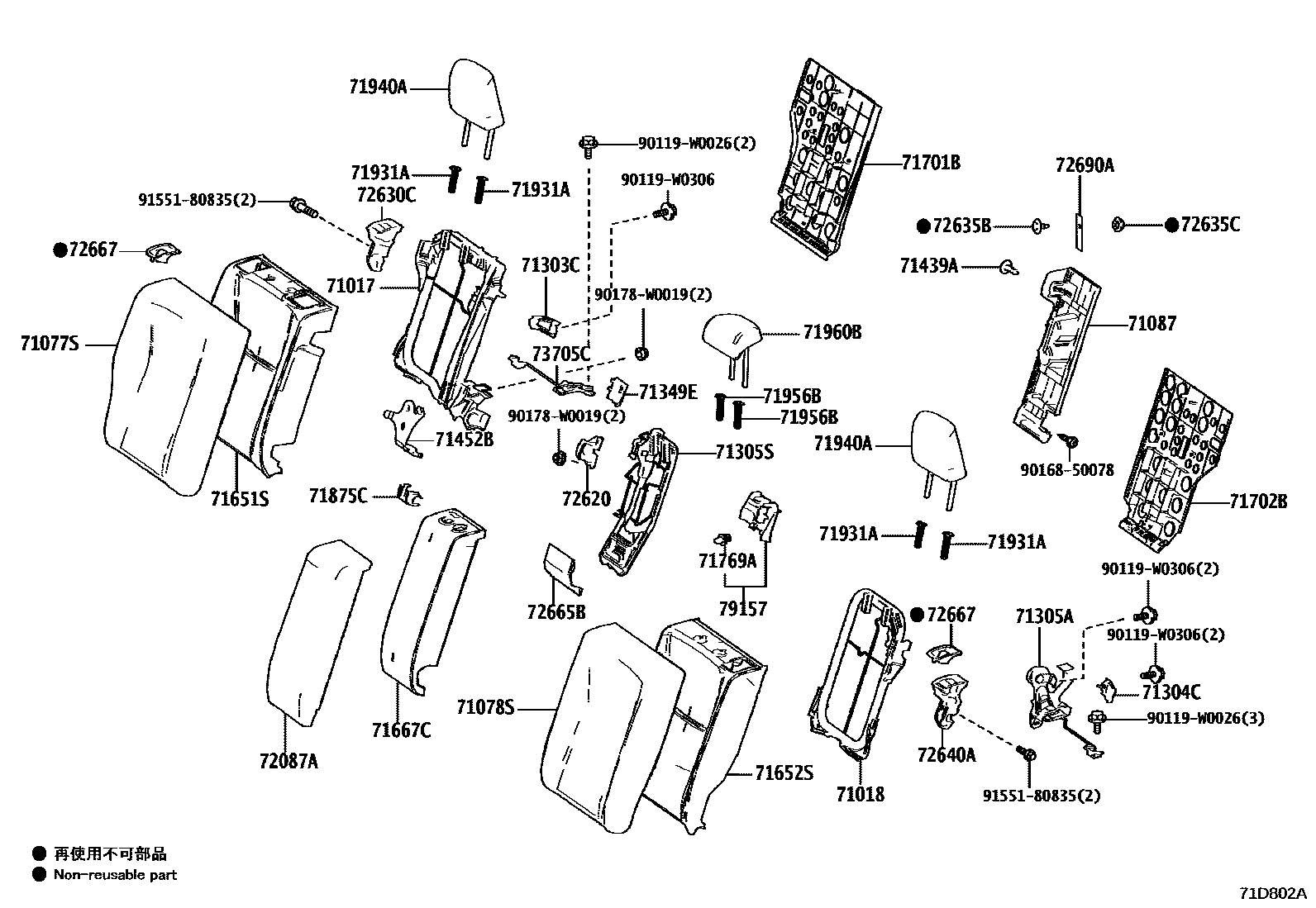

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0D810 · 71017-0D840 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D490 · 71018-K0010 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YY560 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YY360 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YY300 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-K0010 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-K0010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0D050 · 71305-0D060 · 71305-K0010 |
| 71305S | Center seat back frame sub-assembly | 71305-0D040 |
| 71403 | Rear No. 1 seat leg sub-assembly | 71309-K0020 |
| 71452B | SUPPORT DE FIXATION, DOSSIER DE SIEGE ARRIERE | 71277-0D010 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-0D370 · 71503-0D650 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0DA70 · 71651-K0010 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-K0010 |
| 71667C | Rear center seat 1 backrest cushion | 71667-0D010 |
| 71701B | Rear right seat back panel sub-assembly | 71701-0D020 · 71701-K0010 |
| 71702B | Rear left seat back panel sub-assembly | 71702-K0010 |
| 71769A | Rear seat back panel clip | 71769-28030 |
| 71875C | Right backrest tilt adjuster inner cover | 71875-0D240 |
| 72087A | SOUS-ENS. CACHE, ACCOUDOIR CENTRAL SIEGE ARR | 72087-YY080 |
| 72620 | Rear seat back lock assembly | 72630-52200 |
| 72665B | Rear seat back lock cover | 72665-52070 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705C | SOUS-ENS. SUPPORT, ANCRAGE SIEGE SECURITE ENFANT | 73705-K0010 |
| 73735A | Child restraint seat belt guide cover | 73735-K0030 |
| 79157 | Seat No. 1 backrest cover | 79157-0D010 |
