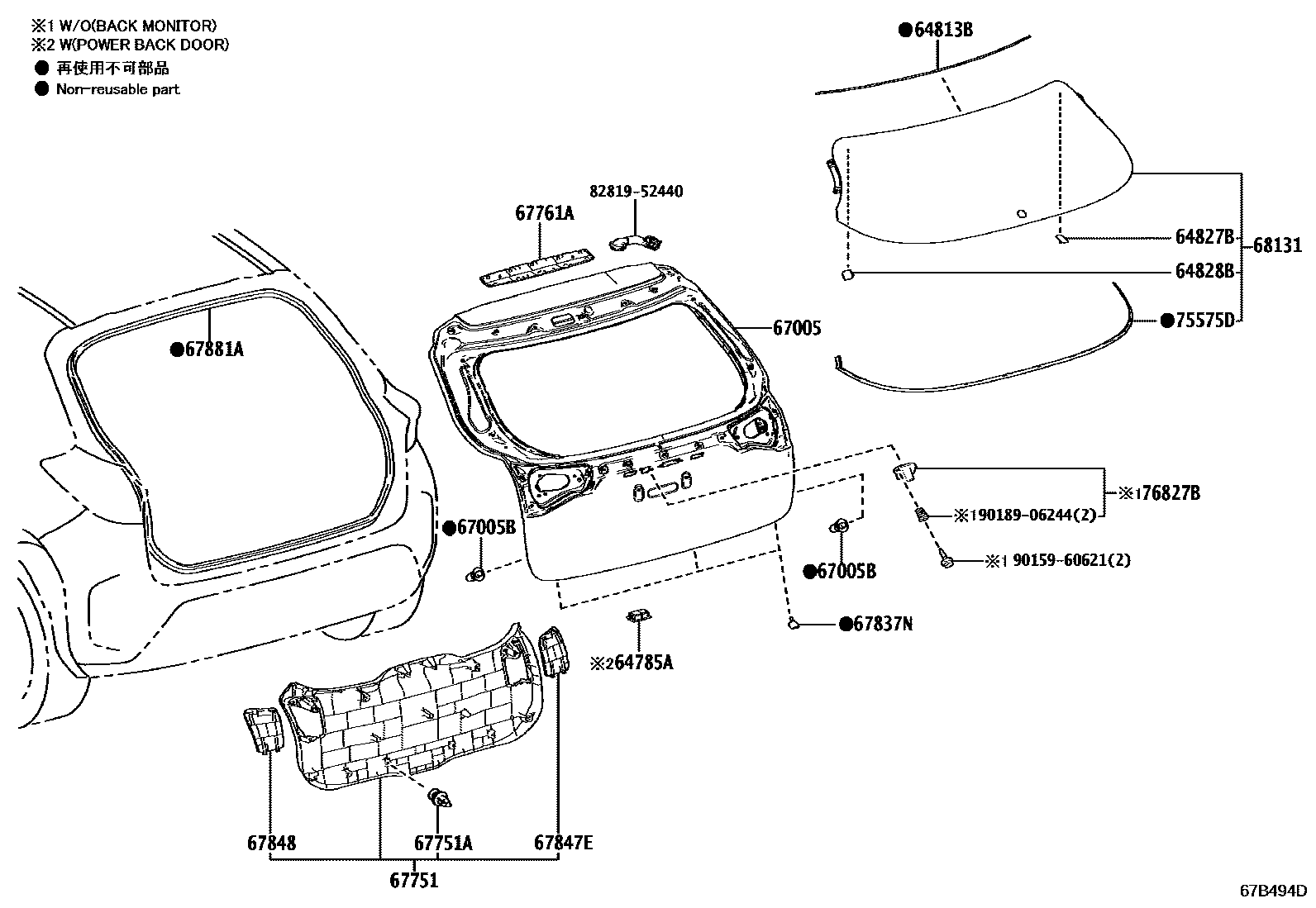

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64813B | Back window glass adhesive seal | 64813-K2020 |
| 64827B | Catch on the right side of the back window glass | 64827-K2010 |
| 64828B | Catch on the left side of the back window glass | 64828-K2010 |
| 67005 | Rear door panel sub-assembly | 67005-0D800 · 67005-0D801 · 67005-0D802 · 67005-0D810 · 67005-0D811 · 67005-0D812 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67751A | Clip (for rear door trim panel) | 90467-W0005 |
| 67837N | JOINT D'ETANCHEITE, ANTI-POUSSIERE HAYON | 67837-K0040 · 67837-K0041 |
| 67881A | Back door seal | 67881-0D240 |
| 68131 | back door glass | 68105-K2011 · 68105-K2021 · 68105-K2031 · 68105-K2041 |
| 75575D | Protective strip under rear window | 75575-0D070 |
| 76827B | RETENUE NO.2 DOUBLURE HAYON | 76827-K2010 |
