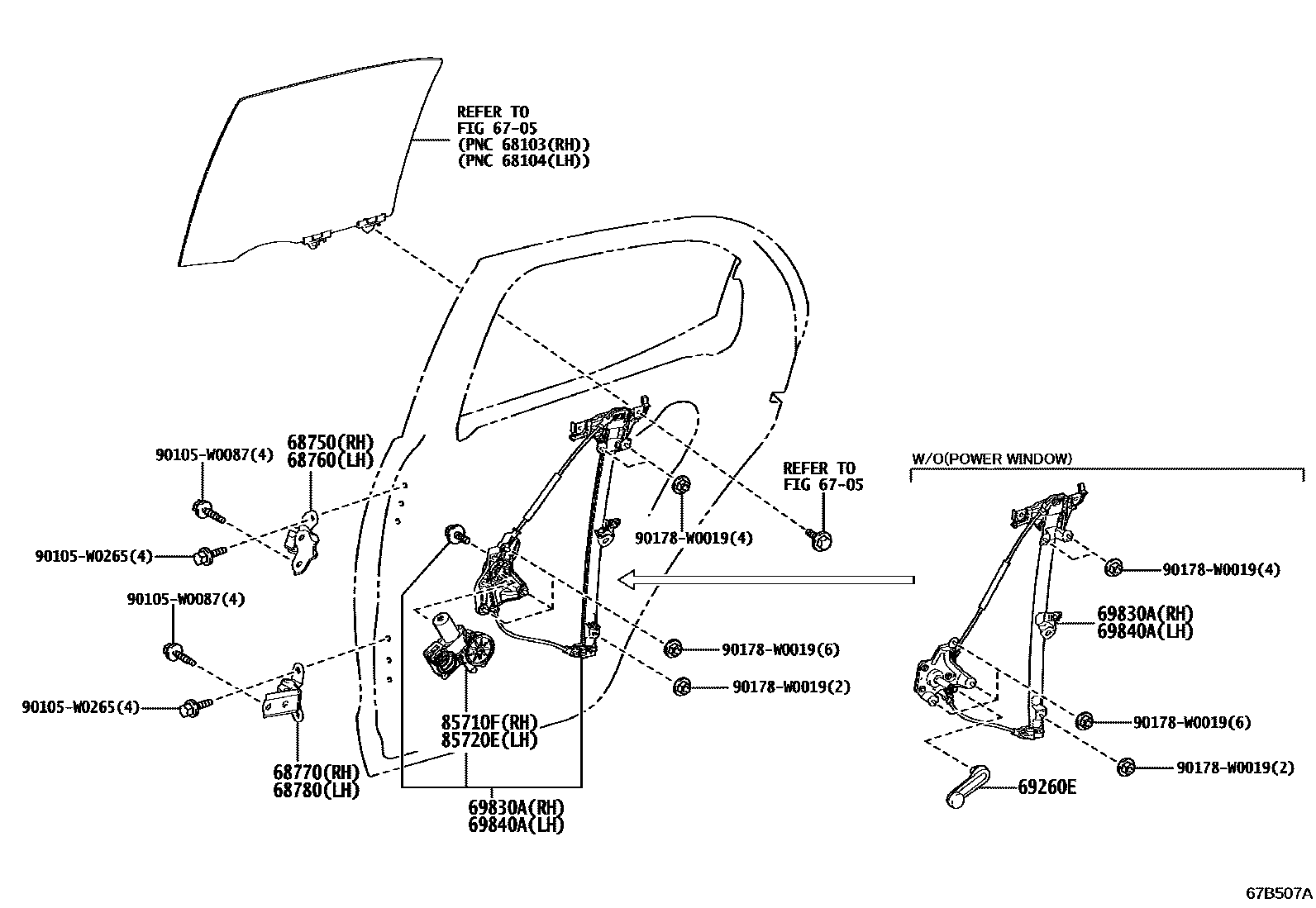

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0H010 |
| 68760 | Left rear door upper hinge assembly | 68760-0H010 |
| 68770 | Right rear door lower hinge assembly | 68770-0H010 |
| 68780 | Left rear door lower hinge assembly | 68780-0H010 |
| 69830A | Right rear door window lift assembly | 69830-0D440 · 69830-0D450 · 69830-0D480 · 69830-0D500 |
| 69840A | Left rear door window lift assembly | 69840-0D440 · 69840-0D450 · 69840-0D490 · 69840-0D500 |
| 85710F | Right power window lift motor assembly | 85710-0D470 · 85710-0D550 |
| 85720E | Left electric window lift motor assembly | 85720-0D560 · 85720-0D610 |
