Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.

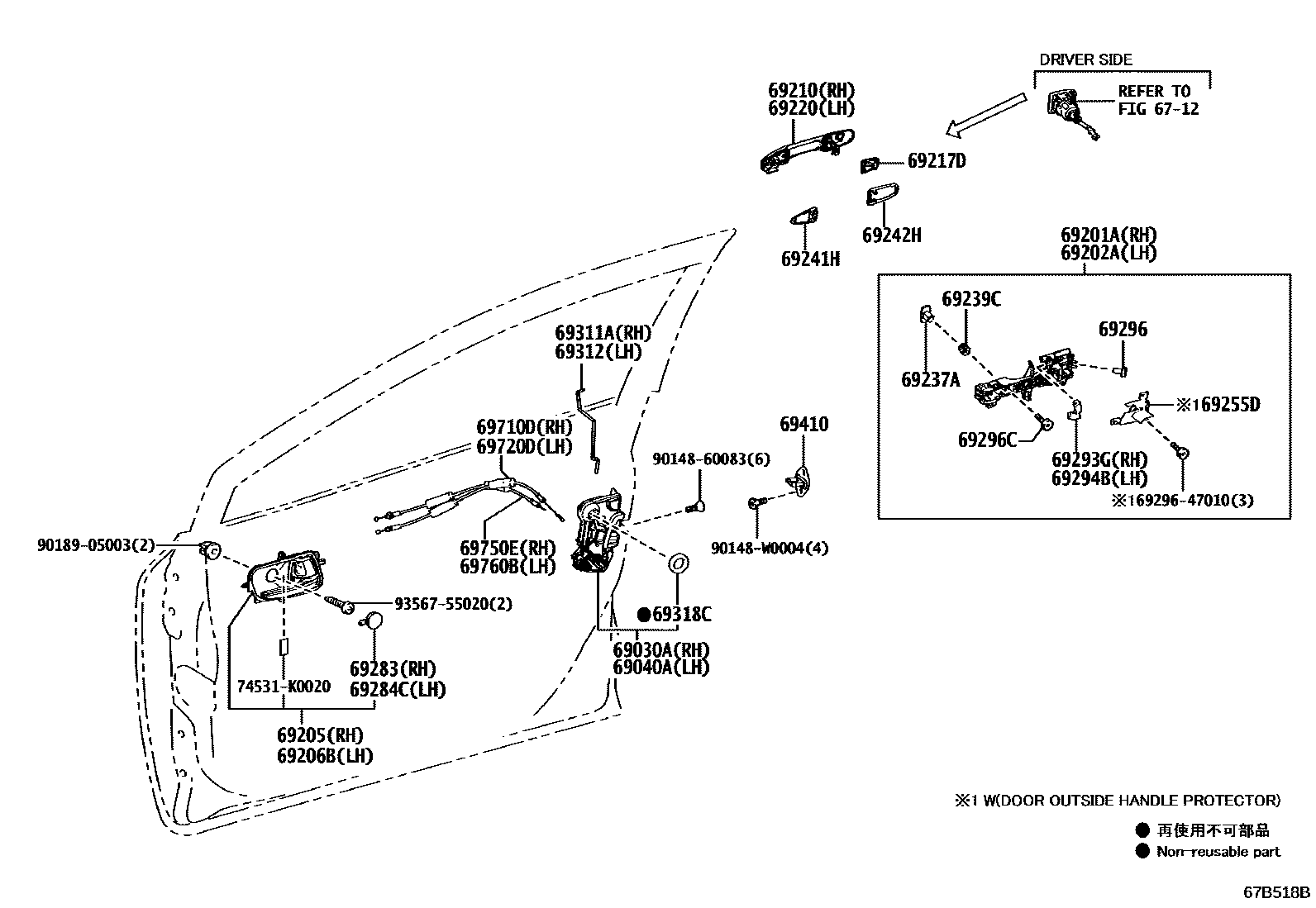

Toyota YARIS 前门锁和车门把手 EPC diagram — 67B518B
前门锁和车门把手 — 67B518B (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-0D130 · 69030-0D131 · 69030-K0020 · 69030-K0021 · 69030-K0030 · 69030-K0031 · 69030-K0040 · 69030-K0041
69040ALeft front door door lock assembly with motor69040-0D320 · 69040-K0040 · 69040-K0041 · 69040-K0050 · 69040-K0051 · 69040-K0060 · 69040-K0061
69201ARight front door outer handle frame sub-assembly69201-02320 · 69201-0D230
69202ALeft front door outer handle frame sub-assembly69202-02260
69210Right front door outer handle assembly69210-0D430 · 69210-0D450 · 69211-02934 · 69211-02935
69217DFront door outer handle cover69217-02580
69220Left front door outer handle assembly69210-0D430 · 69210-0D450 · 69211-02934 · 69211-02935
69237AECROU, POIGNEE PORTE AVANT69237-62010
69239CBAGUE, POIGNEE PORTE AVANT69239-47010
69241HFront door exterior handle pad69241-02250
69242HFront door rear outer handle pad69242-02240
69255DCar door outer handle protector69255-0D030
69293GRight front door outer handle buckle69293-02030
69294BLeft front door outer handle buckle69293-02040
69296Car door inner handle screws90148-50003 · 90148-50008 · 90148-W0013
69296CVIS, POIGNEE INTE PORTE69296-30010 · 90148-50006
69311ARight front door lock opening lever69311-0D280
69312Left front door lock opening lever69312-0D280
69318Cdoor lock harness seal69318-47010
69410Front door lock plate assembly69410-0D090
69710DCABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE)69710-K0031
69720DCABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE)69710-K0031
69750ECABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR)69750-K0031
69760BCABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR)69750-K0031
