Toyota YARIS 底板和底板装饰罩 — Figure 6404

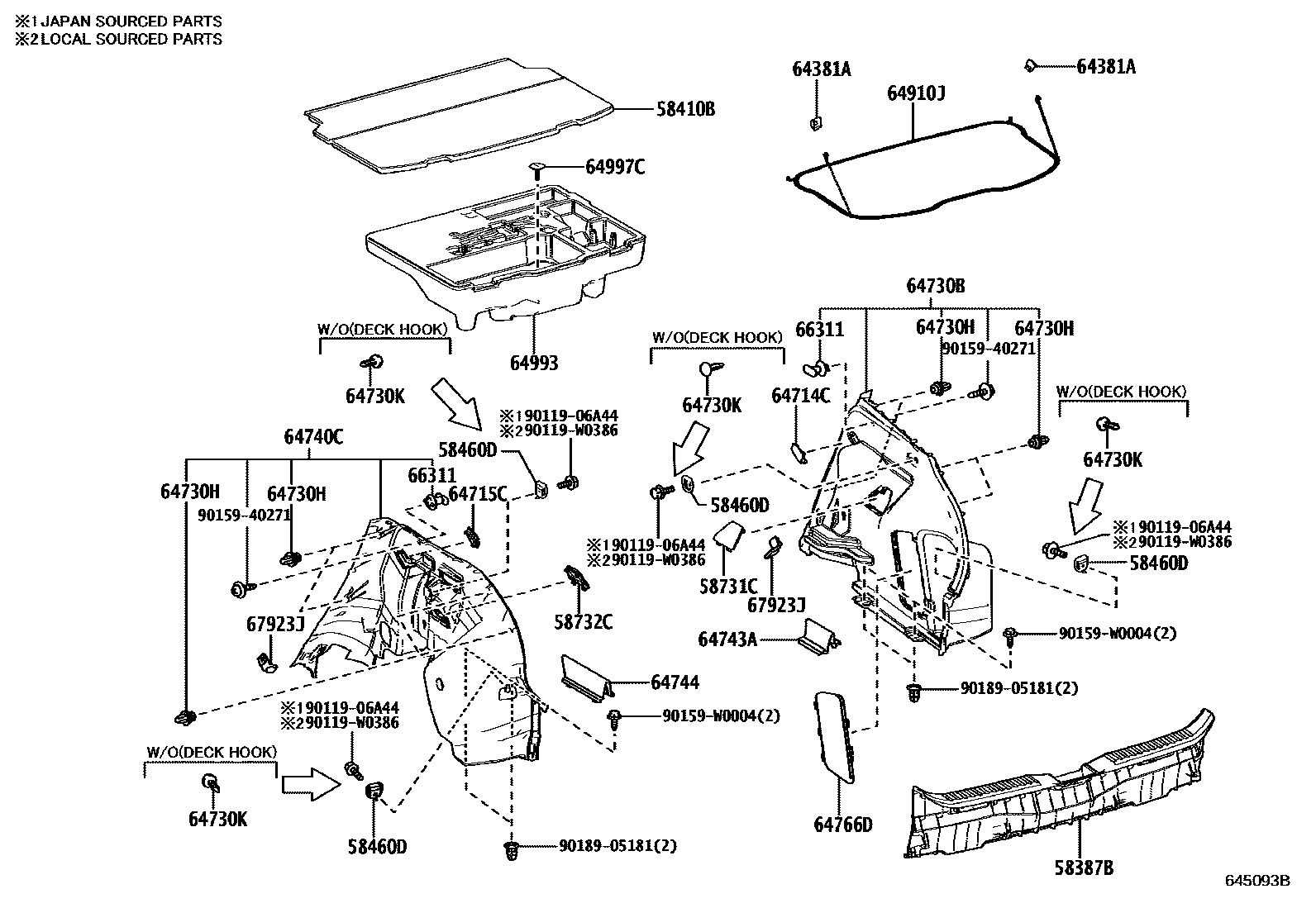

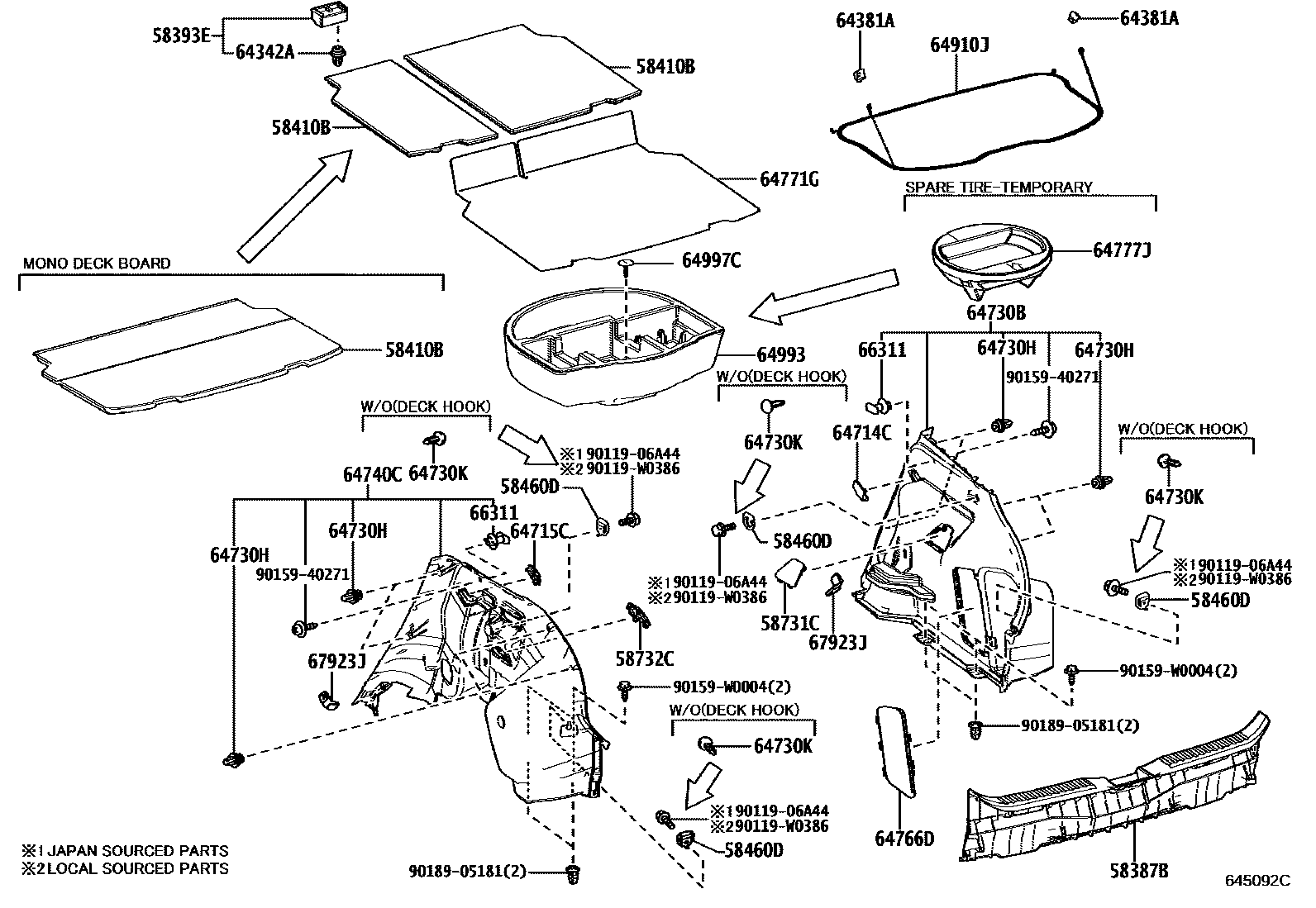

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 64342A | clip | 90467-10188 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-W0005 |
| 64777J | Spare tire cushion | 64777-0D160 |
| 64910J | Trunk cover assembly | 64910-0D050 |
| 64993 | Bottom floor box | 64993-0D060 · 64993-0D070 · 64993-K0050 |
| 64997C | Clip (for base floor box) | 64778-52160 |
| 67923J | COLLIER(PANNEAU LAT GARNITURE PLANCHER) | 67923-52240 |
