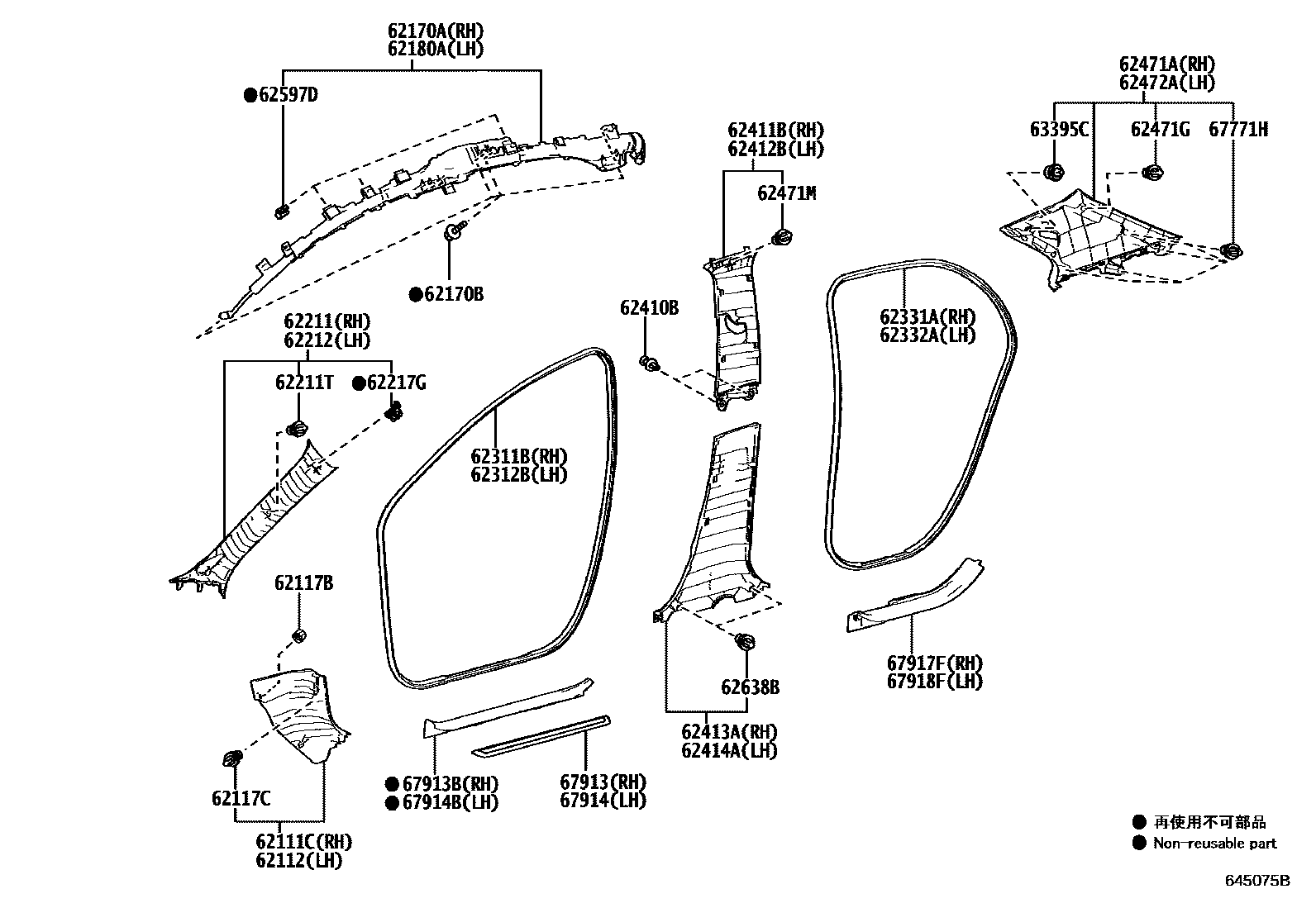

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10161 · 90467-W0005 |
| 62170A | Right curtain air bag assembly | 62170-0D040 · 62170-0D041 |
| 62170B | Bolts with washers | 90119-W0037 · 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-0D060 · 62180-0D061 |
| 62211T | Clip (for front pillar decorative panel) | 90467-W0005 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-K2010 |
| 62312B | Left front door opening waterproof tape | 62312-K2010 |
| 62331A | Right rear door opening waterproof tape | 62331-K2010 |
| 62332A | Left rear door opening waterproof tape | 62332-K2010 |
| 62410B | clip | 90467-10216 |
| 62471G | Roof side interior panel fixing gasket | 90467-10167 |
| 62471M | clip | 90467-10167 |
| 62597D | clip | 90467-18017 |
| 62638B | clip | 90467-W0005 |
| 63395C | Clips (for roof side interior panels) | 63395-12150 |
| 67771H | door trim panel fixings | 67771-28150 |
| 67913 | Right front door wear plate | 67913-YY560 · 67913-YY570 |
| 67914 | Left front door wear plate | 67913-YY570 · 67914-YY280 |
