Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

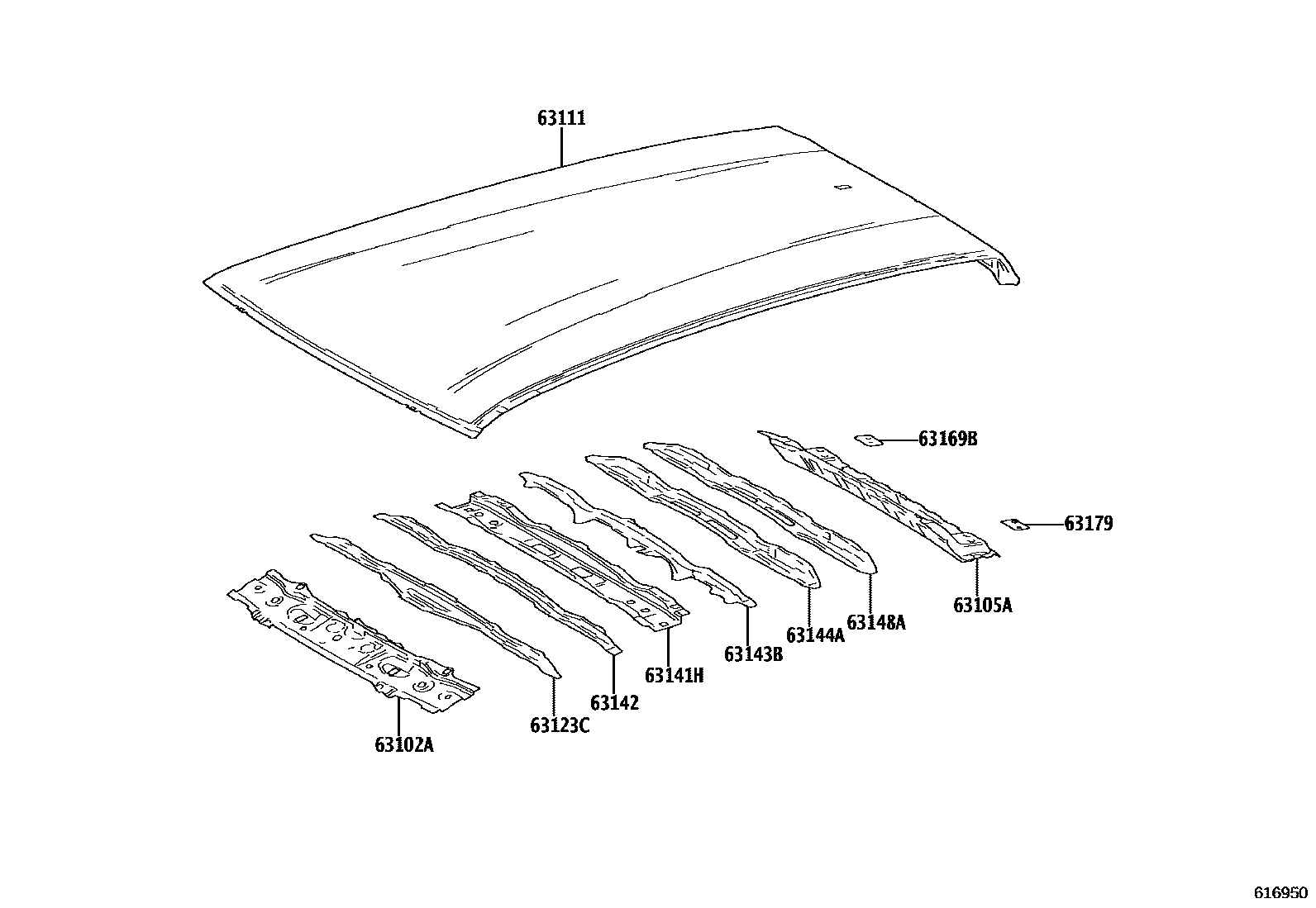

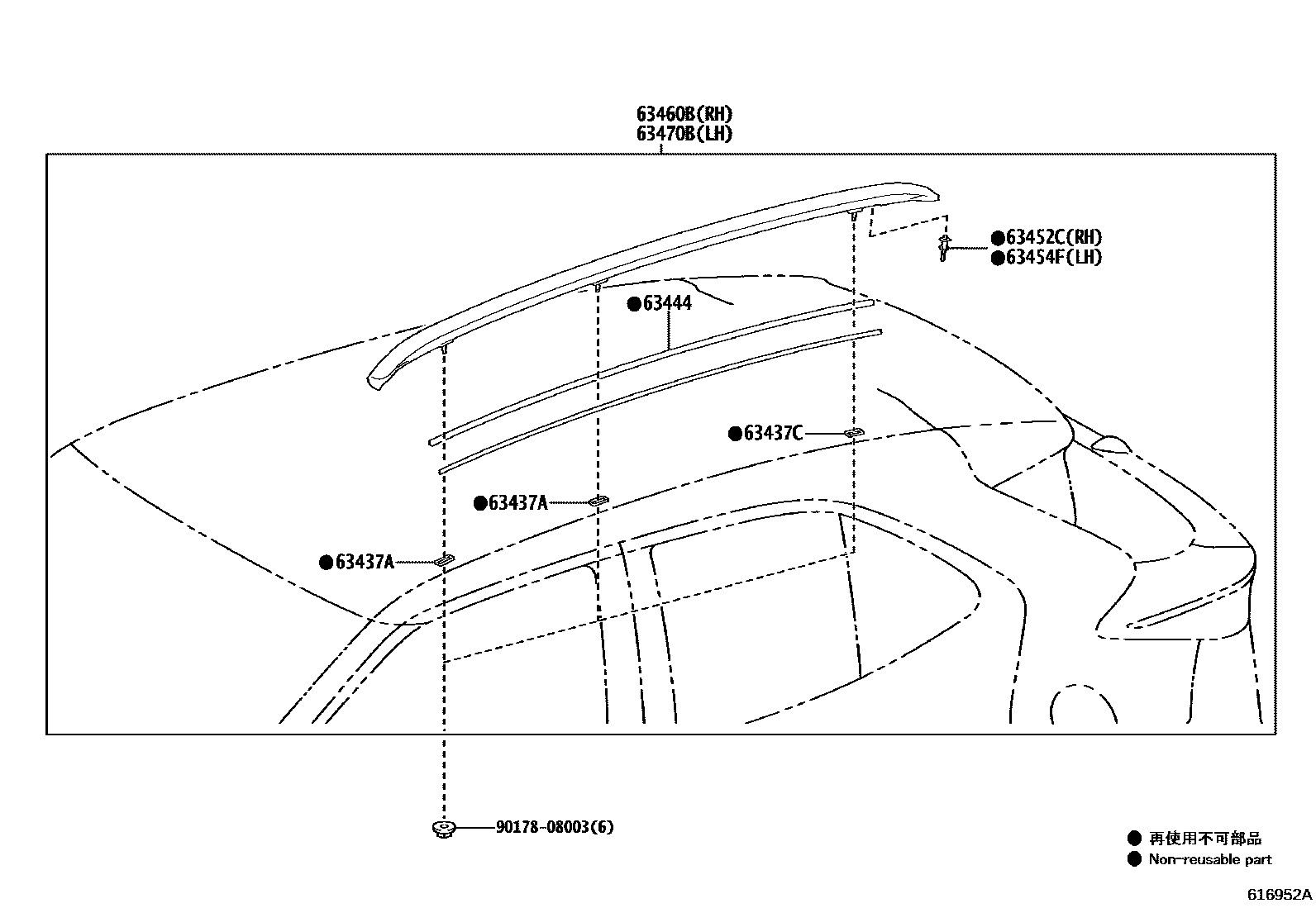

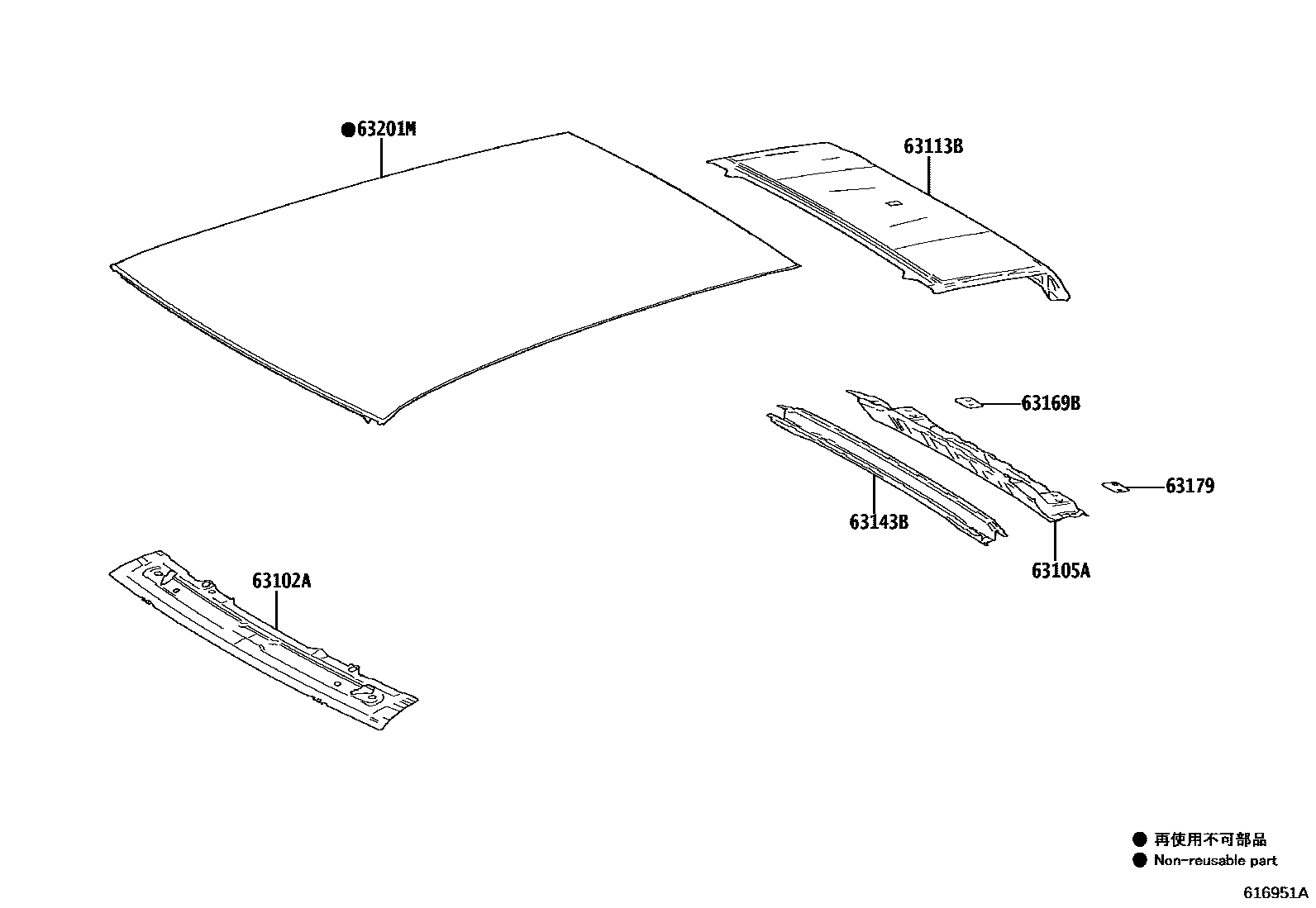

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0D360 · 63102-K2010 |
| 63105A | Back door opening frame sub-assembly | 63105-K2010 |
| 63111 | roof panel | 63111-K2010 · 63111-K2020 |
| 63113B | rear roof panel | 63113-0D020 · 63113-0D030 |
| 63123C | Roof panel reinforcement | 63123-K2010 |
| 63141H | Center roof panel reinforcement | 63141-K2010 |
| 63142 | No. 2 roof panel reinforcement | 63142-K2010 |
| 63143B | No. 3 roof panel reinforcement | 63143-0D250 · 63143-K2010 |
| 63144A | No. 4 roof panel reinforcement | 63144-K2010 |
| 63148A | No. 7 roof panel reinforcement | 63148-K2010 |
| 63169B | Right roof panel reinforcement panel | 63169-0D030 |
| 63179 | Left roof panel reinforcement panel | 63179-0D030 |
| 63201M | No. 1 skylight glass sub-assembly | 63201-0D071 · 63201-0D081 |
| 63437A | Roof rack No. 2 seal | 63437-02030 · 63437-02040 |
| 63437C | Roof rack seal | 63437-02030 |
| 63444 | No. 1 roof rack protector | 63444-K2010 |
| 63452C | Right rear roof rack fixing | 63451-02020 |
| 63454F | Left rear roof rack fixing | 63451-02020 |
| 63460B | Roof right luggage rack assembly | 63460-0D030 · 63460-0D040 · 63460-0D050 · 63460-K2010 |
| 63470B | Roof left luggage rack assembly | 63470-0D030 · 63470-0D040 · 63470-0D050 · 63470-K2010 |
