Toyota YARIS 侧梁 — Figure 6101

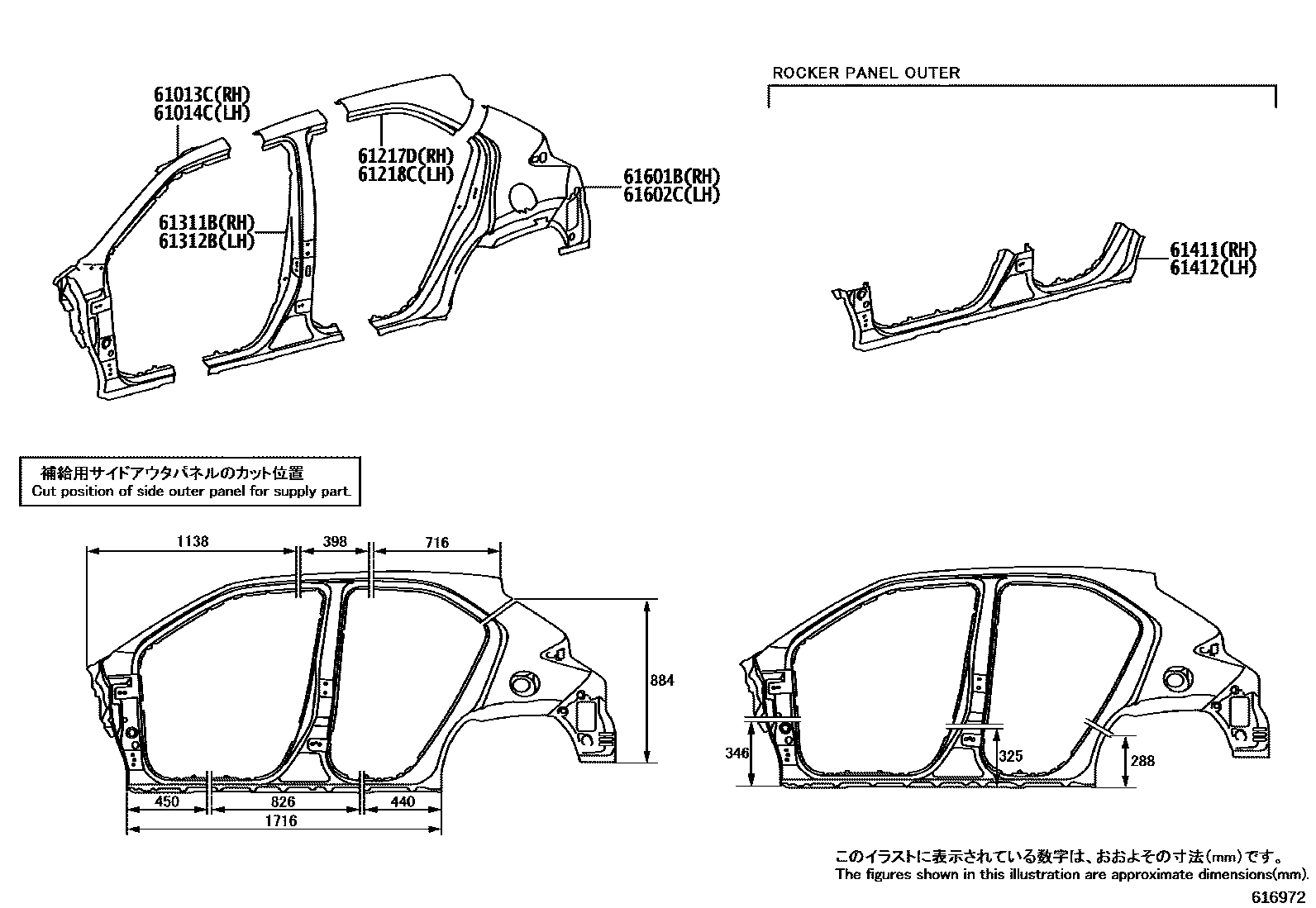

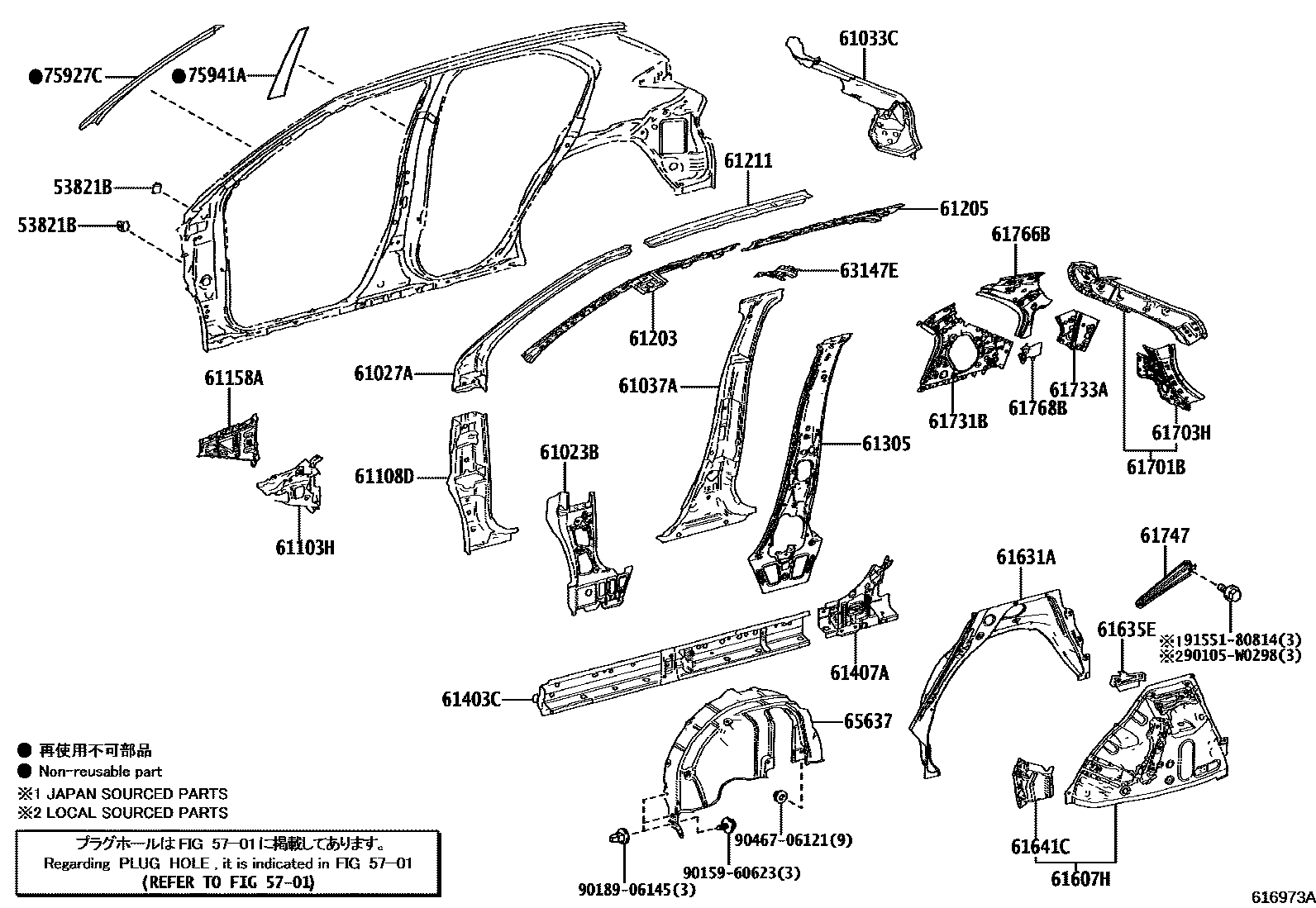

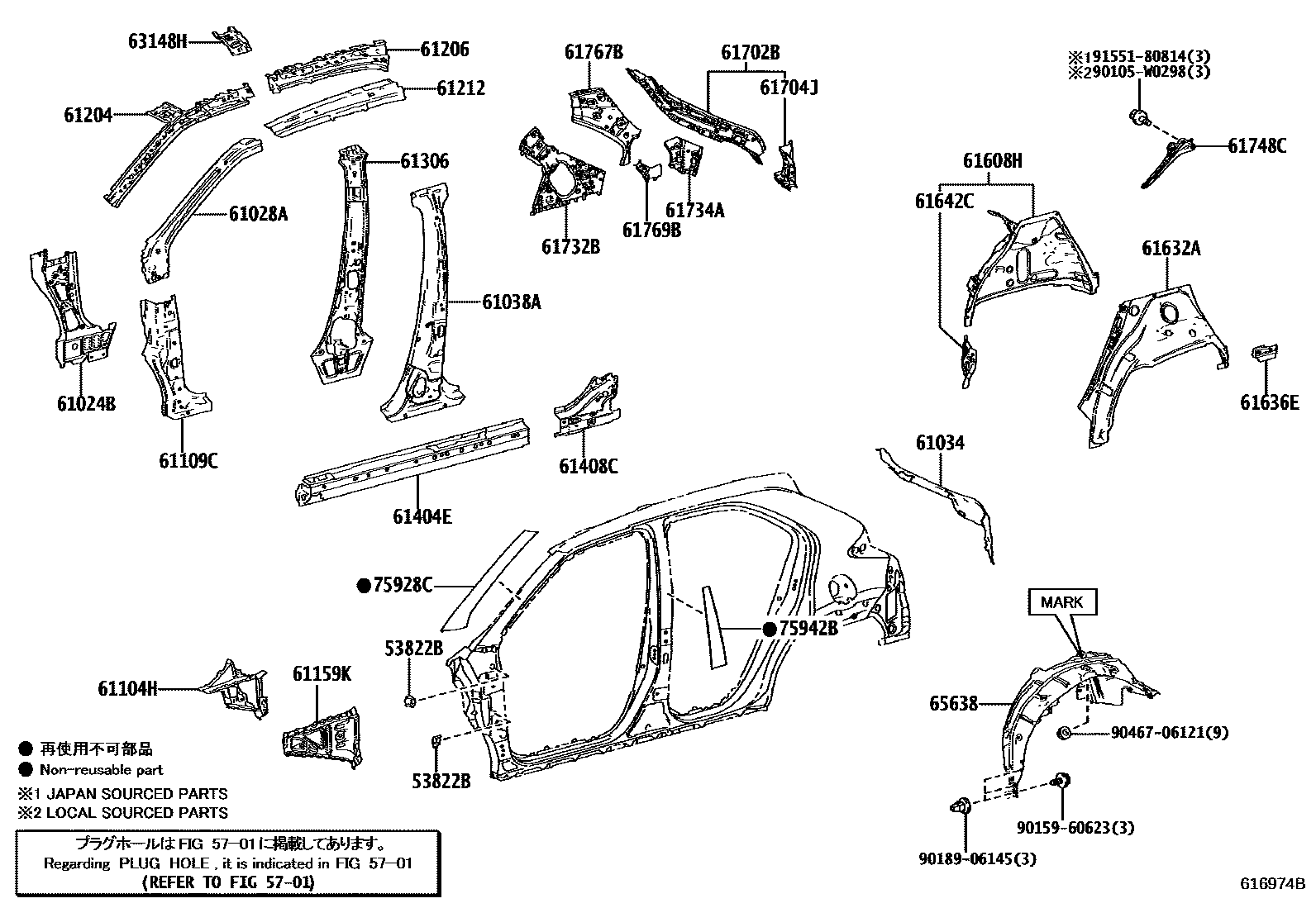

Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-K0010 |
| 53822B | Left front fender rear support | 53821-K0010 |
| 61013C | Right inner panel sub-assembly | 61013-0D020 · 61013-0D030 |
| 61014C | Left inner panel sub-assembly | 61014-0D020 · 61014-0D030 |
| 61023B | Right body inner front pillar sub-assembly | 61023-K0030 |
| 61024B | Left body inner front pillar sub-assembly | 61024-K0030 |
| 61027A | Right body outer front pillar sub-assembly | 61027-K2011 · 61027-K2900 |
| 61028A | Left body outer front pillar sub-assembly | 61028-K2011 · 61028-K2900 |
| 61033C | SOUS-ENS. RENFORT, LAT OUV HAYON, MD | 61033-0D250 · 61033-0D260 · 61033-K2010 · 61033-K2020 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-0D260 · 61034-0D270 · 61034-K2010 · 61034-K2020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-K2010 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-K2010 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61103-K2010 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61104-K2010 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-K2010 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-K2010 |
| 61158A | Extension section under right front pillar | 61158-K2010 |
| 61159K | Extension section under left front pillar | 61159-K2010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-K2010 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-K2010 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-K2010 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-K2010 |
| 61211 | Roof right outer longitudinal beam | 61211-K2010 |
| 61212 | Roof left outer longitudinal beam | 61212-K2010 |
| 61217D | No. 4 longitudinal beam on the outer right side of the roof | 61217-0D020 |
| 61218C | No. 4 longitudinal beam on the left side of the roof | 61218-0D020 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-K2010 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-K2010 |
| 61311B | Right body outer center pillar | 61311-0D170 · 61311-0D180 |
| 61312B | Left body outer center pillar | 61312-0D170 · 61312-0D180 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-K2011 · 61403-K2900 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-K2011 · 61404-K2900 |
| 61407A | SOUS-ENS PLAQUE, MARCHEPIED, INF MD | 61407-K2010 |
| 61408C | SOUS-ENS PLAQUE, MARCHEPIED, INF MG | 61408-K2010 |
| 61411 | Right door outer sill panel | 61411-0D190 |
| 61412 | Left door outer sill panel | 61412-0D190 |
| 61601B | Right side enclosure sub-assembly | 61601-0D370 |
| 61602C | Left side enclosure sub-assembly | 61602-0D520 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-K2010 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-0D490 |
| 61631A | Right wheel cover outer panel | 61631-0D090 · 61631-K2010 |
| 61632A | Left side wheel cover outer panel | 61632-0D090 · 61632-K2010 |
| 61635E | Right wheel housing extension | 61635-K2010 |
| 61636E | Left side wheel housing extension | 61636-K2010 |
| 61641C | Right front side wheel housing corner panel | 61641-K2010 |
| 61642C | Left front side wheel housing corner panel | 61642-K2010 |
| 61701B | Roof right inner upper panel sub-assembly | 61701-0D420 · 61701-K2010 |
| 61702B | Roof left inner upper panel sub-assembly | 61702-0D490 · 61702-K2010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-K2010 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-K2010 |
| 61731B | Roof right inner panel | 61731-K2010 |
| 61732B | Roof left inner panel | 61732-K2010 |
| 61733A | Right front roof inner panel | 61733-K2010 |
| 61734A | Left front roof inner panel | 61734-K2010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-K2010 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-K2010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-K2010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-K2010 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-K2010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-K2020 |
| 63147E | Roof panel reinforcement bracket | 63147-K2010 |
| 63148H | Roof panel reinforcement bracket | 63148-K2020 |
| 65637 | Right rear wheel house lining | 53807-0D010 · 65637-0D010 · 65637-0D011 |
| 65638 | Left rear wheel house lining | 53808-0D010 · 65638-0D010 · 65638-0D011 |
| 75927C | No. 4 right side light-blocking film | 75927-0D050 · 75927-K2010 |
| 75928C | No. 4 left shading film | 75928-0D050 · 75928-K2010 |
| 75941A | Right center pillar trim | 75925-K2010 |
| 75942B | Left center pillar trim | 75926-K2010 |
