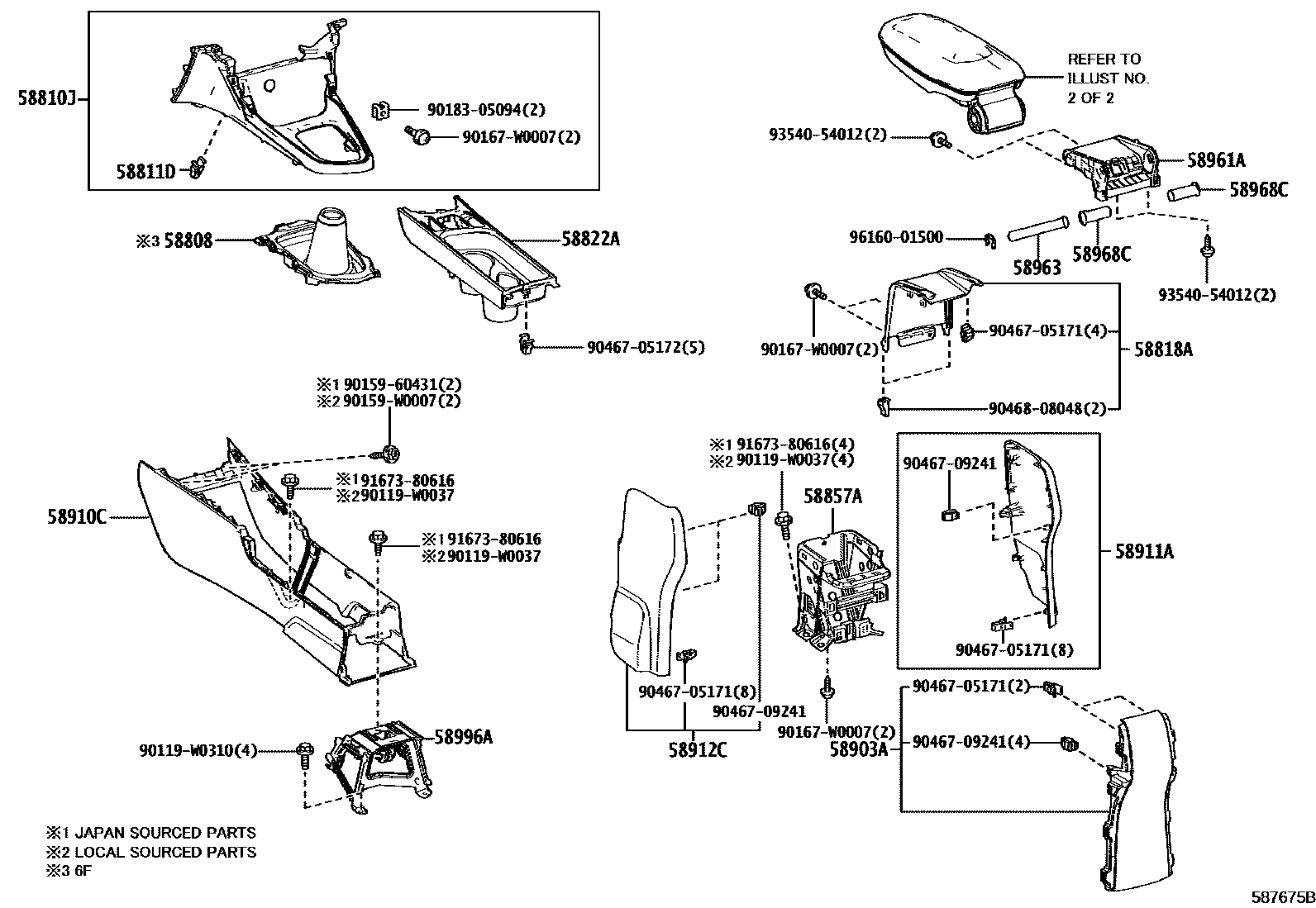

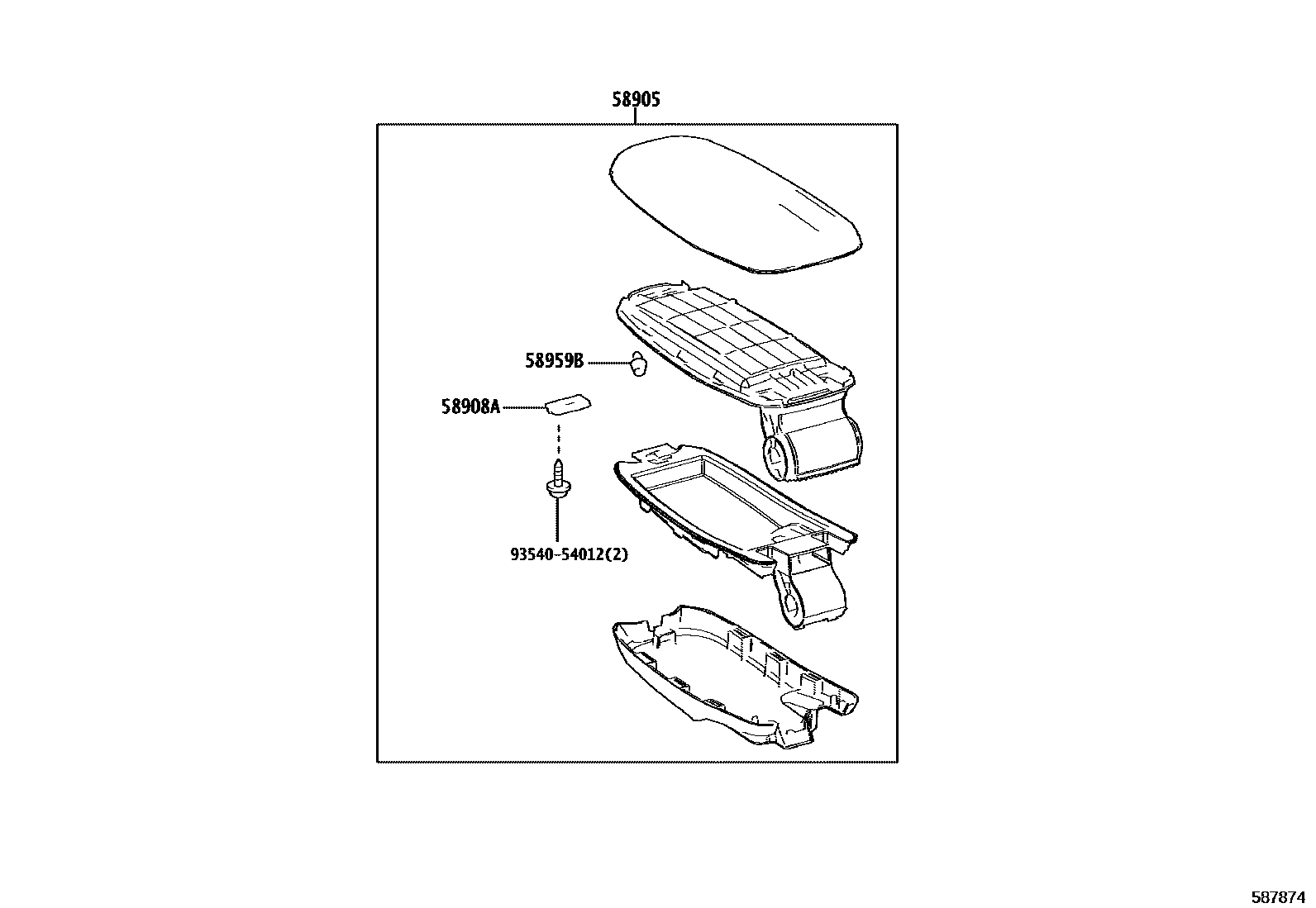

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-05172 |
| 58857A | Armrest box No. 1 upper bracket | 58857-K0020 |
| 58908A | Armrest box lid lock assembly | 58908-12080 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58961A | Armrest box lid protruding hinge | 58961-K0020 |
| 58963 | Armrest box lid hinge shaft | 58963-K0020 |
| 58968C | Armrest box lid stopper gasket | 58968-K0020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-K0060 |
