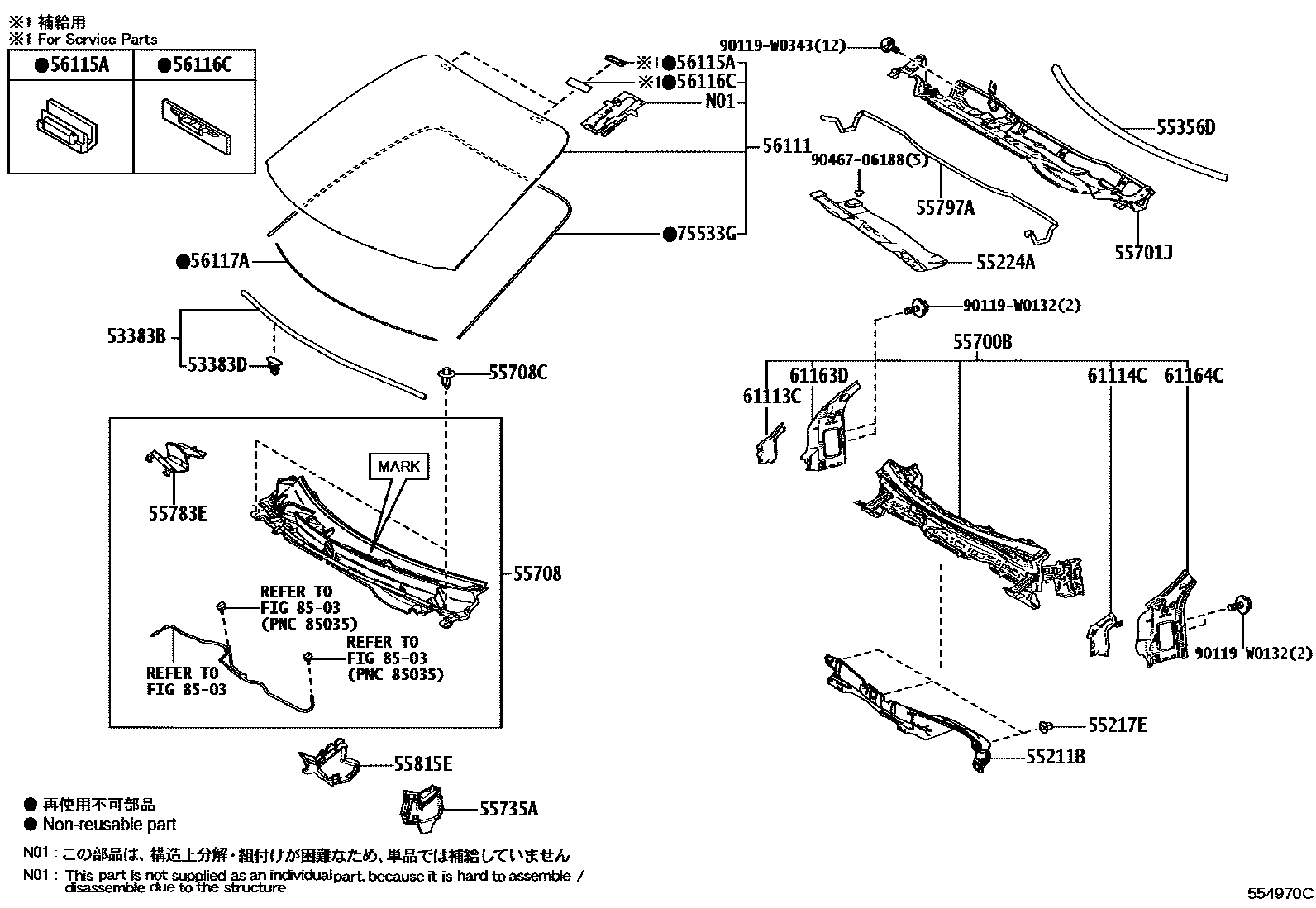

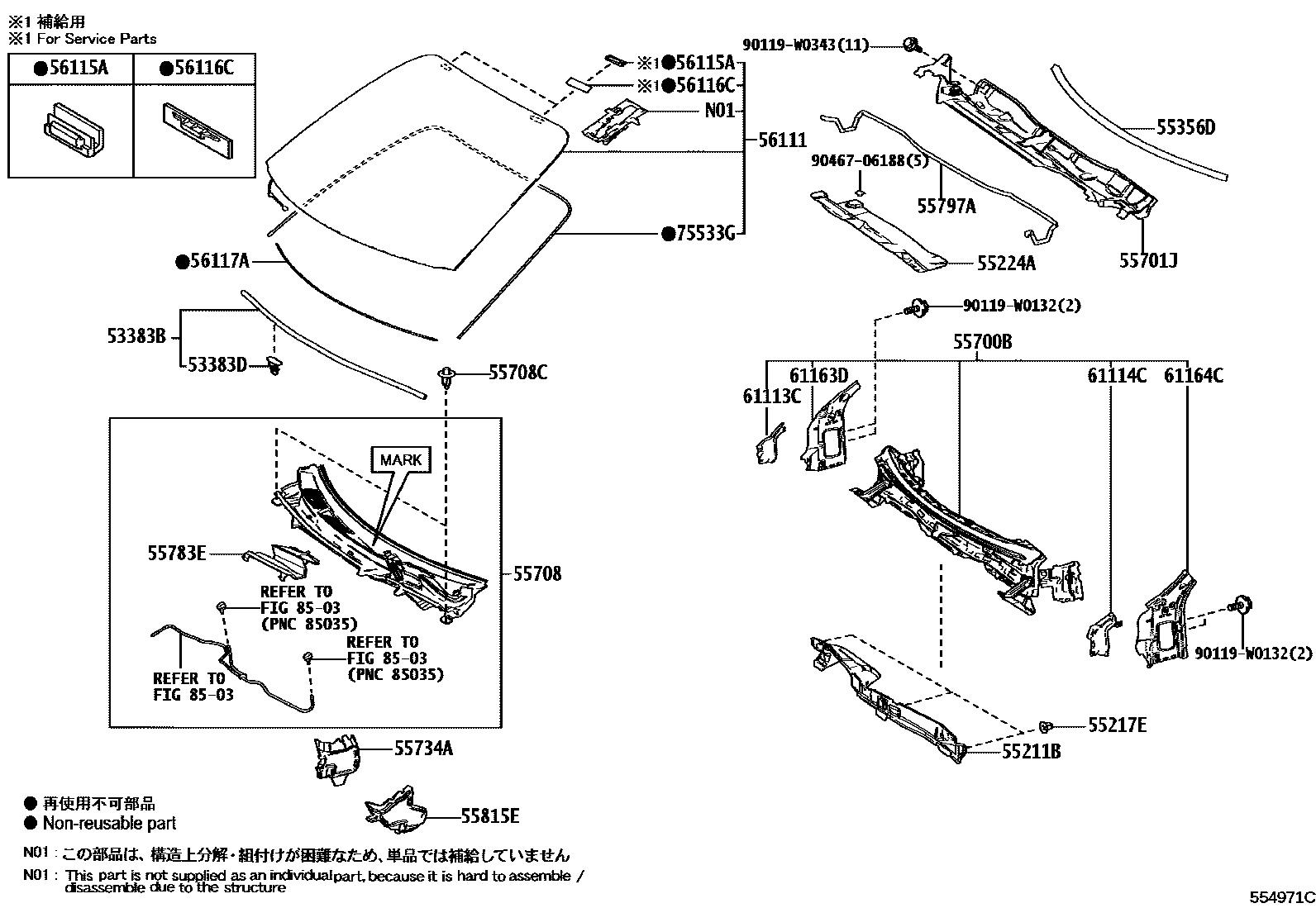

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-K2010 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55211B | Front panel silencer | 55211-0D240 · 55211-0D250 · 55211-K0010 · 55211-K0020 |
| 55217E | ARRETOIR, SILENCIEUX TABLEAU DE BORD | 55217-51010 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-0D040 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-K2010 |
| 55700B | ENS. AUVENT | 55700-0D380 · 55700-K2010 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0D210 · 55701-0D240 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-0D510 · 55708-0D511 · 55708-0D520 · 55708-0D521 · 55708-0D530 · 55708-0D531 |
| 55734A | Right waterproof cover | 55735-0D060 |
| 55735A | Left waterproof cover panel | 55735-K2010 |
| 55783E | AERATEUR, VENT DESSUS TABLIER, CENTRAL | 55783-0D260 · 55783-0D270 |
| 55797A | Front wall pumping device seal | 55797-K0010 |
| 55815E | No. 1 front vent seal | 55815-0D030 · 55815-K2010 |
| 56111 | windshield | 56101-0DB81 · 56101-0DB91 · 56101-0DC01 · 56101-0DC11 · 56101-0DC21 · 56101-0DC30 · 56101-0DC40 · 56101-0DC51 · 56101-0DC61 · 56101-0DG70 · 56101-0DK00 · 56101-0DK10 · 56101-0DK20 · 56101-0DK30 · 56101-0DK40 · 56101-0DK50 · 56101-0DK60 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 61113C | PANNEAU, LATERAL, INT MD | 61113-K0010 |
| 61114C | PANNEAU, LATERAL, INT MG | 61114-K0010 |
| 61163D | MONTANT, CARROSSERIE AVANT, INT INF MD | 61163-K2010 |
| 61164C | MONTANT, CARROSSERIE AVANT, INT INF MG | 61164-K2010 |
| 75533G | Windshield outer protective strip | 75533-0D110 |
