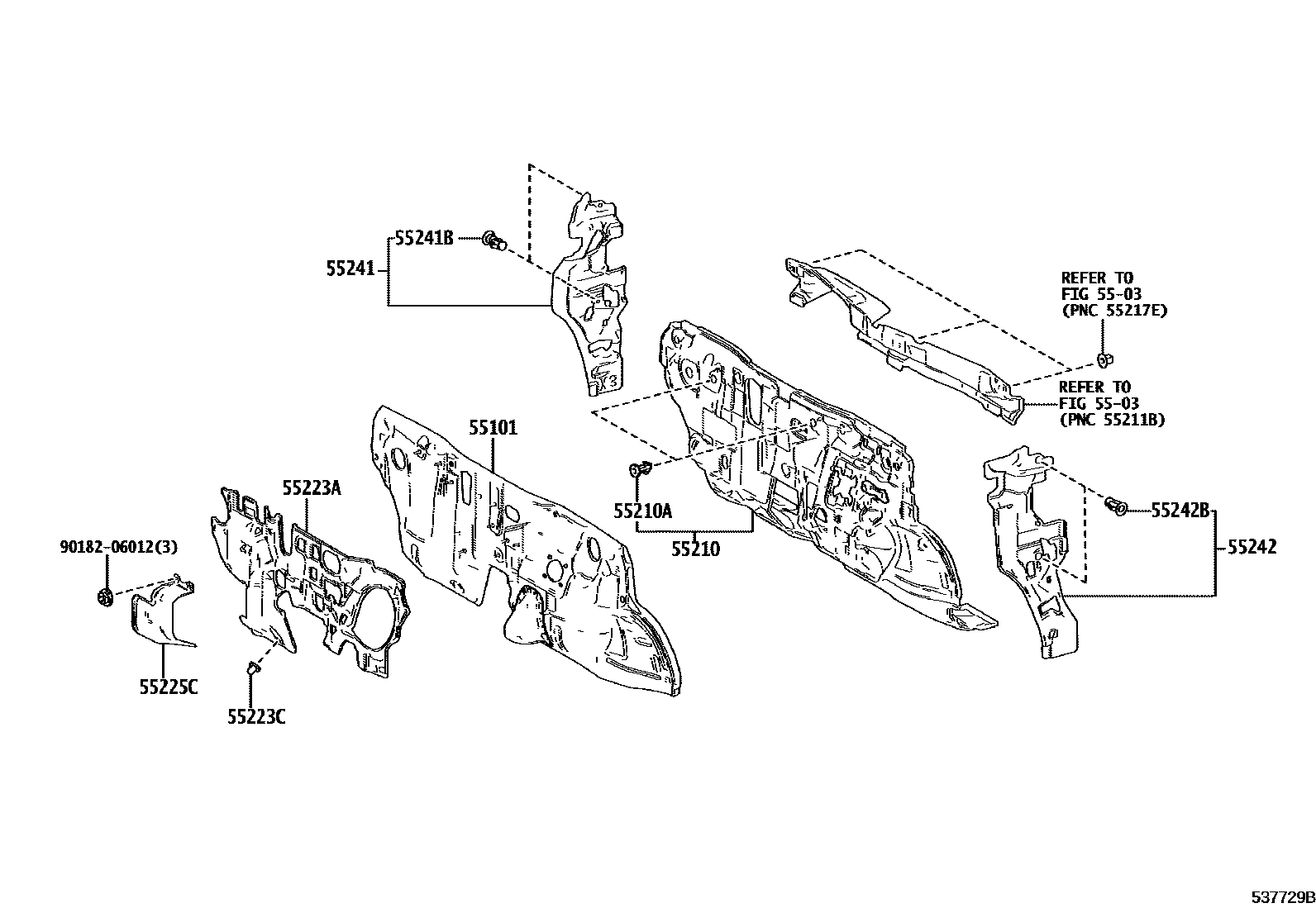

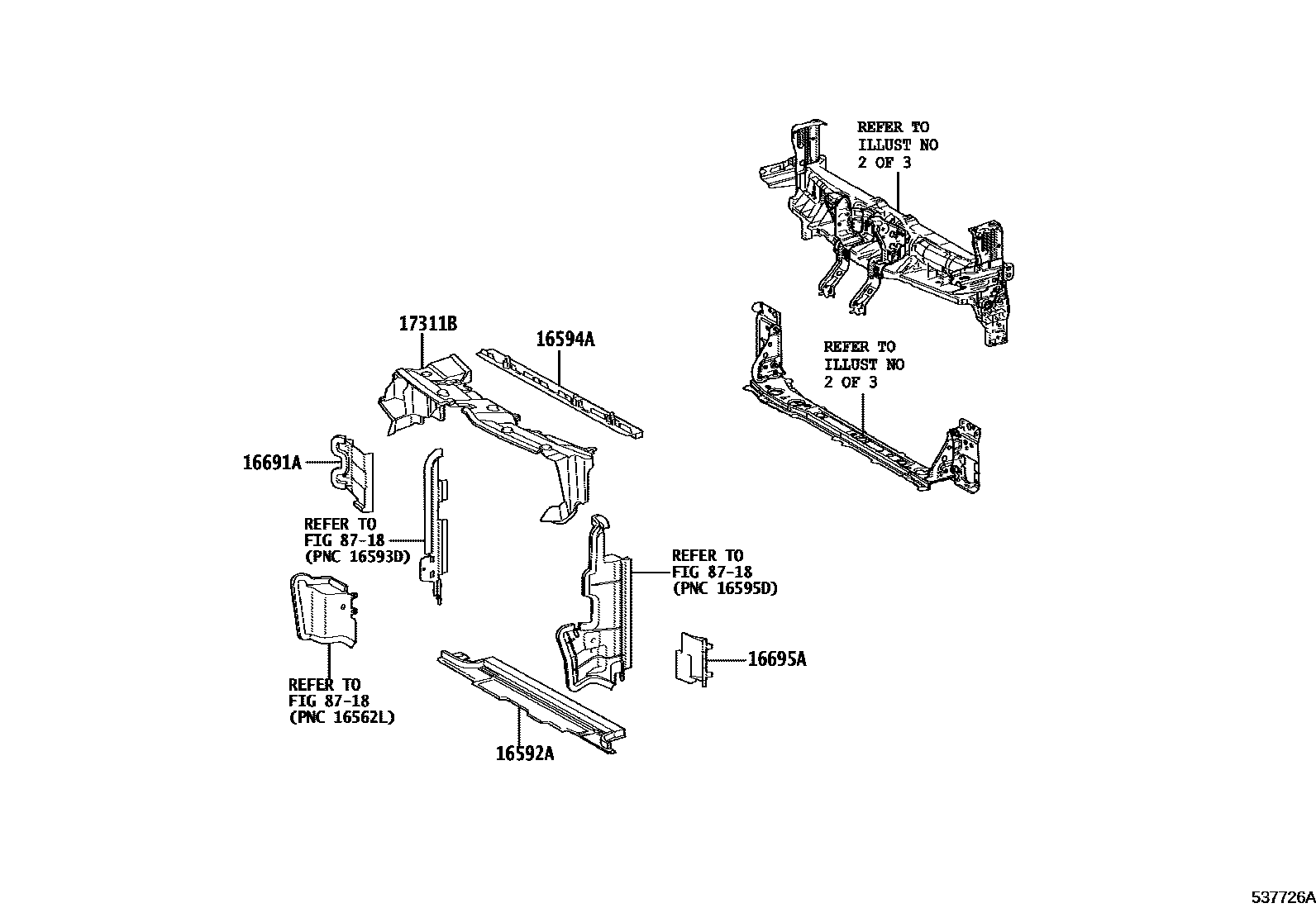

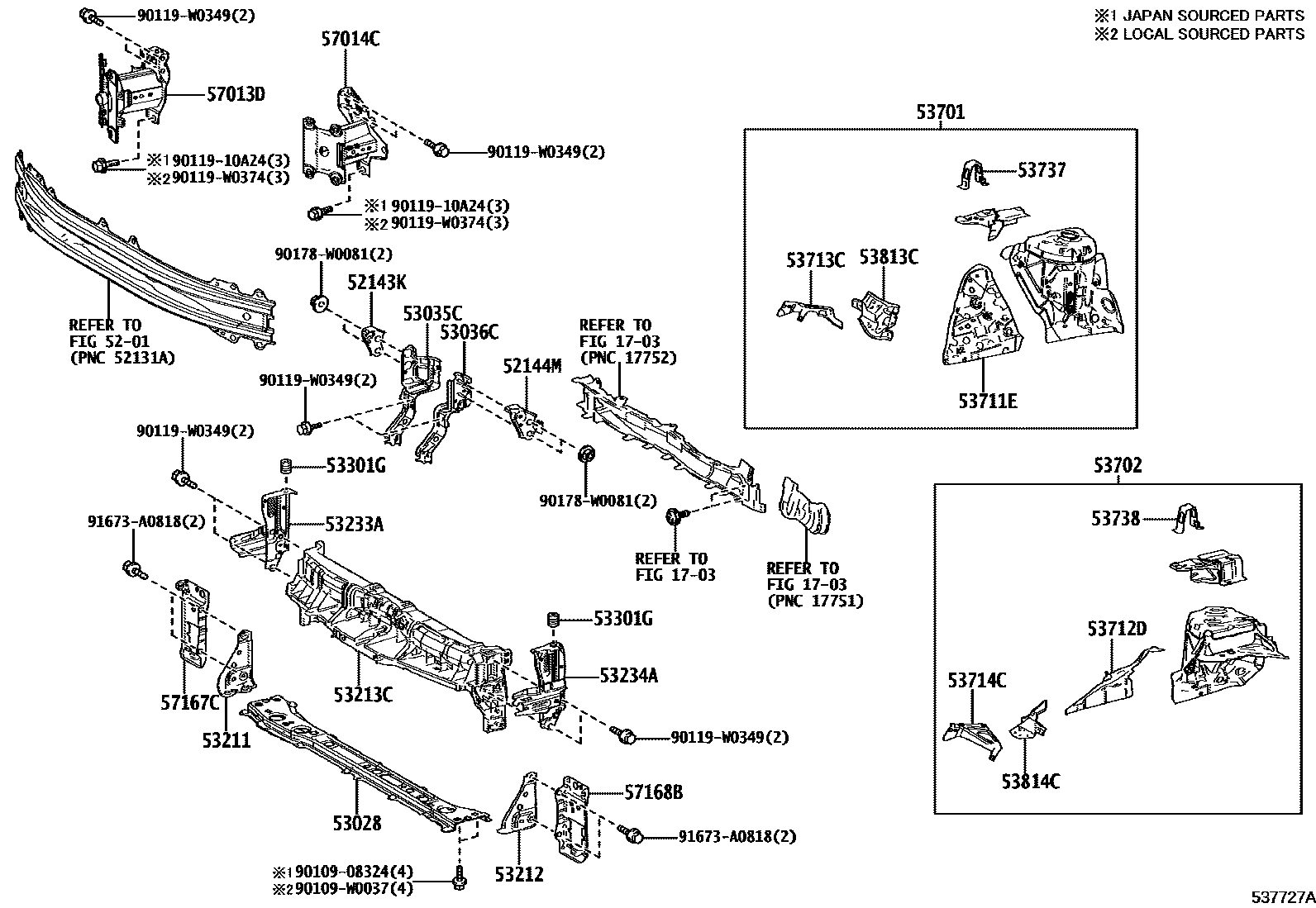

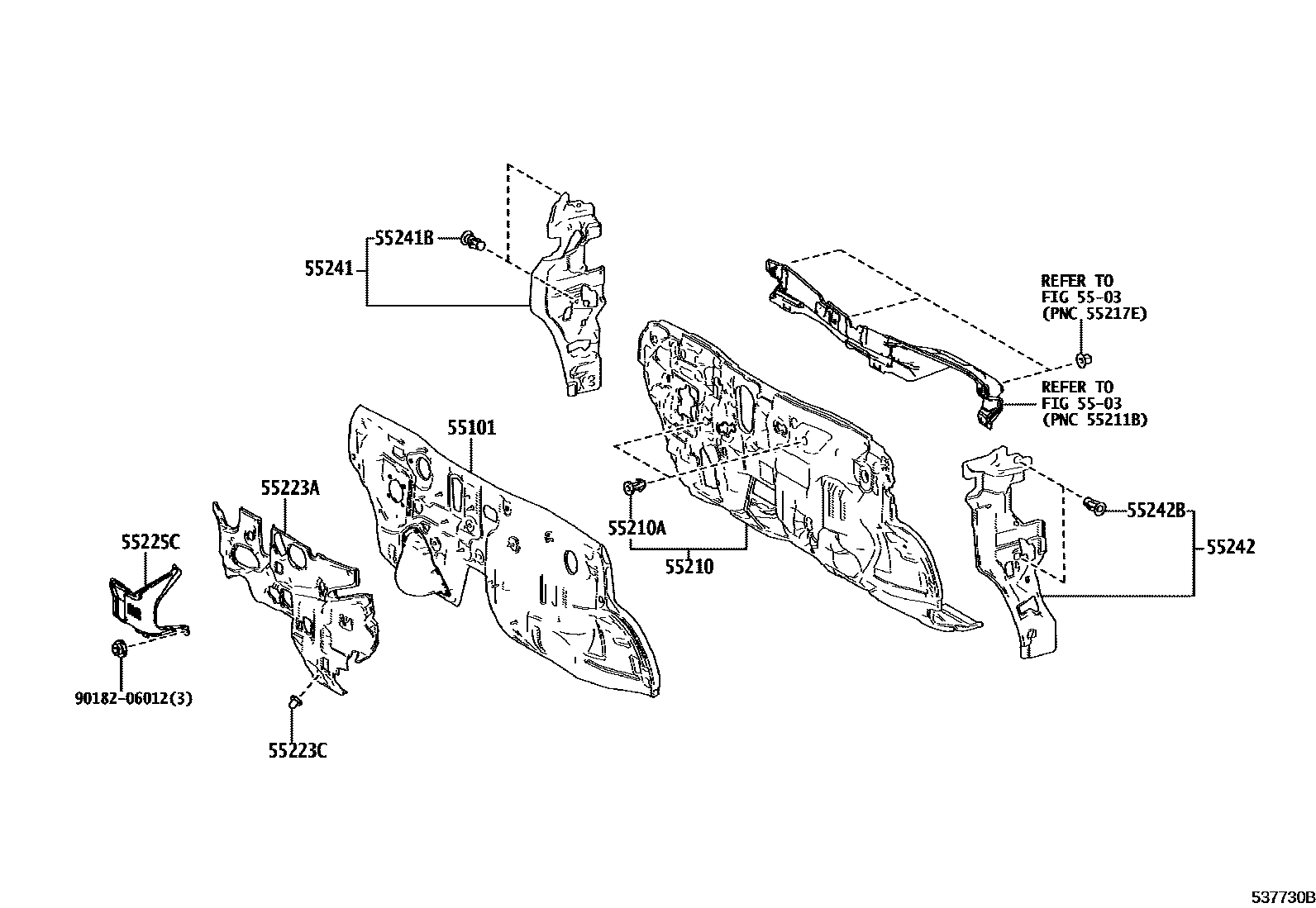

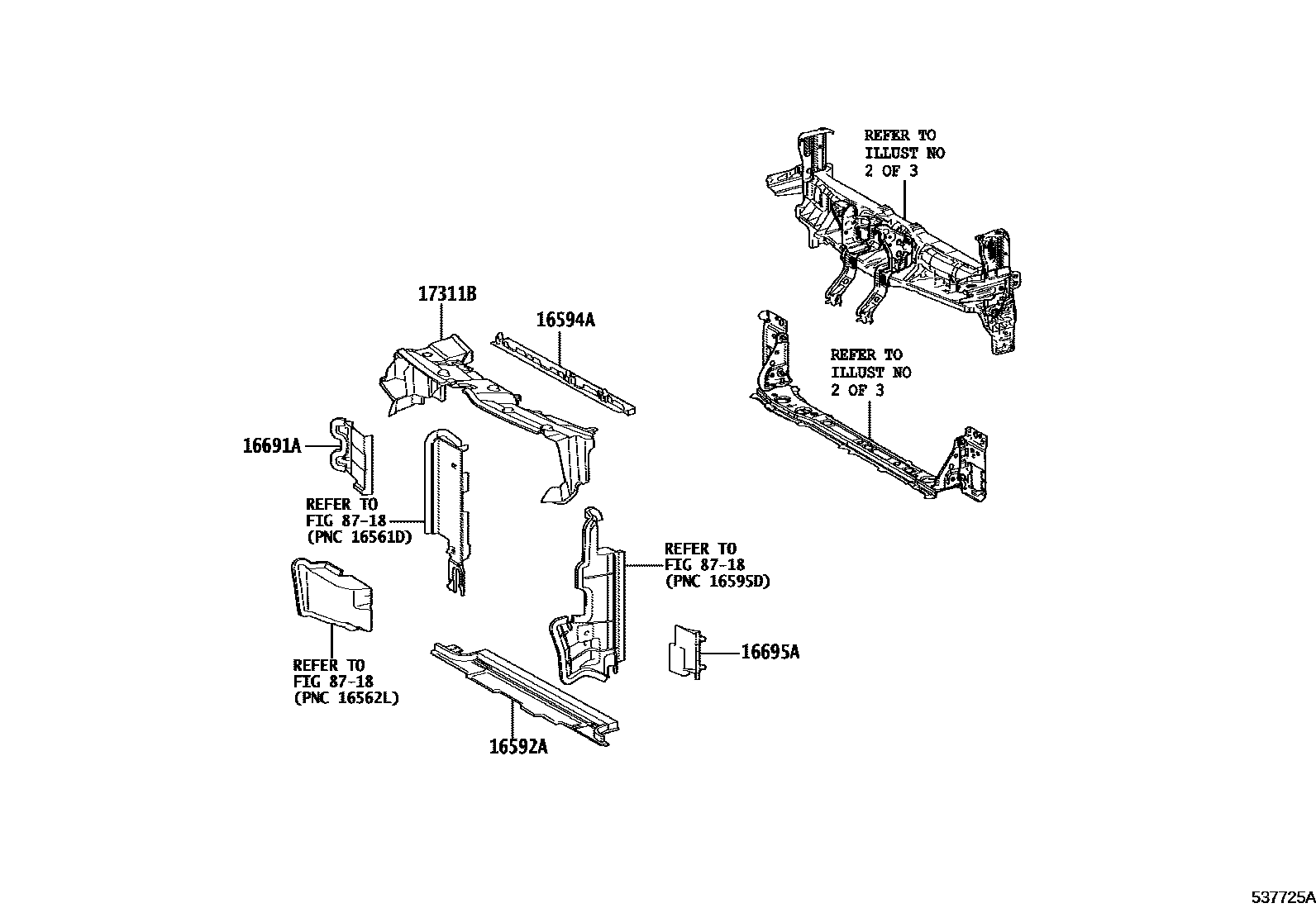

Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304
Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-F3030 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-K0030 · 16594-K0040 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-F3010 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-K0020 |
| 17311B | CONDUIT, ENTREE AIR, NO.1 | 17301-F3020 |
| 52143K | BRAS, PARE-CHOCS AVANT, INFERIEUR DROIT | 52143-K2010 |
| 52144M | BRAS, PARE-CHOCS AVANT, INFERIEUR GAUCHE | 52144-K2010 |
| 53028 | Radiator lower bracket sub-assembly | 53028-0D130 |
| 53035C | SOUS-ENS. SUPPORT, FIXATION PANNEAU EXTREM AVANT, MD | 53035-0D040 |
| 53036C | SOUS-ENS. SUPPORT, FIXATION PANNEAU EXTREM AVANT, MG | 53036-0D040 |
| 53211 | Radiator right side support | 53211-K0010 |
| 53212 | Radiator left support | 53212-K0010 |
| 53213C | Radiator front upper bracket | 53213-K0010 · 53213-K0011 |
| 53233A | No. 1 right headlight bracket | 53233-0D080 · 53233-0D100 |
| 53234A | No. 1 left headlight bracket | 53234-0D080 · 53234-0D100 |
| 53301G | engine cover cushion | 90541-W0003 |
| 53701 | Right front fender fender sub-assembly | 53701-K2010 |
| 53702 | Left front fender fender sub-assembly | 53702-K2010 |
| 53711E | TABLIER, AILE AVANT, MD | 53711-K0010 |
| 53712D | TABLIER, AILE AVANT, MG | 53712-K0010 |
| 53713C | Right front fender fender front extension | 53713-K2010 |
| 53714C | Left front fender fender front extension | 53714-K2010 |
| 53737 | Right front fender to front wall side sill | 53737-K2010 |
| 53738 | Left front fender to front wall side sill | 53738-K2010 |
| 53813C | Right front fender extension | 53803-0D010 |
| 53814C | Left front fender extension | 53804-0D010 |
| 55101 | Front apron sub-assembly | 55101-K0010 · 55101-K0020 · 55101-K0030 · 55101-K0040 |
| 55210 | Front wall insulation pad assembly | 55210-0D850 · 55210-0D860 · 55210-0D880 · 55210-0DA00 · 55210-K0010 · 55210-K0030 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-K0020 · 55223-K0040 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-K0010 · 55225-K0020 |
| 55241 | Front panel No. 1 right side silencer | 55241-0D010 · 55241-K0010 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-0D010 · 55242-K0010 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 57013D | SOUS-ENS. PLATEAU. FIX., LONGERON LAT. AVANT, DR. | 57013-K2010 |
| 57014C | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MG | 57014-K2010 |
| 57167C | Front cross member right corner panel | 57167-K0010 |
| 57168B | Front cross member left corner panel | 57168-K0010 |
