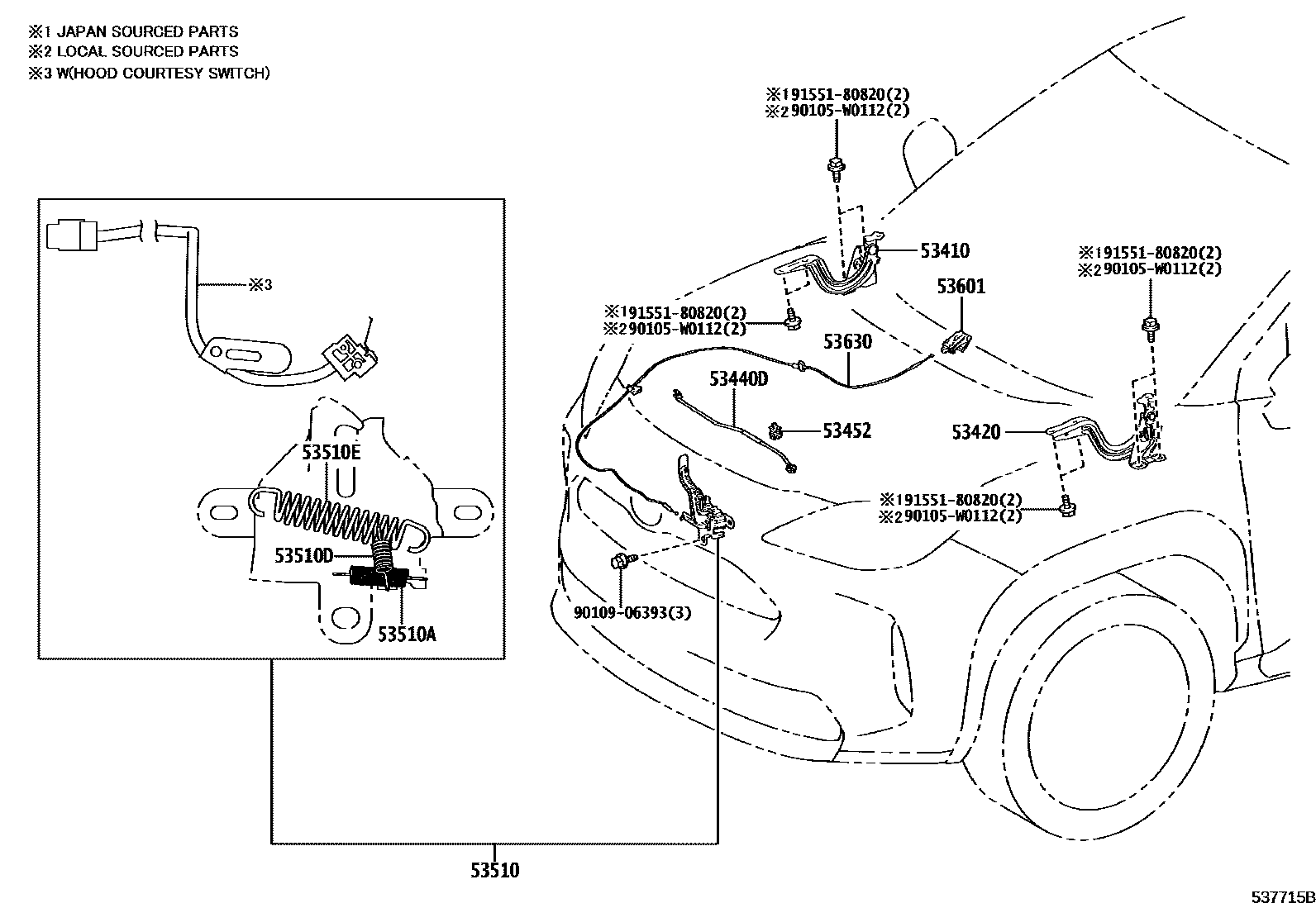

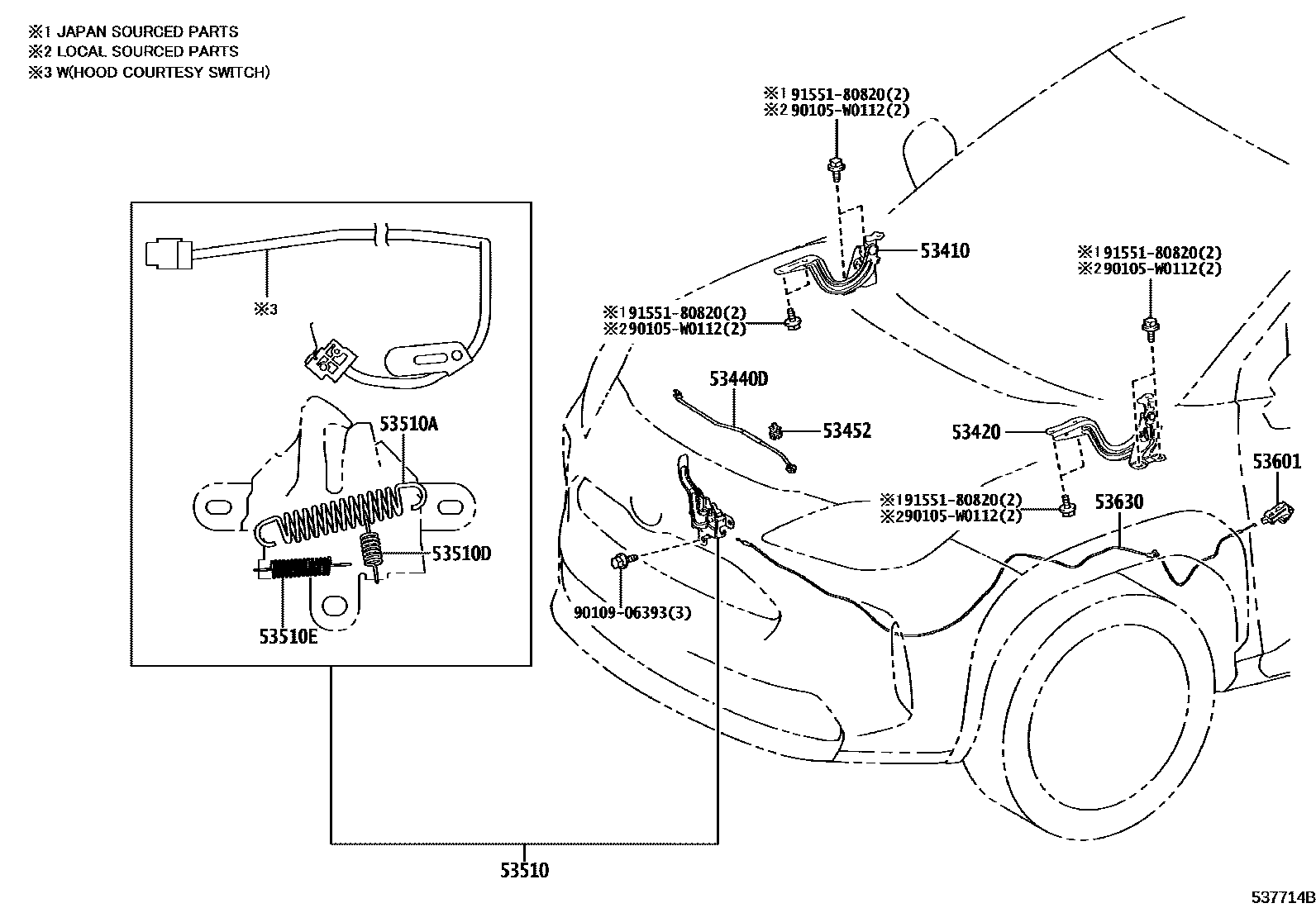

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0D850 |
| 53420 | Engine cover left hinge assembly | 53420-0D850 |
| 53440D | Engine cover support rod assembly | 53440-K2010 |
| 53452 | Engine cover stay rod fixing | 53452-K0010 |
| 53510 | Engine cover lock assembly | 53510-0D870 · 53510-0D880 · 53510-0D890 · 53510-0DA00 |
| 53510A | Tension spring (for hood lock) | 90506-W0008 |
| 53510D | Tension spring (for hood lock) | 90506-W0009 |
| 53510E | Tension spring (for hood lock) | 90506-W0010 |
| 53630 | Engine hood lock control cable assembly | 53630-K0010 · 53630-K0020 |
