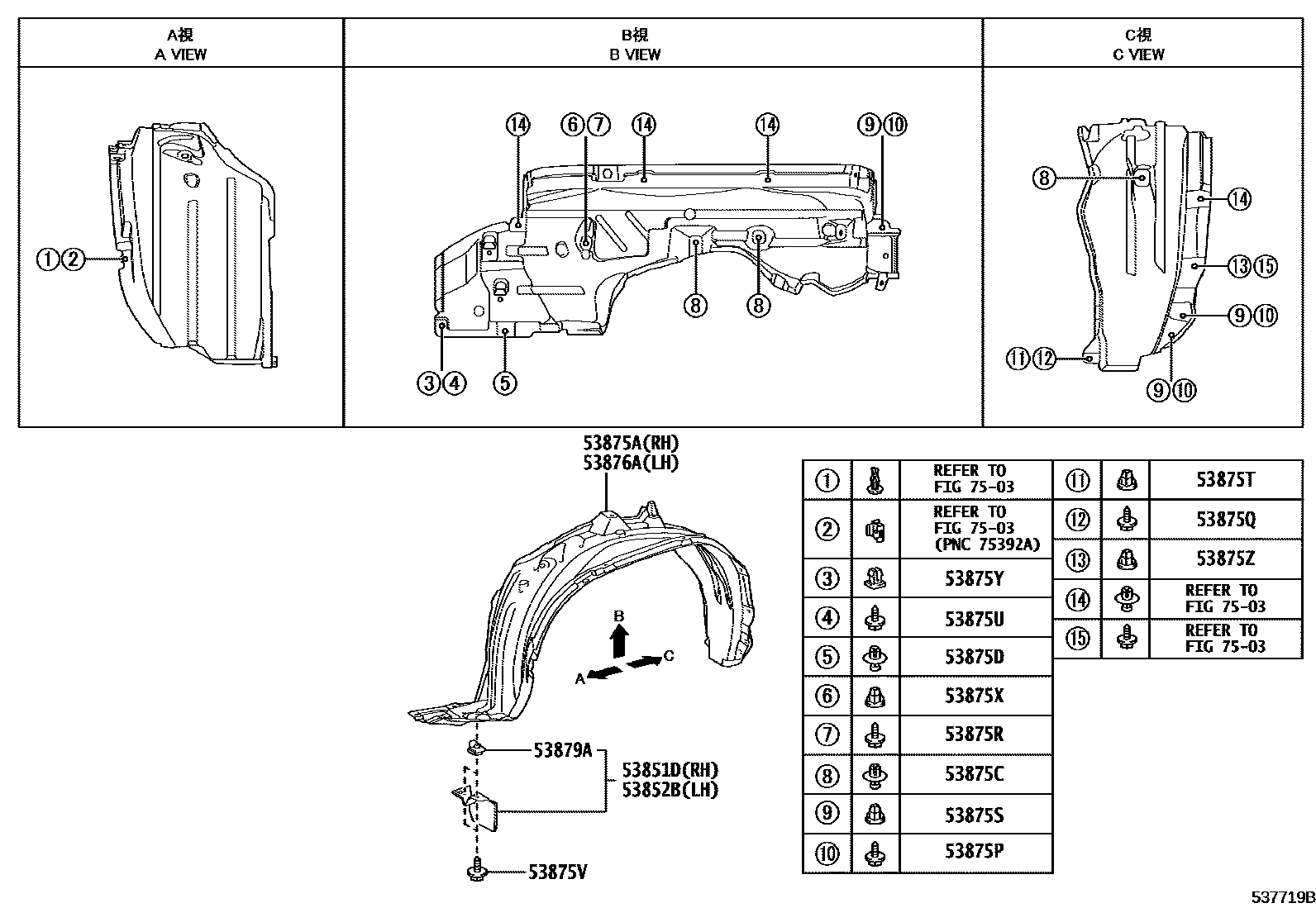

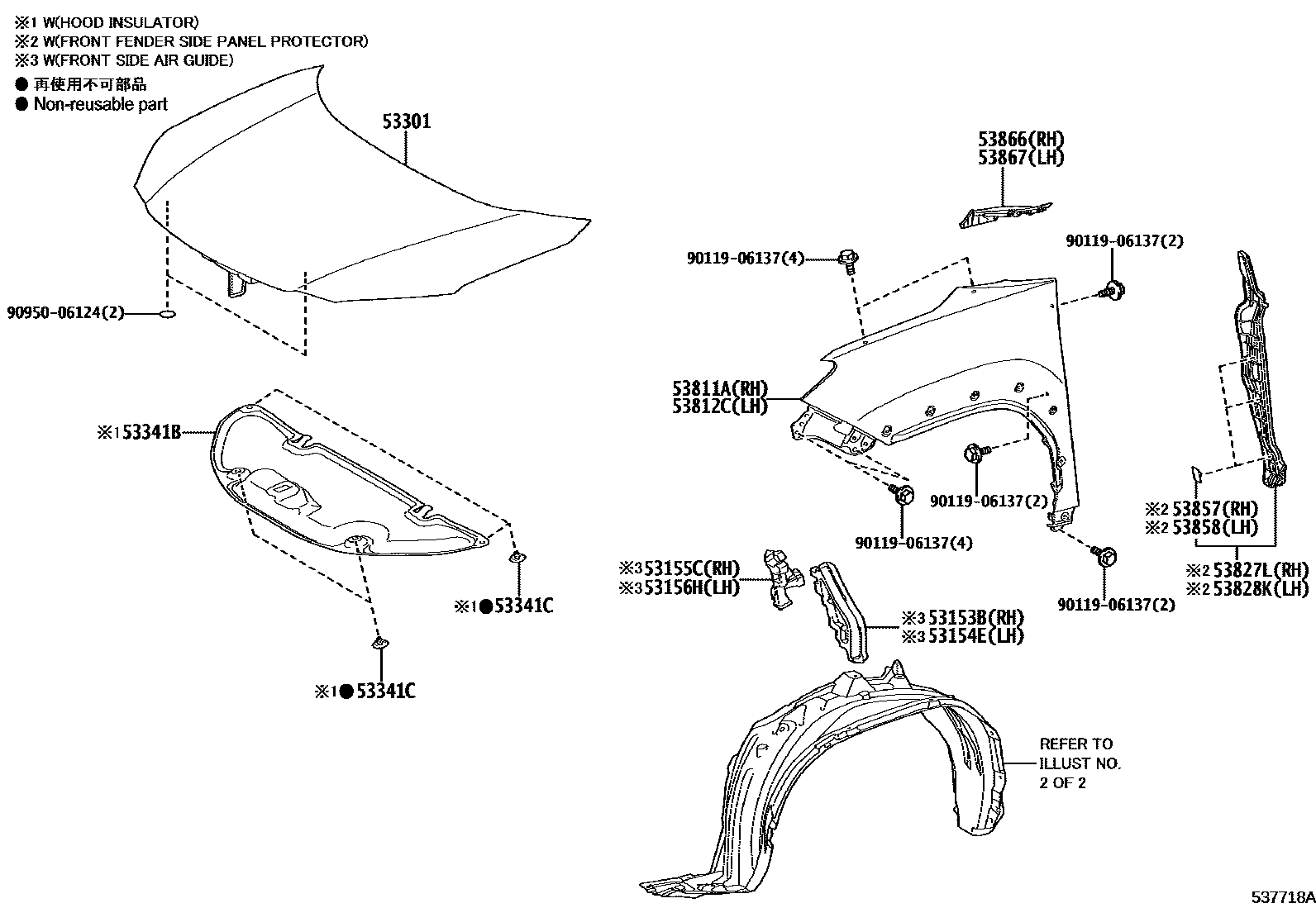

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-K2010 |
| 53154E | GUIDE AERATION LATERALE AVANT NO. 2 | 53154-K2010 |
| 53155C | Radiator grille seal No. 1 | 53155-K2010 |
| 53156H | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-K2010 |
| 53301 | Engine cover sub-assembly | 53301-K2010 |
| 53341B | engine cover gasket | 53341-0D380 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53811A | right front fender | 53811-K2010 |
| 53812C | left front fender | 53812-K2010 |
| 53827L | Right front fender side panel protector | 53827-K2010 |
| 53828K | Left front fender side panel protector | 53828-K2010 |
| 53851D | Right front fender outer panel pad | 53851-K2010 |
| 53852B | Left front fender exterior panel pad | 53852-K2010 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53866 | Right front fender to cowl side seal | 53866-0D310 · 53866-K2010 |
| 53867 | Left front fender to cowl side seal | 53867-0D310 · 53867-K2010 |
| 53875A | Right front fender lining | 53805-0D020 · 53875-0D420 · 53875-0D421 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875D | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.2 | 90467-07214 |
| 53875P | VIS, NO.1 | 90159-60623 |
| 53875Q | VIS, NO.2 | 90159-60623 |
| 53875R | VIS, NO.3 | 90159-60623 |
| 53875S | OEILLET, NO.1 | 90189-06236 |
| 53875T | OEILLET, NO.2 | 90189-06236 |
| 53875U | VIS, NO.4 | 90159-W0026 |
| 53875V | VIS, NO.5 | 90159-W0026 |
| 53875X | OEILLET, NO.3 | 90189-06236 |
| 53875Y | OEILLET, NO.4 | 90189-06237 |
| 53875Z | OEILLET, NO.5 | 90189-06236 |
| 53876A | Left front fender lining | 53806-0D020 · 53876-0D420 · 53876-0D421 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
