Toyota YARIS 后保险杠及附件 — Figure 5202

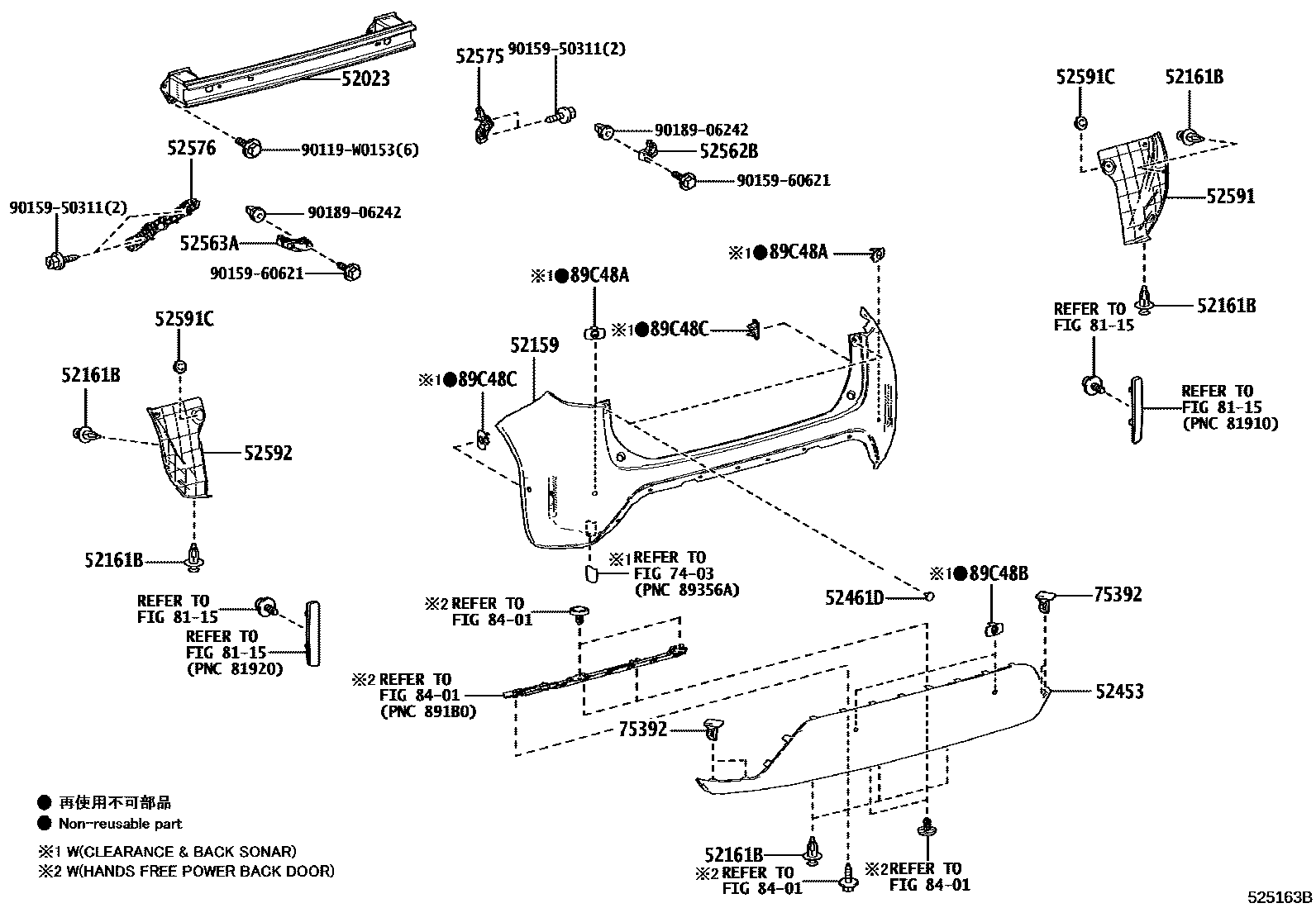

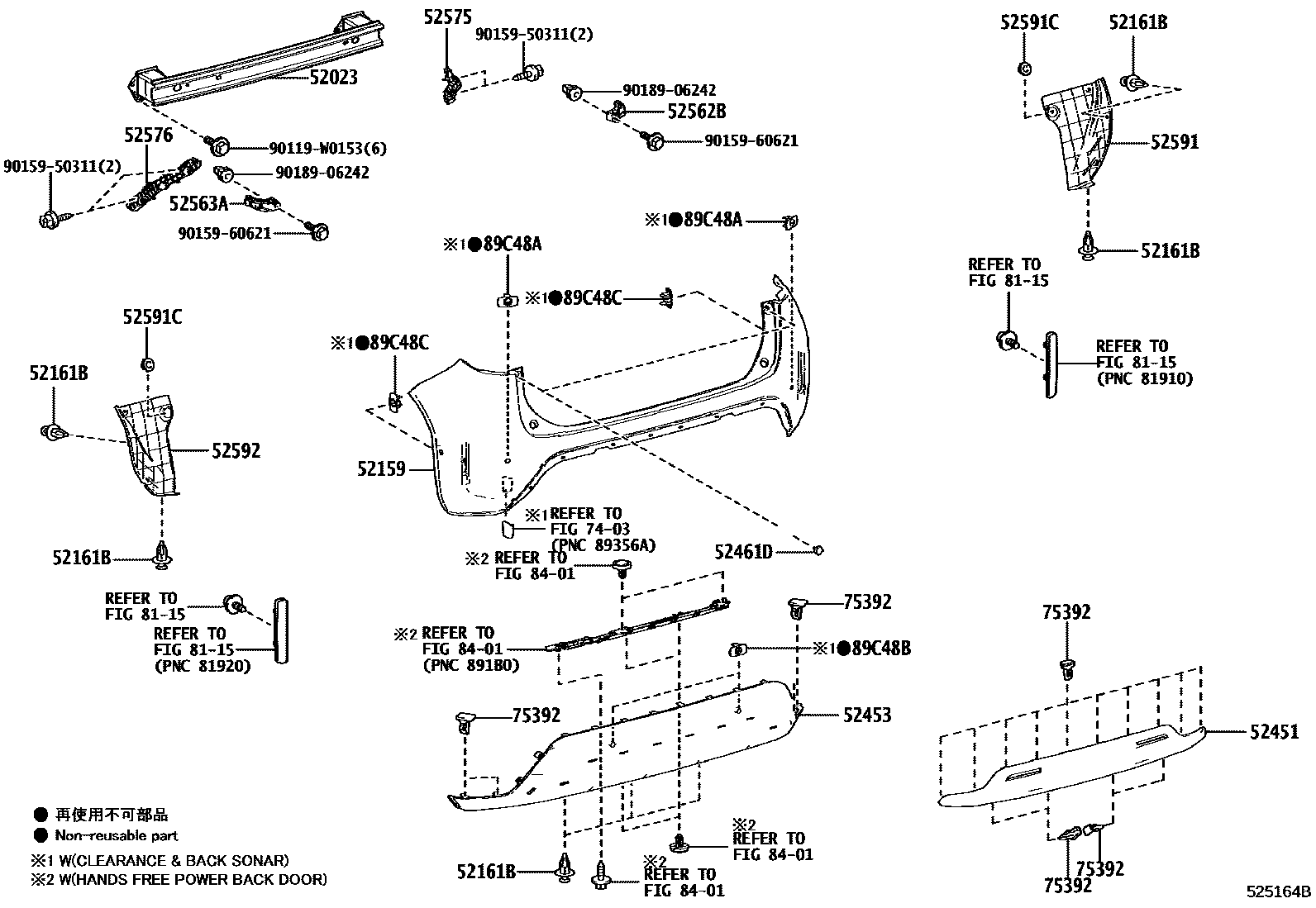

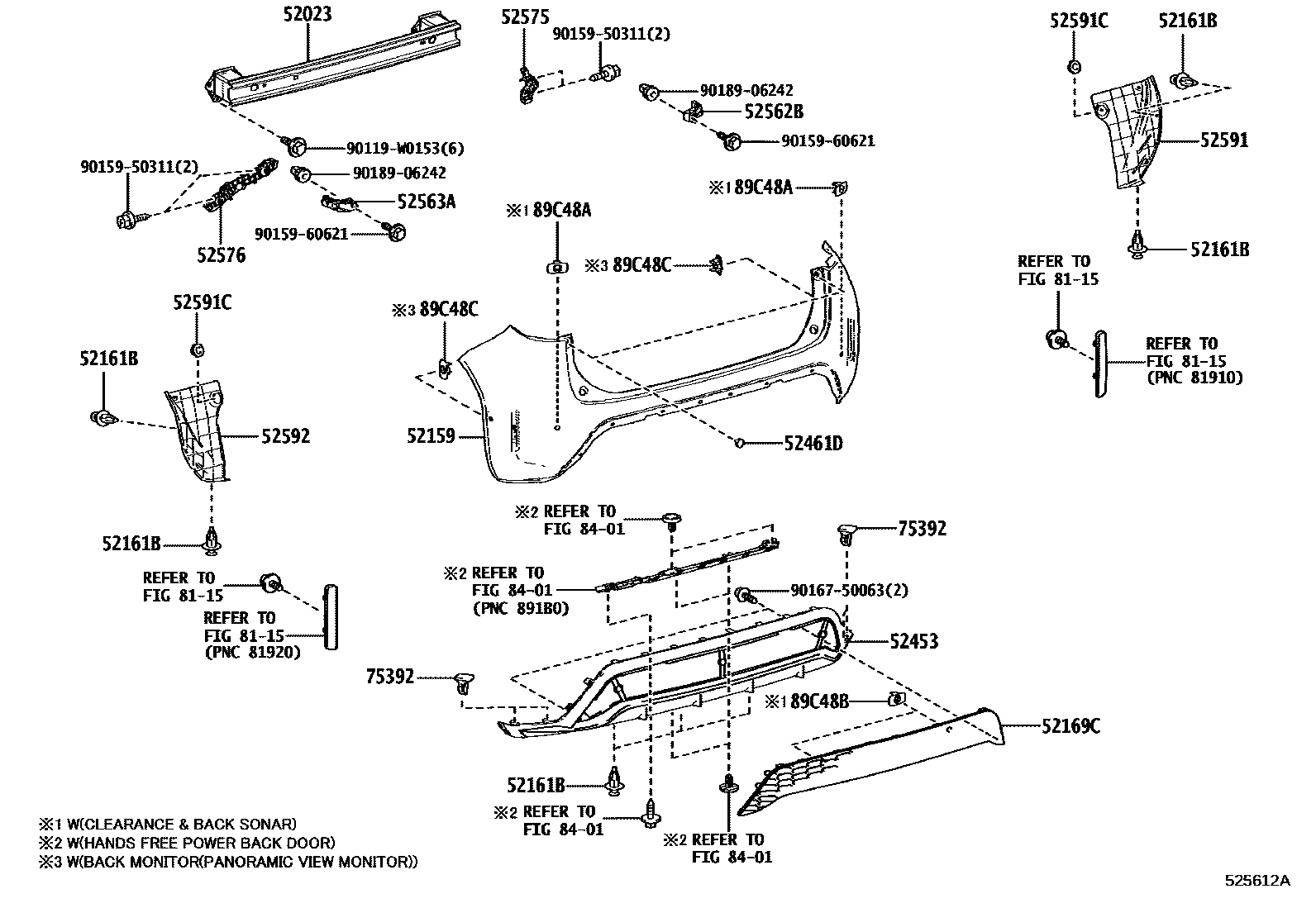

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0W020 |
| 52159 | rear bumper cover | 52159-YP918 · 52159-YP919 · 52159-YP920 |
| 52161B | Rear bumper insert | 52161-02030 |
| 52169C | Rear bumper lower cover | 53112-0DF00 · 53112-0DF10 |
| 52451 | Rear bumper anti-impact parts | 52451-0D010 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-0D100 · 52453-0D110 · 52453-0D120 · 52453-0D130 · 52453-0D170 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0D220 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0D110 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D470 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D470 |
| 52591 | Rear bumper right seal | 52591-0D540 · 52591-0D541 · 52905-0D010 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-0D540 · 52592-0D541 · 52906-0D010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-K0230 · 89348-K0231 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-K0230 · 89348-K0231 |
| 89C48C | ARRETOIR, CAPTEUR A ULTRASONS, LATERAL ARRIERE | 89348-52160 · 89348-52161 |
