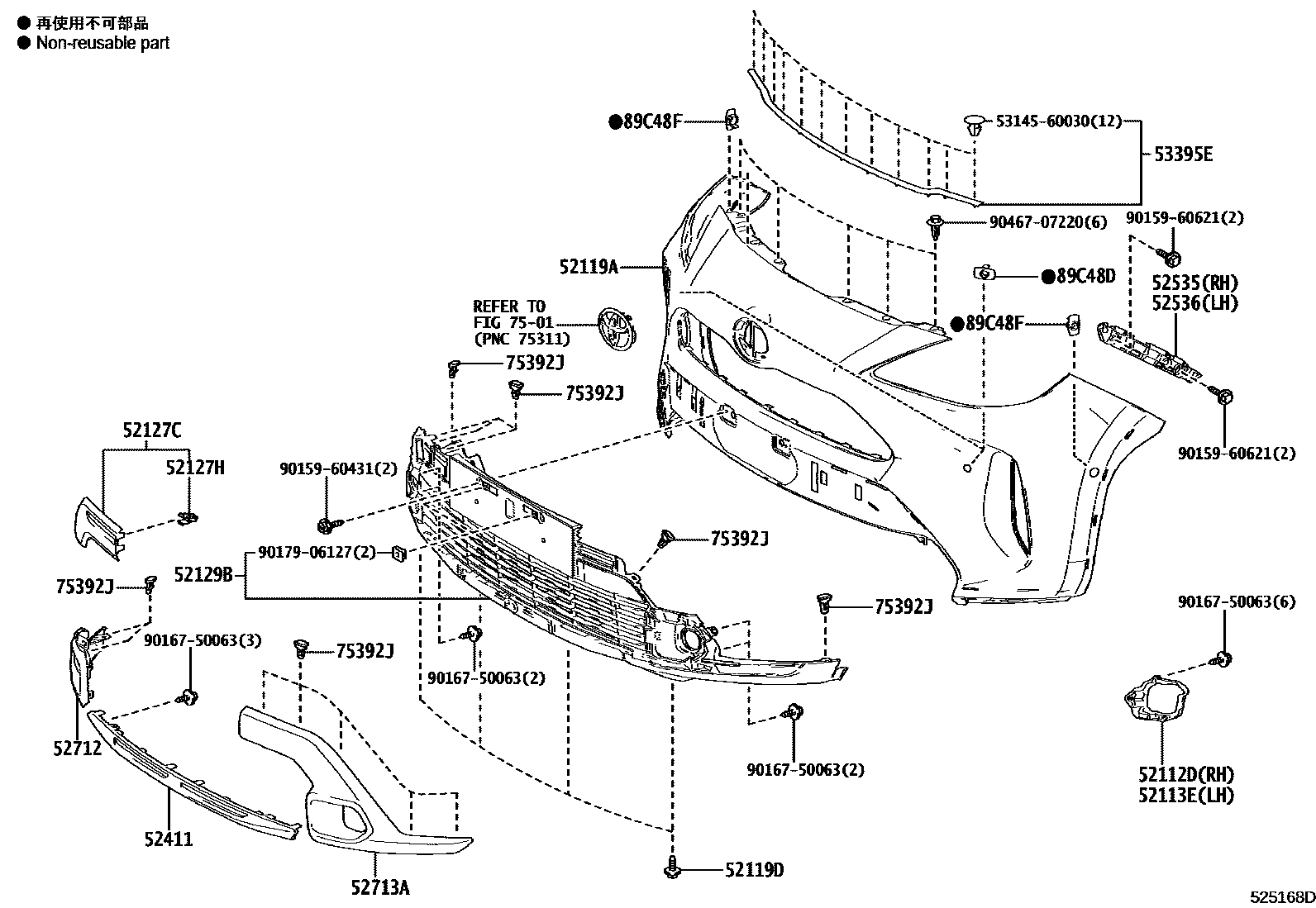

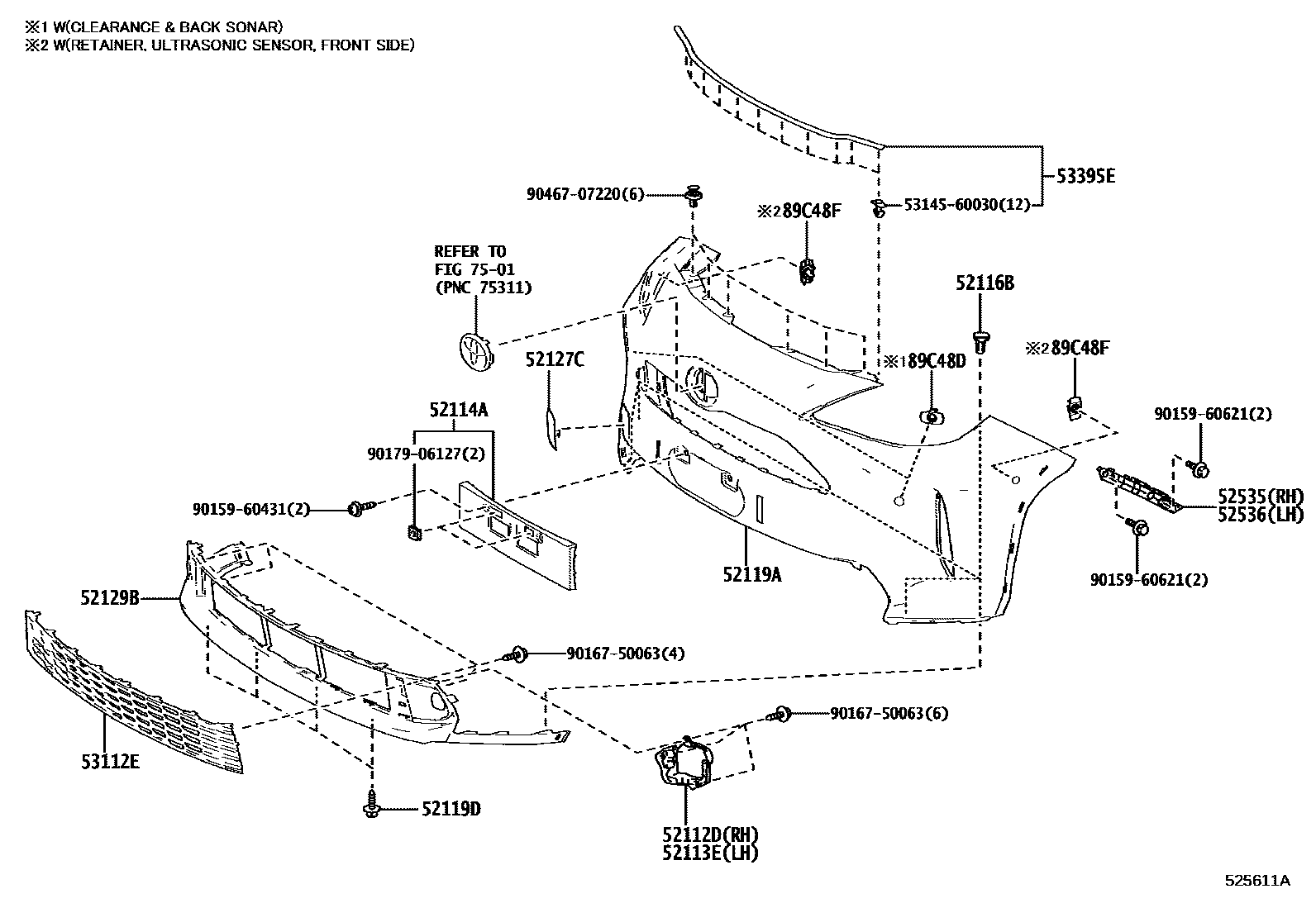

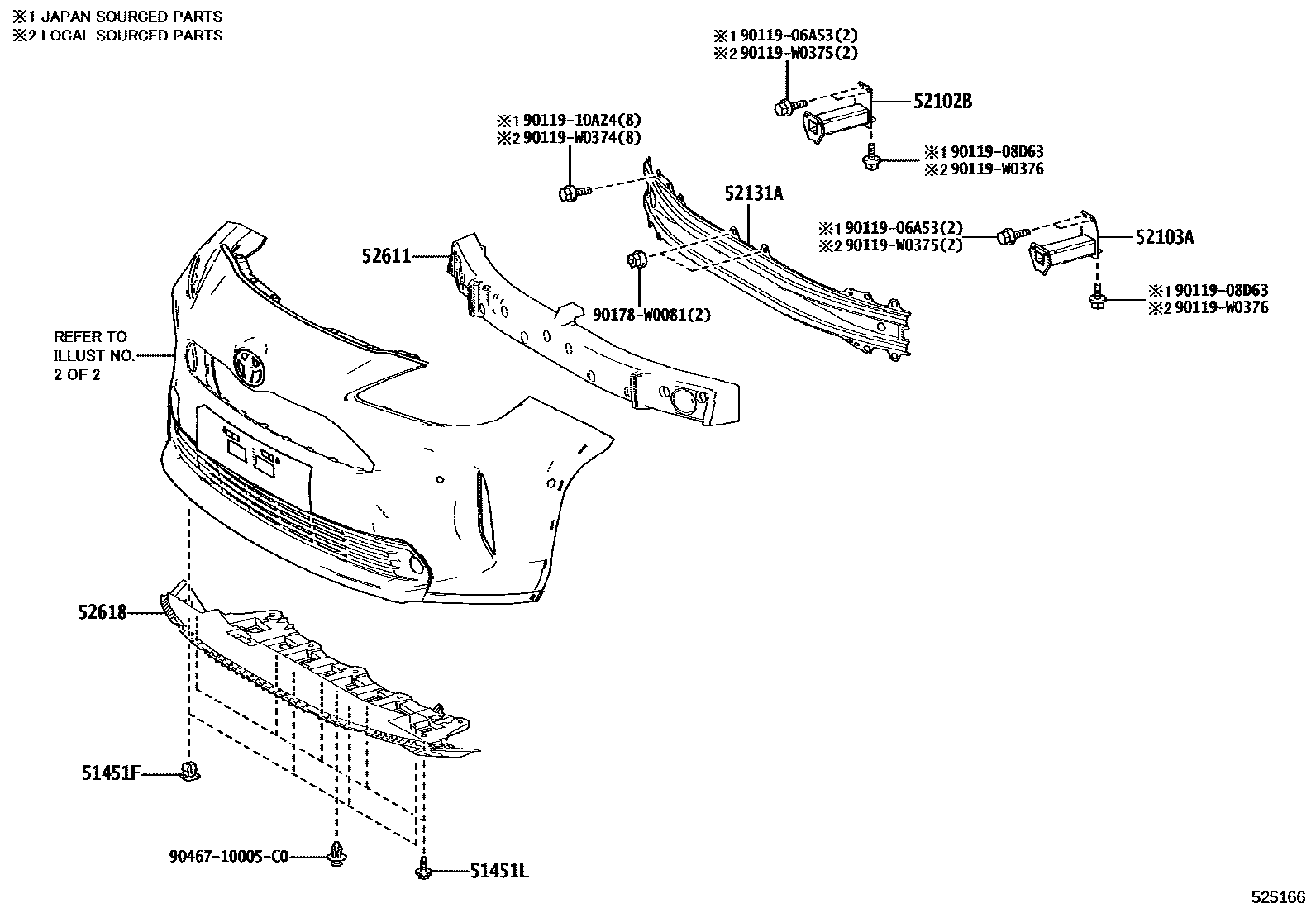

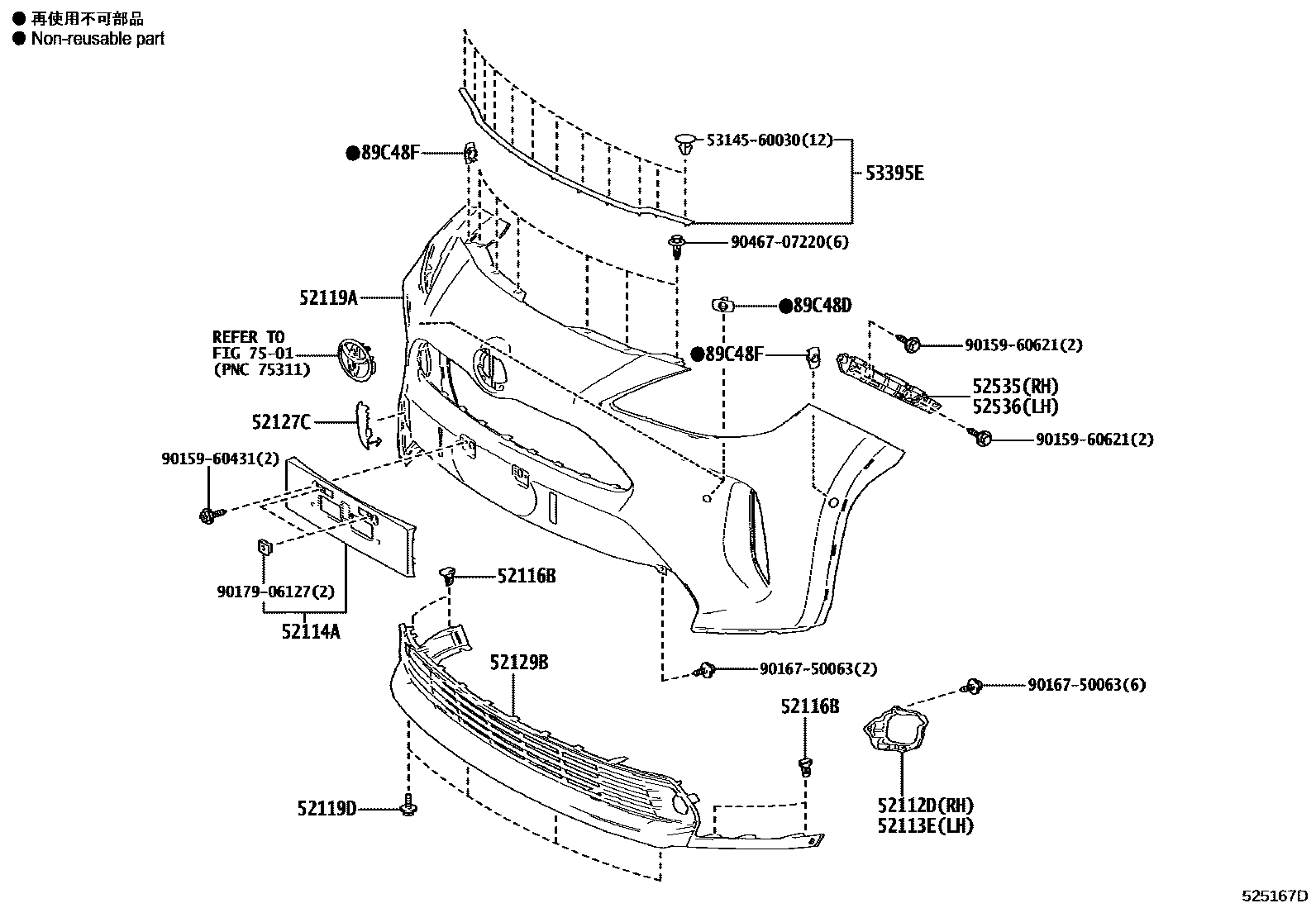

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 51451L | BOULON, NO.1 | 90119-06A13 · 90119-W0323 |
| 52102B | Front bumper right extension section sub-assembly | 52102-K0020 |
| 52103A | Front bumper left extension section sub-assembly | 52103-K0020 |
| 52112D | Front bumper right extension | 52112-0D220 · 52112-0D230 |
| 52113E | Front bumper left extension | 52113-0D220 · 52113-0D230 |
| 52114A | Front bumper extension mounting bracket | 52114-0D020 · 52114-0D021 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119A | front bumper cover | 52119-YP954 · 52119-YP955 · 52119-YP956 · 52119-YP957 · 52119-YP958 · 52119-YP959 |
| 52119D | VIS, NO.1 | 90159-60477 · 90159-W0026 |
| 52127C | Front bumper hole cover | 52127-0D927 · 52127-0DF50 |
| 52127H | ATTACHE, CACHE ORIFICE PARE-CHOCS AV | 90467-10203 |
| 52129B | Front bumper lower cover | 52129-0D080 · 52129-0D090 · 52129-0D091 · 52129-0D170 |
| 52131A | Front bumper reinforcement | 52131-K0020 |
| 52411 | Front bumper anti-collision bar | 52411-0D020 |
| 52535 | Front bumper right side fixing bracket | 52535-0D320 |
| 52536 | Front bumper left fixed bracket | 52536-0D320 |
| 52611 | front bumper energy absorber | 52611-0D160 |
| 52618 | Front bumper lower shock absorber | 52618-0D180 |
| 52712 | Front bumper right side protective strip | 52712-0D180 |
| 52713A | Front bumper left protective strip | 52713-0D180 |
| 53112E | No. 1 radiator lower grille | 53112-0DE90 |
| 53395E | Engine cover to front end plate seal | 53395-0D050 |
| 75392J | External protective strip fixings | 75392-35220 |
| 89C48D | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE AVANT | 89348-K0230 · 89348-K0231 |
