Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

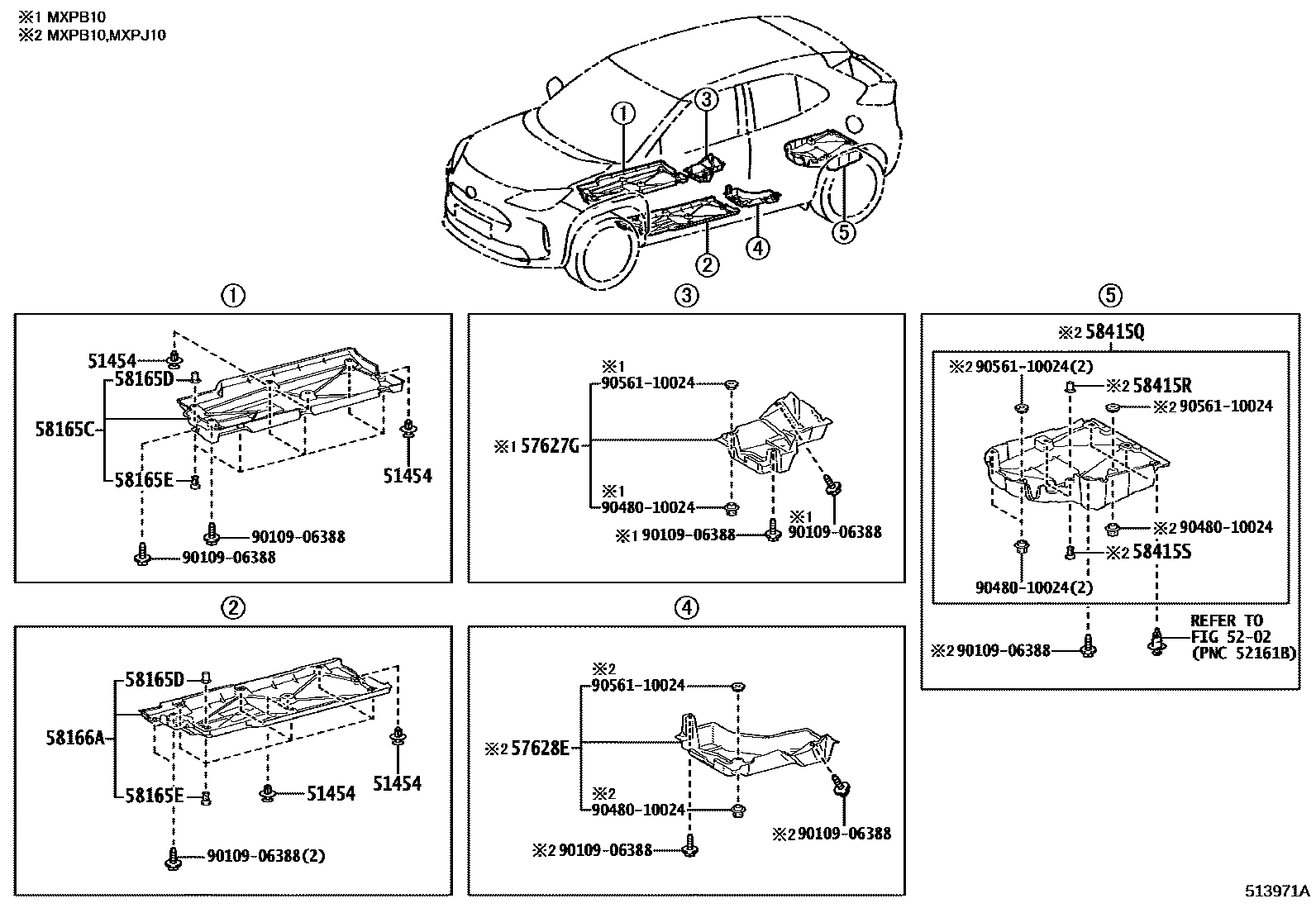

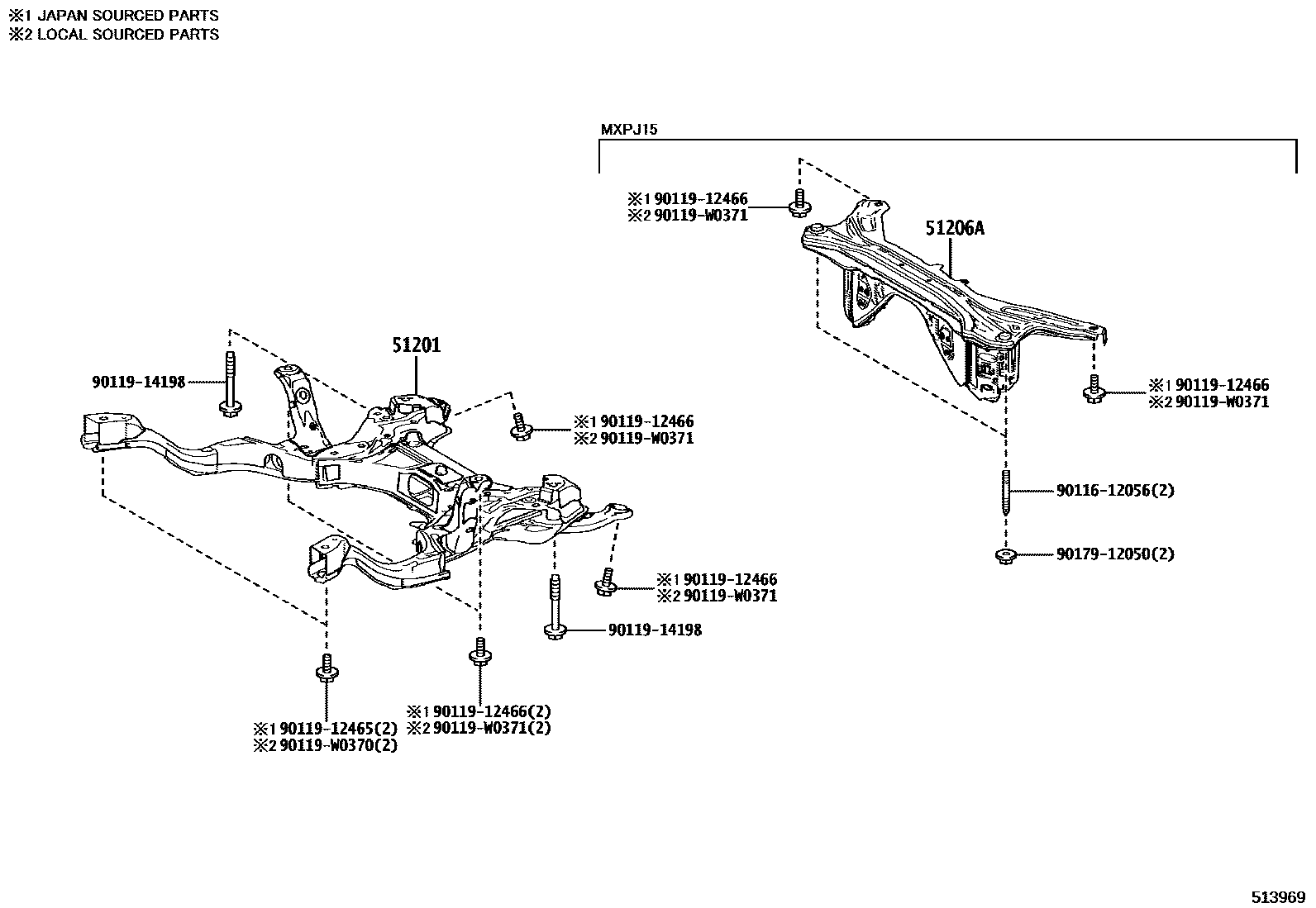

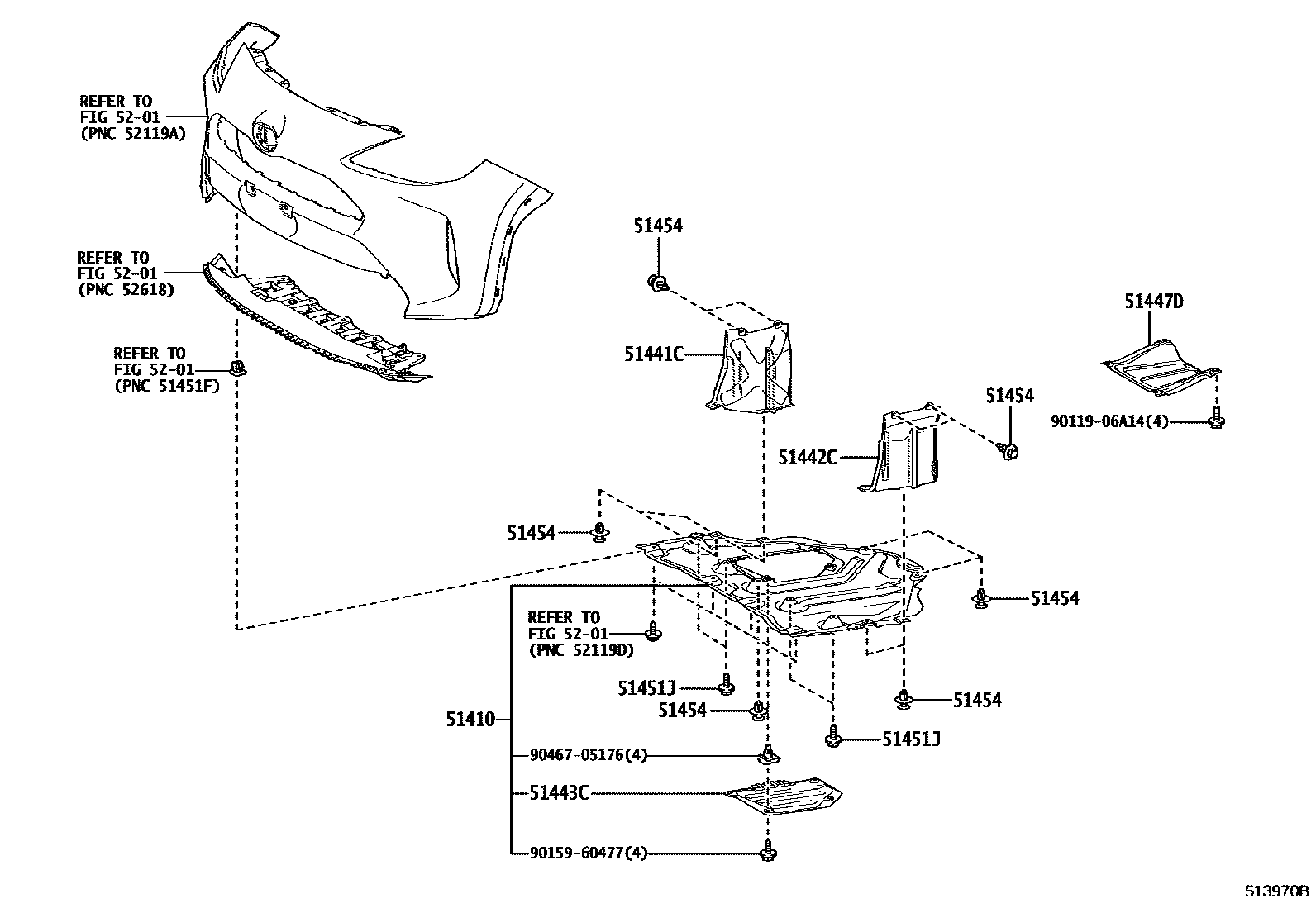

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D270 · 51201-0D271 |
| 51206A | Rear suspension cross member sub-assembly | 51206-K0020 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-0D060 |
| 51441C | Engine right bottom cover | 51441-0D450 |
| 51442C | Engine left bottom cover | 51442-0D270 |
| 51443C | Engine right rear bottom cover | 51443-0D050 |
| 51447D | No. 4 engine center bottom cover | 51447-0D040 |
| 51451J | BOULON, NO.1 | 90119-06A13 |
| 51454 | engine rear cover | 90467-07220 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 57627-0D010 |
| 57628E | Rear floor left longitudinal member cover | 57628-0D010 · 57628-0D020 |
| 58165C | Front floor right cover | 58165-0D120 |
| 58166A | Front floor left cover | 58166-0D120 |
| 58415Q | PANNEAU, PLANCHER ARR., NO.1 | 58415-0D010 |
