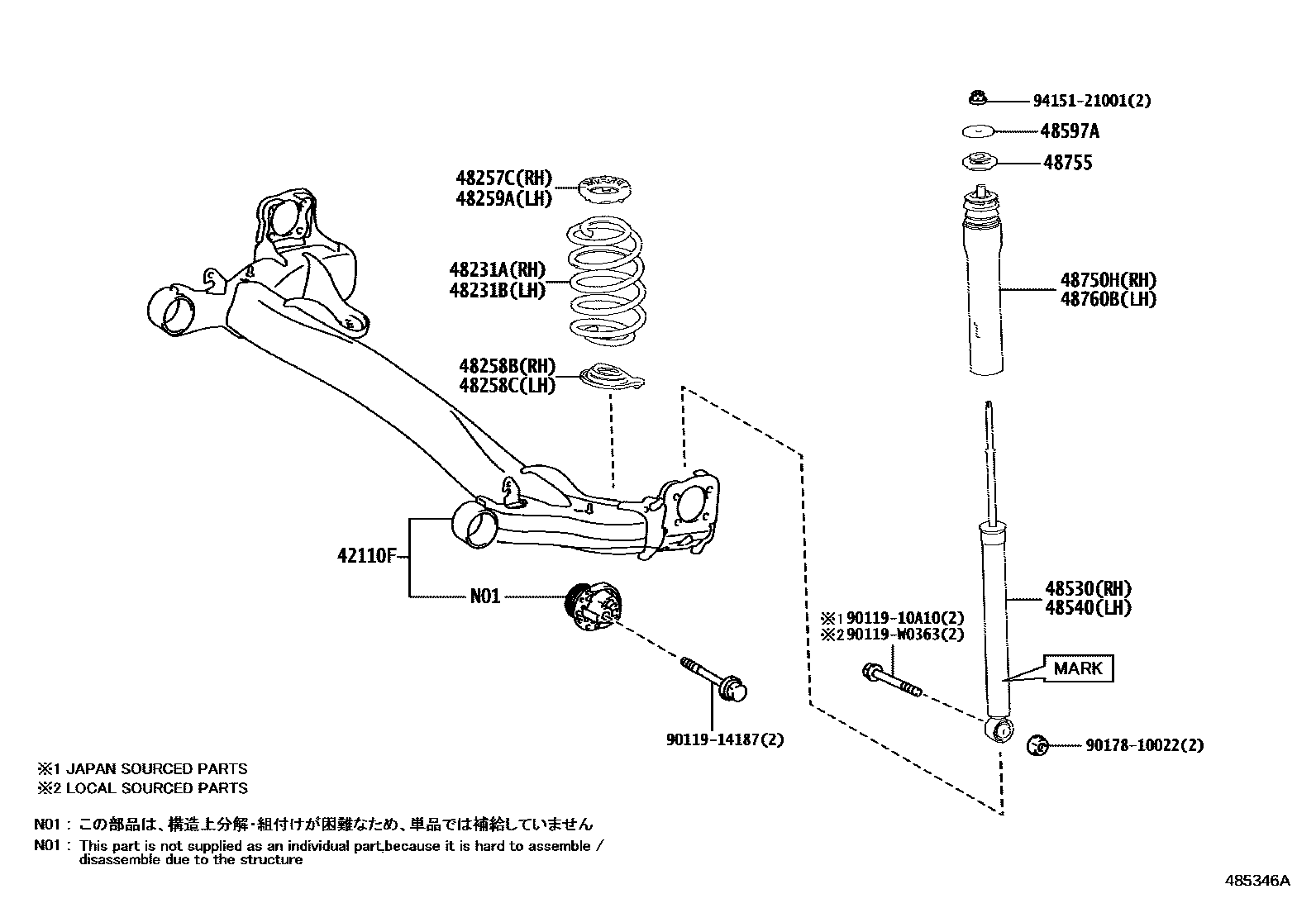

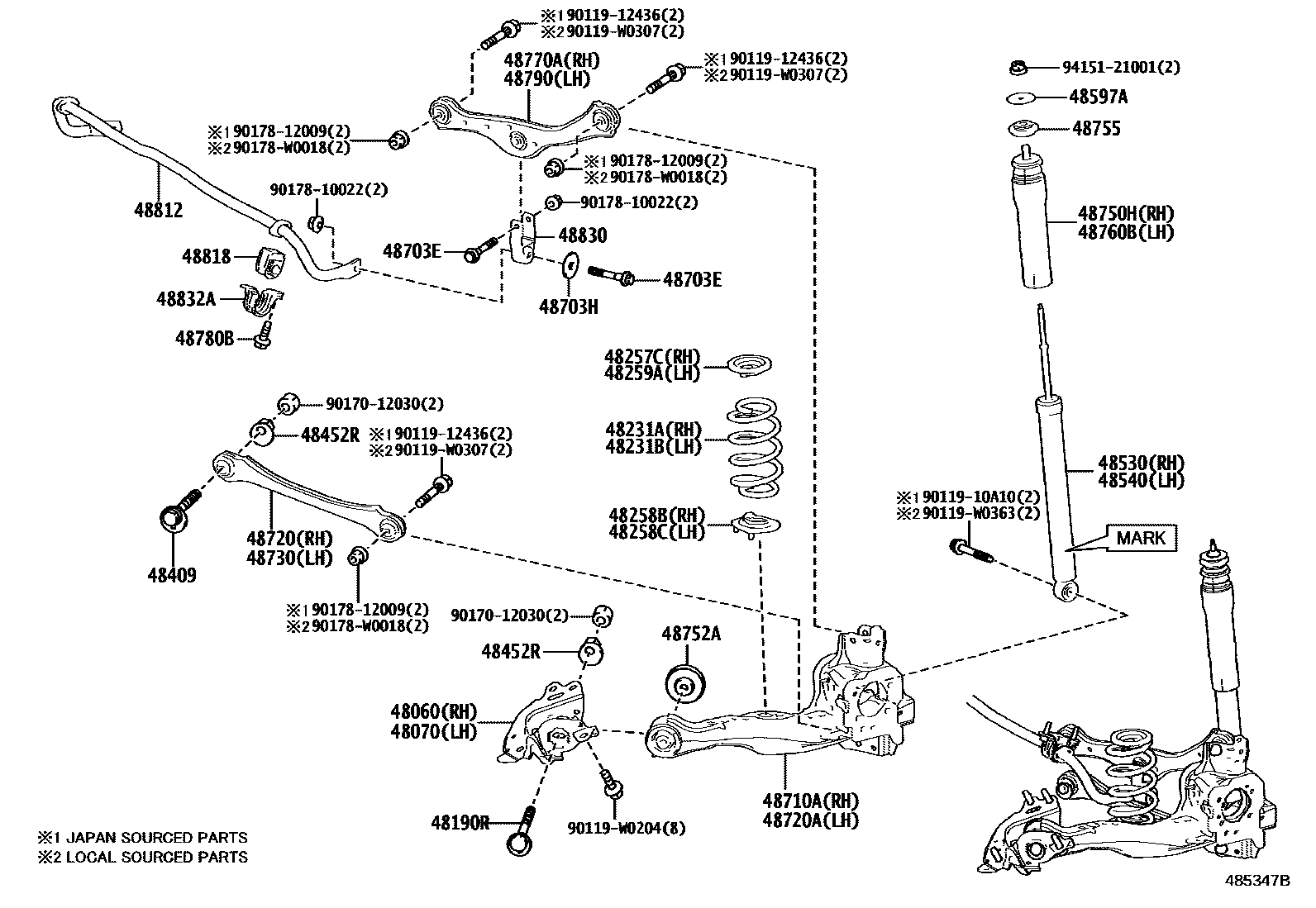

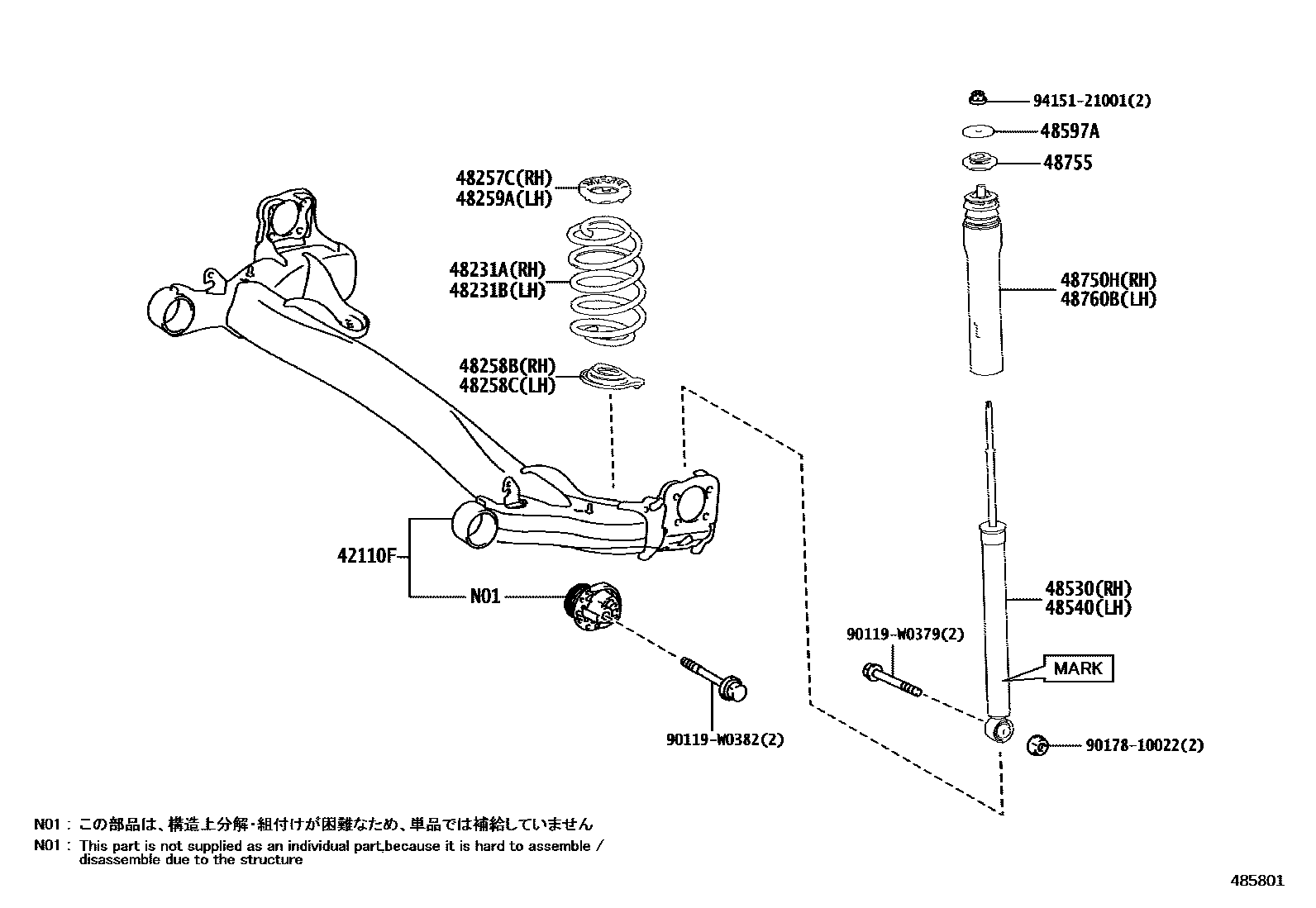

Toyota YARIS Rear Spring & Shock Absorber — Figure 4804
Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-0D460 · 42110-0D610 |
| 48060 | Right rear suspension arm bracket assembly | 48060-52010 |
| 48070 | Left rear suspension arm bracket assembly | 48070-52010 |
| 48190R | Camber angle adjustment cam assembly | 48190-K0010 |
| 48231A | Right rear coil spring | 48231-0DB30 · 48231-0DB40 · 48231-0DB70 · 48231-0DC20 |
| 48231B | Left rear coil spring | 48231-0DB30 · 48231-0DB40 · 48231-0DB70 · 48231-0DC20 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 · 48257-K0020 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-K0020 · 48258-K0030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-K0020 · 48258-K0030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 · 48257-K0020 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-11040 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-30040 |
| 48530 | Right rear shock absorber assembly | 48530-0DF80 · 48530-0DF90 · 48530-0DG00 · 48530-0DJ20 · 48530-0DJ60 · 48530-0DK20 · 48530-0DK30 · 48530-0DK40 |
| 48540 | Left rear shock absorber assembly | 48530-0DF80 · 48530-0DF90 · 48530-0DG00 · 48530-0DJ20 · 48530-0DJ60 · 48530-0DK20 · 48530-0DK30 · 48530-0DK40 |
| 48597A | Rear shock absorber buffer pad | 90201-10138 |
| 48703E | Bolts (for rear suspension arms) | 90105-10600 · 90105-W0328 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-10031 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-52080 |
| 48720 | Right lower control arm assembly | 48720-K0010 |
| 48720A | Left rear suspension No. 1 arm assembly | 48720-52050 |
| 48730 | Left lower control arm assembly | 48720-K0010 |
| 48750H | Right rear suspension support assembly | 48750-K0020 · 48750-K0030 |
| 48752A | Rear suspension mount block | 48752-K0010 |
| 48755 | rear suspension mount | 48755-K0021 |
| 48760B | Left rear suspension support assembly | 48750-K0020 · 48750-K0030 |
| 48770A | Right rear upper control arm assembly | 48770-K0010 |
| 48780B | Bolts (for support rods) | 90119-10A11 · 90119-W0364 |
| 48790 | Left rear upper control arm assembly | 48790-52010 |
| 48812 | rear stabilizer bar | 48812-52110 |
| 48818 | Rear stabilizer bar bushing | 48818-52020 |
| 48830 | Rear stabilizer link assembly | 48830-K0010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-K0010 |
