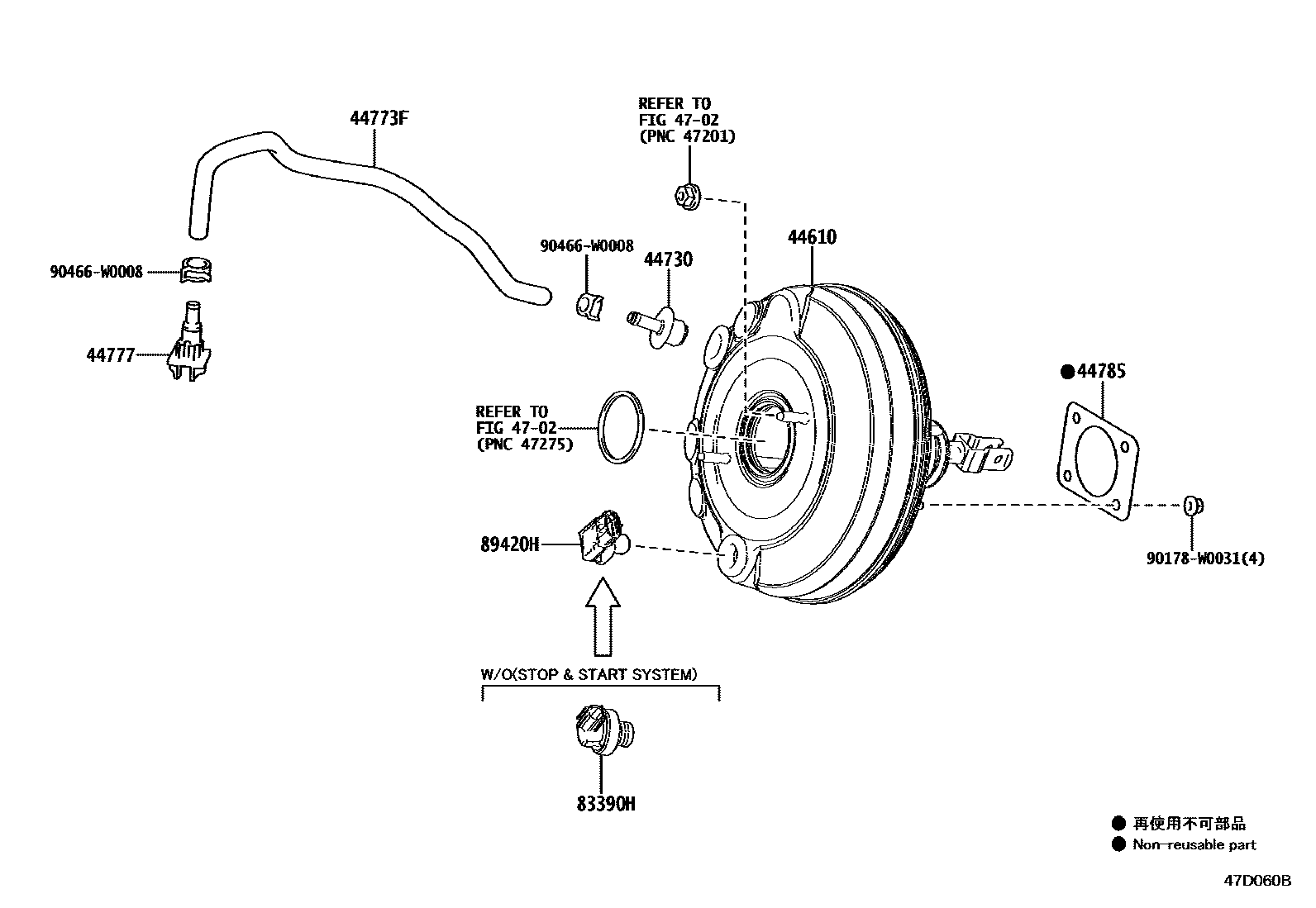

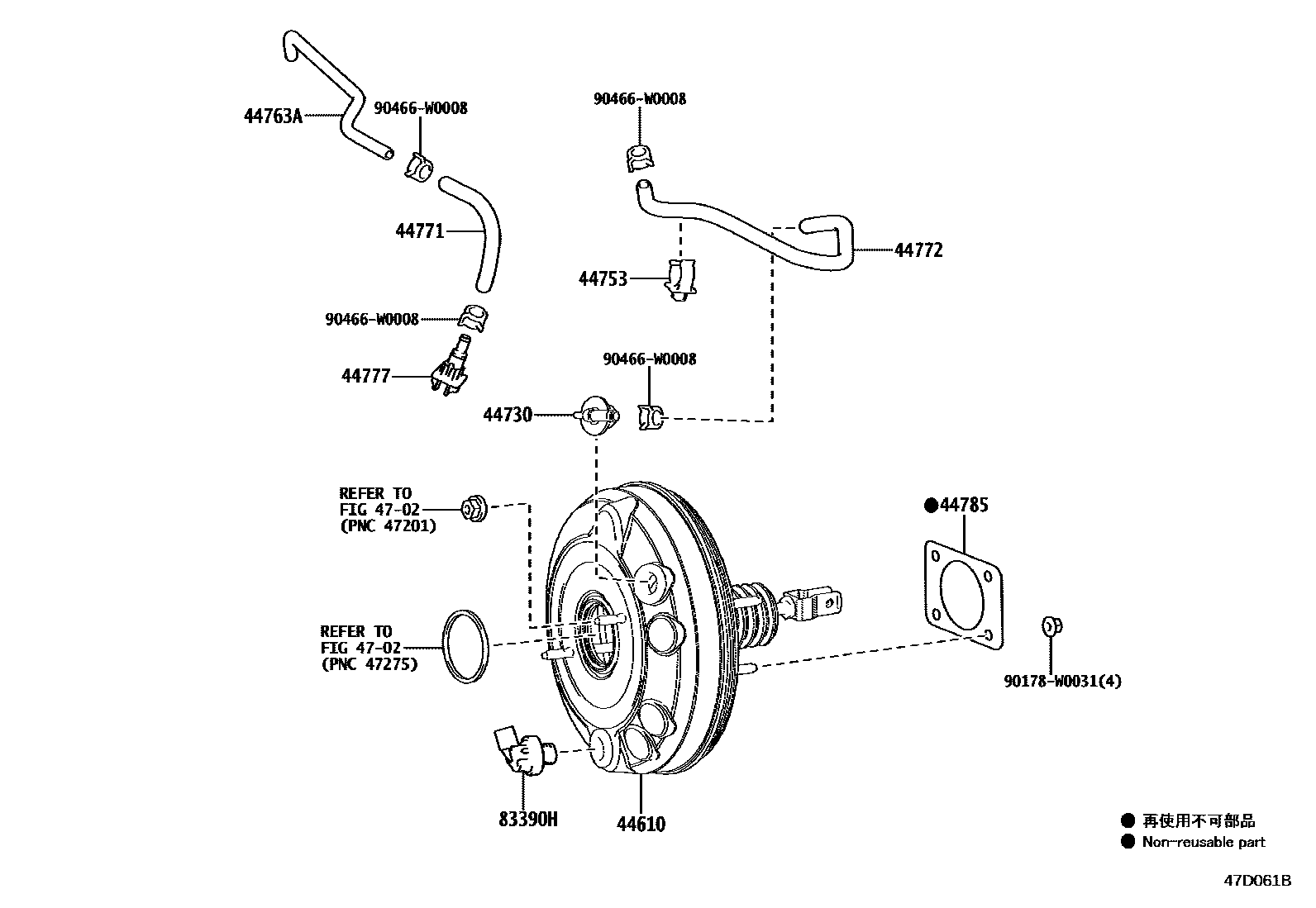

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09H70 · 44610-09H80 · 44610-09H90 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-F9010 · 44730-F9030 |
| 44753 | No. 2 vacuum reservoir clip | 44753-30320 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-K0060 |
| 44771 | Vacuum tube connector hose | 44771-K0030 |
| 44772 | Hoses (check valve to connector tube) | 44772-52350 |
| 44773F | Hoses (connector to check valve) | 44773-52300 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-K0010 |
| 44785 | brake booster pad | 44785-K0010 |
| 83390H | Vacuum warning switch assembly | 83390-09020 |
| 89420H | Vacuum sensor assembly | 89421-09060 |
