Toyota YARIS 制动总泵 — Figure 4702

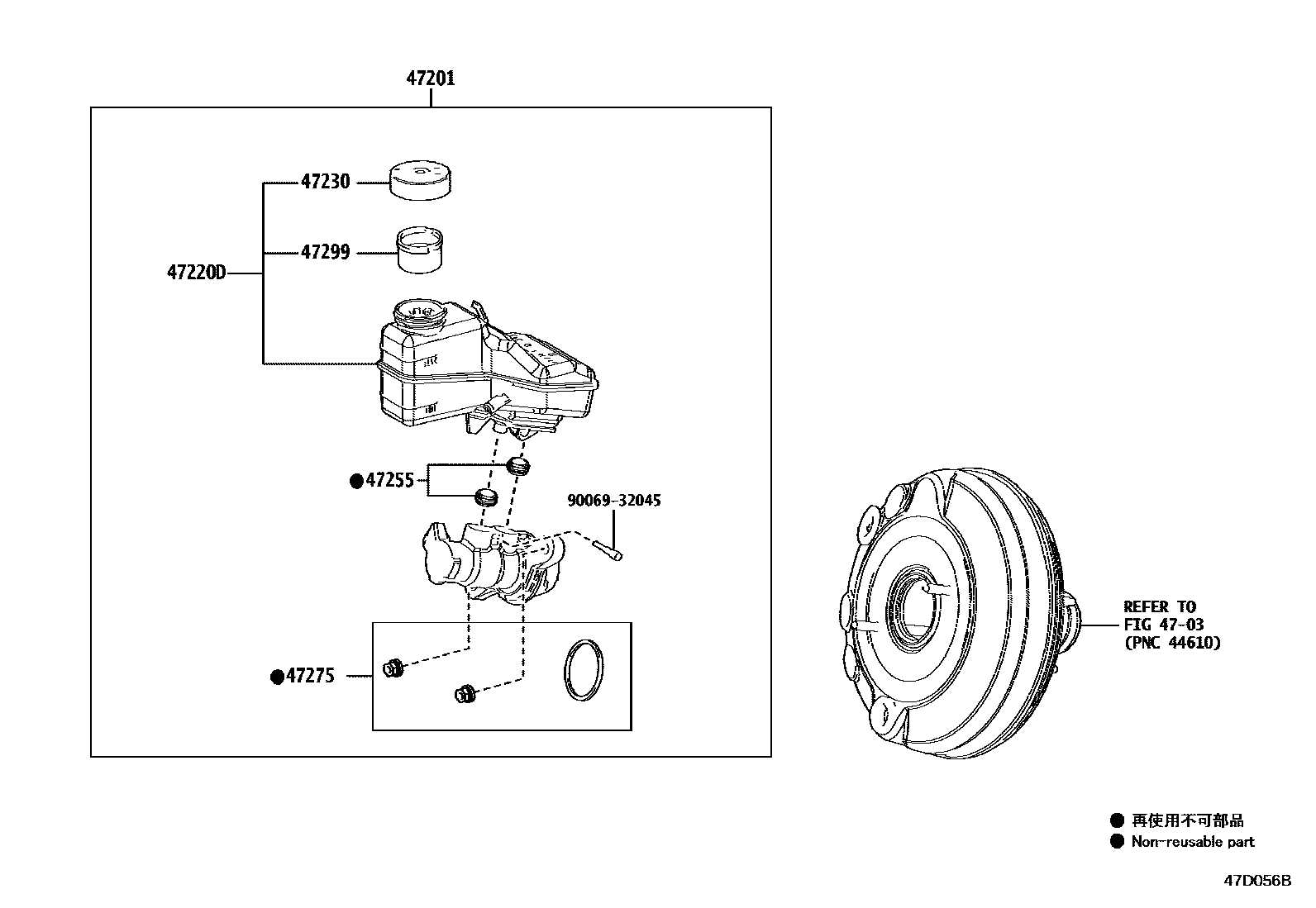

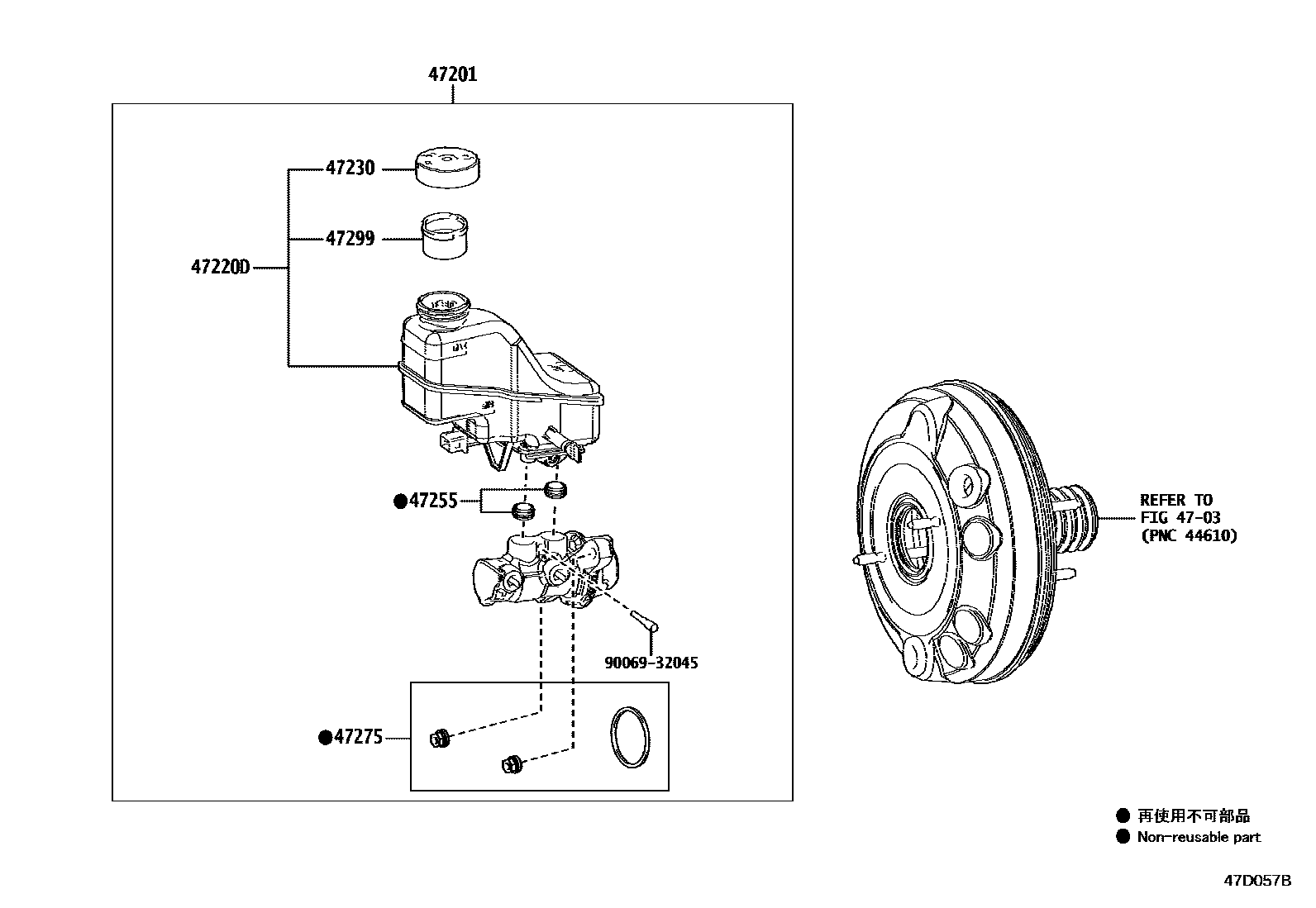

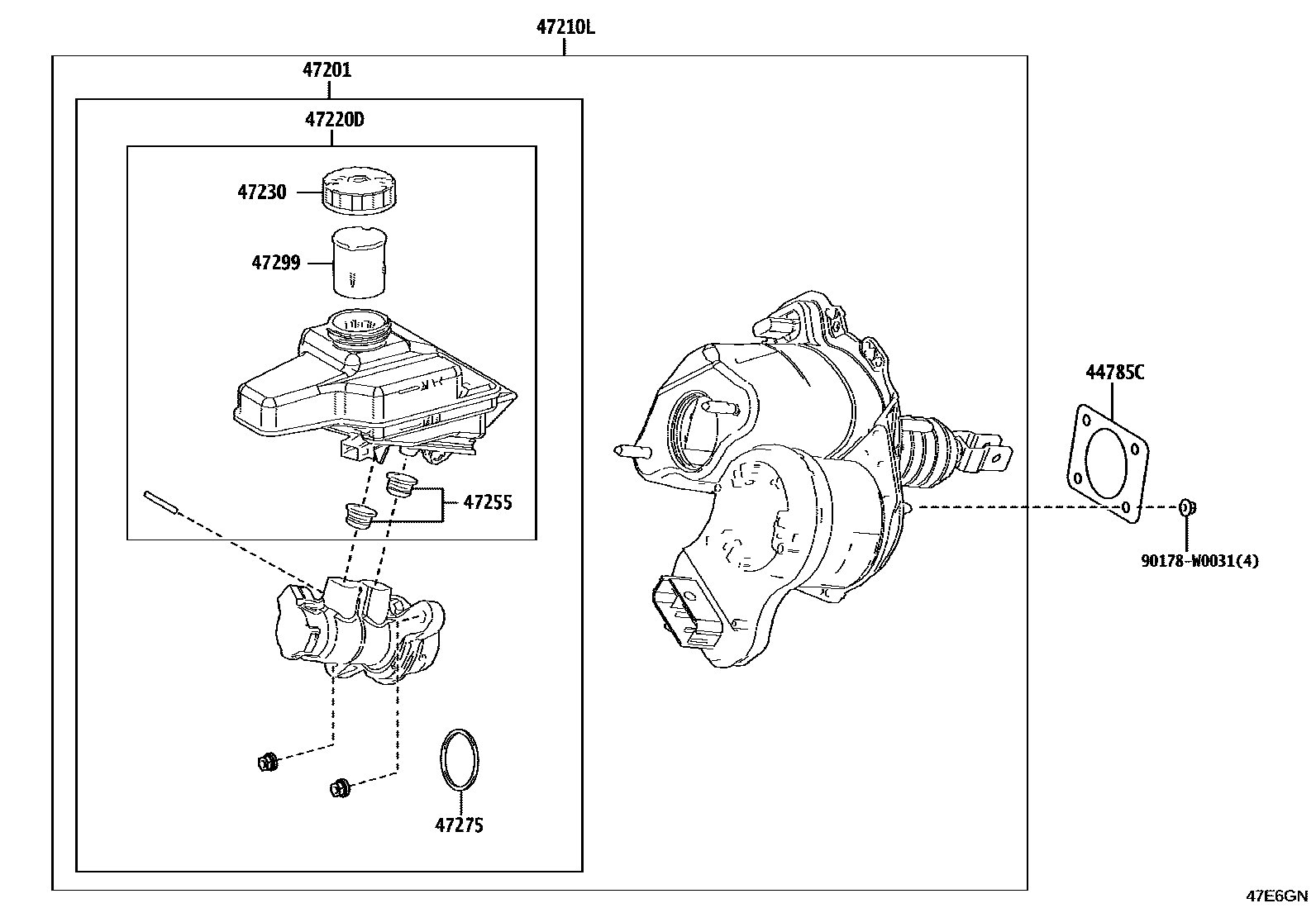

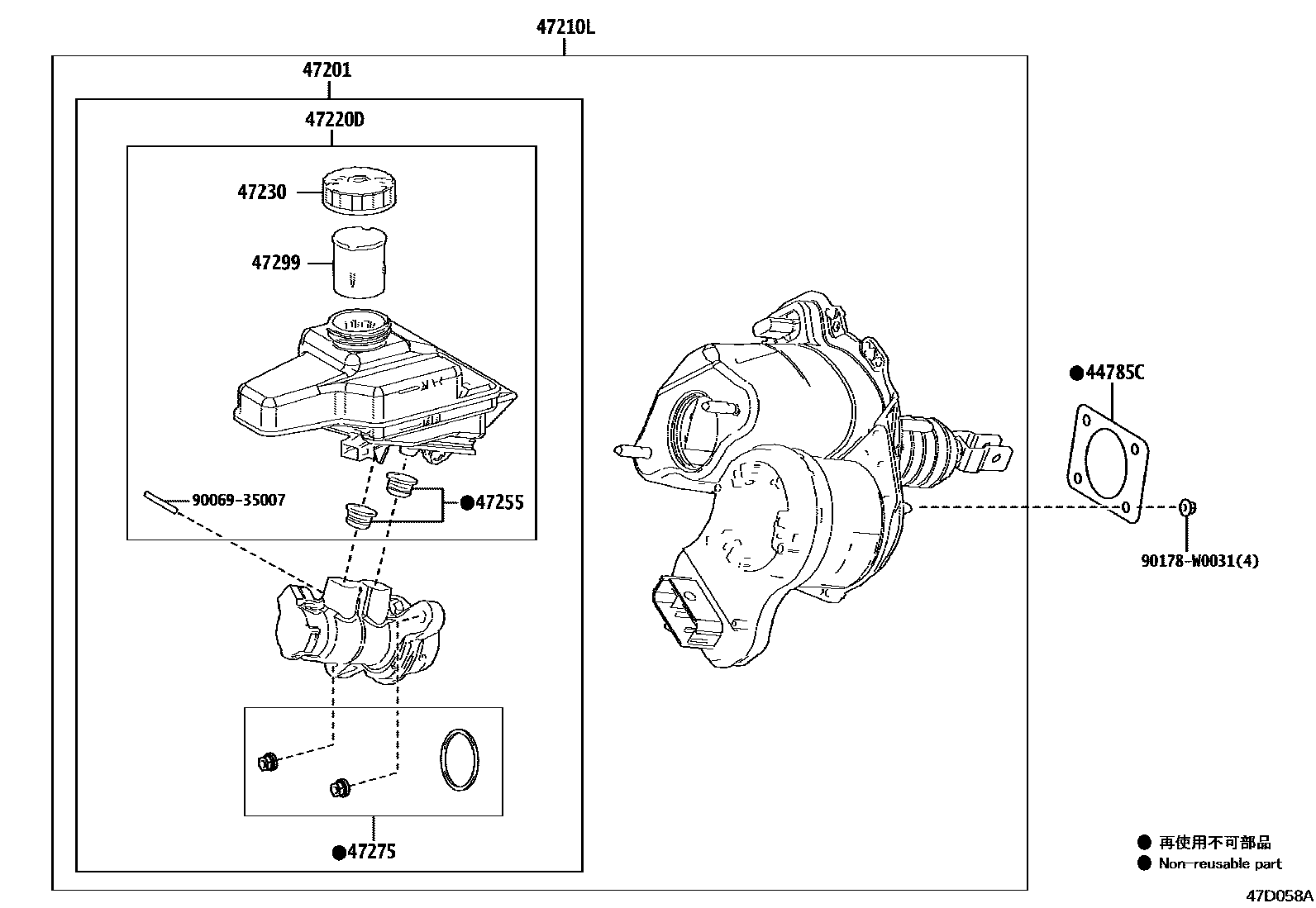

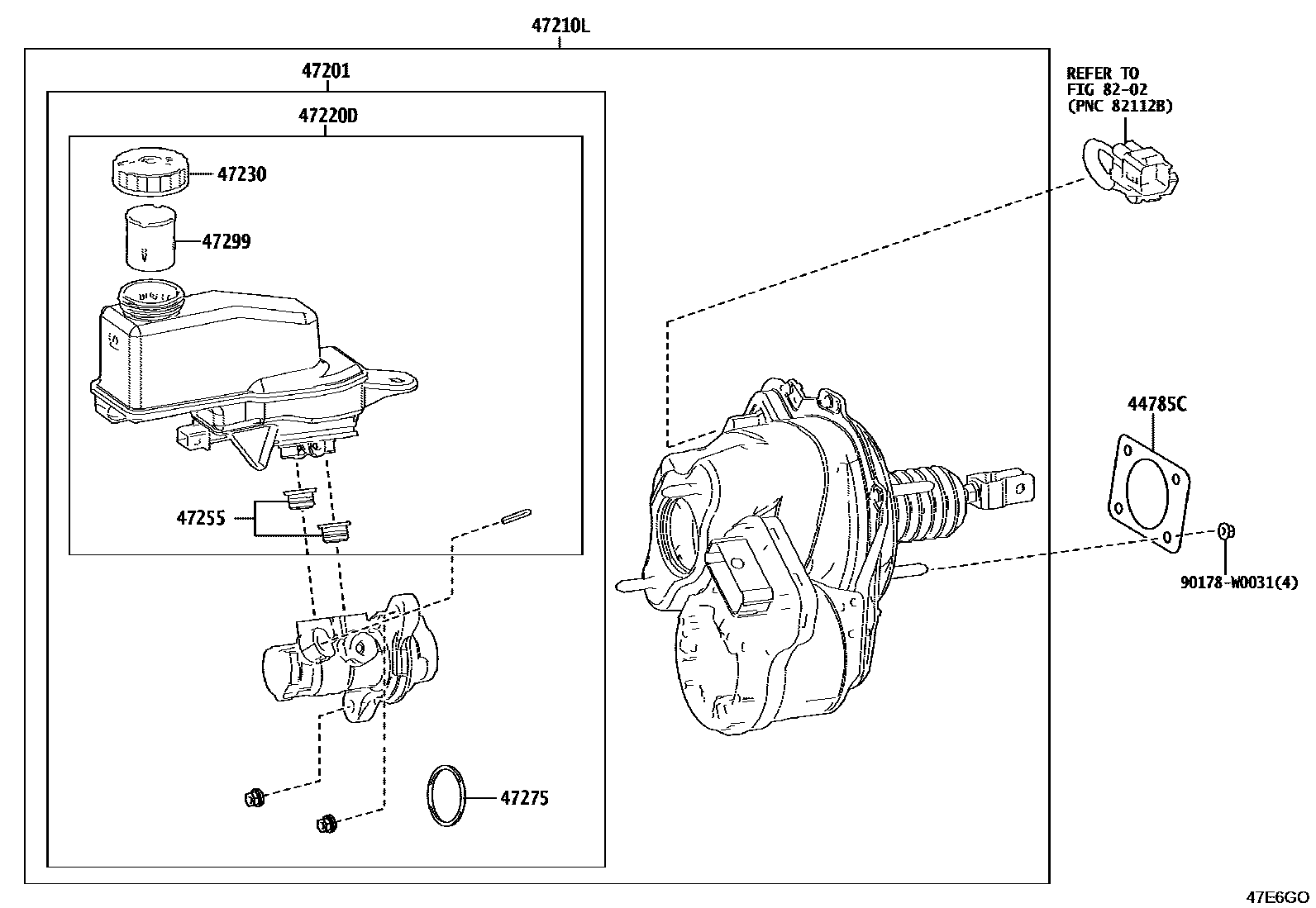

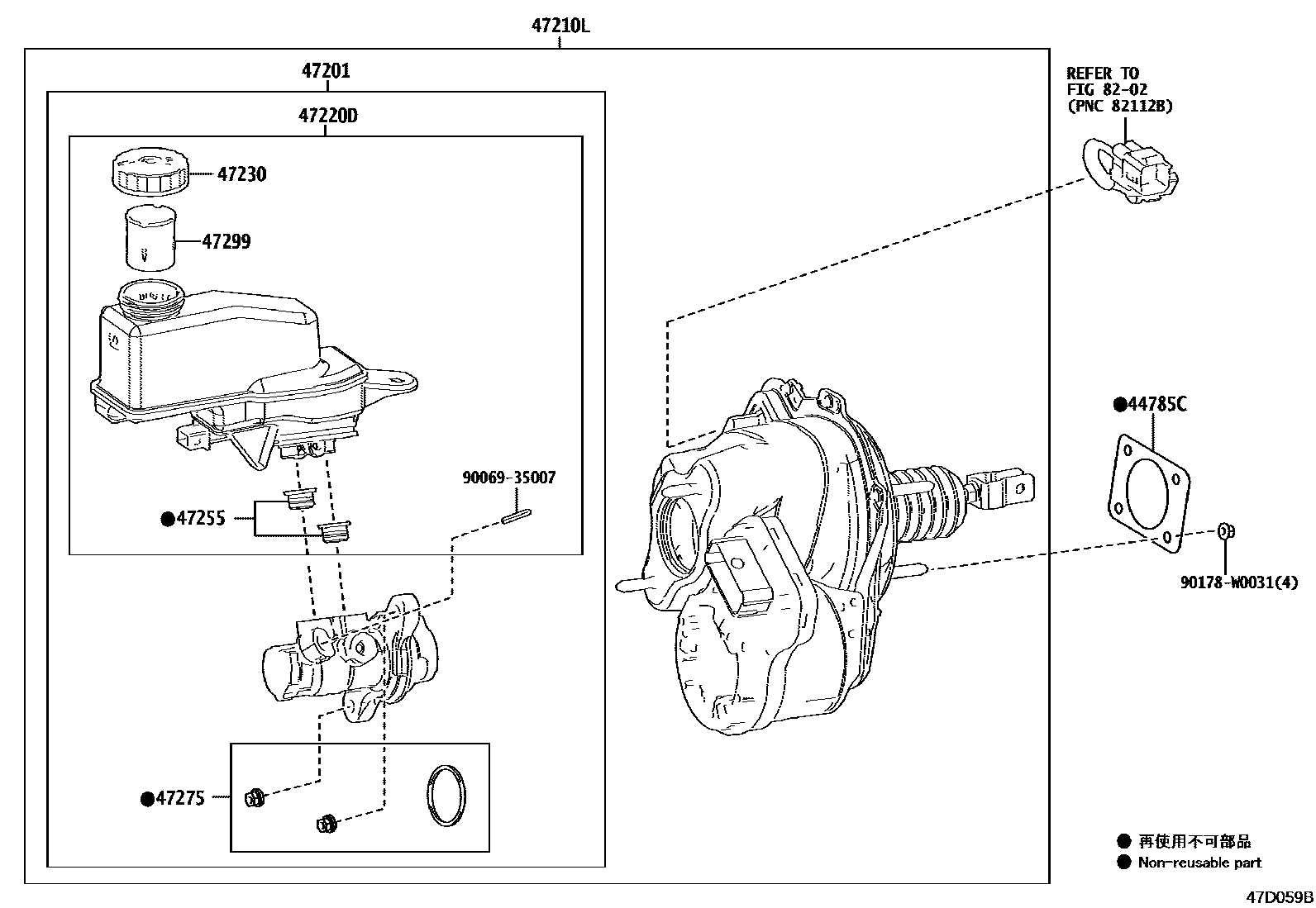

Toyota YARIS EPC diagram 4702, 制动总泵, with 6 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785C | brake booster pad | 44785-K0010 |
| 47201 | Brake master cylinder sub-assembly | 47201-09A50 · 47201-09A60 · 47201-09A70 · 47201-09A80 · 47201-09B90 |
| 47210L | Brake booster assembly with master cylinder | 47210-0D010 · 47210-0D020 · 47210-0D080 · 47210-0D090 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-09300 · 47220-09310 · 47220-09390 · 47220-K9005 · 47220-K9015 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D010 · 47230-F4010 |
| 47255 | Master pump reservoir seal | 47255-09040 |
| 47275 | brake master cylinder gasket | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 |
