Toyota YARIS Brake Pedal & Bracket — Figure 4701

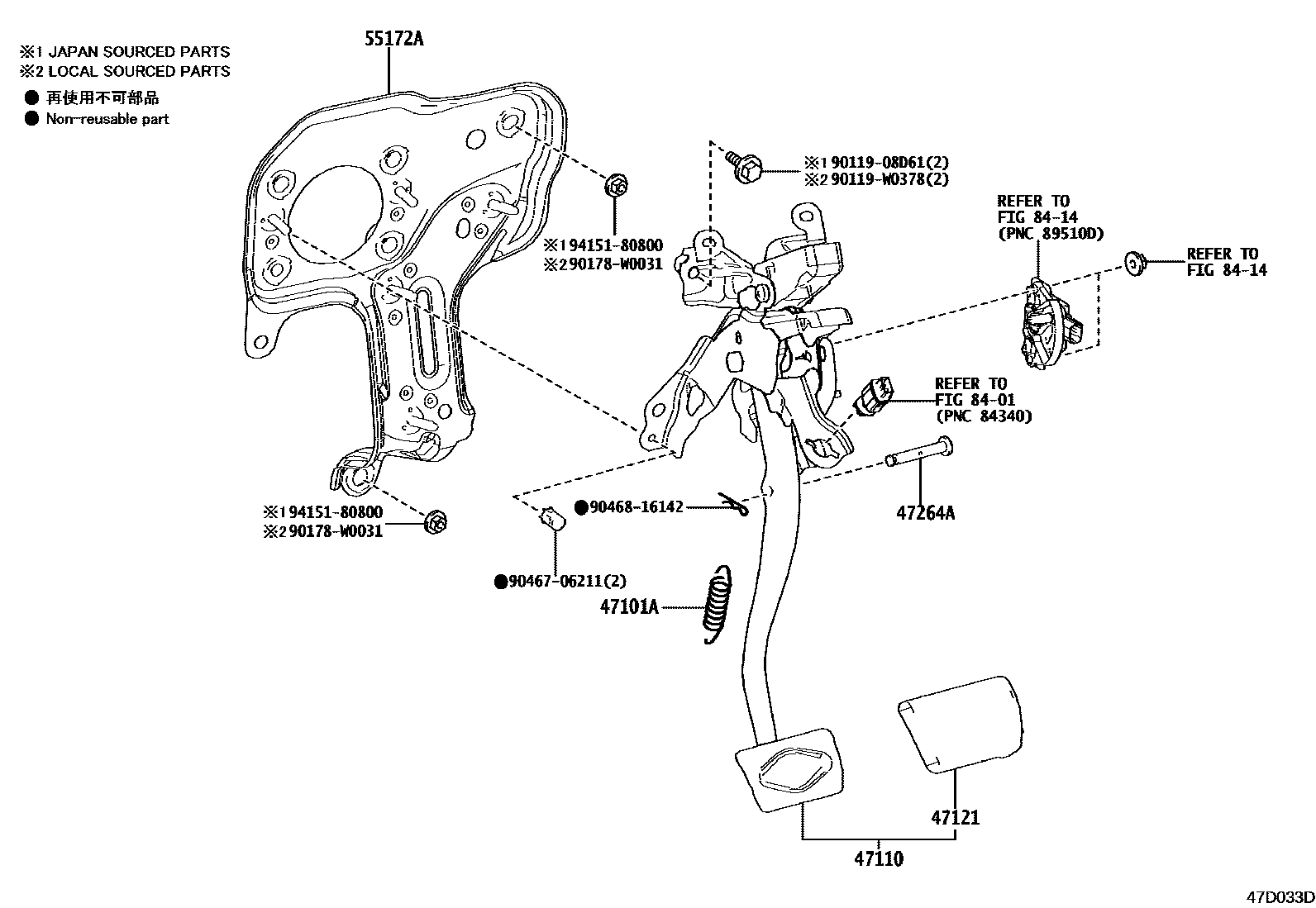

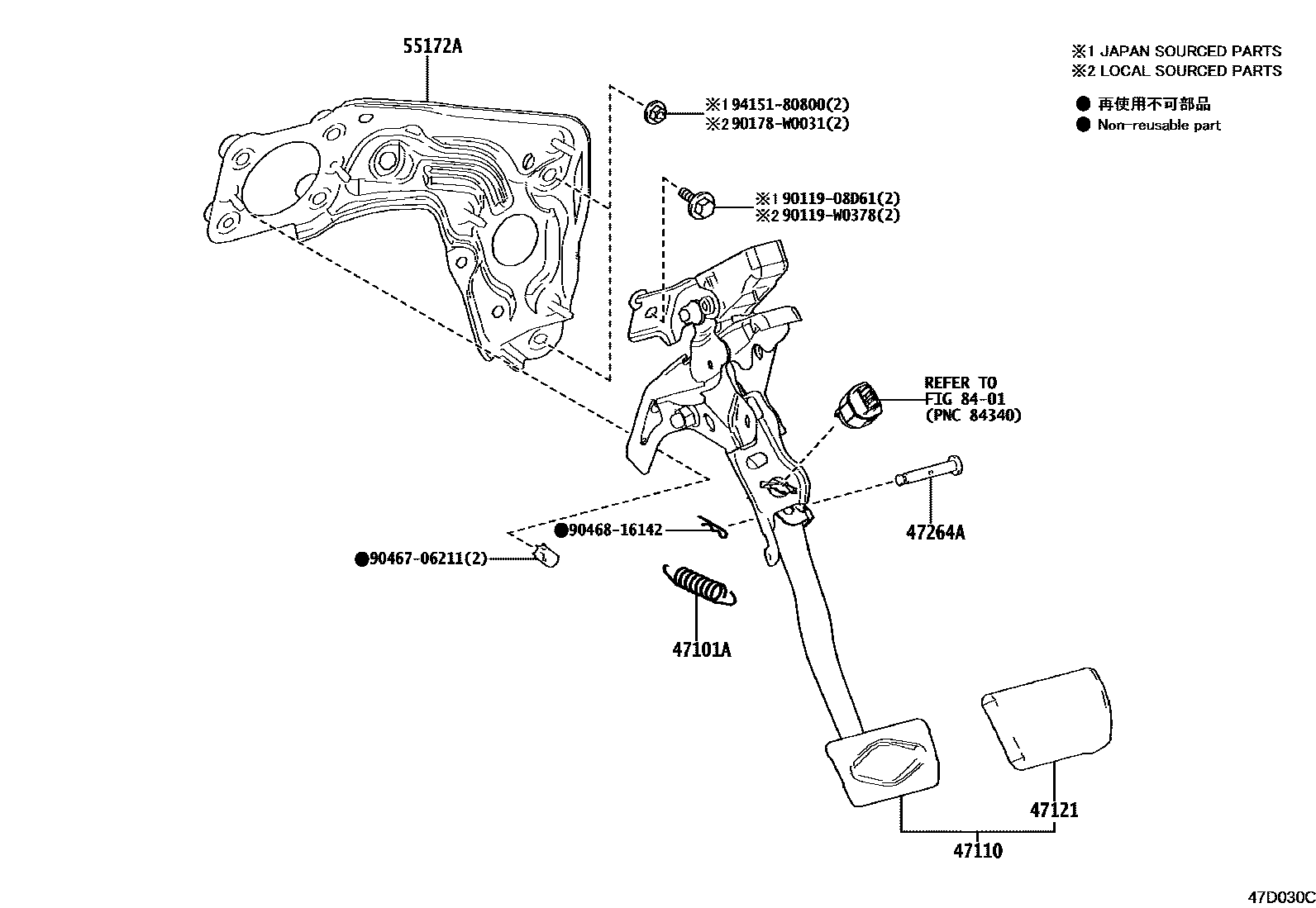

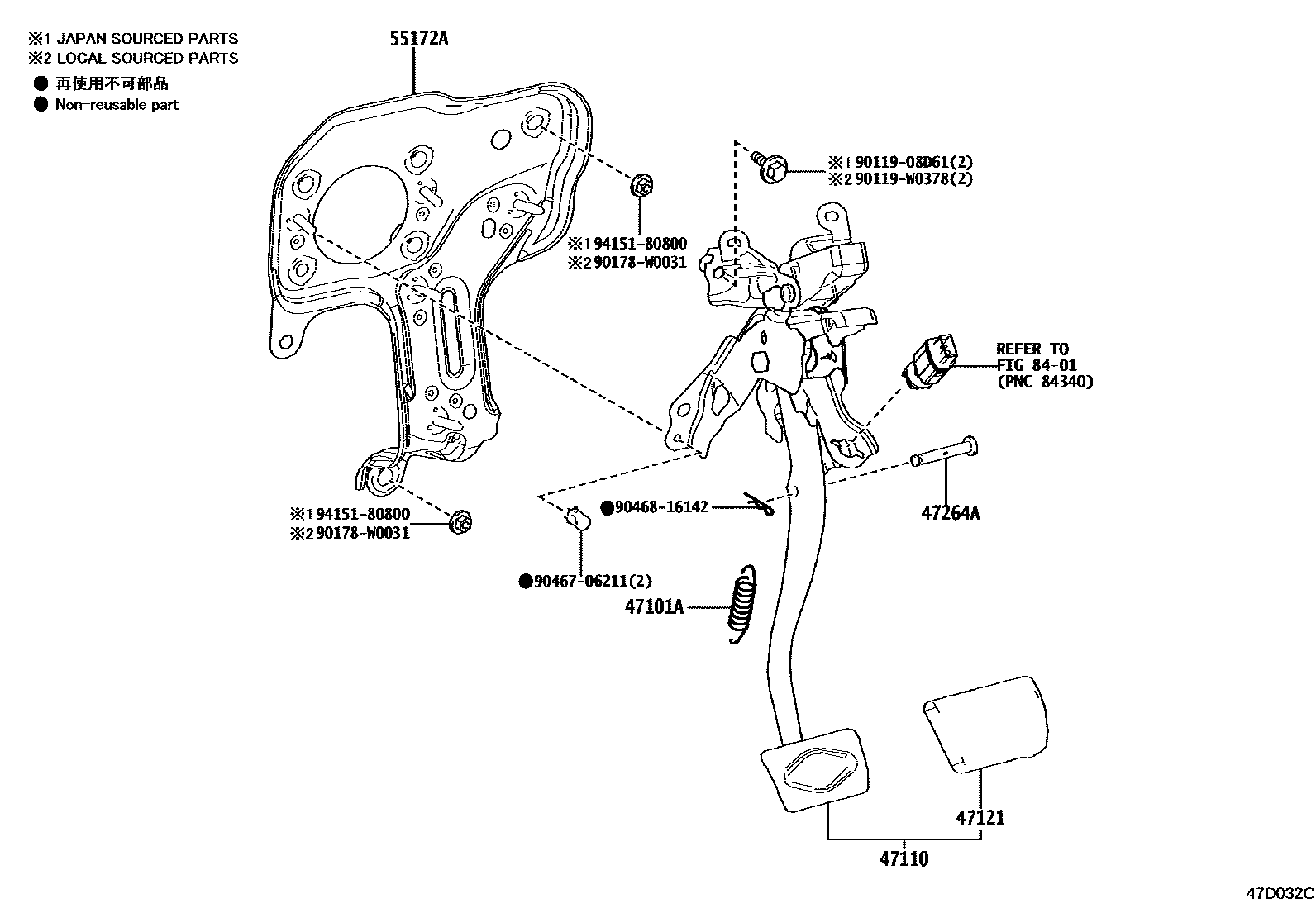

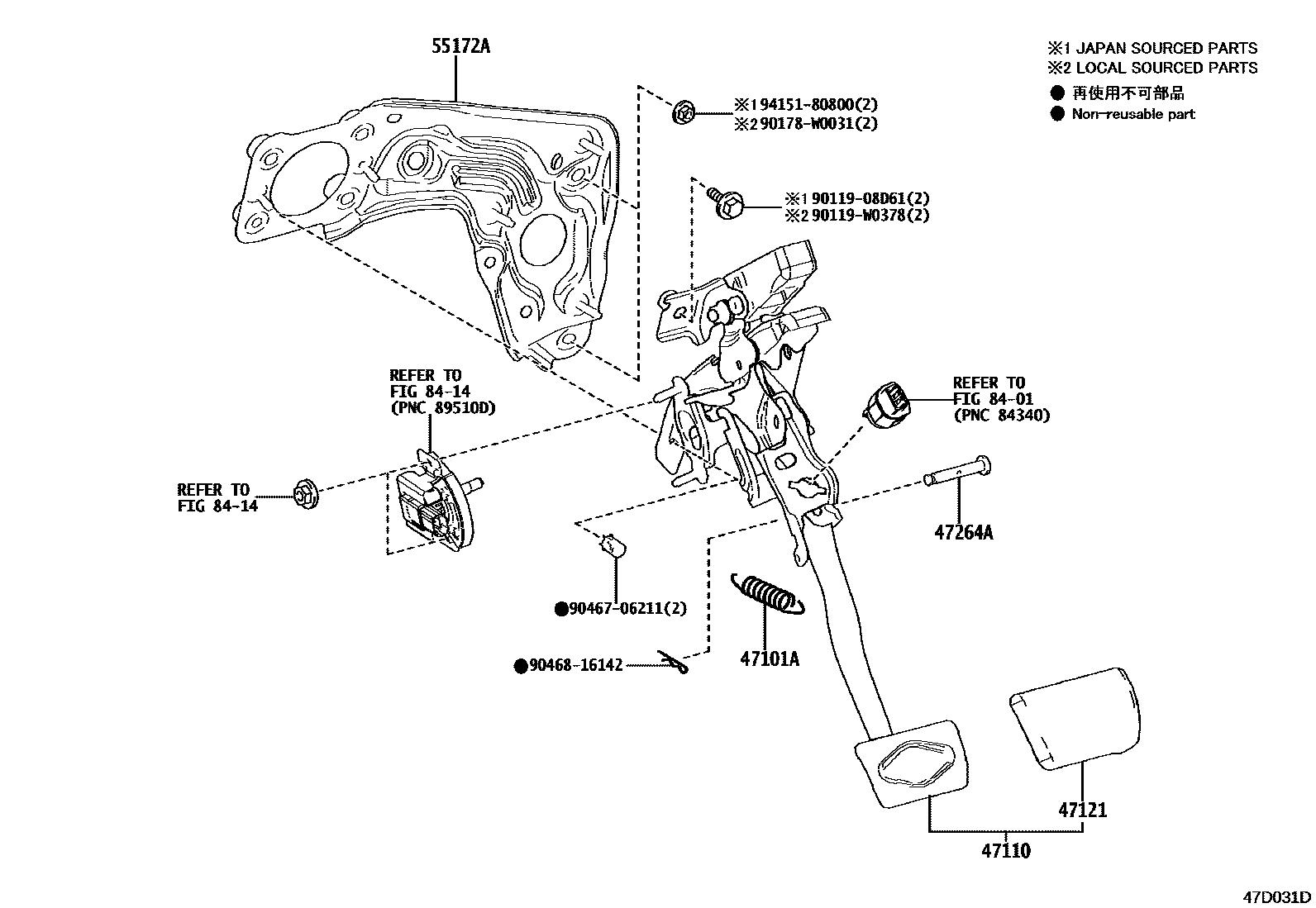

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90506-17003 |
| 47110 | Brake pedal bracket assembly | 47110-0D681 · 47110-52550 · 47110-K0010 · 47110-K0011 · 47110-K0020 · 47110-K0021 · 47110-K0030 · 47110-K0031 · 47110-K0060 · 47110-K0070 · 47110-K0080 |
| 47121 | brake pedal pad | 47121-12040 · 47121-47010 · 47121-78010 · 47121-F4010 · 47121-F4020 |
| 47264A | Pin (for push rod) | 90249-08051 · 90249-08221 |
| 55172A | BASE, SUPPORT PEDALE FREIN | 55172-0D050 · 55172-K0020 |
