Toyota YARIS Front Drive Shaft — Figure 4302

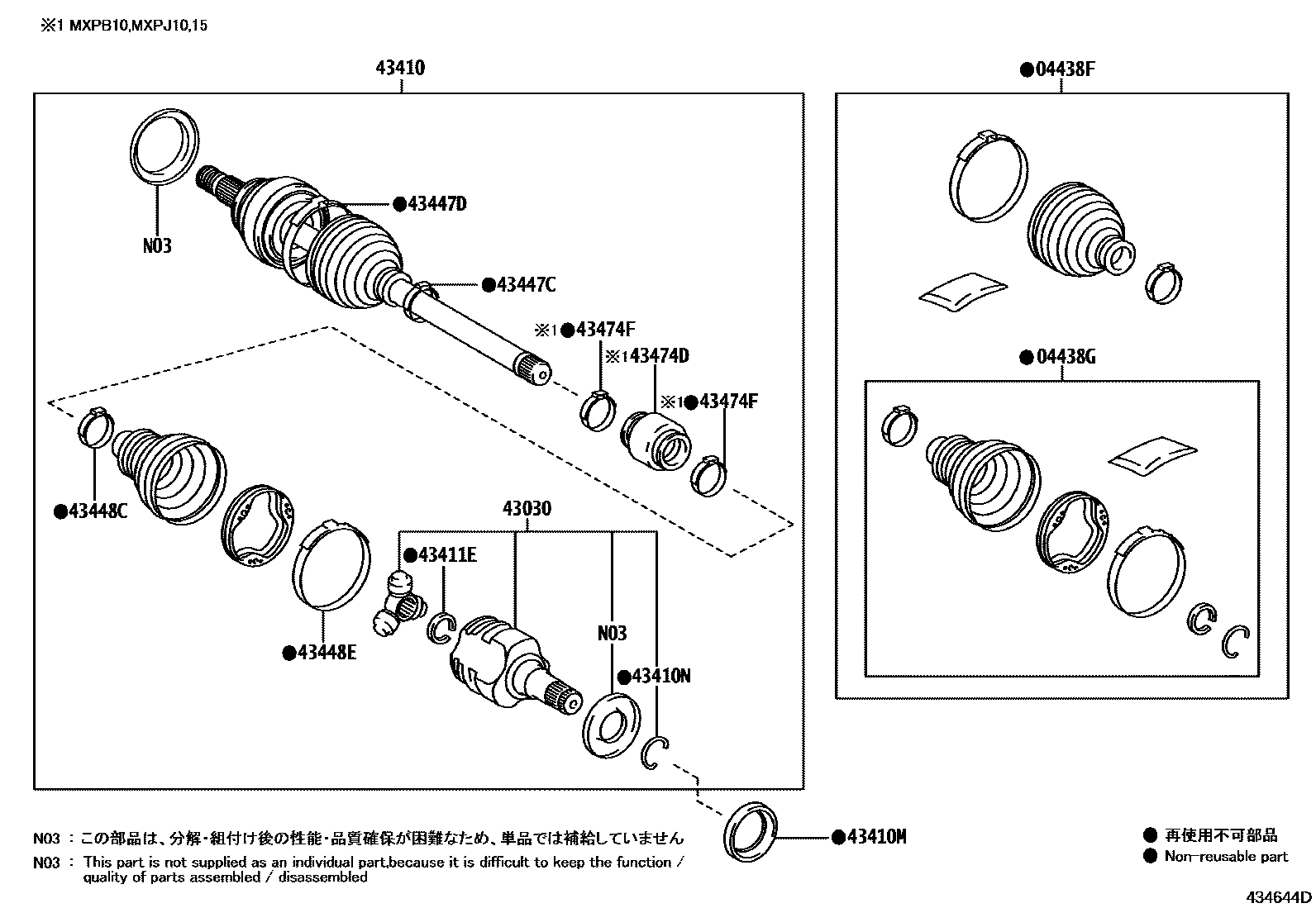

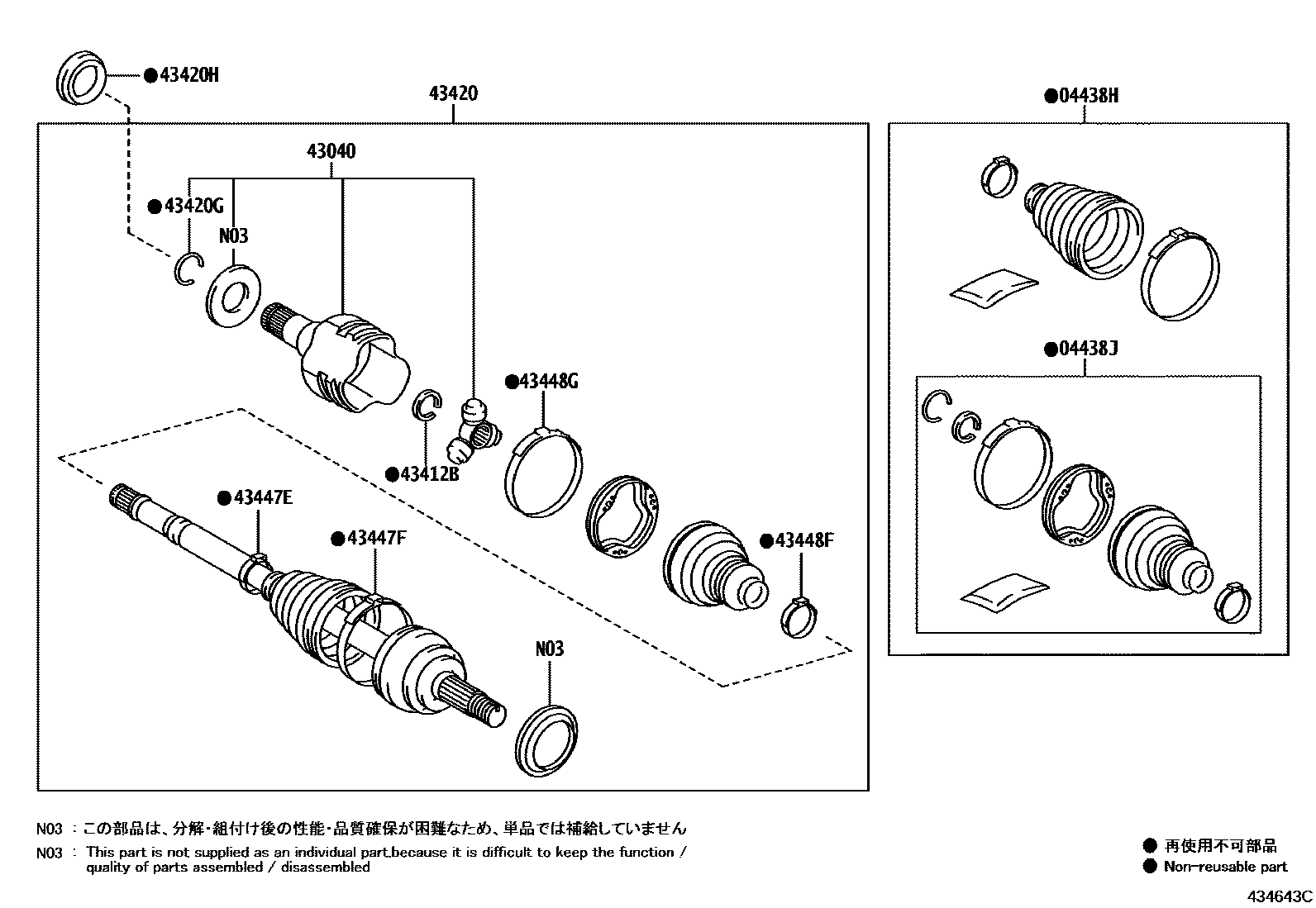

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D590 · 04427-0D600 · 04427-0D610 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D410 · 04438-02630 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-0D550 · 04428-0D560 · 04428-0D570 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-0D321 · 04438-0D331 · 04438-0D340 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-0D130 · 43040-0D131 · 43040-0D170 · 43040-0D171 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0D140 · 43040-0D150 · 43040-0D151 · 43040-0D160 · 43040-0D161 |
| 43410 | Right front driveshaft assembly | 43410-0D790 · 43410-0D810 · 43410-0D820 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35081 · 90311-35083 · 90311-40051 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02260 · 90080-52017 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-05080 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-05080 · 43425-05120 |
| 43420 | Left front drive shaft assembly | 43420-0D720 · 43420-0D740 · 43420-0D770 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02260 · 90080-52017 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35082 · 90311-50062 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02C50 · 42345-K0030 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02C60 · 42345-K0100 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02C50 · 42345-K0030 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02C60 · 42345-K0100 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02C50 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02G70 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02C50 · 42345-K0030 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02C60 · 42345-05130 |
| 43474D | Right front driveshaft shock absorber | 43474-0D570 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D770 |
