Toyota YARIS 车轮和车轮盖 — Figure 4103

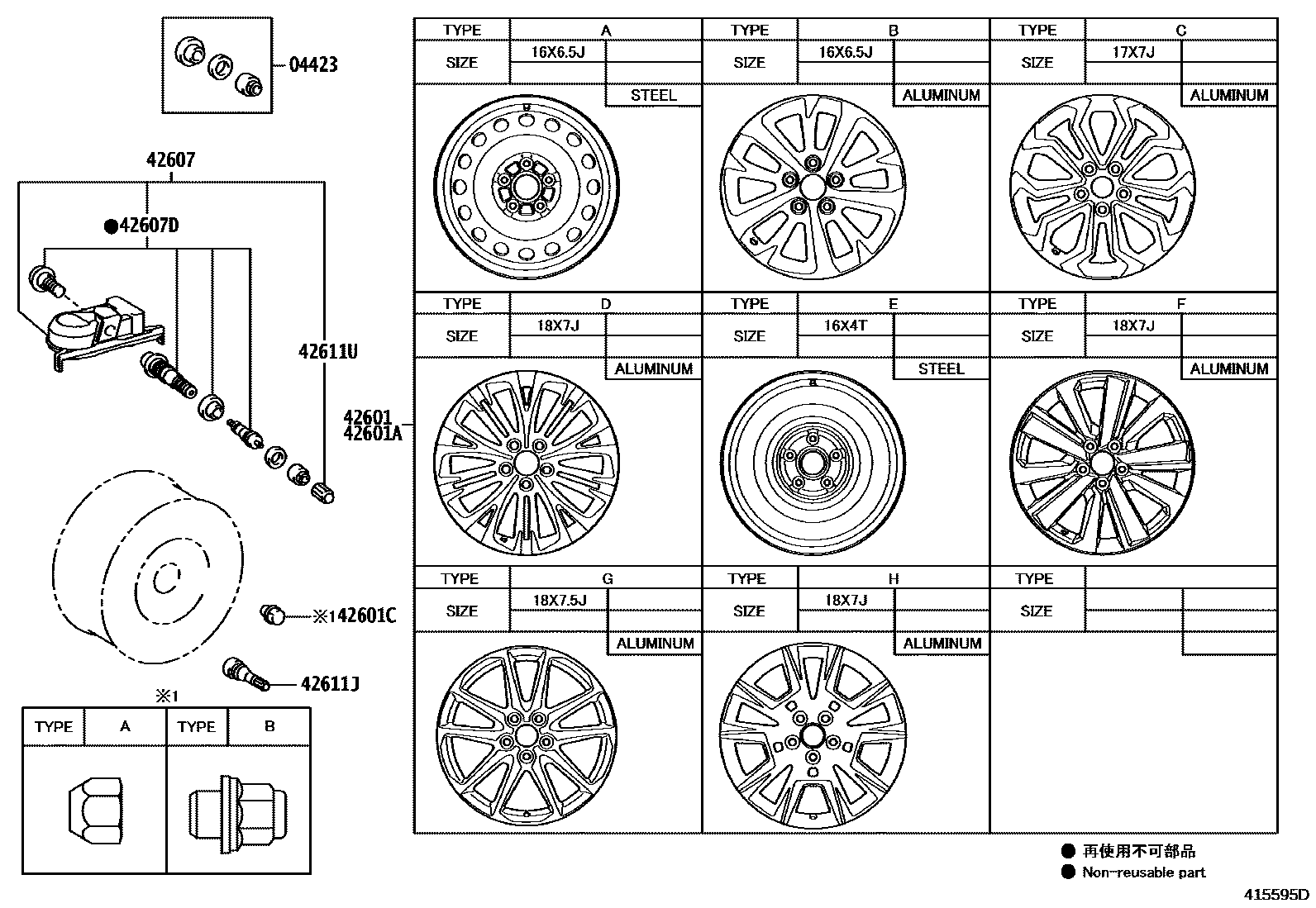

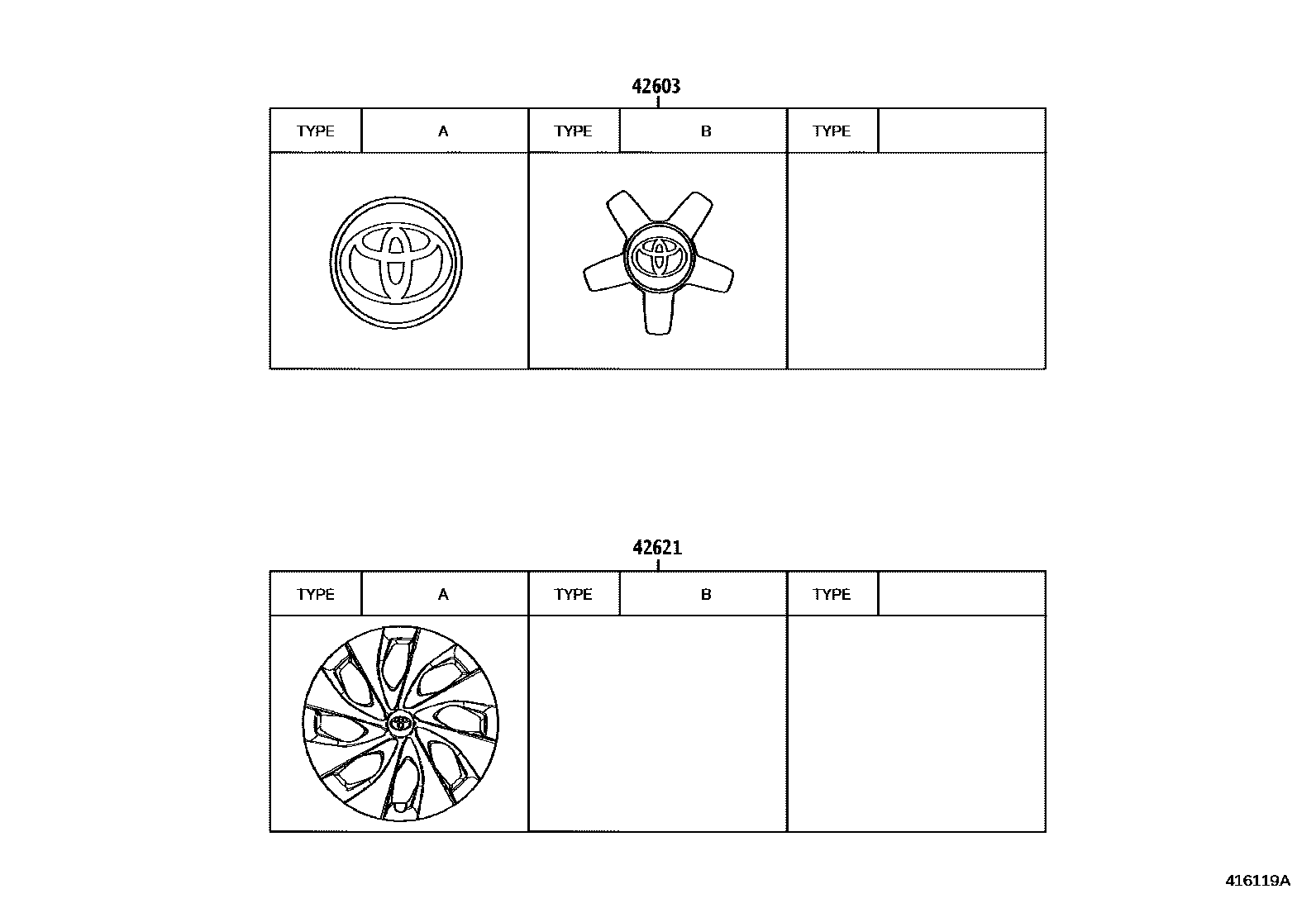

Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-02010 |
| 42601 | spoke wheel | 42611-02E70 · 42611-0DK50 · 42611-0DK60 · 42611-0DK70 · 42611-0DK80 · 42611-0DK90 · 42611-0DN00 · 42611-YP560 · 42611-YYB40 |
| 42601A | Spoke wheel (for spare tire) | 42611-02E70 · 42611-0DK50 · 42611-0DK60 · 42611-0DK70 · 42611-0DK80 · 42611-0DK90 · 42611-F4200 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-F4010 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02070 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-W5003 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-W5001 |
| 42621 | wheel cover | 42602-02410 |
