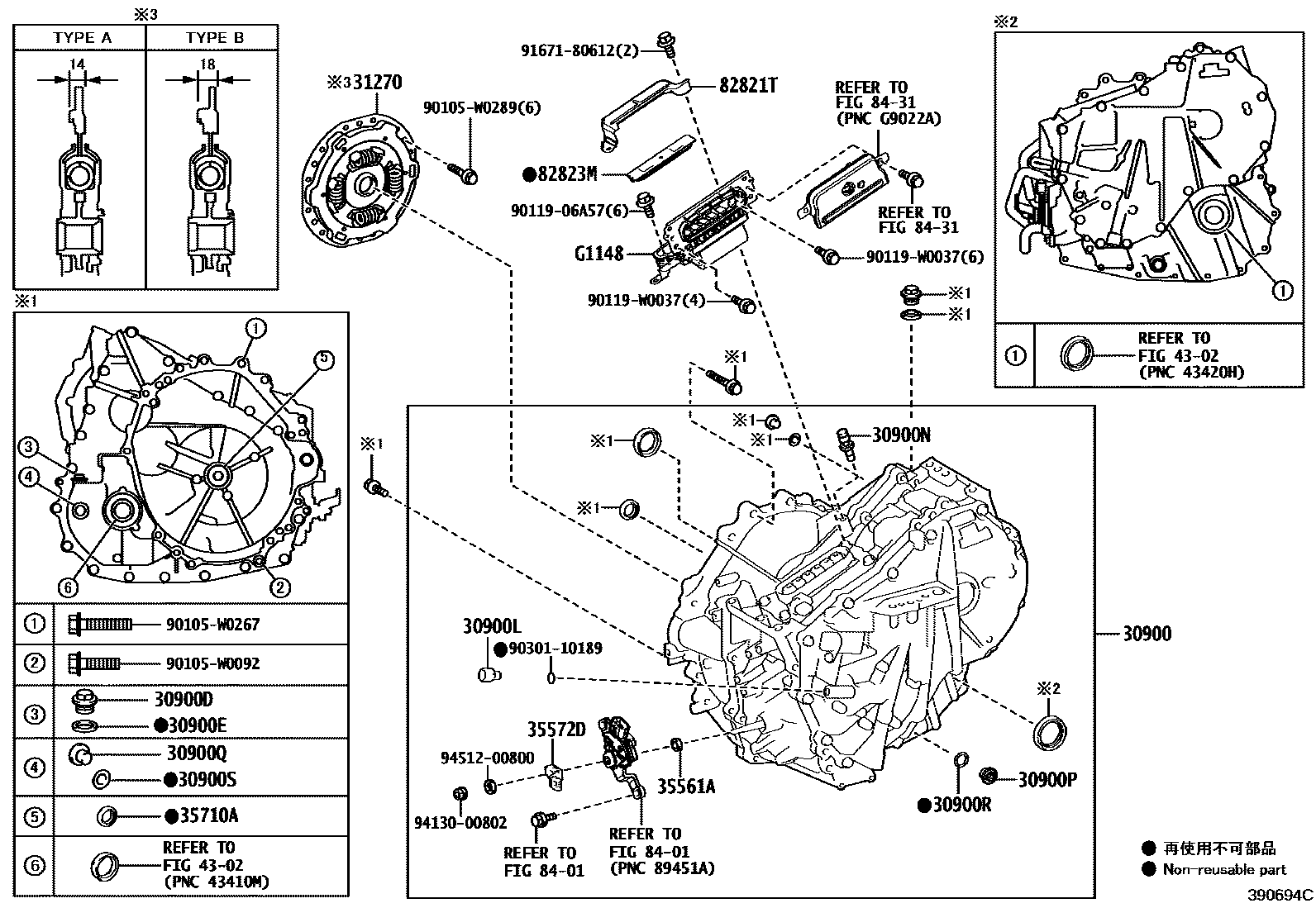

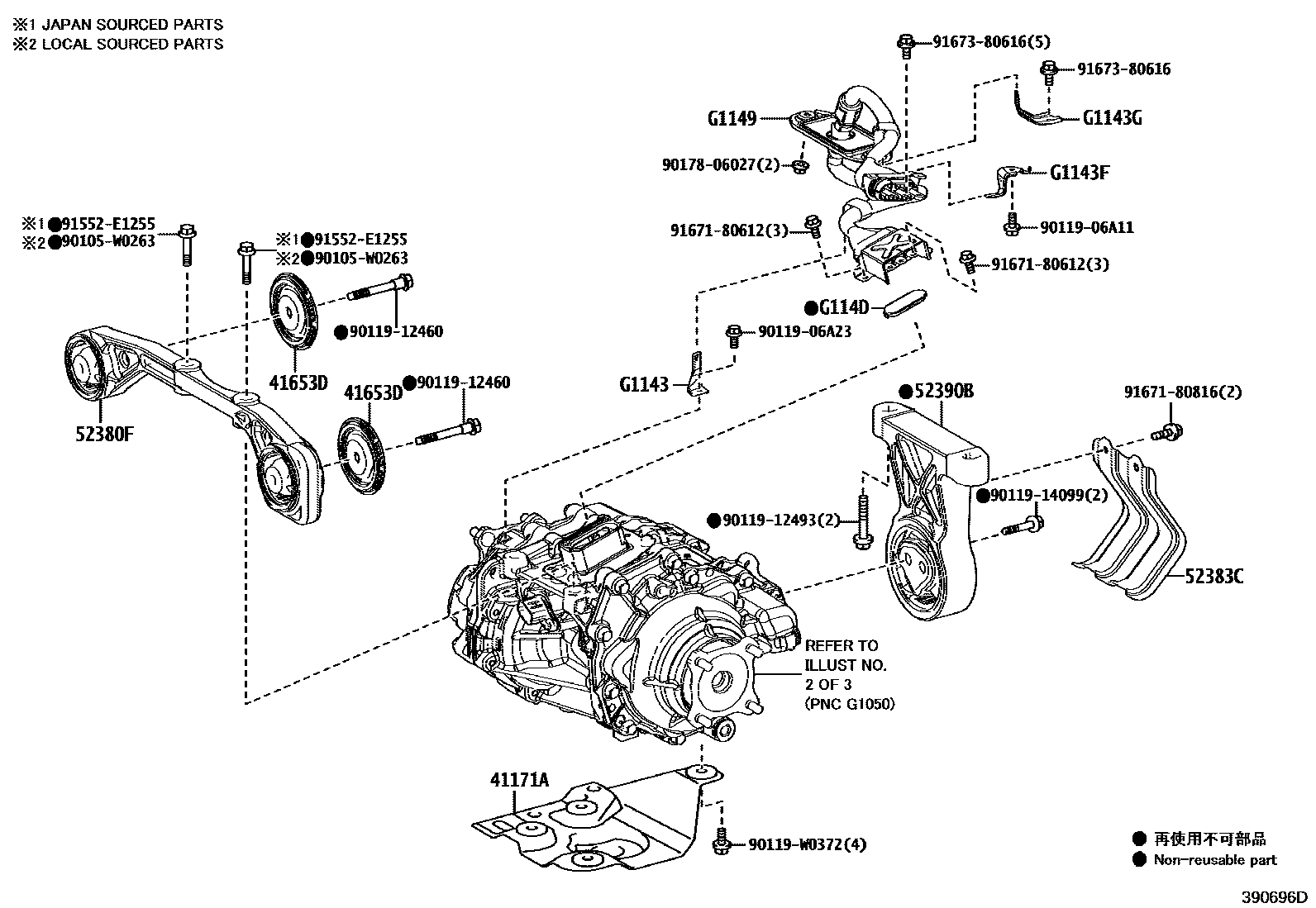

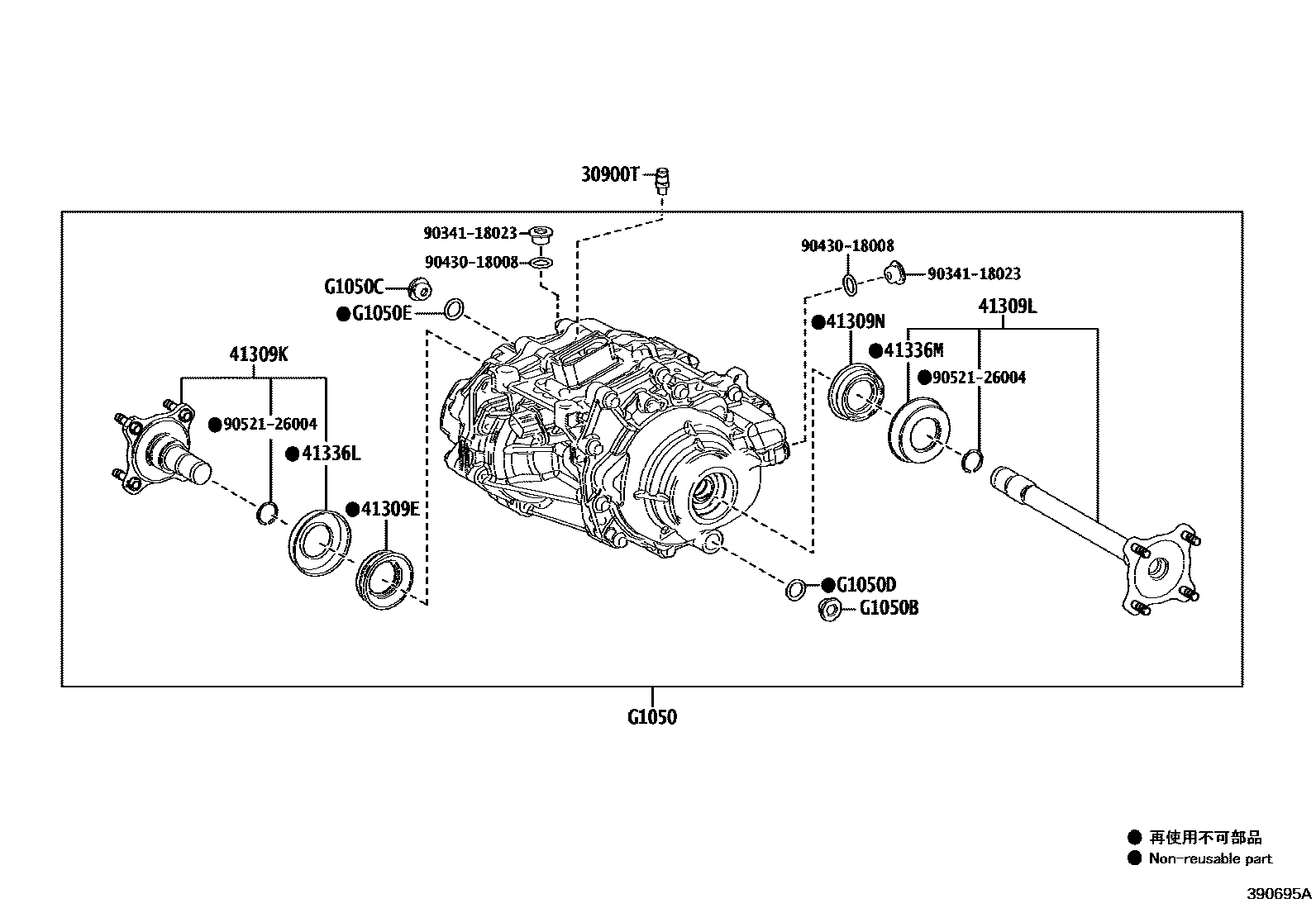

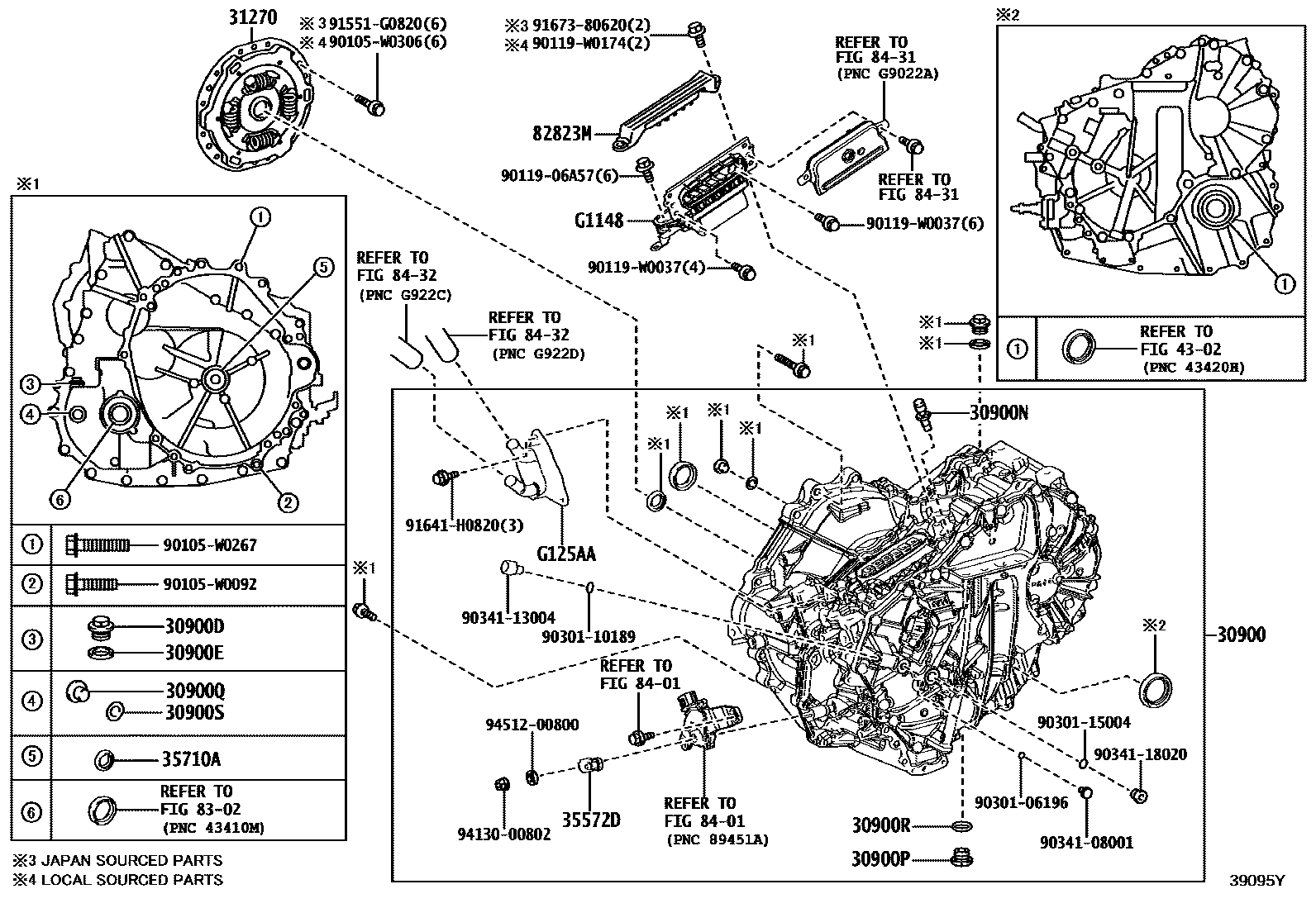

Toyota YARIS HV或FCV传动桥总成 — Figure 3901
Toyota YARIS EPC diagram 3901, HV或FCV传动桥总成, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-0D010 · 30900-52040 · 30900-52090 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900L | Connector (for transaxle housing) | 90404-16031 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | BOUCHON, VIDANGE(HEV) | 90341-18016 |
| 30900Q | BOUCHON, REMPLISSAGE(HEV) | 90341-18016 · 90341-18090 |
| 30900R | JOINT ETANCHEITE, BOUCHON VIDANGE(HEV) | 90430-18008 |
| 30900S | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(HEV) | 90430-18008 |
| 30900T | BOUCHON, RENIFLARD(POUR MOTEUR TRACTION ARRIERE) | 90930-03031 |
| 31270 | Transmission input damper assembly | 31270-K0012 · 31270-K0013 |
| 35561A | T-type oil seal (for parking lock axle) | 90311-12016 |
| 35572D | transmission control lever | 35572-52110 · 35572-K0010 |
| 35710A | T-type oil seal (for input shaft) | 90311-25025 · 90311-25035 |
| 41171A | Differential guard | 41170-52010 |
| 41309E | JOINT, HUILE TYPE T(PR ARBRE TRANSMIS COTE DIFFER MD) | 90311-38097 |
| 41309K | Differential side gear shaft sub-assembly | 41309-47020 · 41309-47021 |
| 41309L | Differential side gear shaft sub-assembly | 41309-47010 · 41309-47011 · 41309-47012 |
| 41309N | JOINT, HUILE TYPE T(PR ARBRE TRANSMIS COTE DIFFER MG) | 90311-42056 |
| 41336L | dust cover | 41336-47020 |
| 41336M | dust cover | 41336-47010 |
| 41653D | Differential fixed part upper stop | 41653-K0010 |
| 52380F | Front differential bracket assembly | 52380-K0040 |
| 52383C | Differential bracket protective cover | 52383-K0010 |
| 52390B | Rear differential bracket assembly | 52390-K0020 |
| 82821T | Connector cover | 82821-52350 |
| 82823M | Terminal cover | 82823-28110 · 82823-47040 |
| G1050 | Rear traction motor assembly with transmission axle | G1050-52011 · G1050-52012 |
| G1050B | BOUCHON, VIDANGE(POUR MOTEUR TRACTION ARRIERE) | 90341-18023 |
| G1050C | BOUCHON, REMPLISSAGE(POUR MOTEUR TRACTION ARRIERE) | 90341-18023 |
| G1050D | JOINT ETANCH, BOUCHON VIDANGE(POUR MOTEUR TRAC ARR) | 90430-18008 |
| G1050E | JOINT ETANCH, BOUCHON REMPLISSAGE(POUR MOTEUR TRAC ARR) | 90430-18008 |
| G1143 | Motor cable bracket | G1143-K0010 |
| G1143F | SUPPORT, CABLE MOTEUR, NO.2 | G1143-K0020 |
| G1143G | SUPP, CABLE MOTEUR, NO.3 | G1143-K0030 |
| G1148 | Motor cable | G1148-52030 · G1148-K0010 |
| G1149 | CABLE(POUR MOTEUR TRACTION ARRIERE) | G1149-K0010 |
| G114D | Motor cable terminal cover | G114D-47021 |
| G125AA | RADIATEUR, REFROIDISSEMENT MOTEUR | G125A-52010 |
