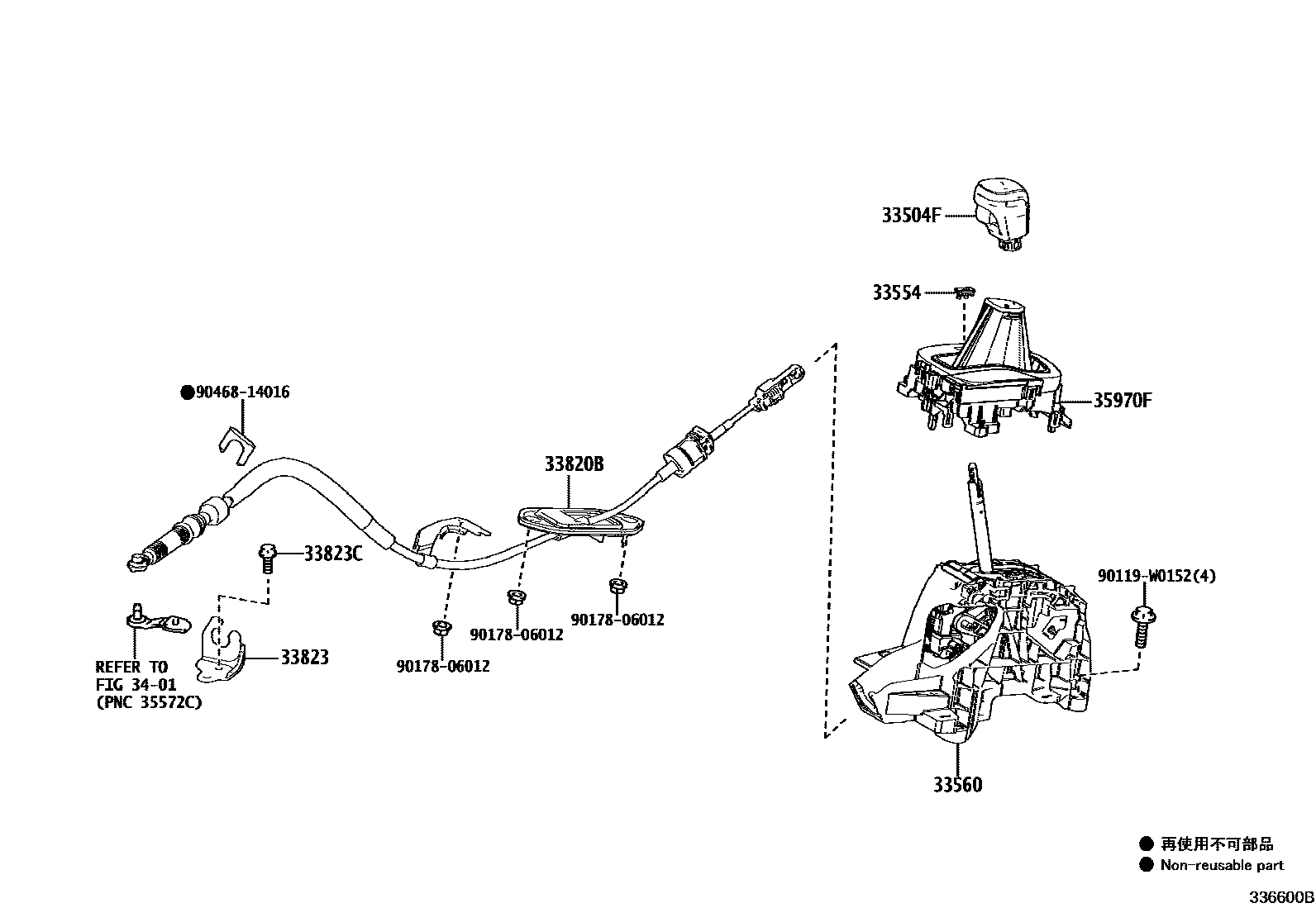

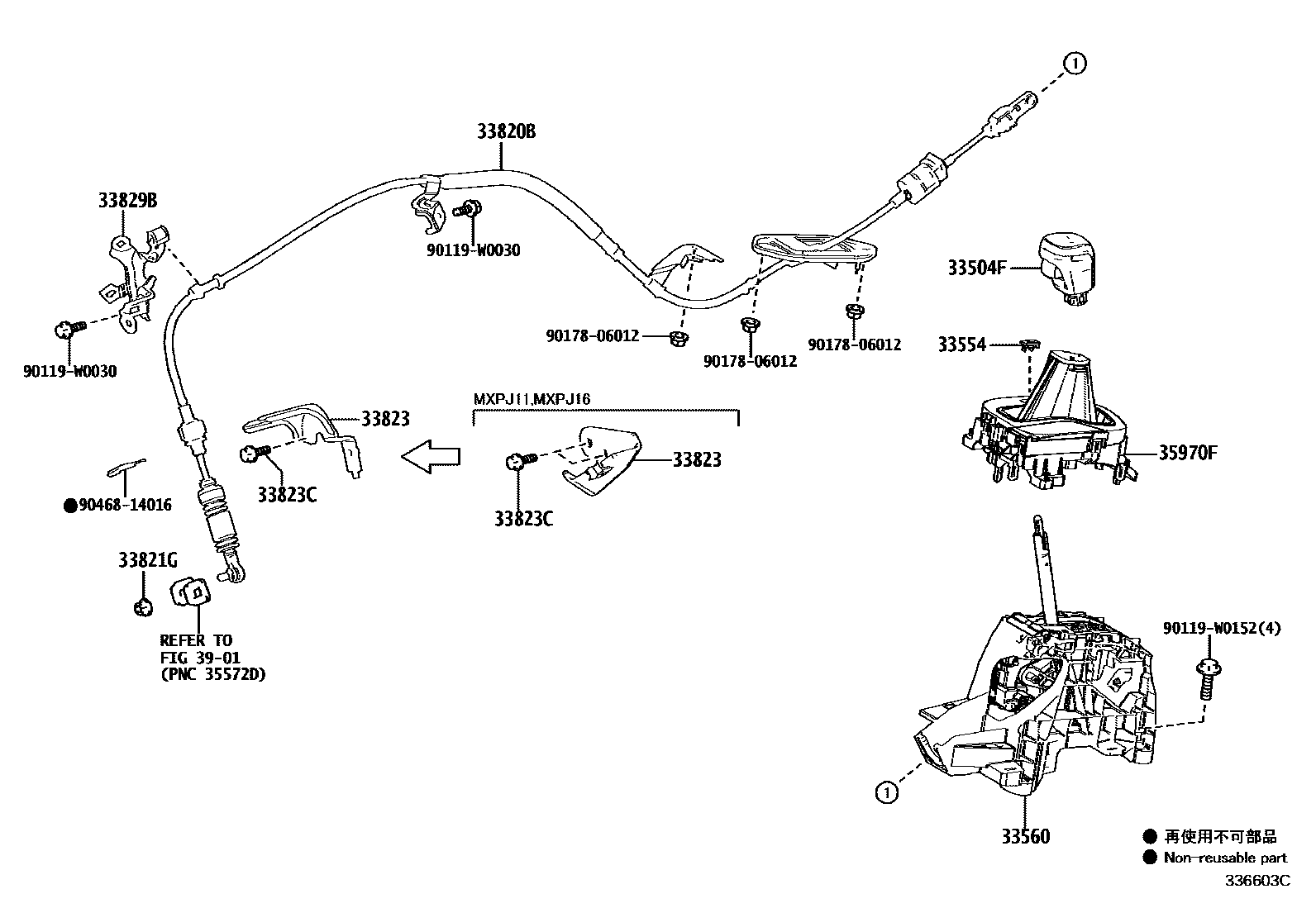

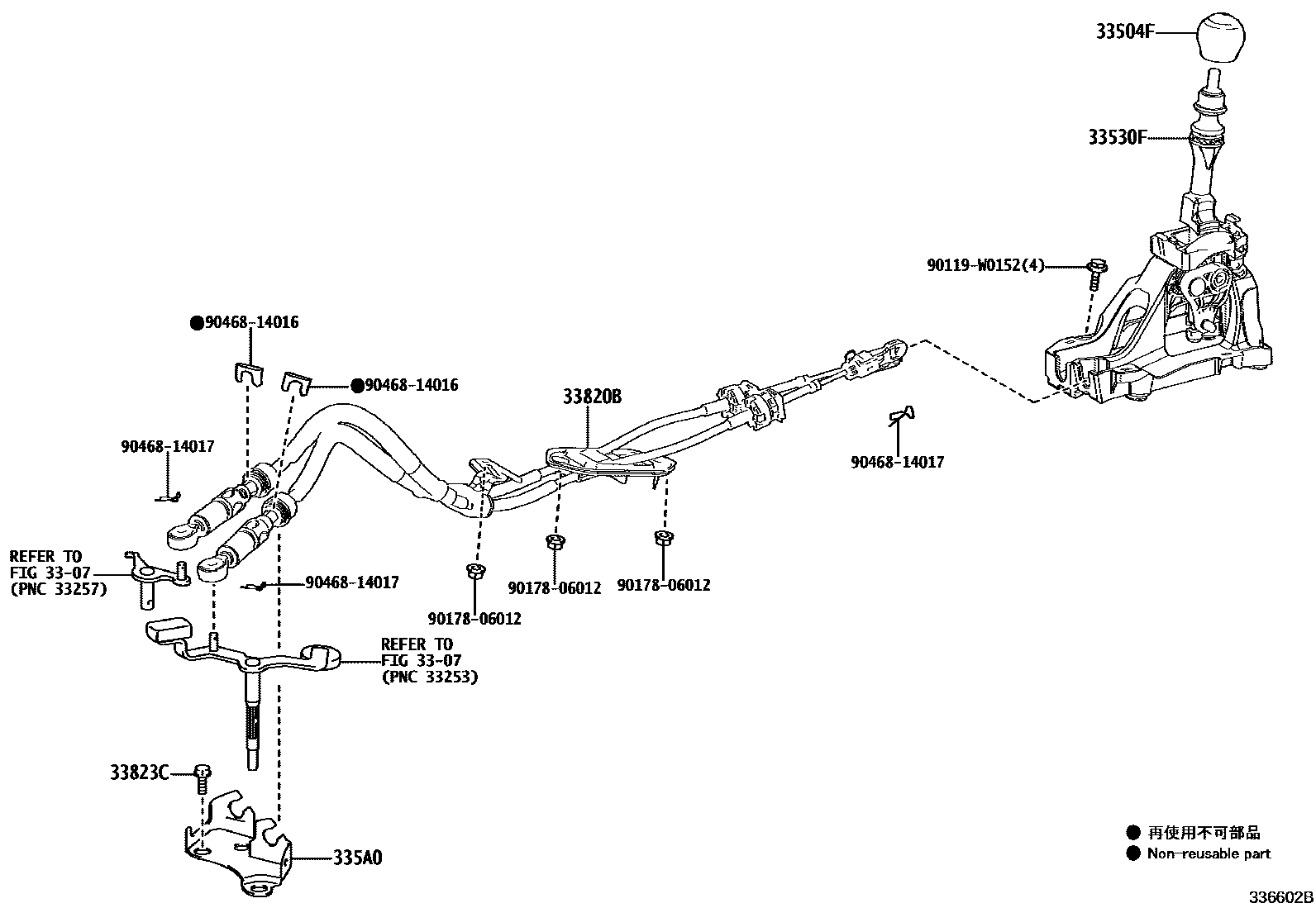

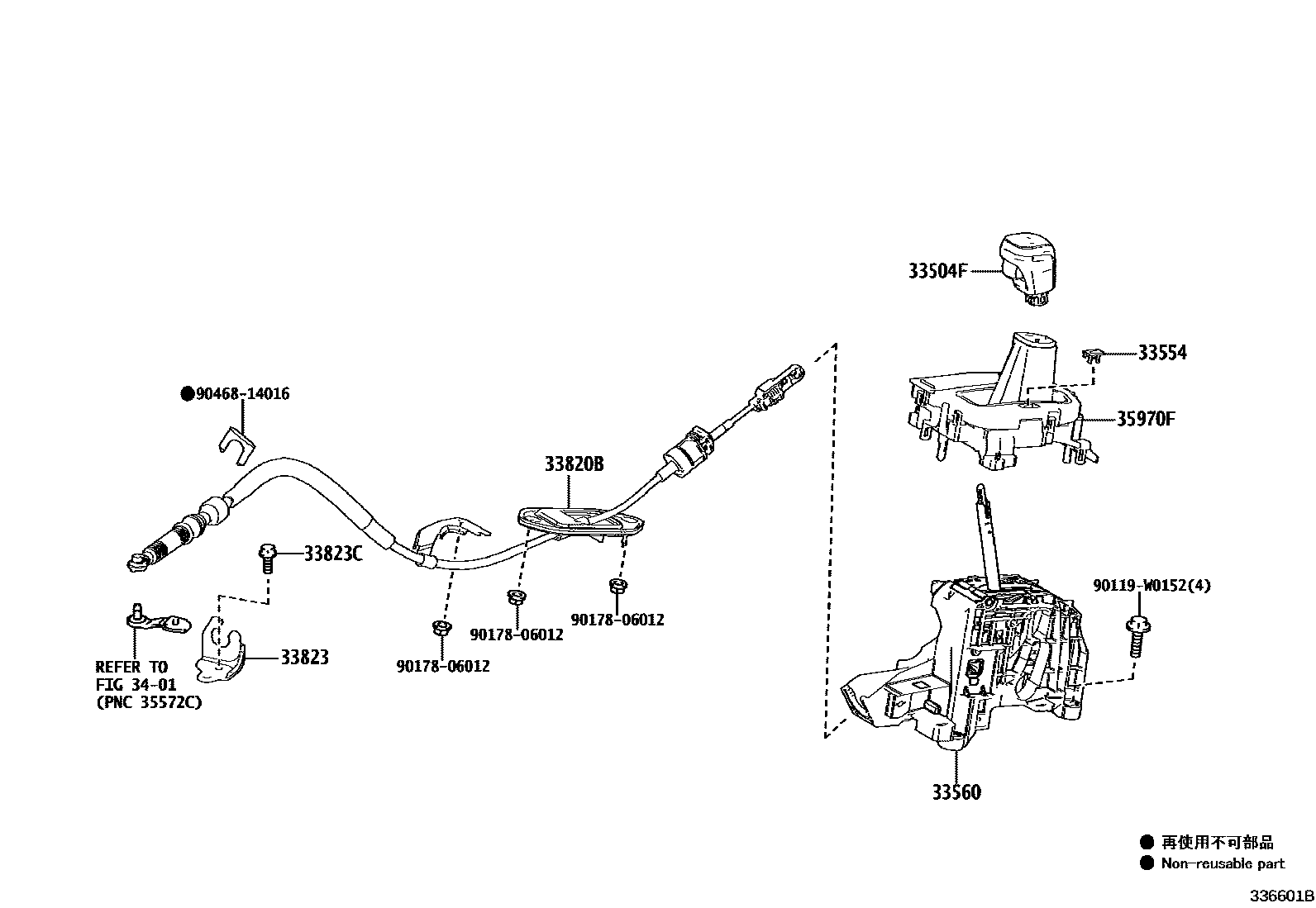

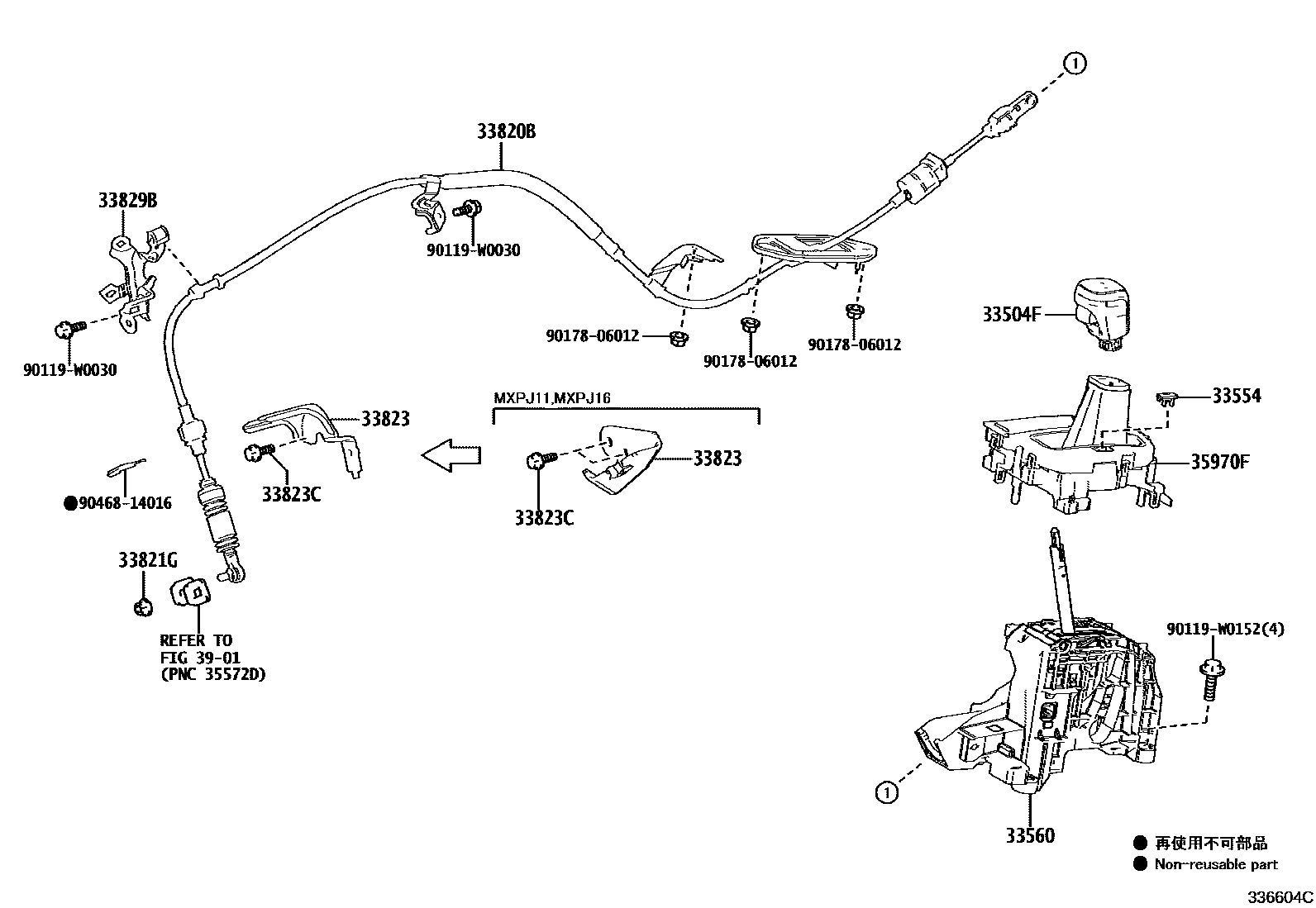

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-02360 |
| 33554 | shift lever cover | 33554-K0010 |
| 33560 | Shift lock control unit assembly | 33560-F4010 · 33560-F4020 · 33560-F4050 · 33560-F4060 · 33560-K0010 · 33560-K0020 |
| 335A0 | Control cable bracket assembly | 335A0-0D010 |
| 33820B | Transmission control cable assembly | 33820-0D740 · 33820-K0020 · 33820-K0030 · 33820-K0040 |
| 33821G | Nut (for transmission control cable) | 90178-W0031 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D280 · 33823-K0010 · 33823-K0020 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-W0255 · 91671-80820 |
| 33829B | Transmission control cable clip | 33829-0D170 · 33829-K0010 |
