Toyota YARIS 离合器和分离叉 — Figure 3101

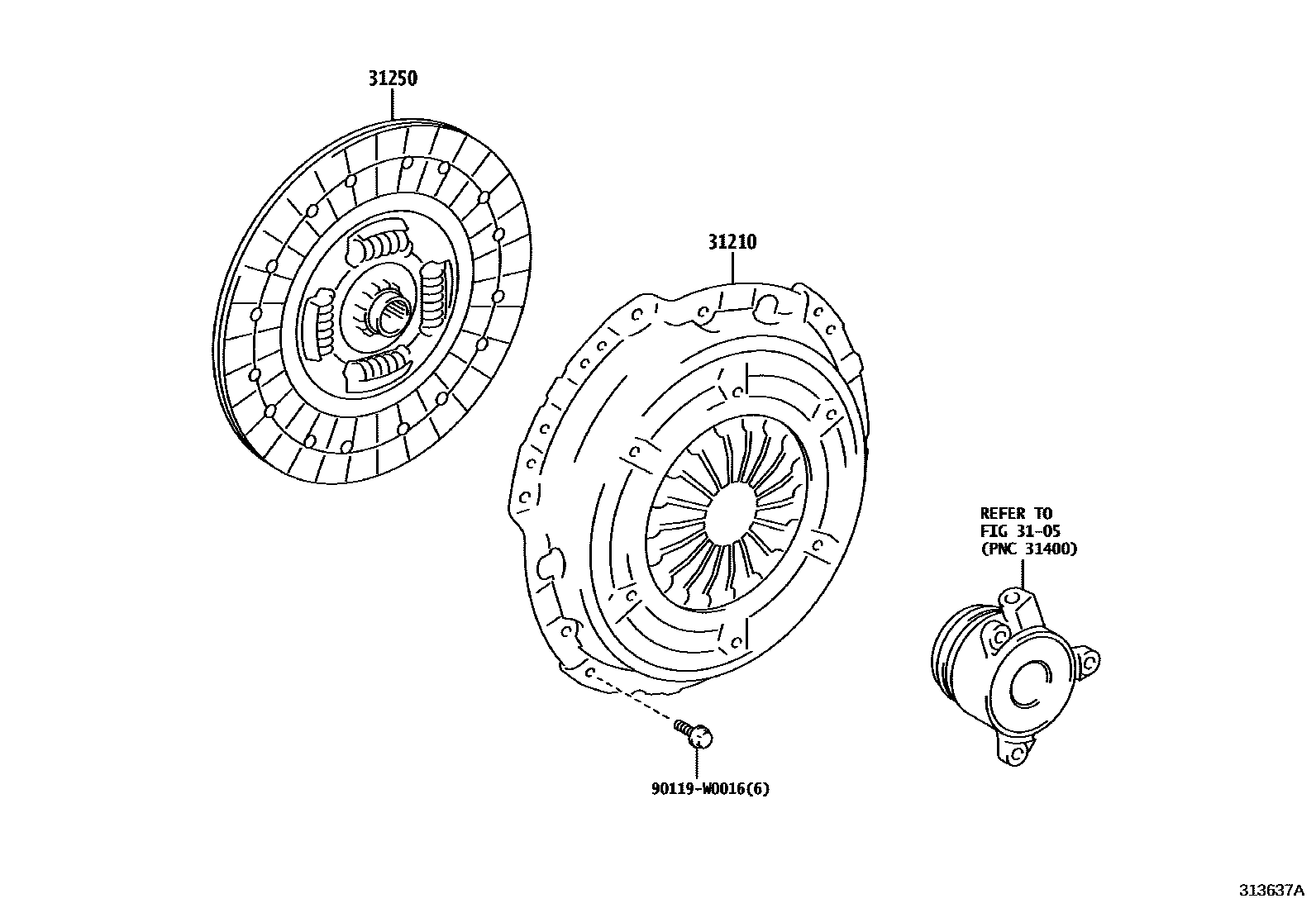

Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31210 | Clutch cover assembly | 31210-K0010 · 31210-K0011 |
| 31250 | Clutch disc assembly | 31250-K0010 |
