Toyota YARIS 废气再循环系统 — Figure 2501

Toyota YARIS EPC diagram 2501, 废气再循环系统, with 1 images and 9 PNC and OE references.

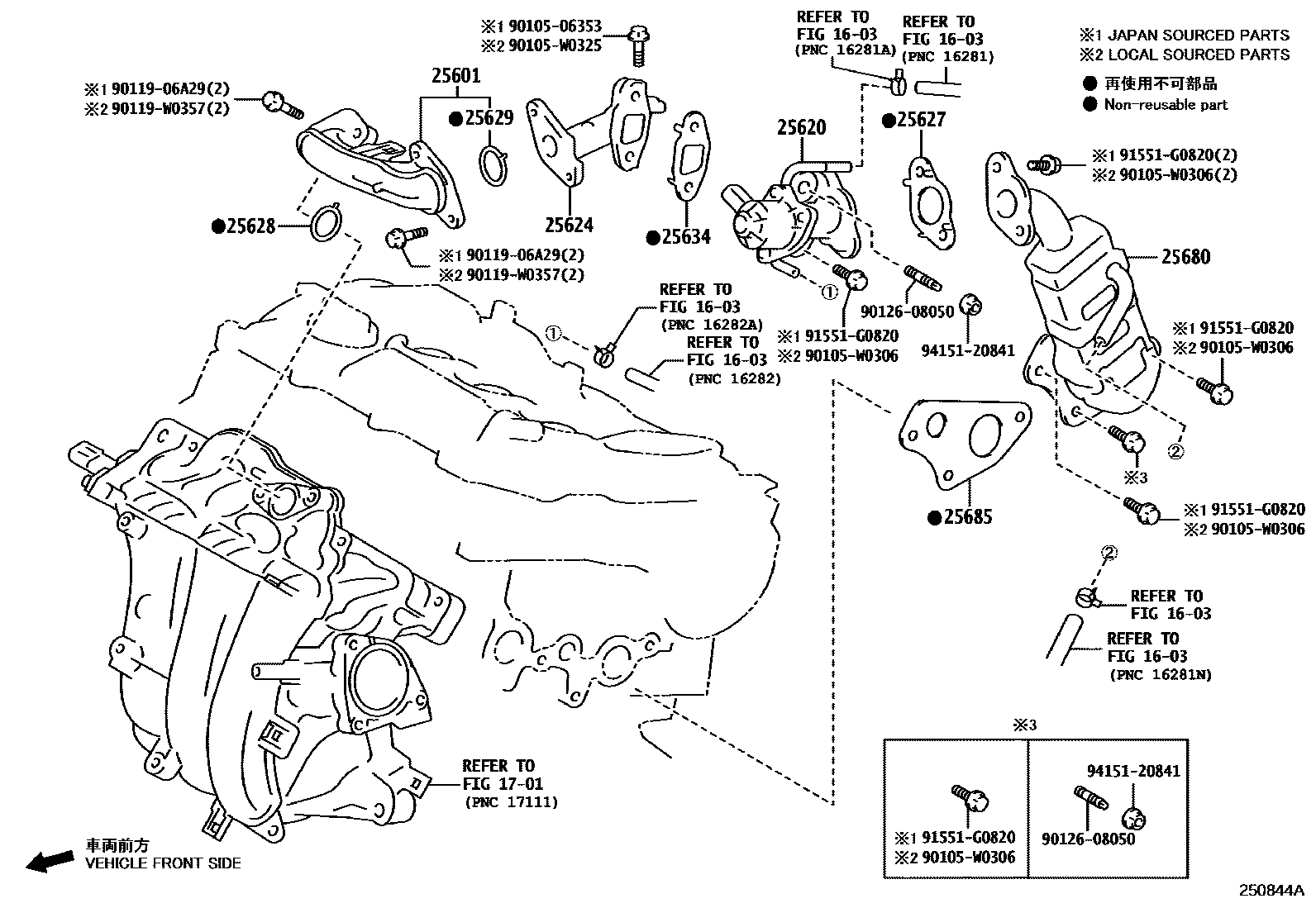

Toyota YARIS 废气再循环系统 EPC diagram — 250844A
废气再循环系统 — 250844A (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
25601No. 1 EGR pipe assembly25601-15050 · 25601-F3010
25620EGR valve assembly25620-15360
25624EGR valve adapter25624-15010 · 25624-F3020
25627EGR valve gasket25627-15010 · 25627-F3010
25628EGR air intake gasket25628-25010 · 25628-F2040
25629EGR valve adapter gasket25628-25010 · 25628-F2040
25634EGR tube gasket25634-15010 · 25634-F3010
25680EGR cooler assembly25680-15020 · 25680-15030
25685No. 1 EGR Cooler Gasket25685-15010
