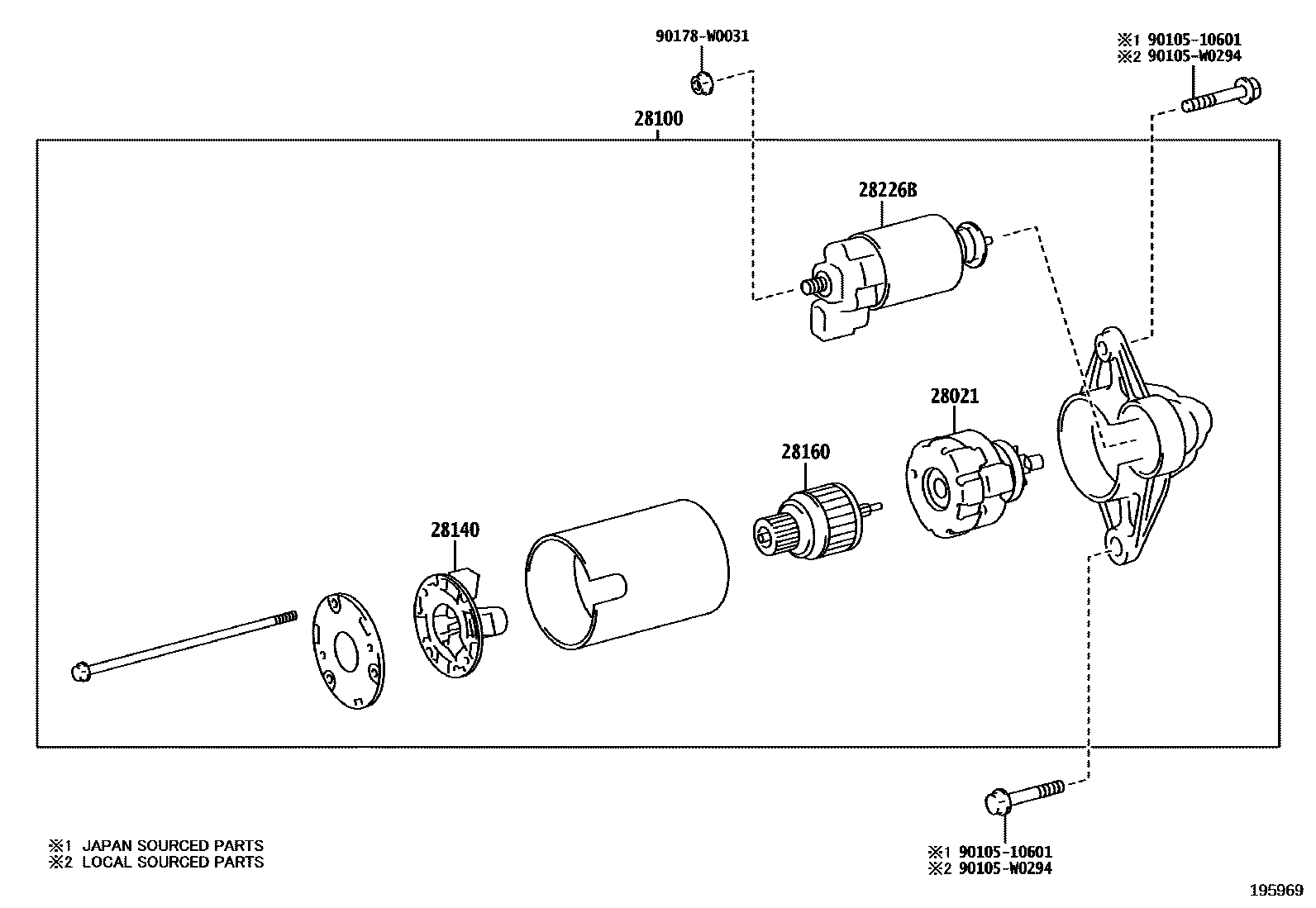

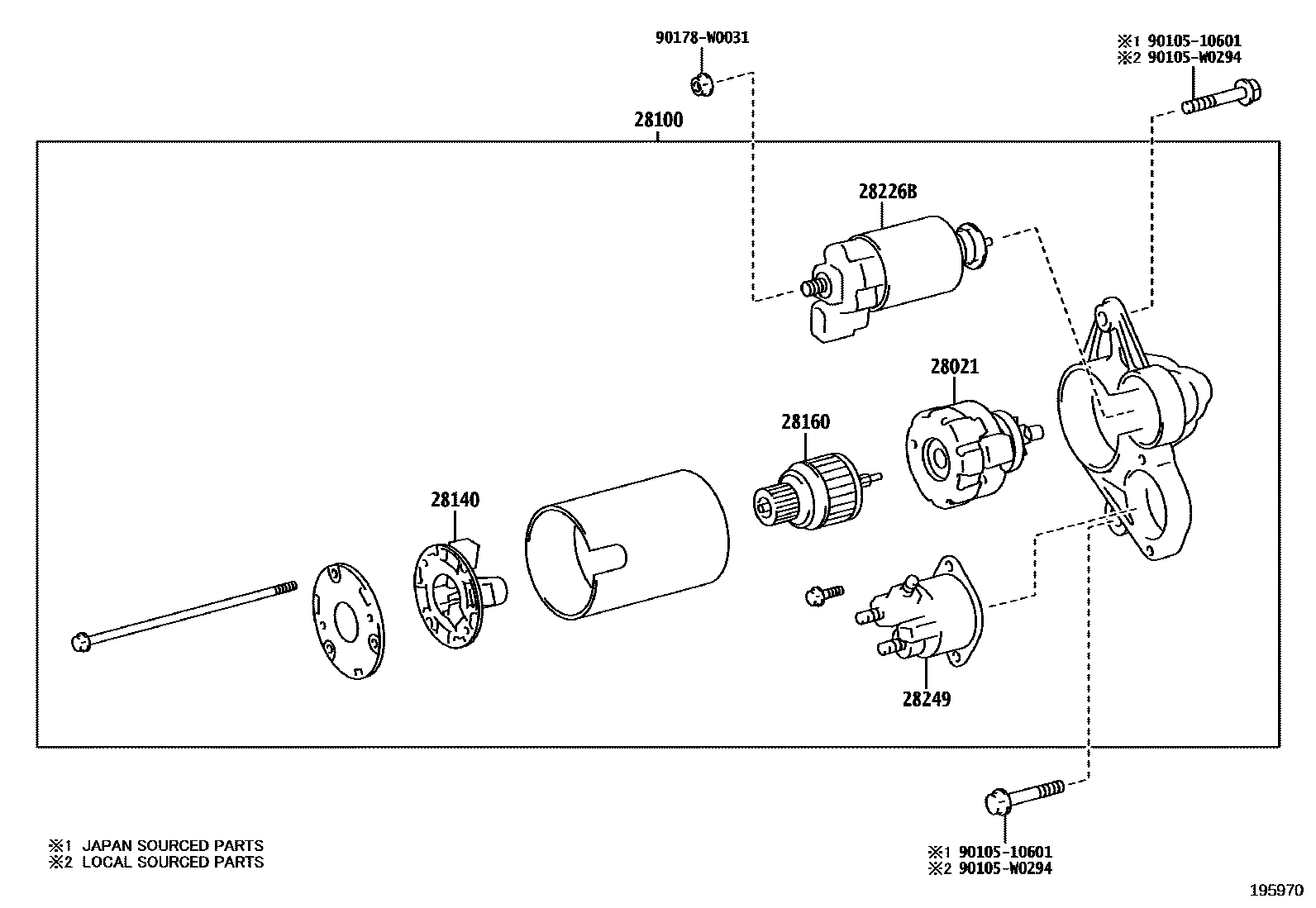

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-K0040 · 28021-K0060 |
| 28100 | Starter assembly | 28100-K0010 · 28100-K0020 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-K0060 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-K0060 |
| 28226B | starter magnetic switch | 28226-K0040 · 28226-K0060 |
| 28249 | RELAIS, REDUCTION DU COURANT D'APPEL DU DEMARREUR | 28249-31180 |
