Toyota YARIS Alternator — Figure 1903

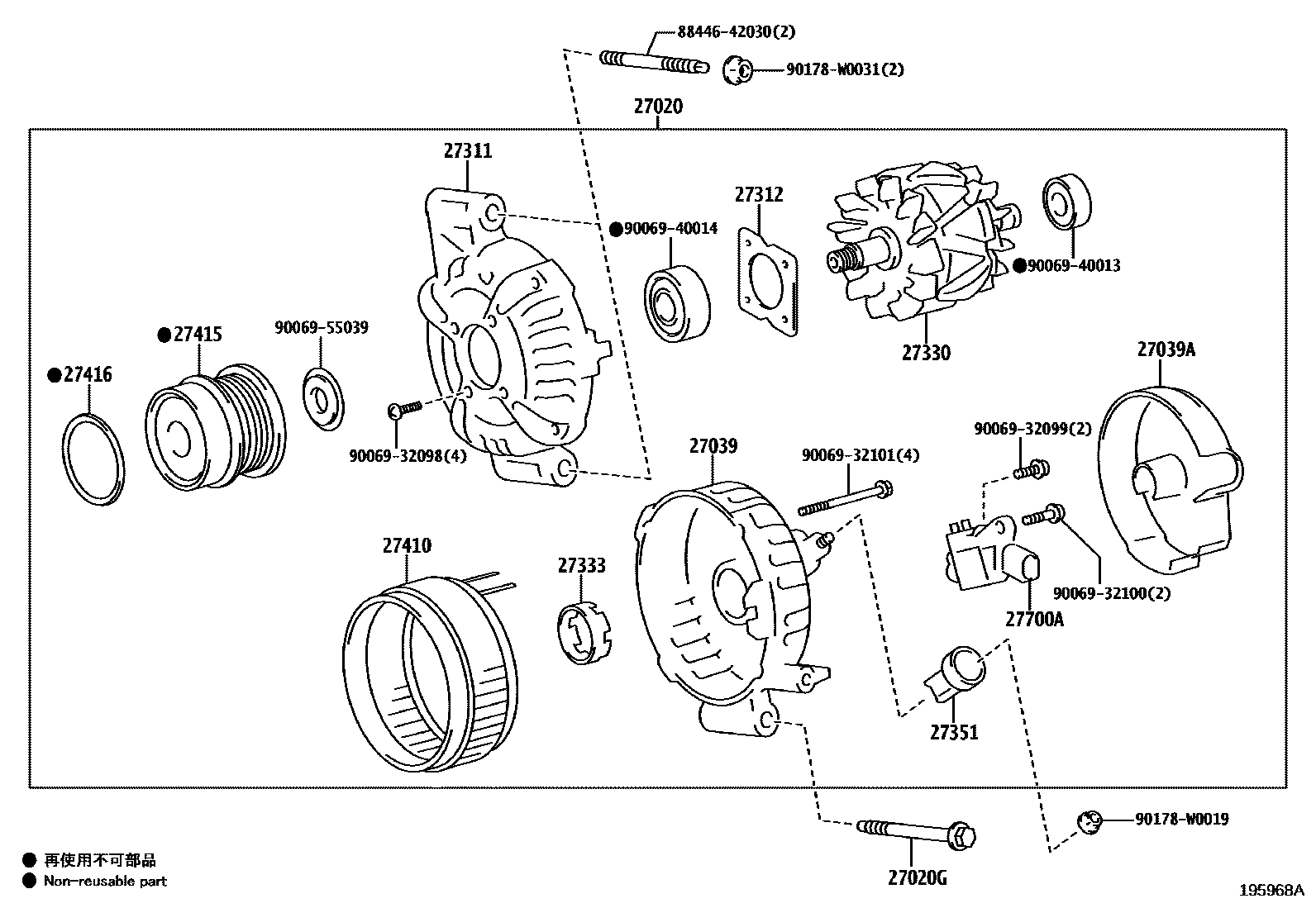

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-K0030 |
| 27020G | Bolt No. 2 (for generator) | 90119-08C78 |
| 27039 | Alternator Rear End Cover | 27039-K0030 |
| 27039A | No. 2 generator rear end cover | 27041-K0030 |
| 27311 | Generator drive end cover | 27311-K0030 |
| 27312 | Retainer Plate | 27312-K0030 |
| 27330 | Alternator Rotor Assembly | 27330-K0030 |
| 27333 | Isolation collar (for generator rotor) | 27333-K0030 |
| 27351 | Bushing (for generator rectifier end frame) | 90069-41003 |
| 27410 | Generator stator assembly | 27410-K0030 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-F3010 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27700A | Generator voltage regulator assembly | 27700-K0020 |
