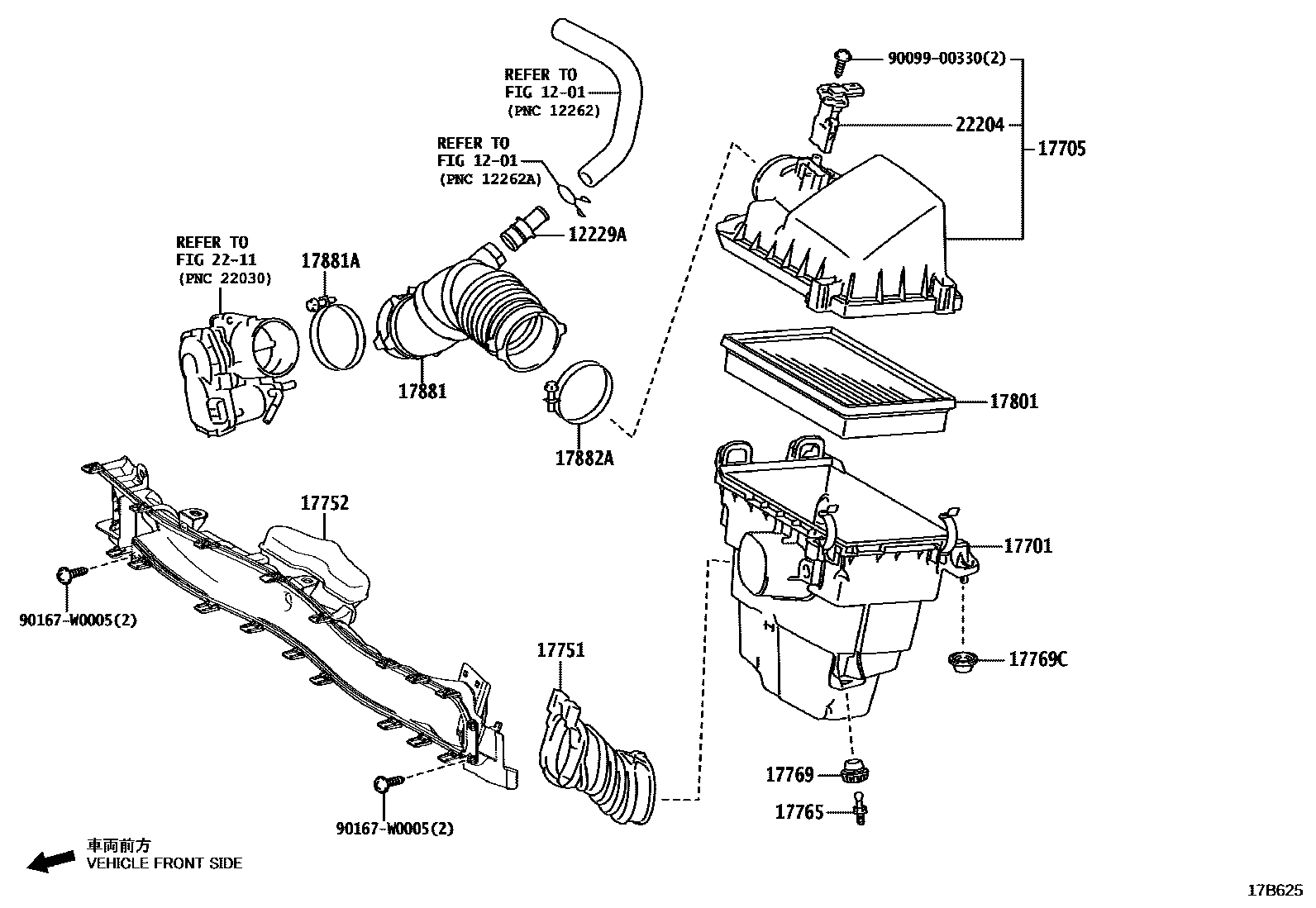

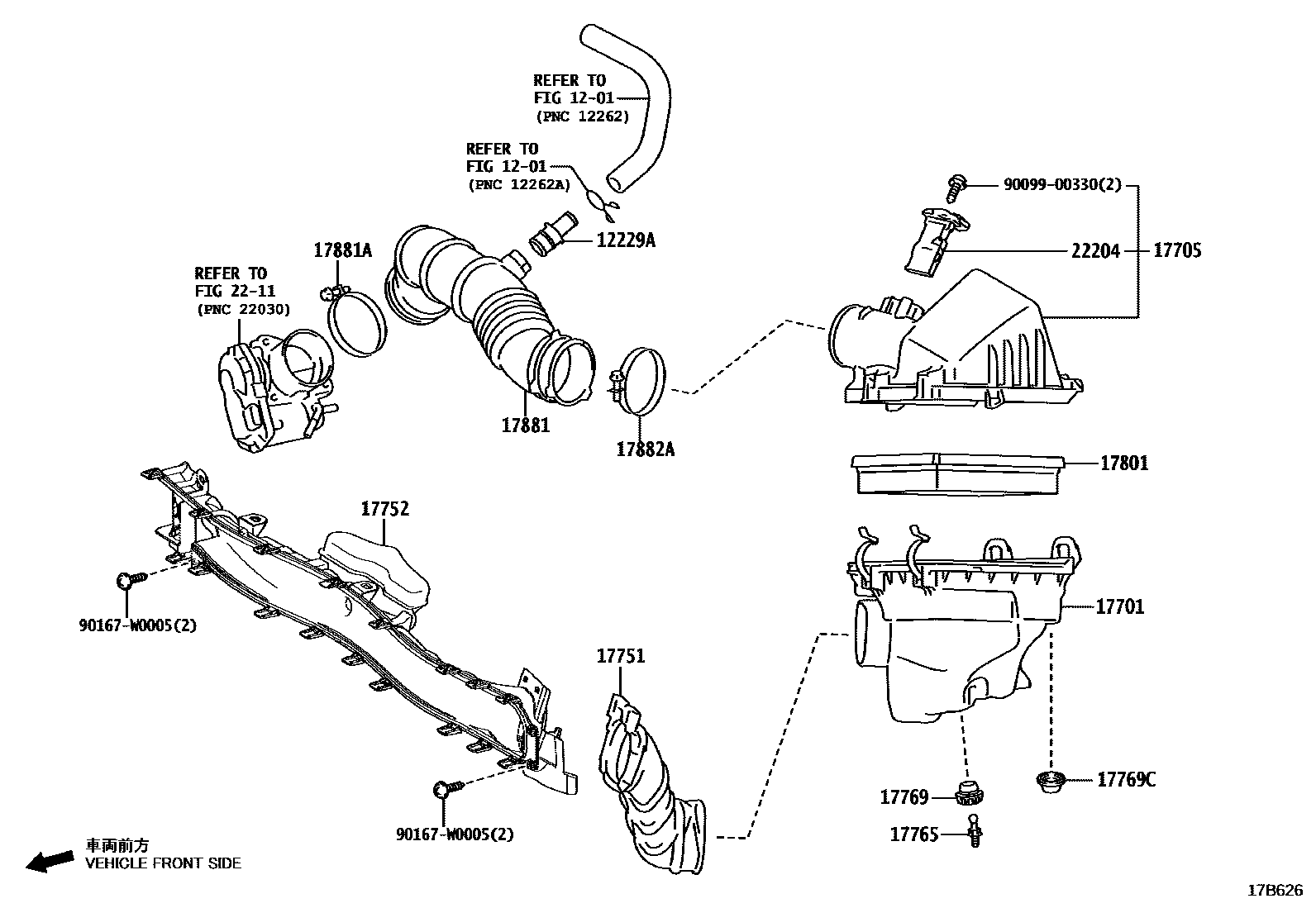

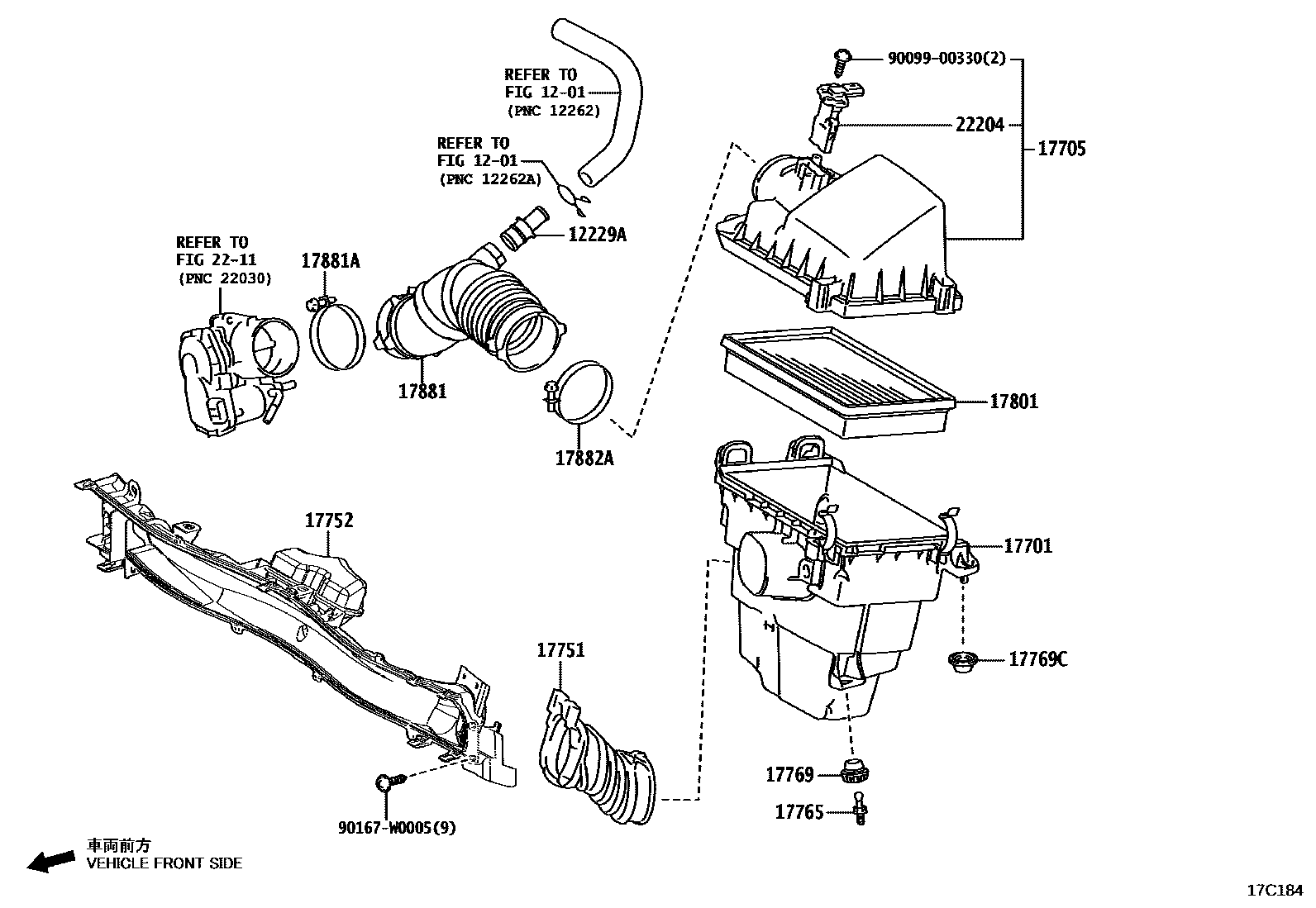

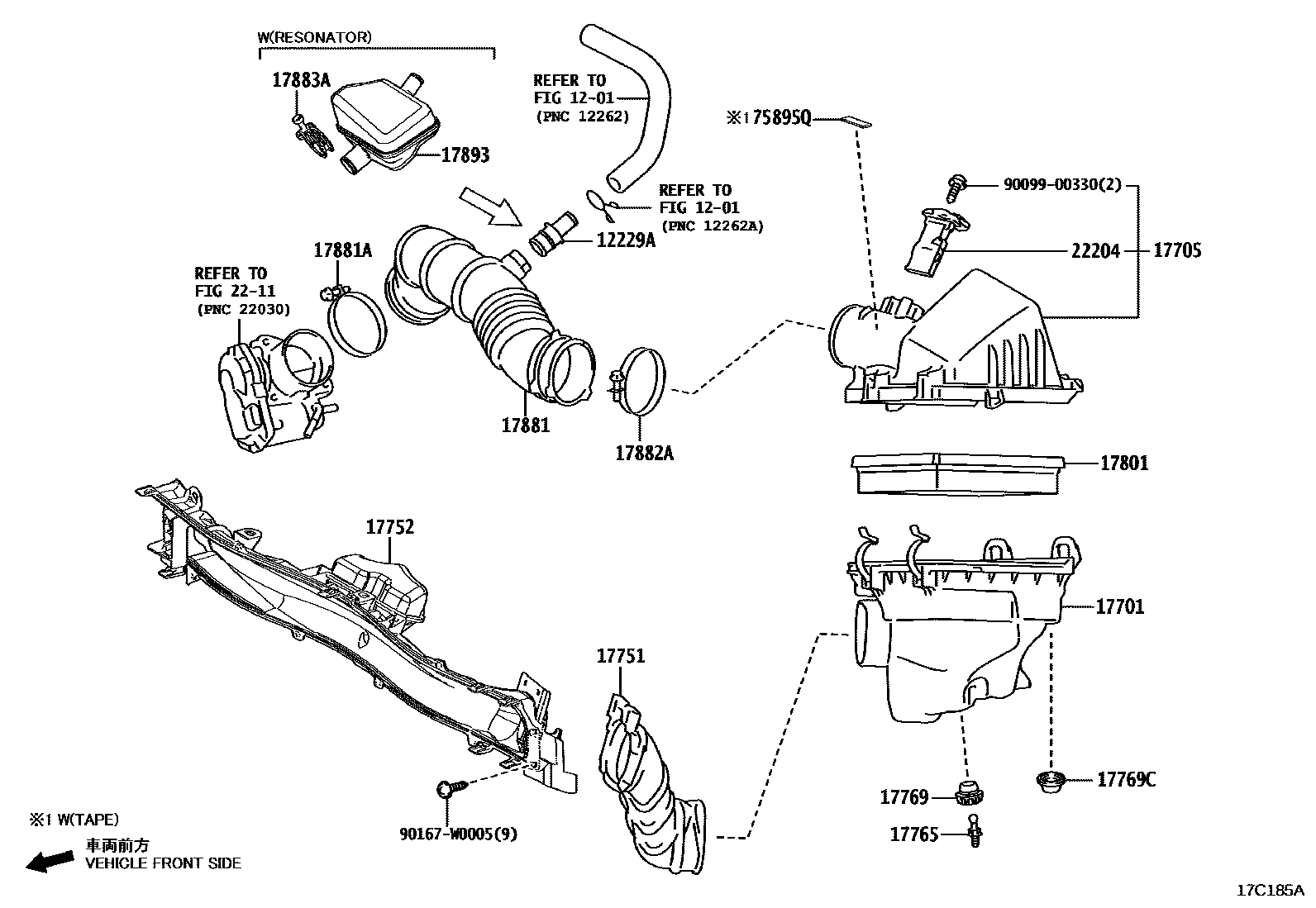

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17701 | Air filter housing sub-assembly | 17701-K0030 · 17701-K0040 |
| 17705 | Air filter cover sub-assembly | 17705-K0030 · 17705-K0040 |
| 17751 | No. 1 air filter air inlet | 17751-K0030 · 17751-K0040 |
| 17752 | No. 2 air filter air inlet | 17752-F3010 · 17752-F3040 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25030 |
| 17769C | SUPPORT, FILTRE A AIR, NO.1 | 17769-25020 |
| 17801 | Air filter element sub-assembly | 17801-K0020 · 17801-K0030 |
| 17881 | No. 1 air cleaner hose | 17881-15230 · 17881-F3040 · 17881-K0040 · 17881-K0050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10710 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 96111-10330 |
| 17893 | Intake resonator | 17893-15070 · 17893-F3060 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-F2010 |
| 75895Q | RUBAN, MOULURE, NO.1 | 75895-52080 |
