Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 9 PNC and OE references.

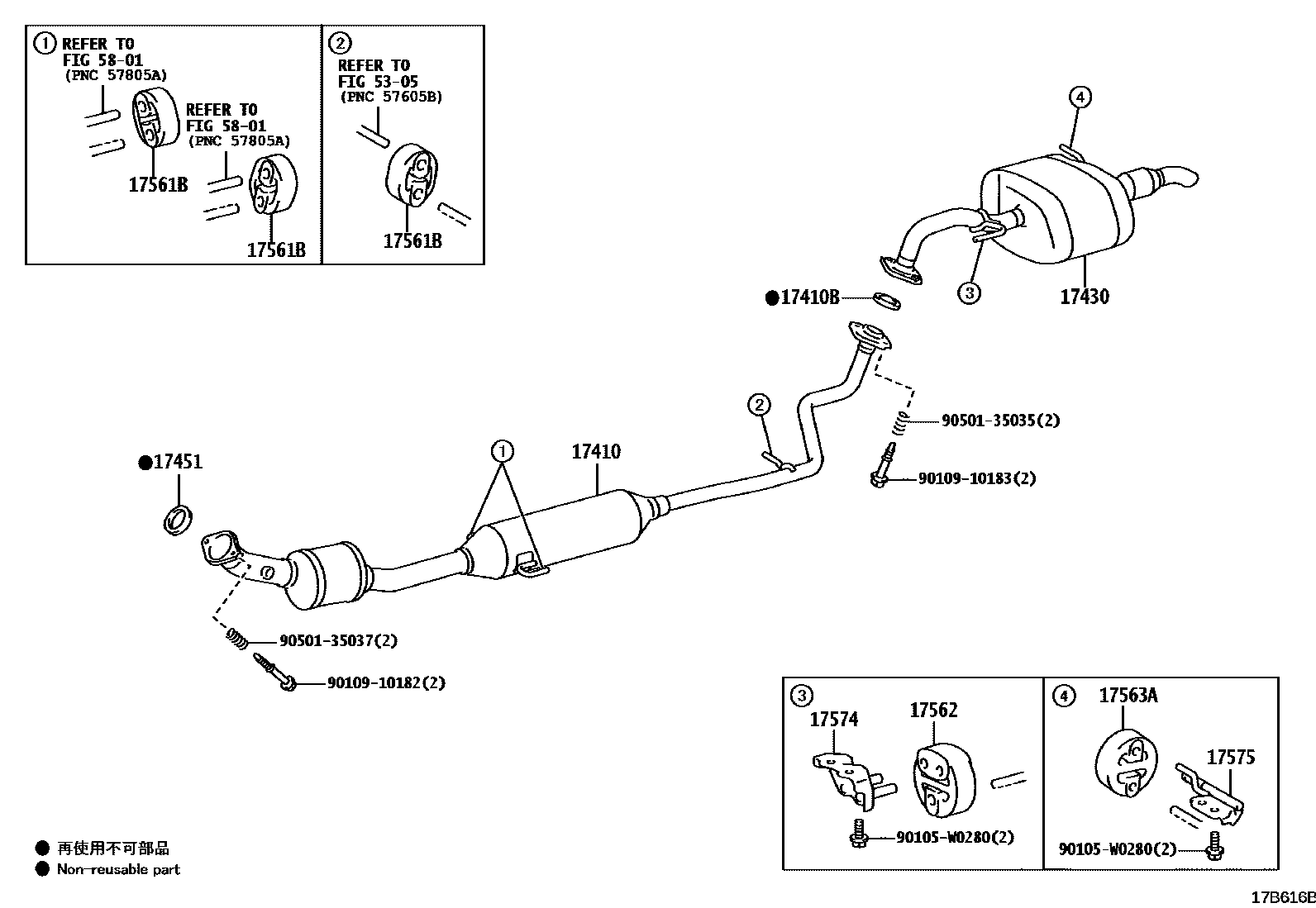

Toyota YARIS Exhaust Pipe EPC diagram — 17B616B
Exhaust Pipe — 17B616B (202107 – 999999)

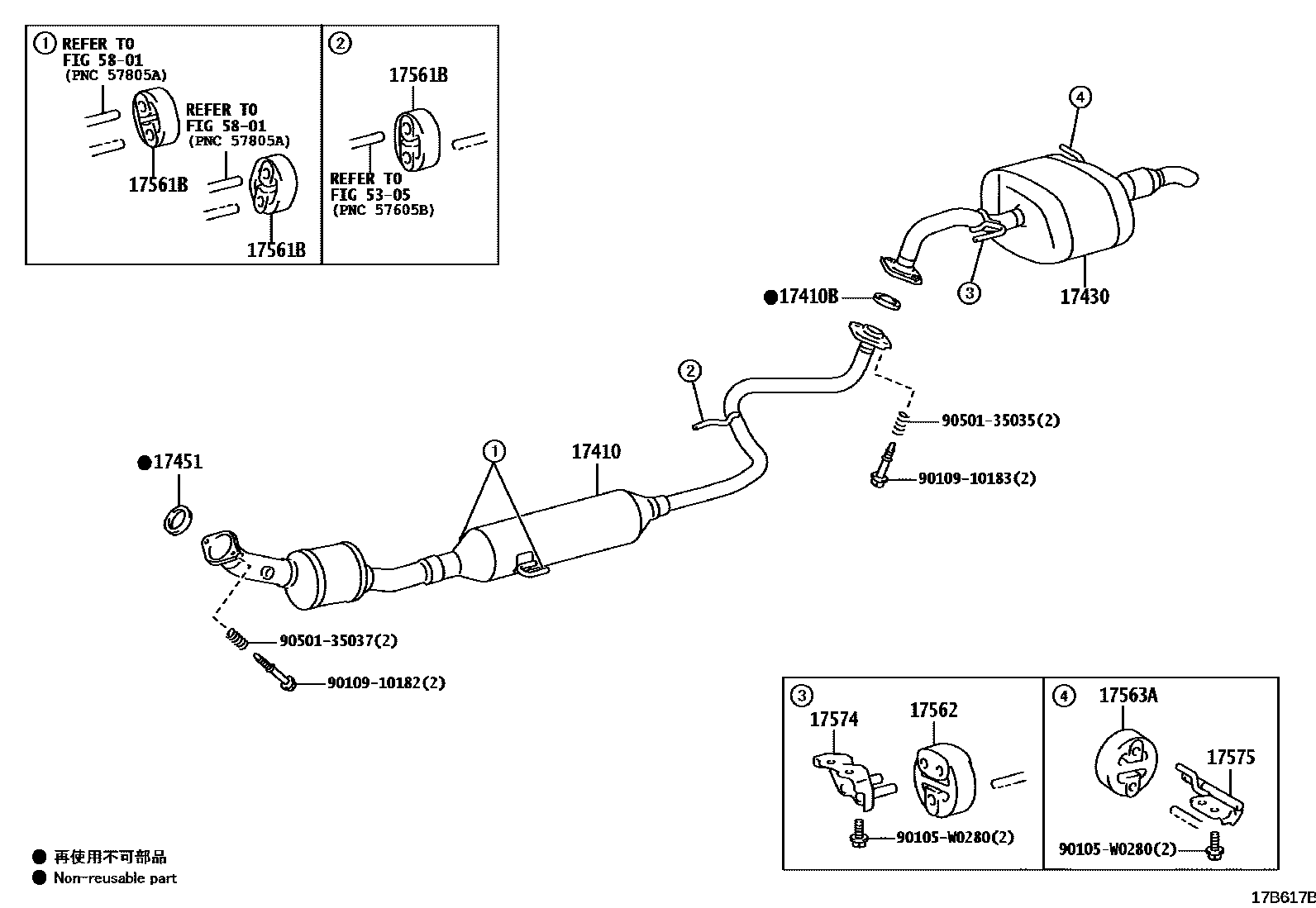

Toyota YARIS Exhaust Pipe EPC diagram — 17B617B
Exhaust Pipe — 17B617B (202107 – 999999)

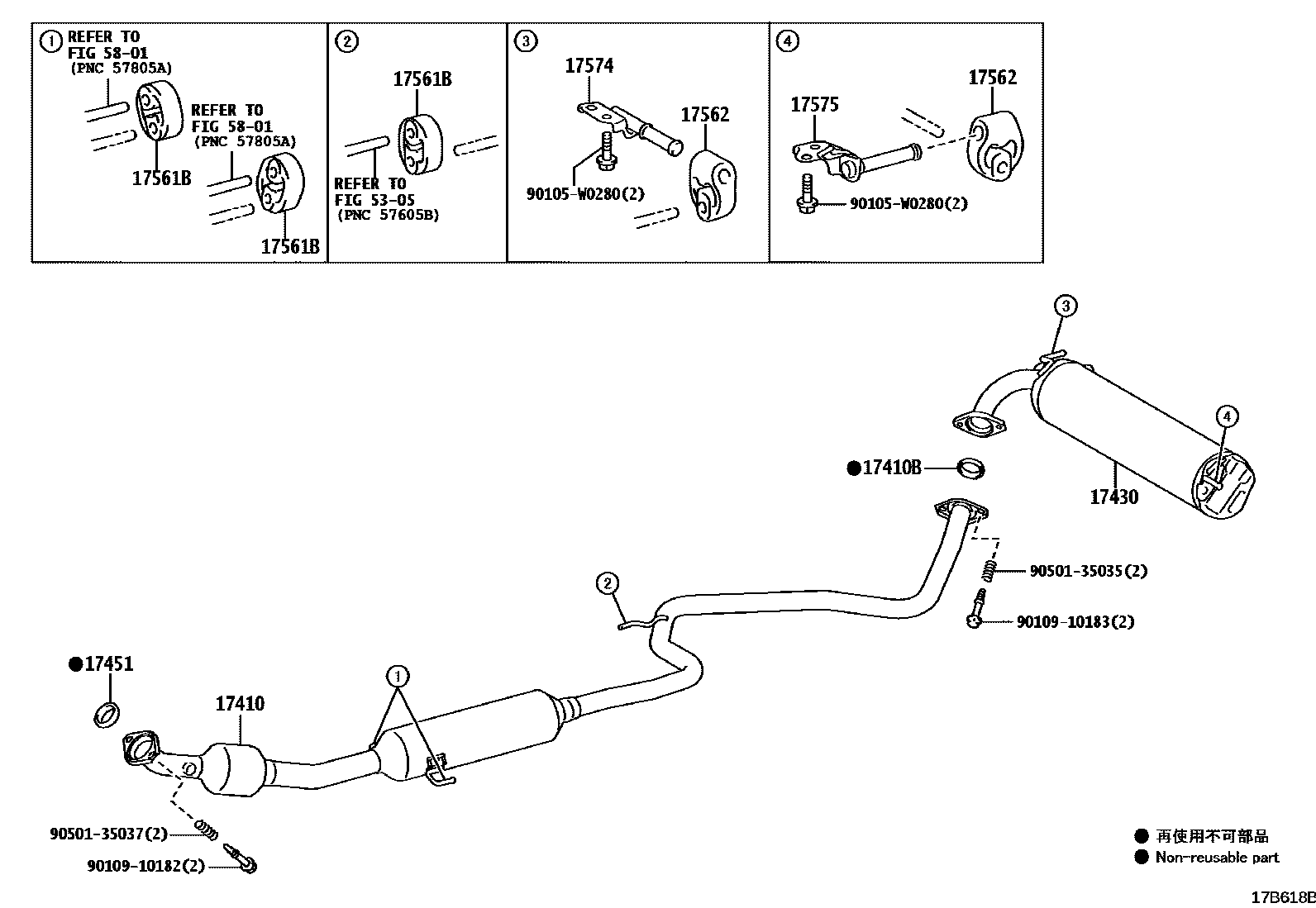

Toyota YARIS Exhaust Pipe EPC diagram — 17B618B
Exhaust Pipe — 17B618B (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-F3030 · 17410-F3120 · 17410-K0080 · 17410-K0090 · 17410-K0100 · 17410-K0120
17410BExhaust pipe gasket17451-0J022
17430Exhaust tailpipe assembly17430-F3030 · 17430-F3040 · 17430-F3090
17451Exhaust pipe gasket17451-0J030
17561BNo. 1 exhaust pipe lifting lug17565-0Q030
17562No. 2 exhaust pipe lifting lug17565-28020 · 17565-74320
17563ANo. 3 exhaust pipe lifting lug17565-0T040
17574No. 4 exhaust pipe bracket17574-15070 · 17574-K0030
17575No. 5 exhaust pipe bracket17575-15050 · 17575-K0030
