Toyota YARIS Ventilation Hose — Figure 1201

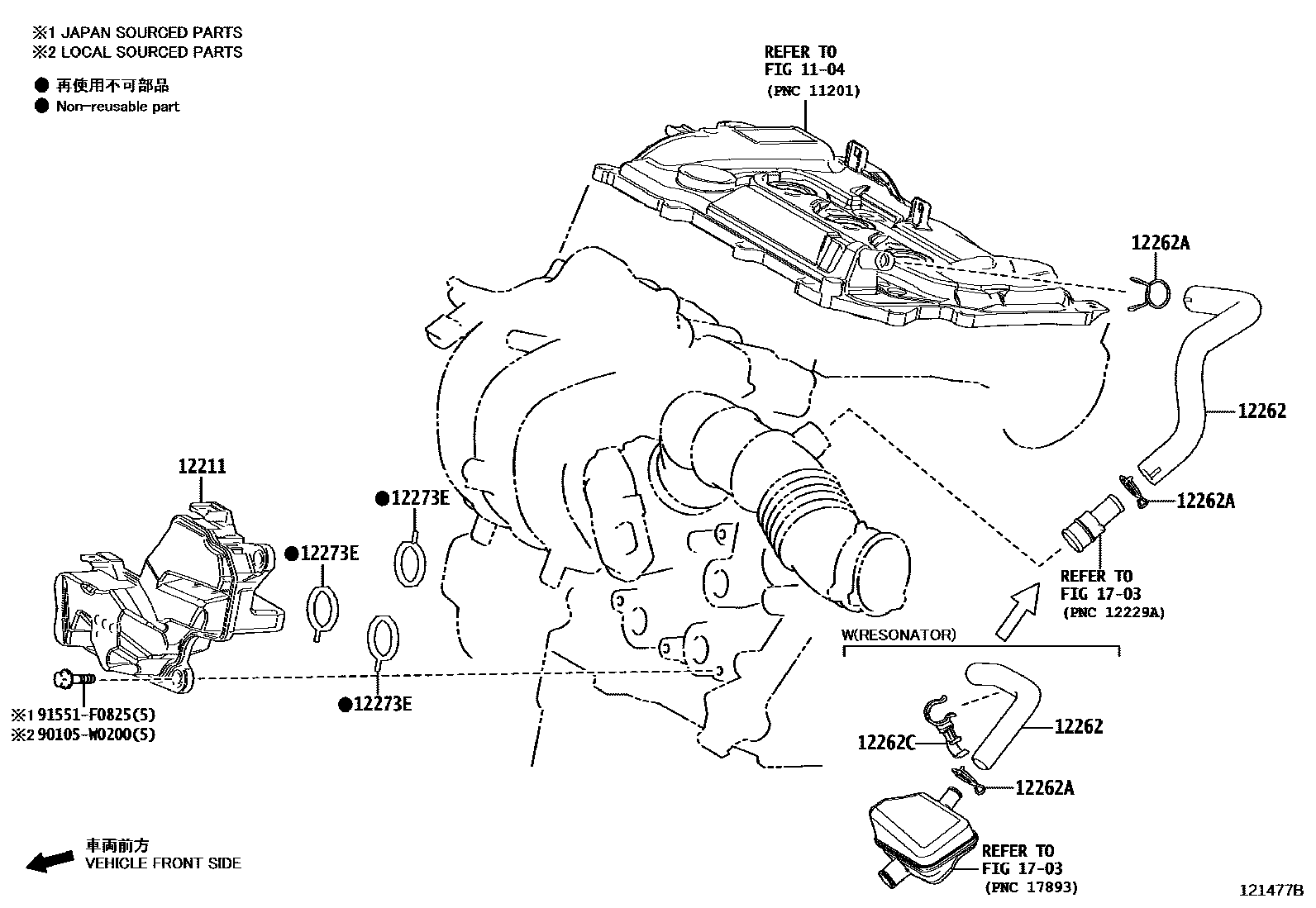

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12211 | Ventilation box No. 1 | 12211-15060 · 12211-15061 · 12211-F3010 · 12211-F3011 |
| 12262 | Ventilation hose No. 2 | 12262-15100 · 12262-15110 · 12262-15140 |
| 12262A | Clamp (for vent hose No. 2) | 90467-21004 |
| 12262C | Ventilation hose clamp No. 2 | 44783-33020 |
| 12273E | JOINT(POUR CARTER VENTILATION) | 12273-15010 |
