Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 8 PNC and OE references.

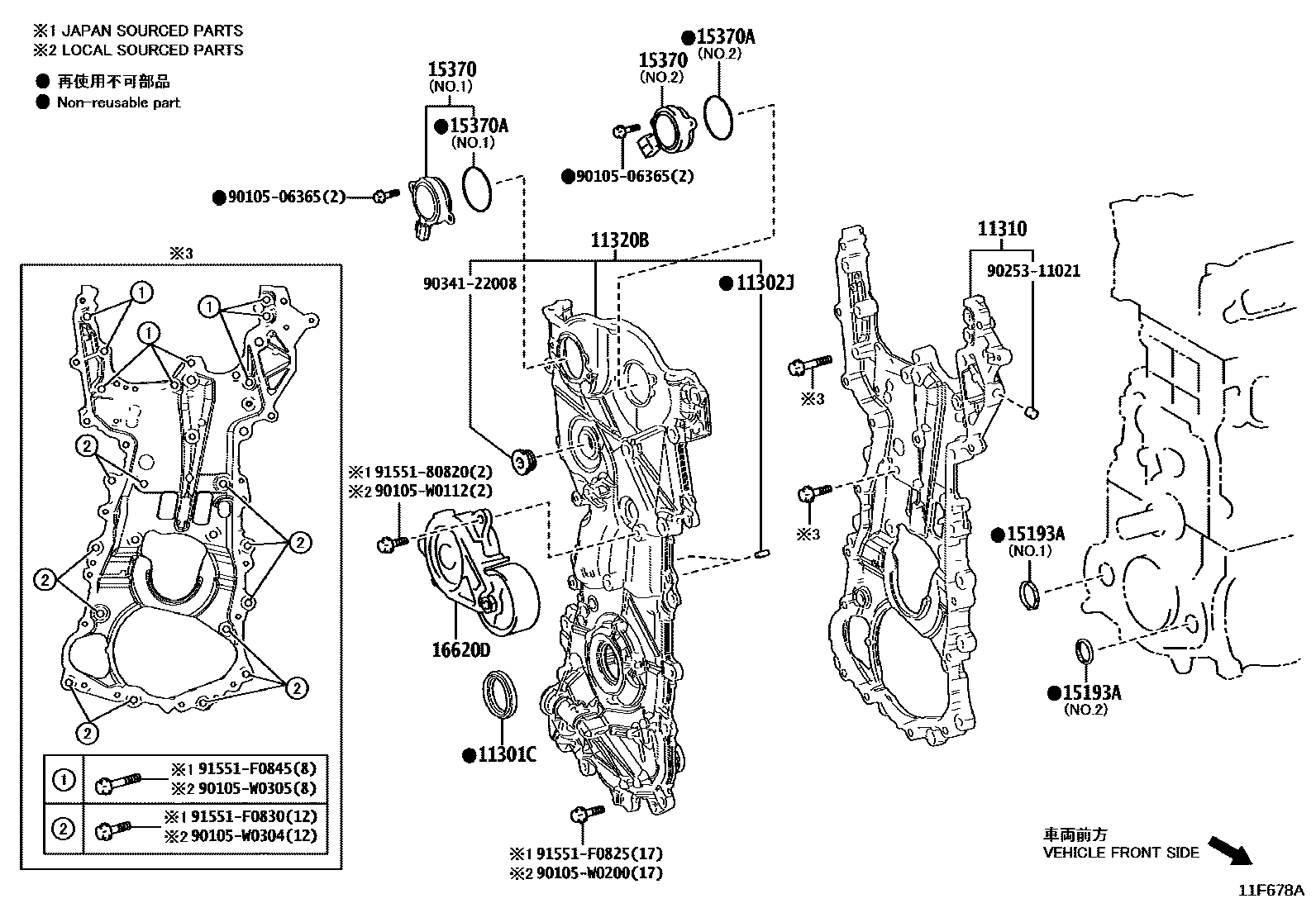

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F678A
Timing Gear Cover & Rear End Plate — 11F678A (202107 – 999999)

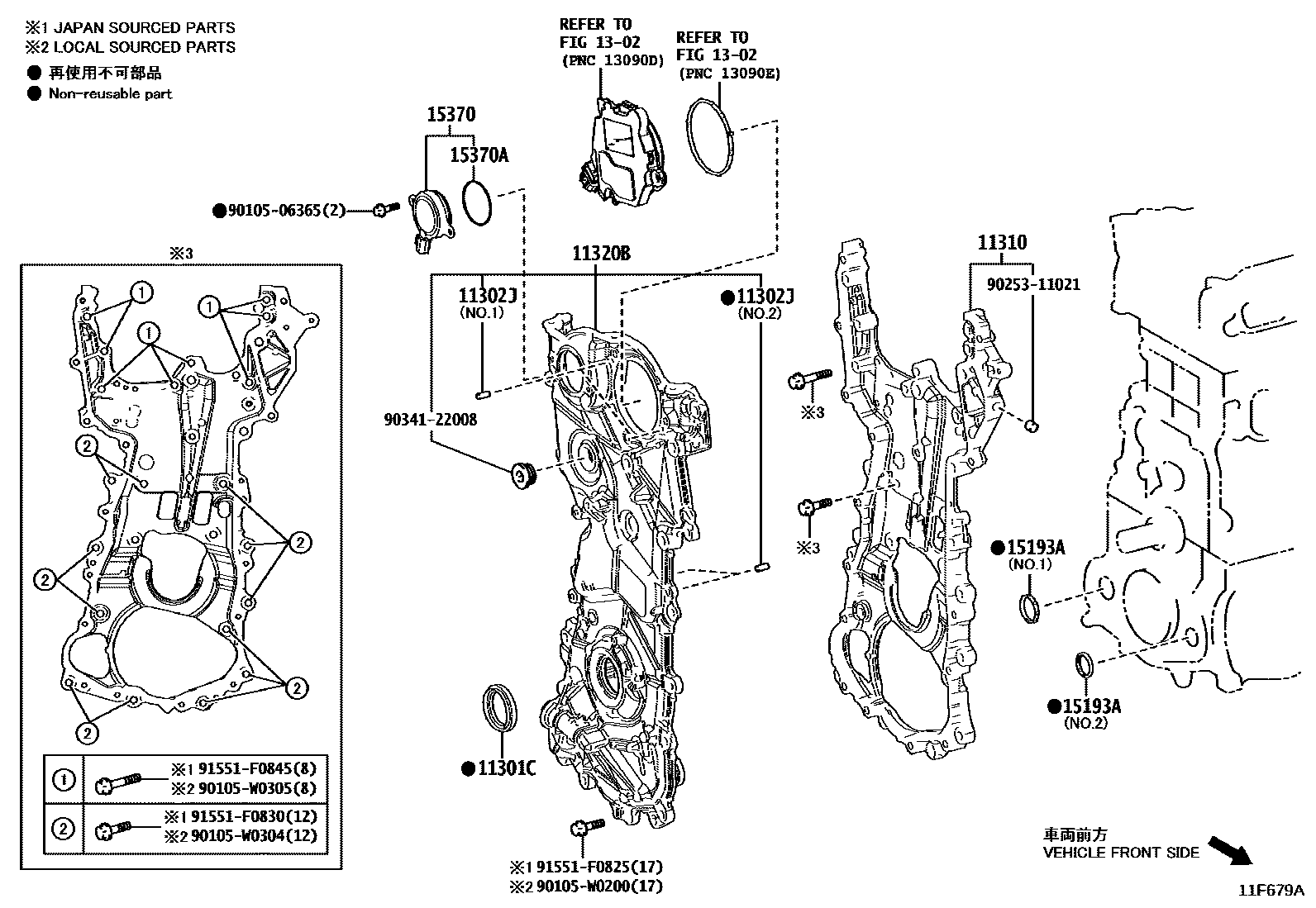

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F679A
Timing Gear Cover & Rear End Plate — 11F679A (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044 · 90311-W0021
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-15010 · 11310-F3010
11320BENS. CACHE, CHAINE DISTRIBUTION, NO.211320-15020 · 11320-15021 · 11320-F3011 · 11320-F3020
15193Aoil pump gasket15193-15010 · 15197-15040
15370ENS. SOLENOIDE, COMMANDE HUILE DISTRIB ARBRE CAMES15370-25020 · 15370-36010
15370AJOINT, TORIQUE(POUR SOLENOIDE COM HUILE DISTRIB ARBRE CAMES)90301-44006 · 90301-50003
16620DPoly V-belt tensioner assembly16620-24010 · 16620-24021
