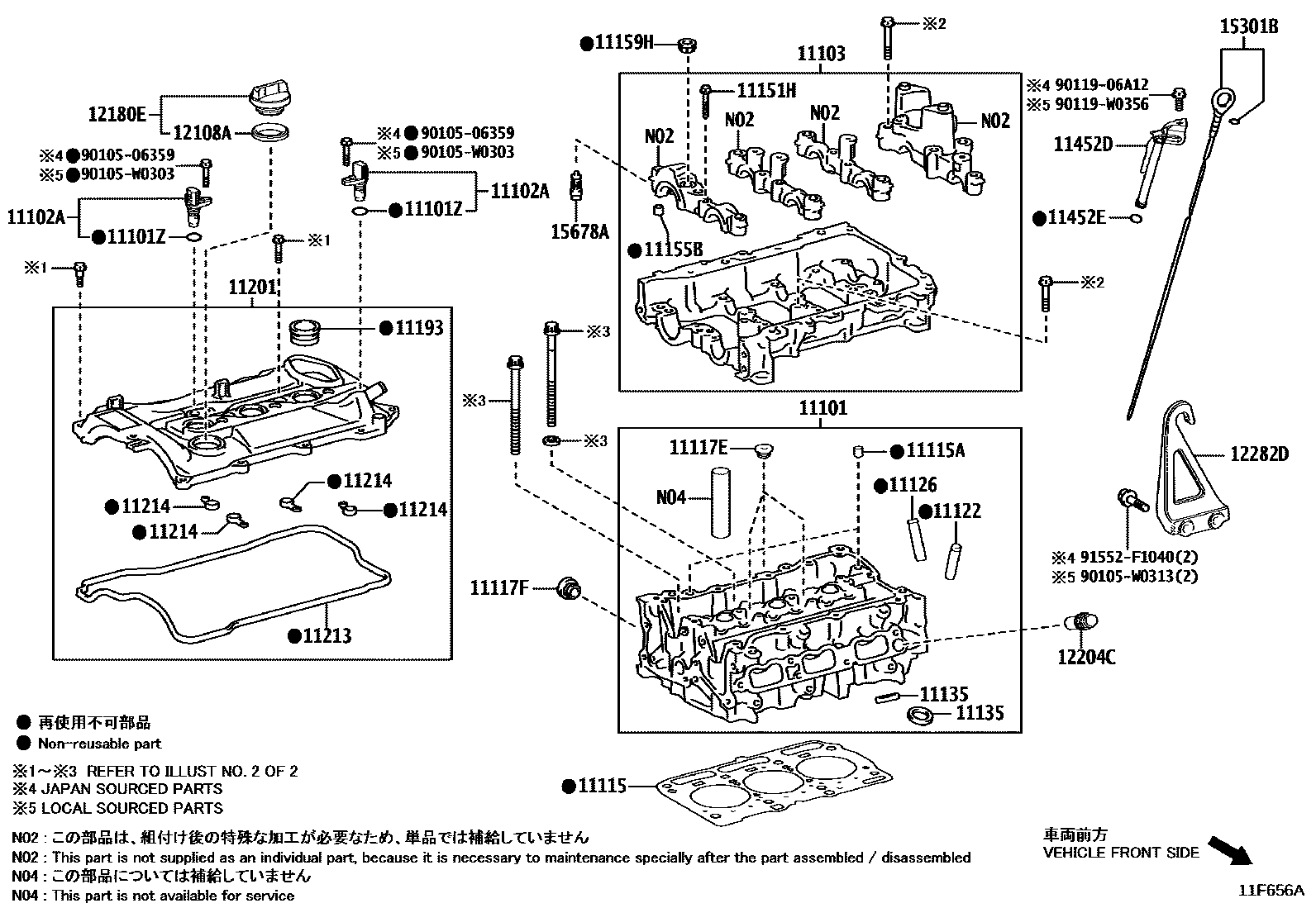

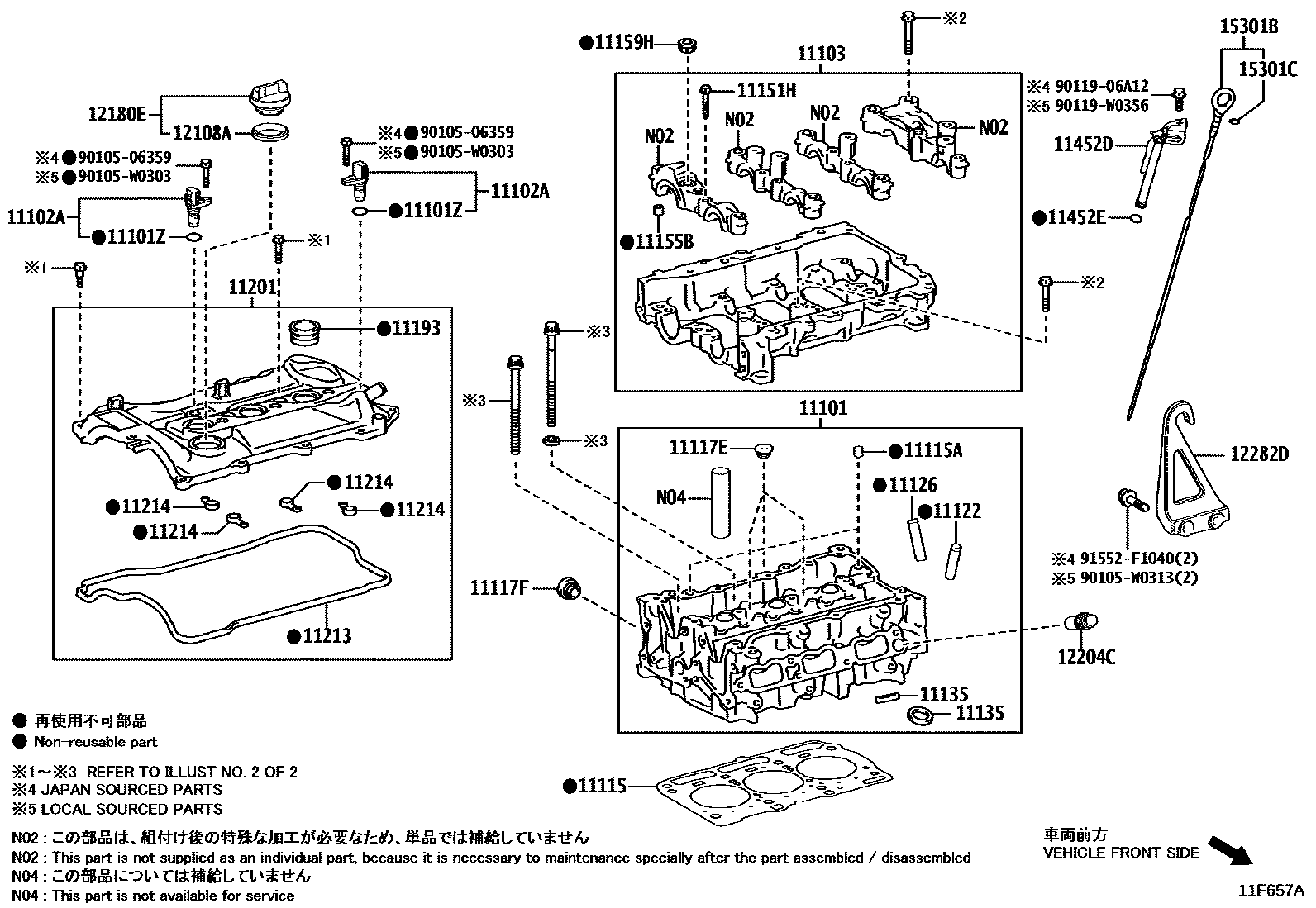

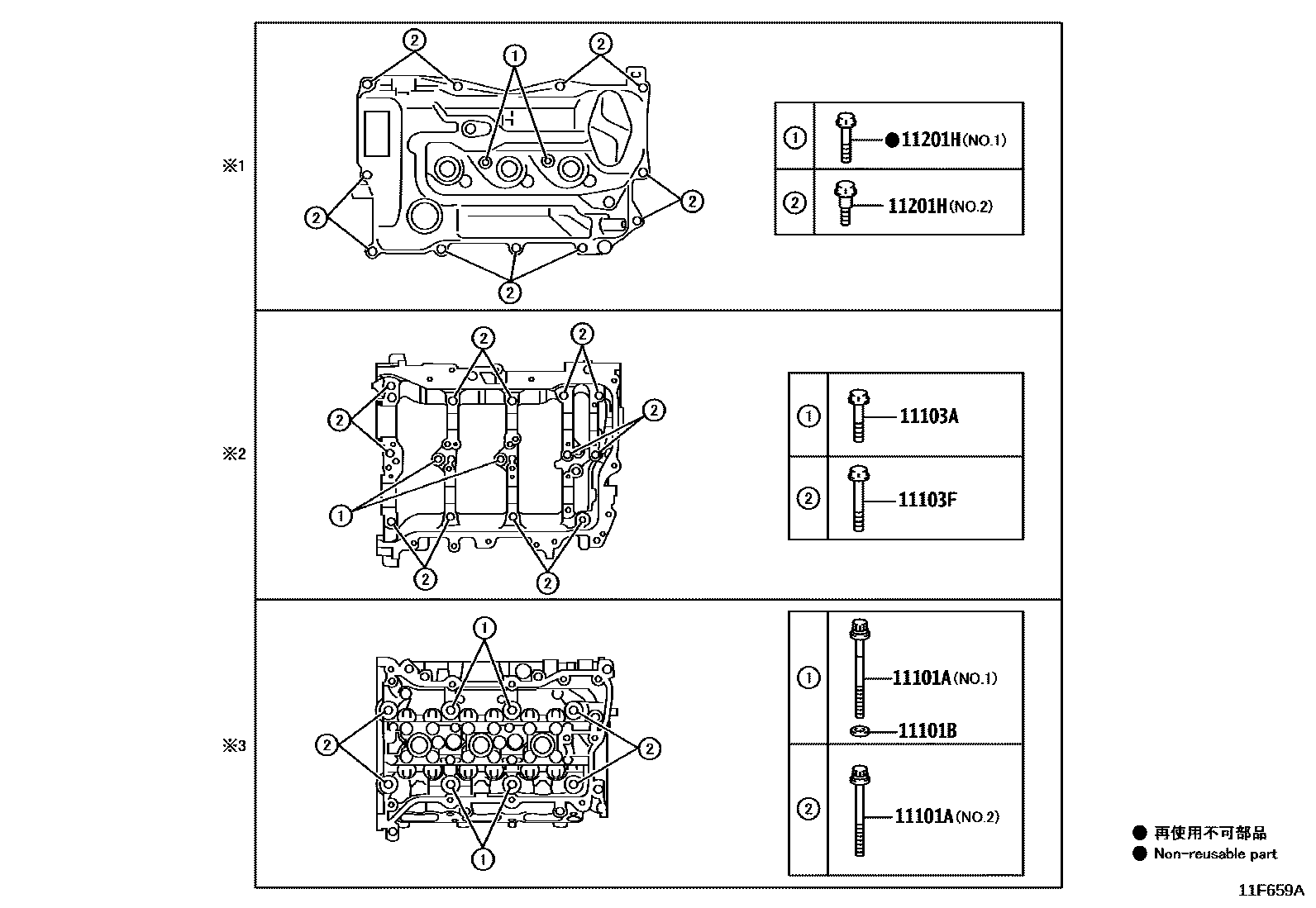

Toyota YARIS Cylinder Head — Figure 1104
Toyota YARIS EPC diagram 1104, Cylinder Head, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19545 · 11101-19546 · 11101-F9070 · 11101-F9080 · 11101-F9081 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02202 · 90910-02205 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-12079 |
| 11101Z | JOINT TORIQUE, CAPTEUR DE POSITION D'ARBRE A CAMES | 90301-11038 |
| 11102A | Camshaft position sensor | 90919-05096 |
| 11103 | Camshaft housing sub-assembly | 11103-15020 · 11103-15021 · 11103-F3010 · 11103-F3020 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-W0307 · 91551-G0840 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-W0309 · 91551-G0865 |
| 11115 | GASKET, CYLINDER HEAD | 11115-15100 |
| 11115A | PIN, RING | 90253-12002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 |
| 11117F | No. 2 headed straight thread plug | 90341-20012 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31090 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 |
| 11135 | Exhaust valve seat | 11135-24020 · 11135-F2020 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155B | PIN, RING | 90253-13005 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-31040 |
| 11193 | spark plug bushing gasket | 11193-37030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-15040 · 11201-F3010 · 11201-F3020 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-W0303 · 90109-06384 · 90109-W0019 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-15100 · 11213-F3010 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | GUIDE, JAUGE NIVEAU HUILE | 11452-24020 |
| 11452E | JOINT, TORIQUE(POUR GUIDE JAUGE NIVEAU HUILE) | 96741-19010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | ASS.CAPUCHON, REMPLISSEUR HUILE | 12180-38010 |
| 12204C | SOUS.-ENS. DE SOUPAPE D'AERAGE | 12204-25010 · 12204-F2020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-25010 |
| 15301B | Engine oil level scoring assembly | 15301-15070 · 15301-F3010 · 15301-F3020 |
| 15301C | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678A | Oil control valve filter | 15678-46020 |
