Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

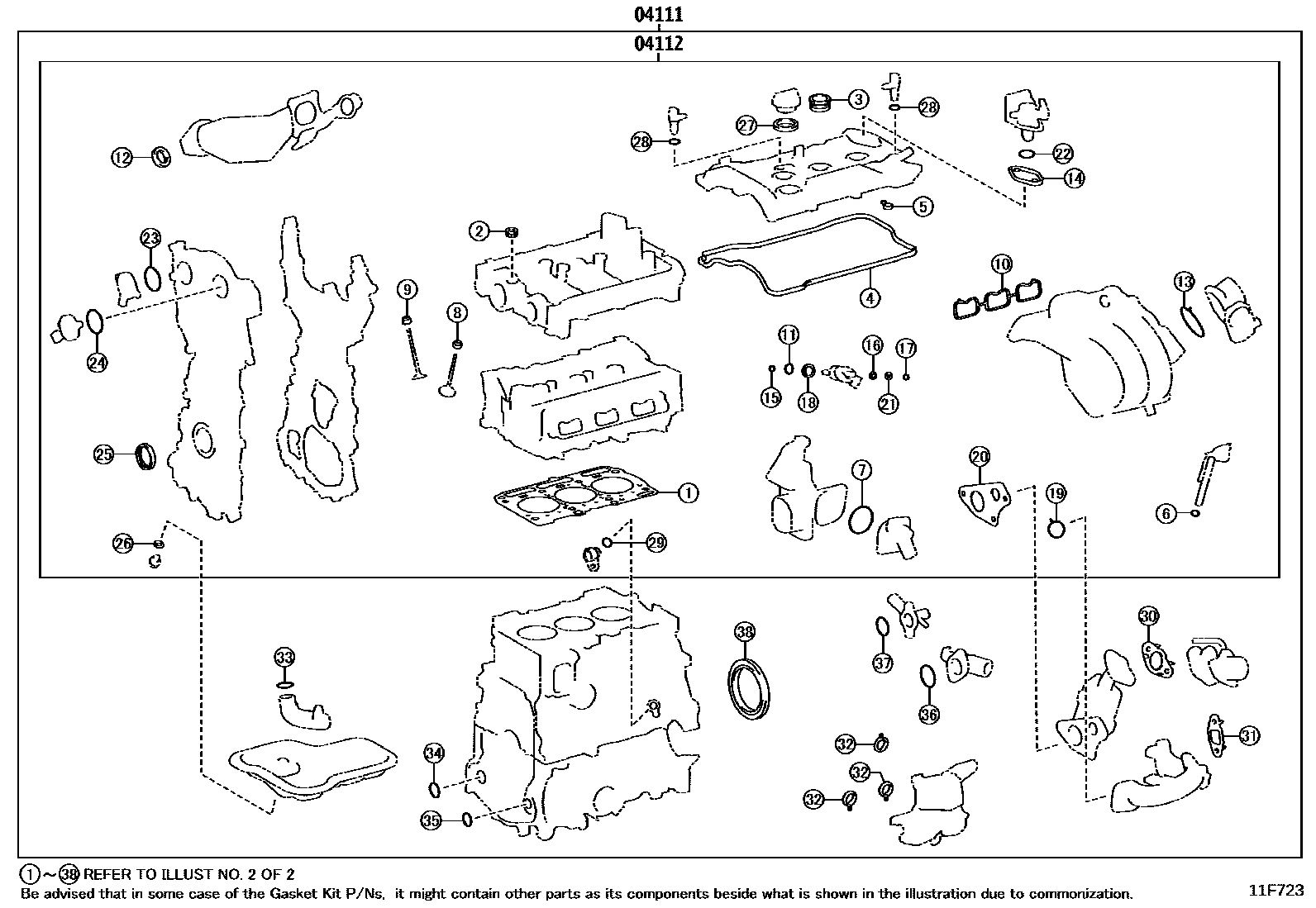

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F723
Engine Overhaul Gasket Kit — 11F723 (202107 – 999999)

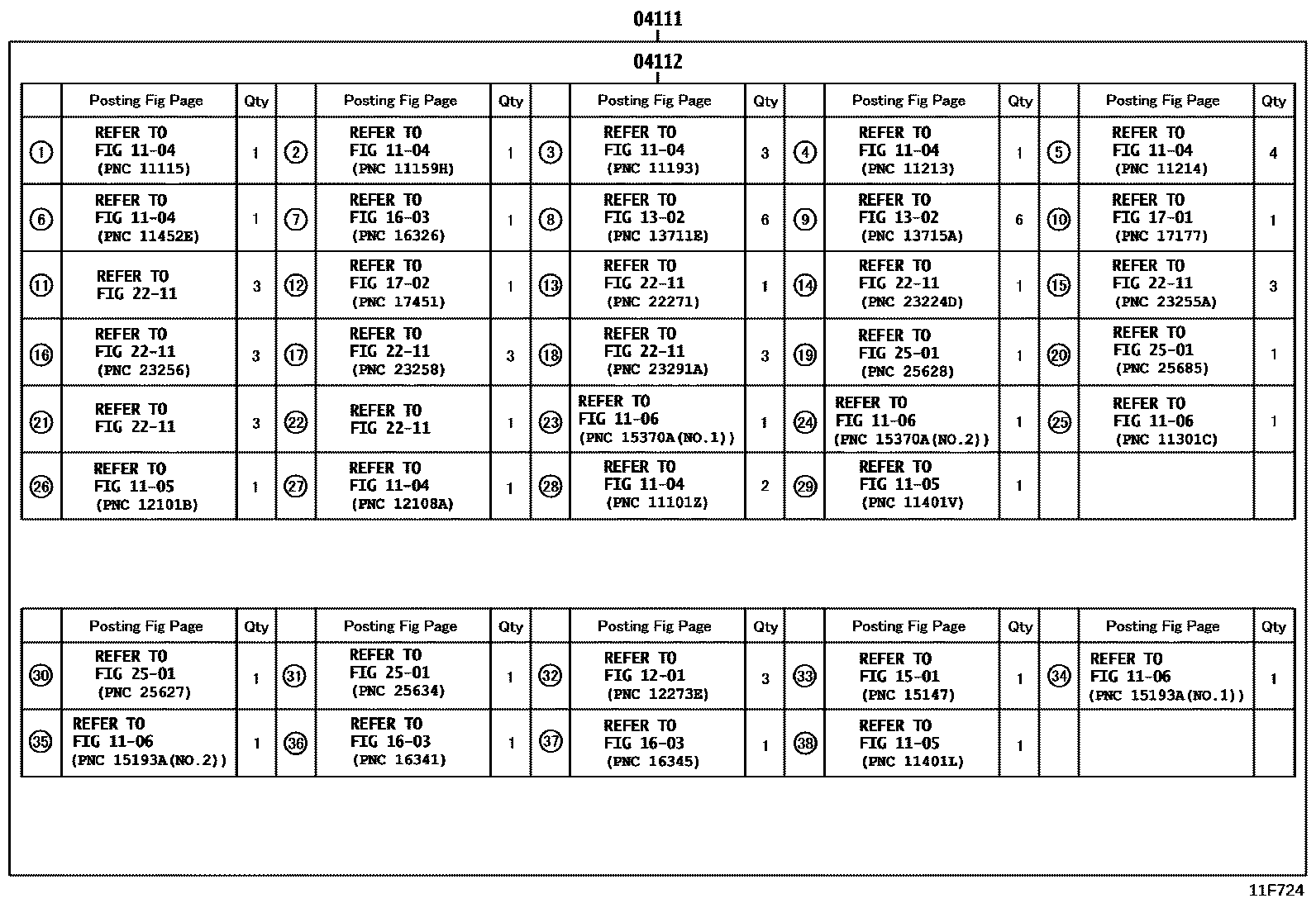

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F724
Engine Overhaul Gasket Kit — 11F724 (202107 – 999999)

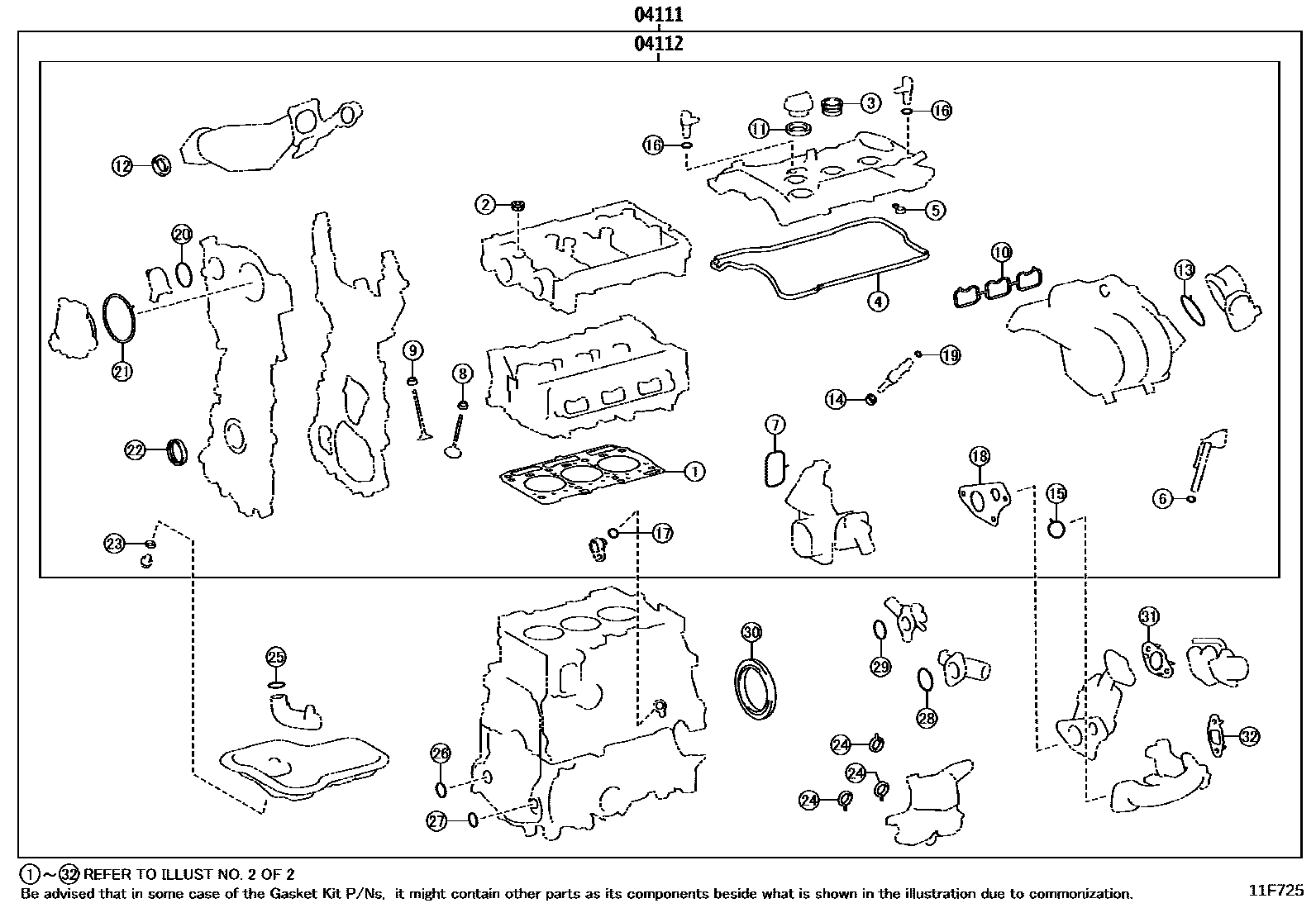

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F725
Engine Overhaul Gasket Kit — 11F725 (202107 – 999999)

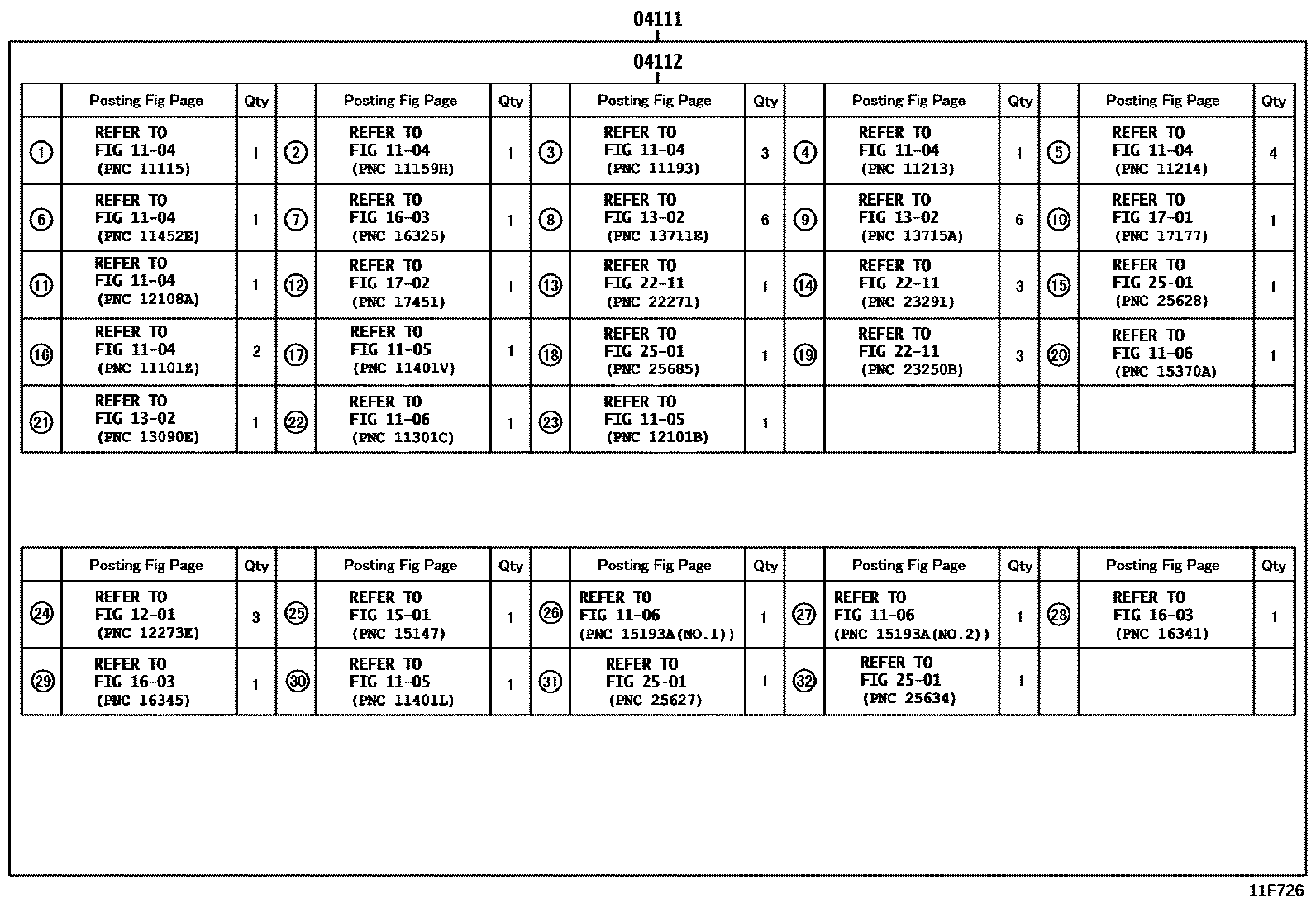

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F726
Engine Overhaul Gasket Kit — 11F726 (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-F3010 · 04111-F3020 · 04111-F3021
04112Engine valve grinding pad assembly04112-F3010 · 04112-F3020 · 04112-F3021
