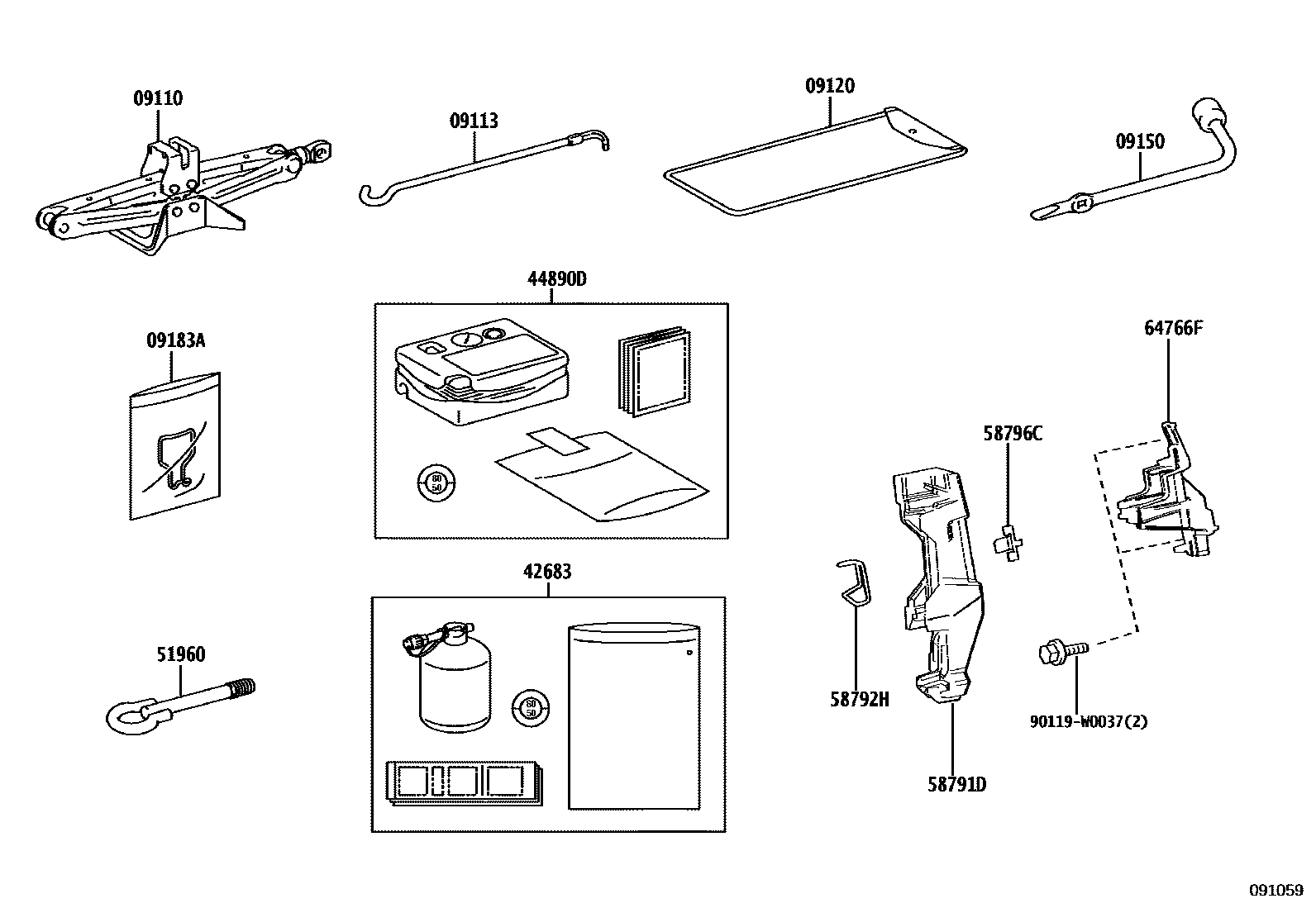

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-F4010 · 09111-F4011 |
| 09113 | Jack Handle | 09113-F4010 |
| 09120 | Tool Bag | 09120-37030 |
| 09150 | Wheel Nut Wrench | 09150-F4010 |
| 09183A | Wheel cover removal and assembly tools | 09183-0D010 |
| 42683 | Tire Repair Sealant | 42606-0D020 · 42606-F4041 |
| 44890D | Air Compressor Assembly | 42680-F4012 · 42680-F4013 |
| 51960 | Front Towing Hook Assembly | 51960-0D270 |
| 58791D | jack bracket | 58791-K0050 |
| 58792H | SUPPORT DE PORTE-CRIC | 58778-K0020 |
| 58796C | Jack clamp hook | 58796-K0030 |
| 64766F | ENJOLIVEUR, COUVERCLE DE CRIC, INF | 64766-K0070 |
