Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715

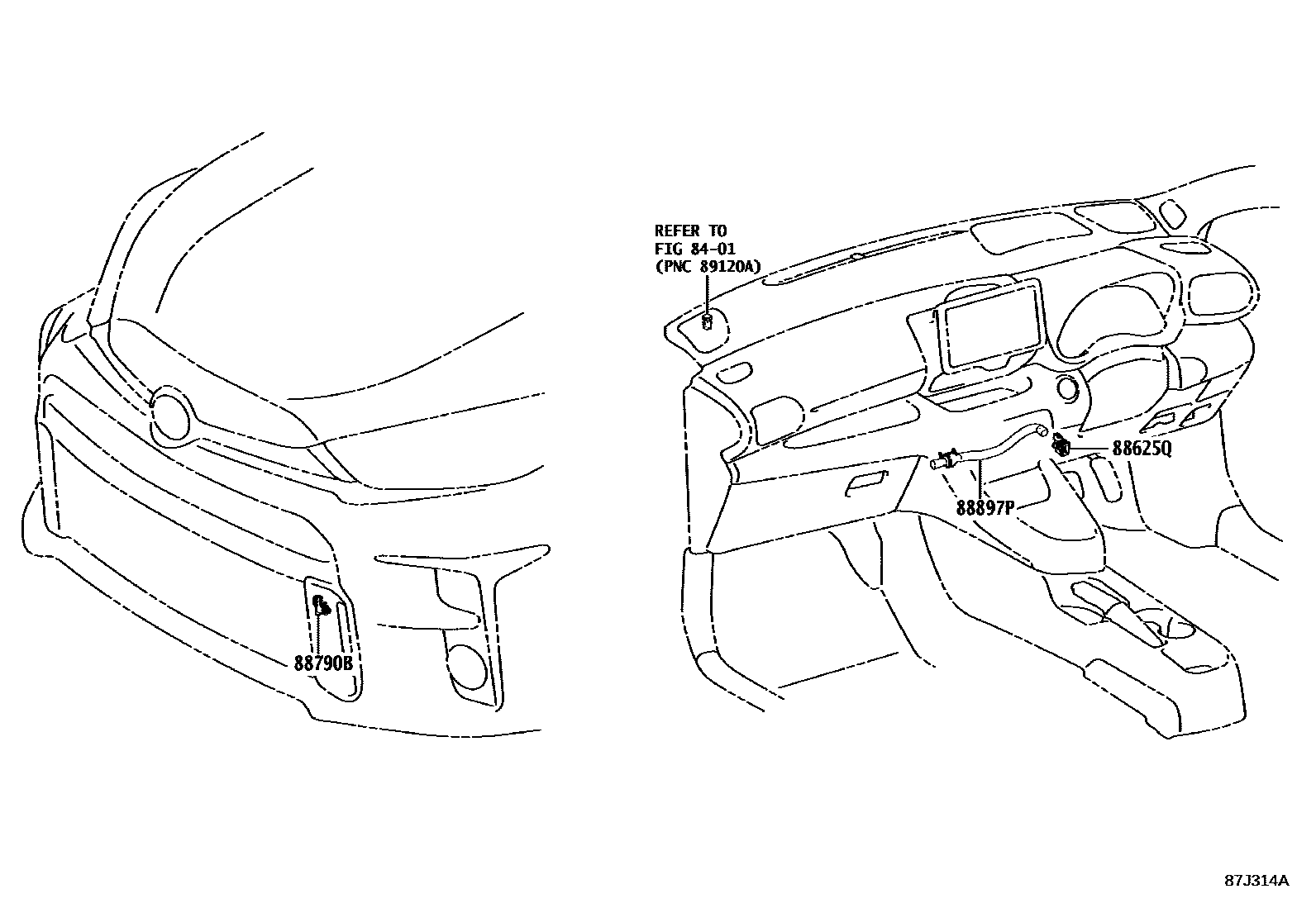

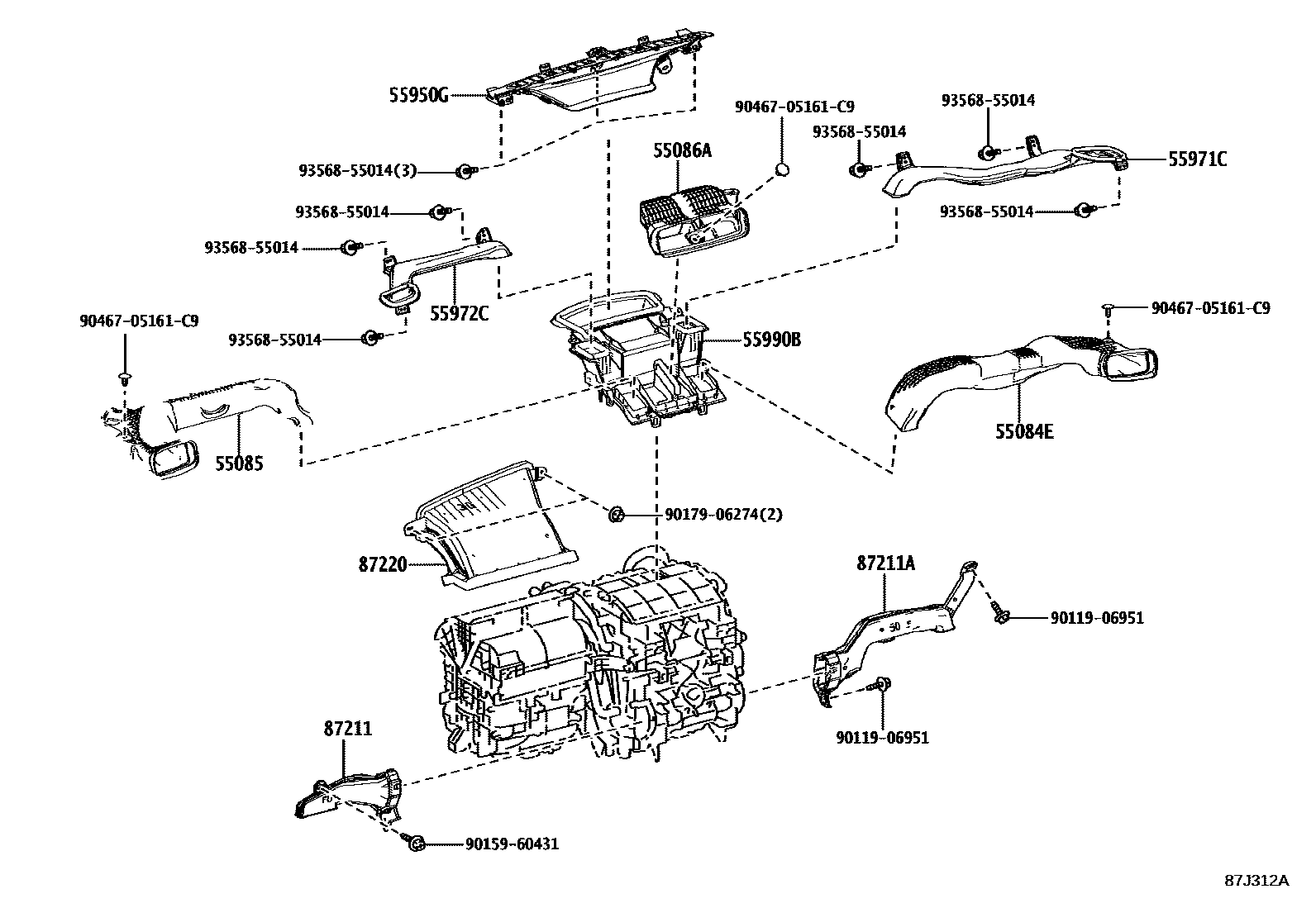

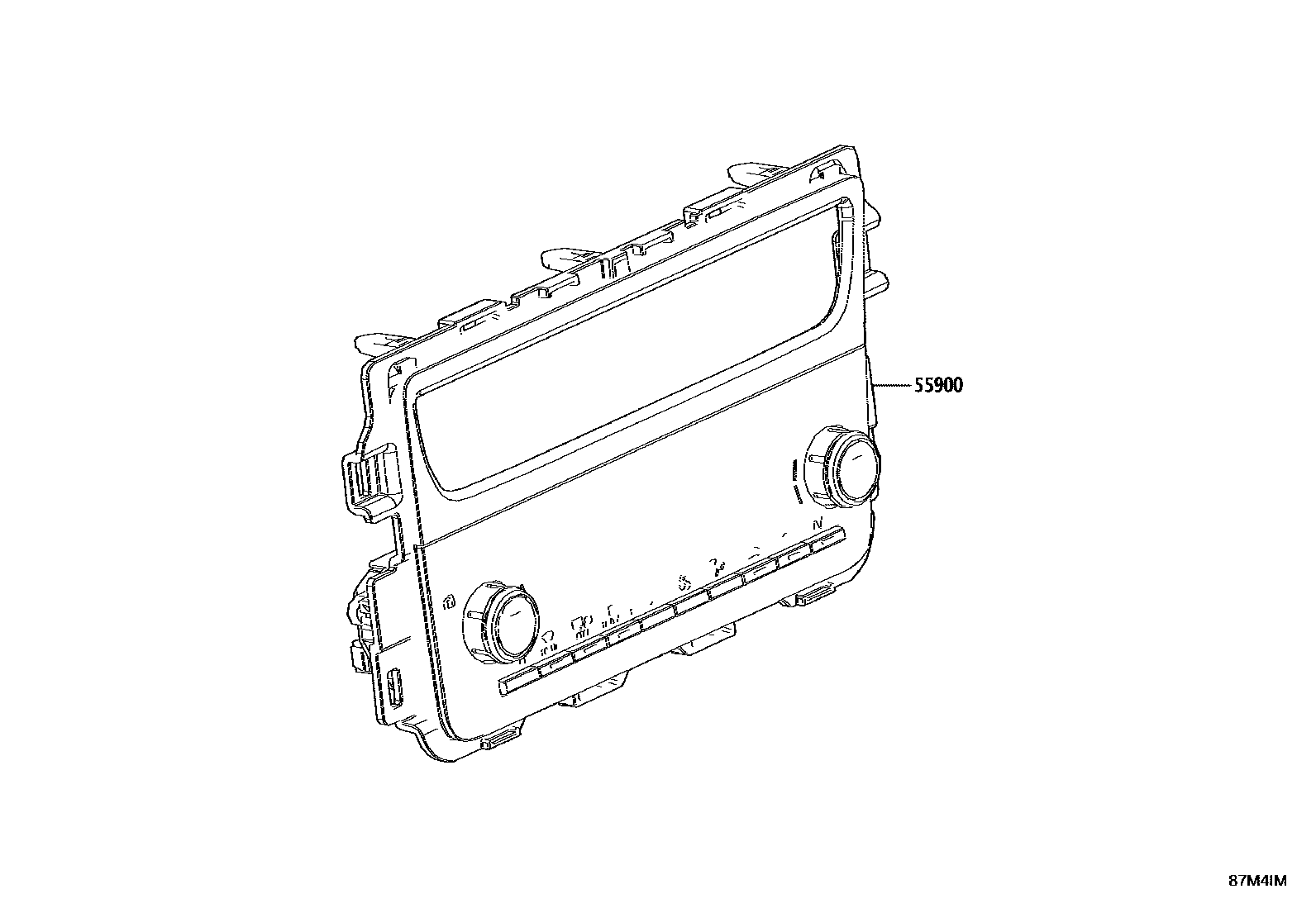

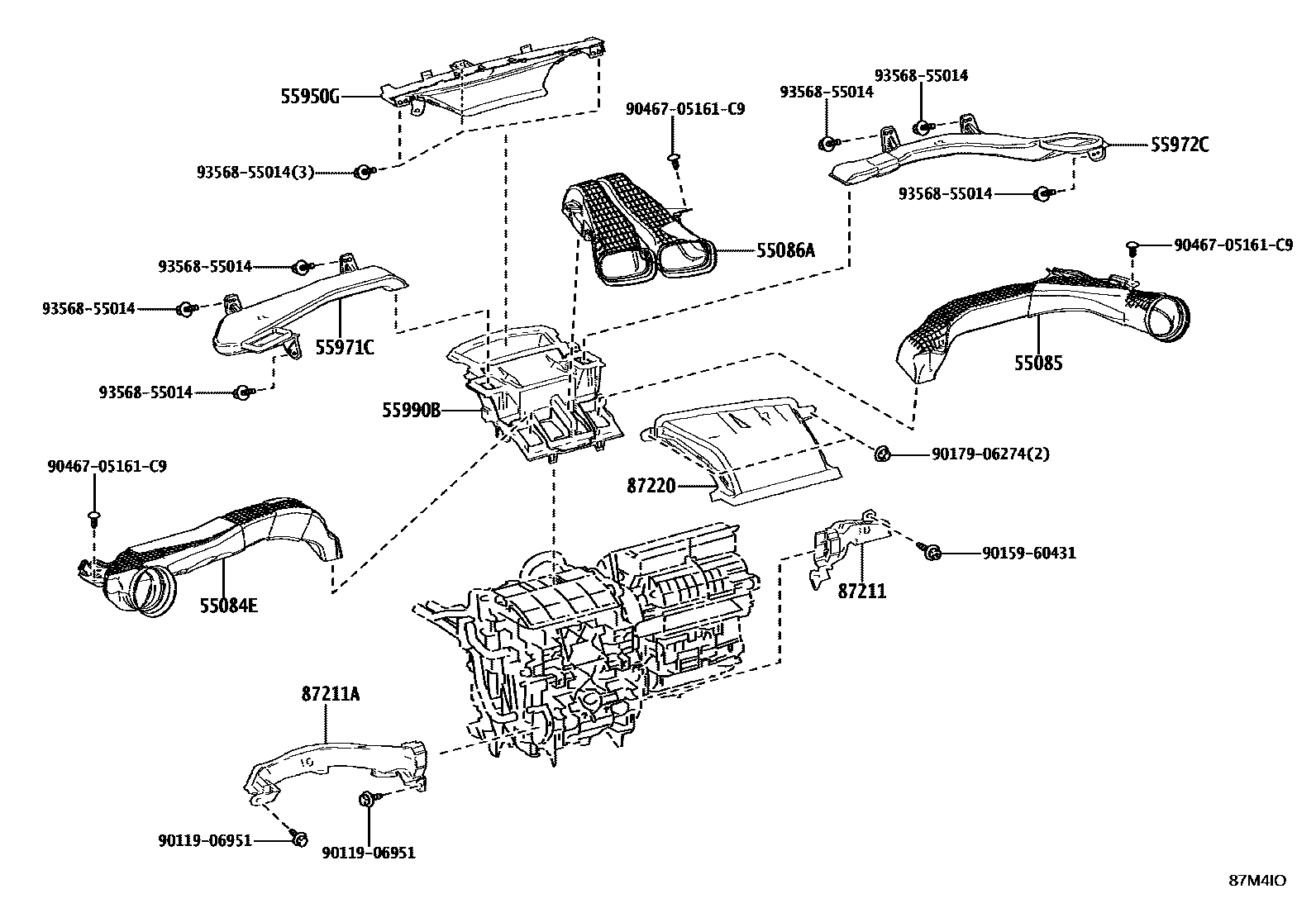

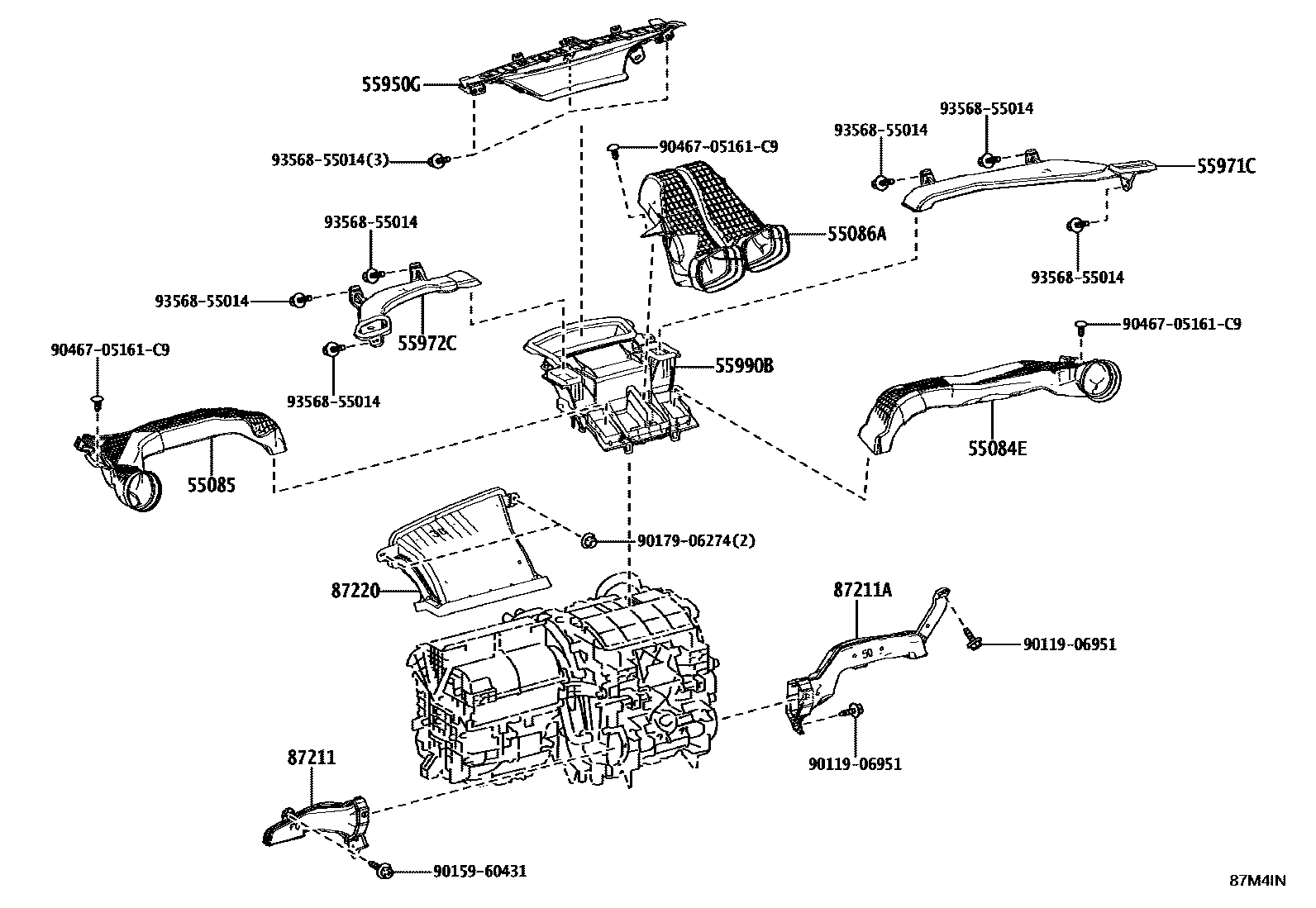

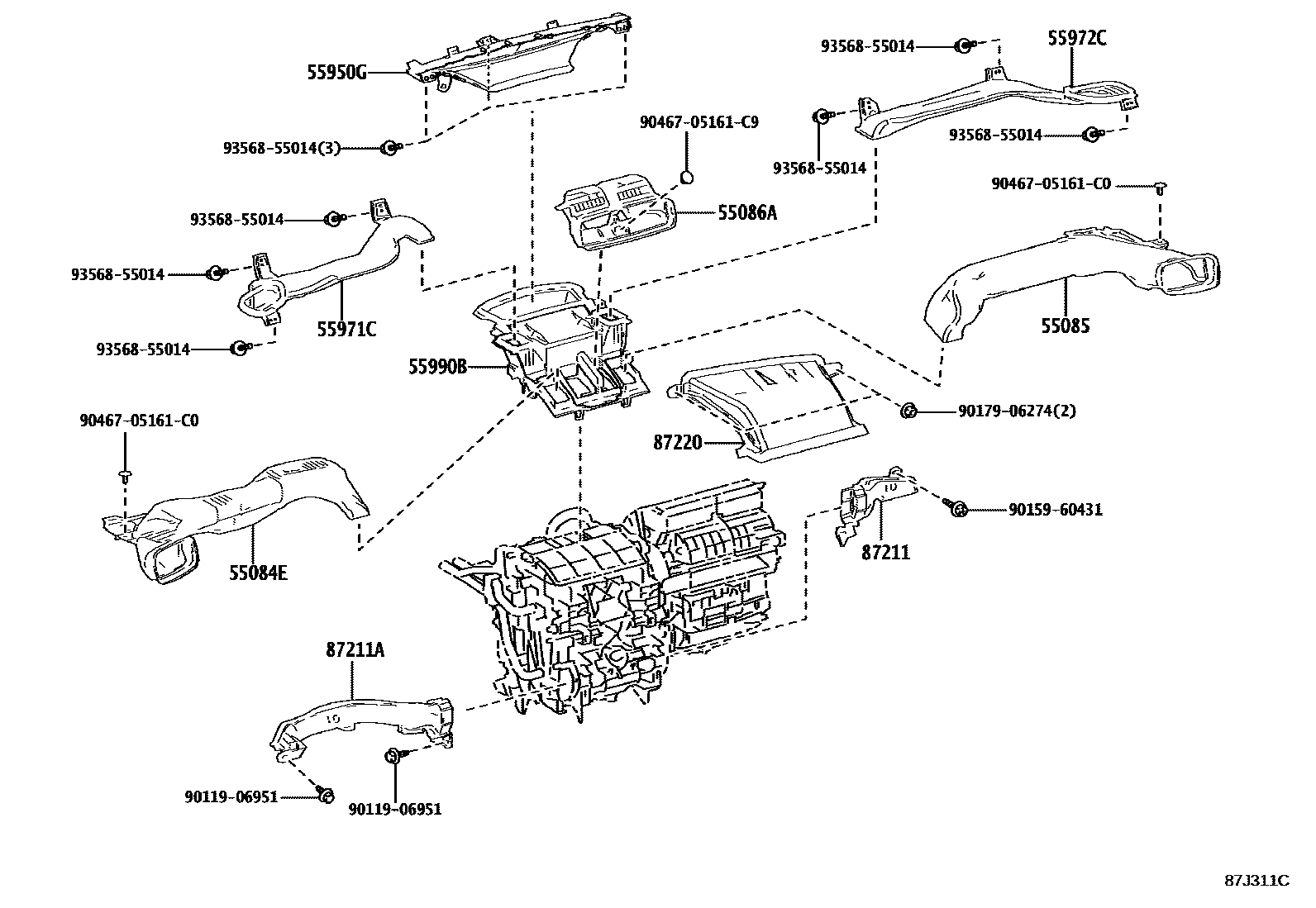

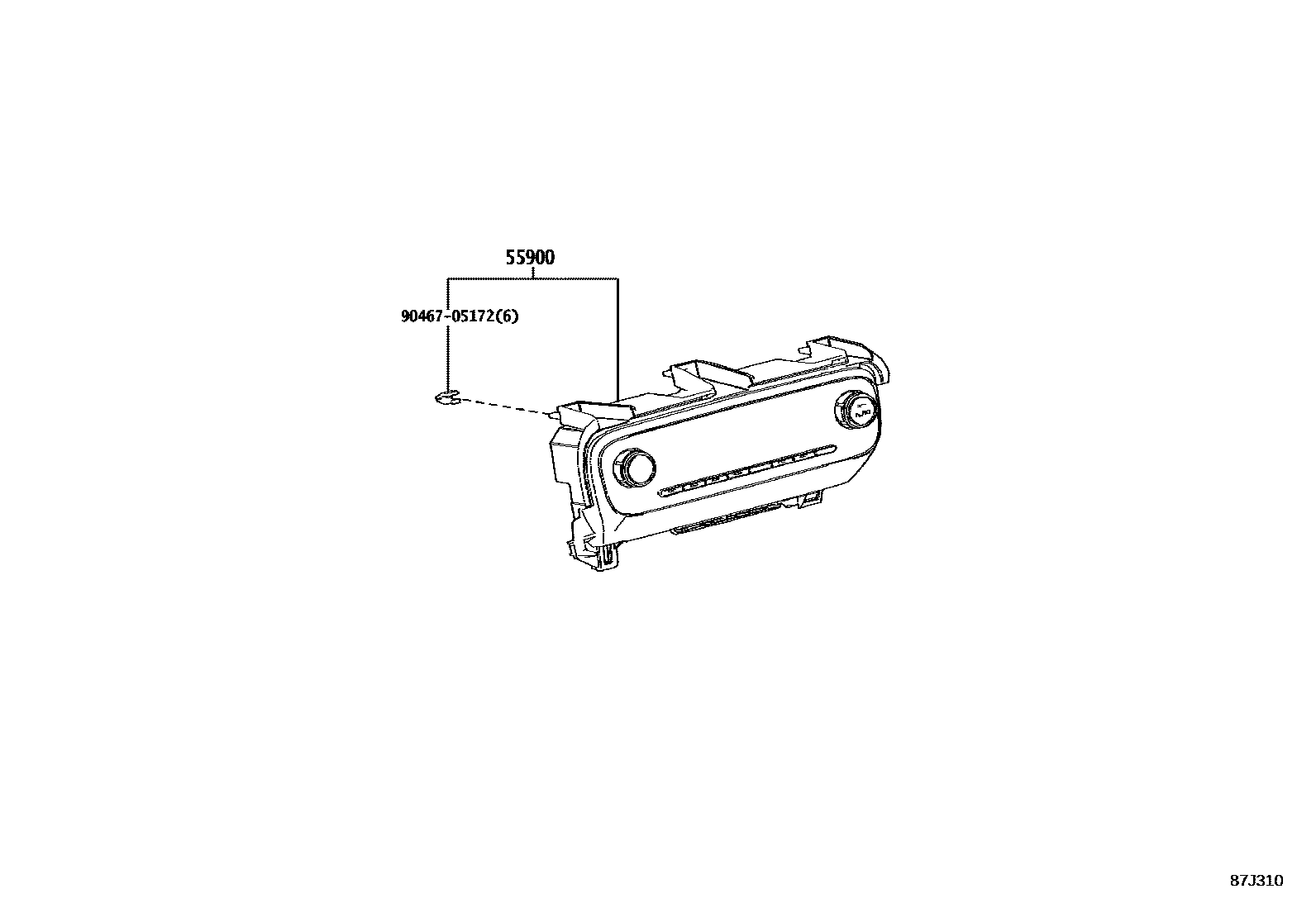

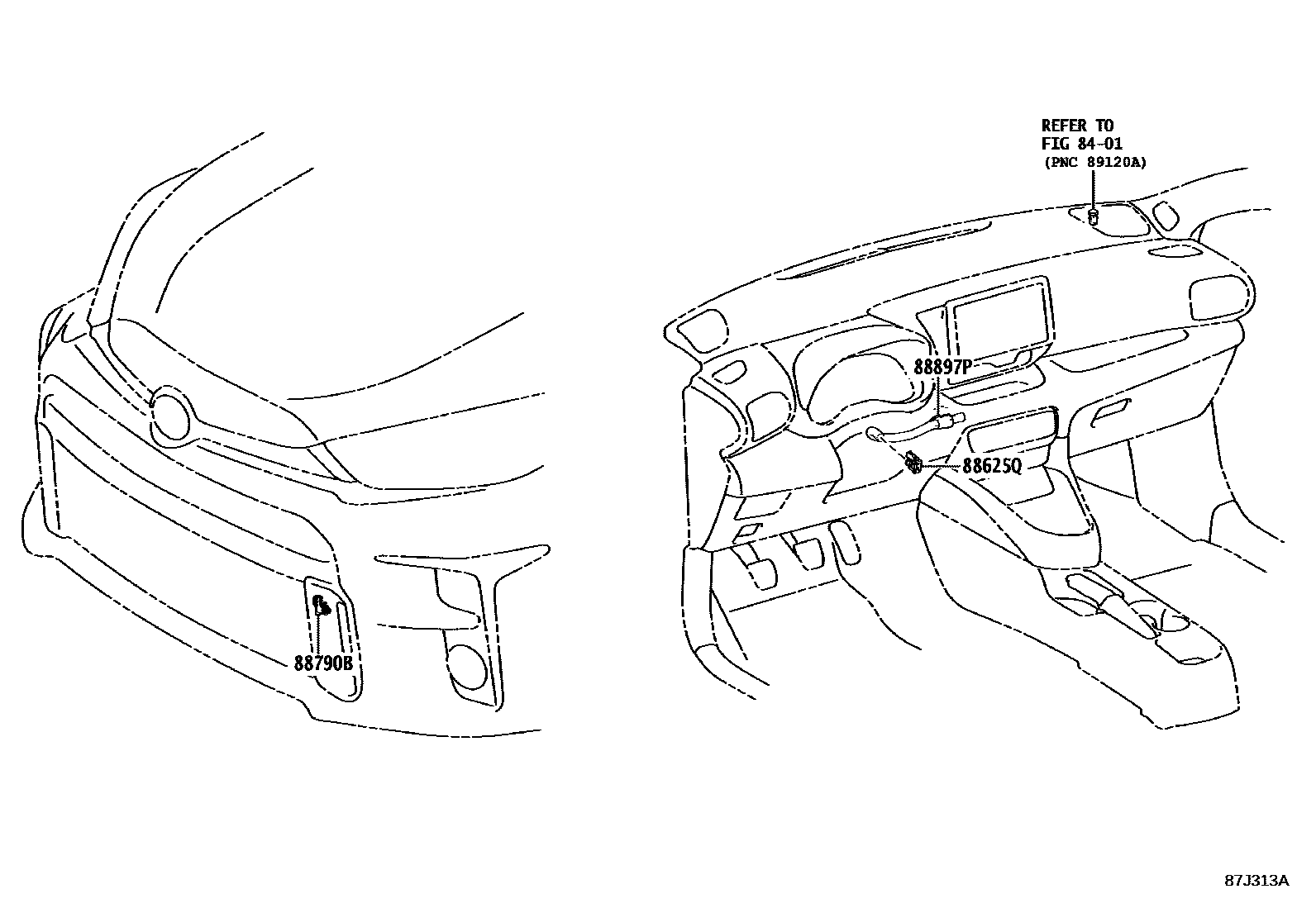

Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-52290 · 55084-52300 · 55084-K0010 · 55084-K0030 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-52130 · 55085-52140 · 55085-K0010 · 55085-K0030 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-0W010 · 55086-52090 · 55086-52130 · 55086-52140 |
| 55900 | Air conditioning control assembly | 55900-52C10 · 55900-52D30 · 55900-52D50 · 55900-52D60 · 55900-52D80 · 55900-K0070 · 55900-K0250 |
| 55950G | Defroster nozzle assembly | 55950-K0010 · 55950-K0030 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-52180 · 55971-52190 · 55971-K0010 · 55971-K0030 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-52180 · 55972-52190 · 55972-K0010 · 55972-K0030 |
| 55990B | Lower defroster nozzle assembly | 55990-K0010 |
| 87211 | No. 1 air duct | 87211-52280 · 87211-K0040 · 87211-K0060 |
| 87211A | Duct No. 2 | 87211-52240 · 87211-K0030 · 87211-K0050 |
| 87220 | Air duct assembly | 87220-K0020 · 87220-K0030 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-52050 · 88505-K0010 · 88505-K0030 |
