Toyota YARIS 预碰撞安全系统 — Figure 8617

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.

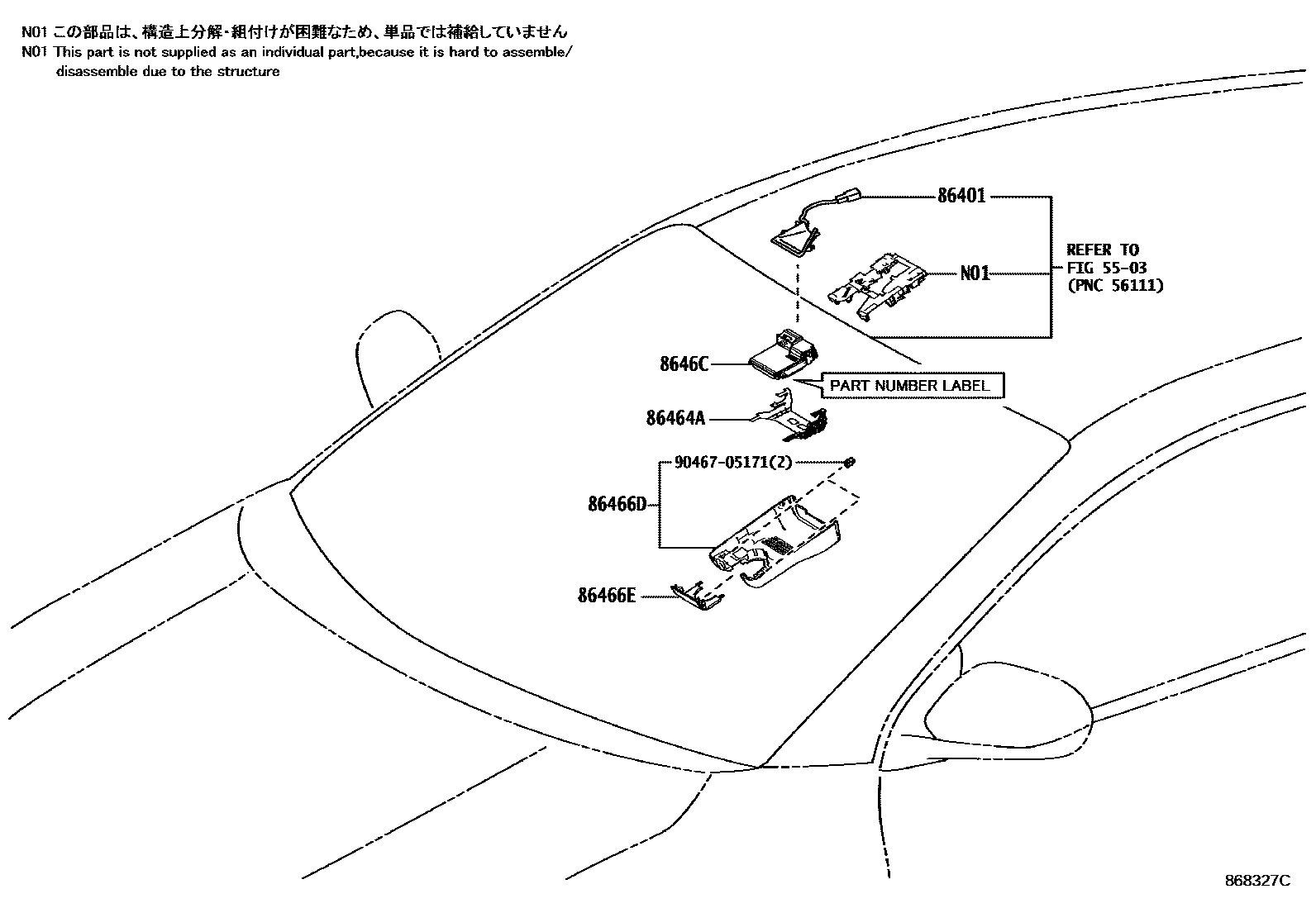

Toyota YARIS 预碰撞安全系统 EPC diagram — 868327C
预碰撞安全系统 — 868327C (202008 – 202404)

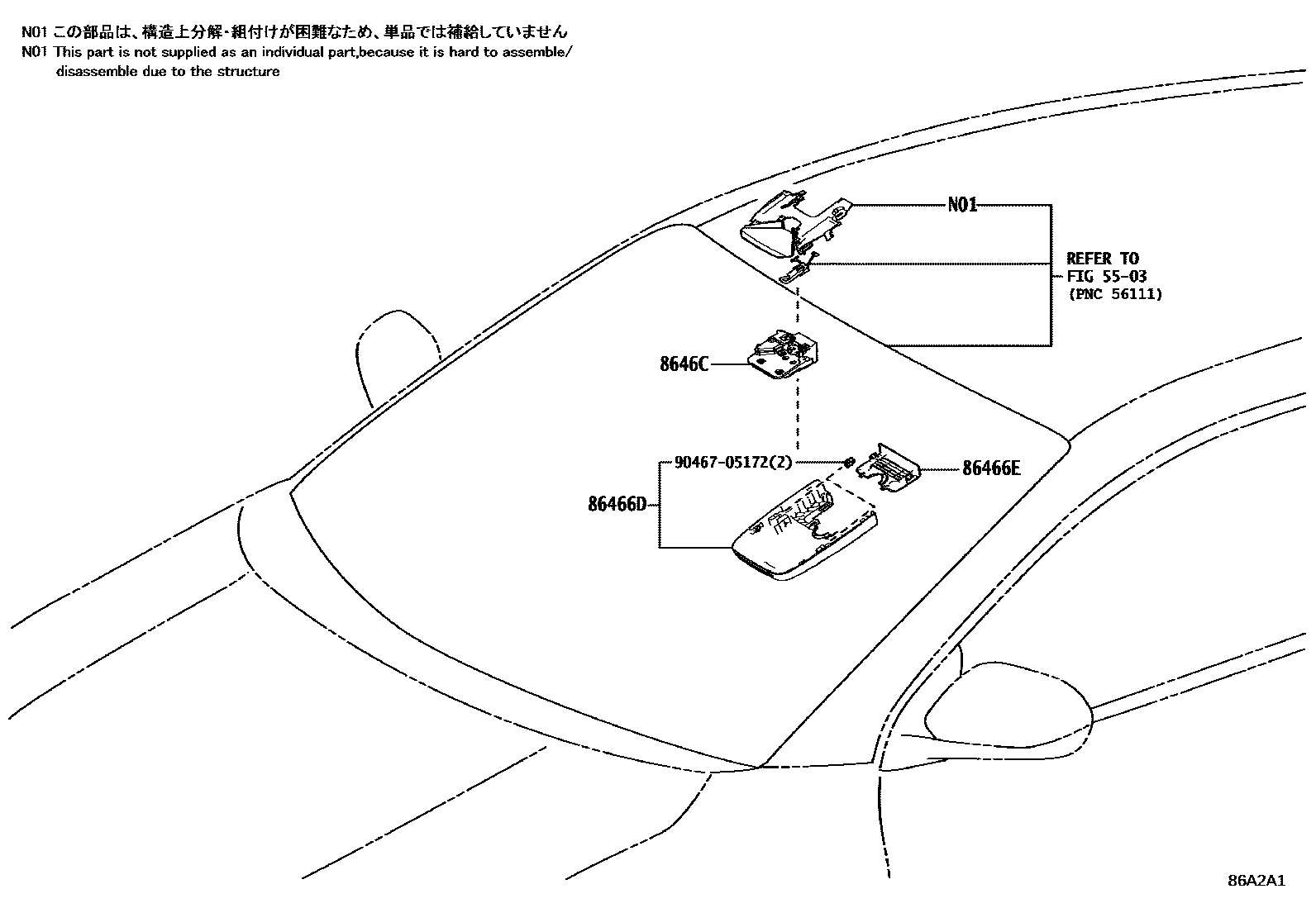

Toyota YARIS 预碰撞安全系统 EPC diagram — 86A2A1
预碰撞安全系统 — 86A2A1 (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
86401SS-ENS. CAPOT, RECONNAISSANCE AVANT AV/CHAUFFAGE86401-K0010
86464AVERROU, RECONNAISSANCE AVANT86464-K0010
86466DCACHE, RECONNAISSANCE AVANT, NO.186466-52030 · 86466-52160
86466ECACHE, RECONNAISSANCE AVANT, NO.286466-52040 · 86467-52040
8646CCAMERA, RECONNAISSANCE AVANT8646C-0W020 · 8646C-52040 · 8646C-52440
