Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.

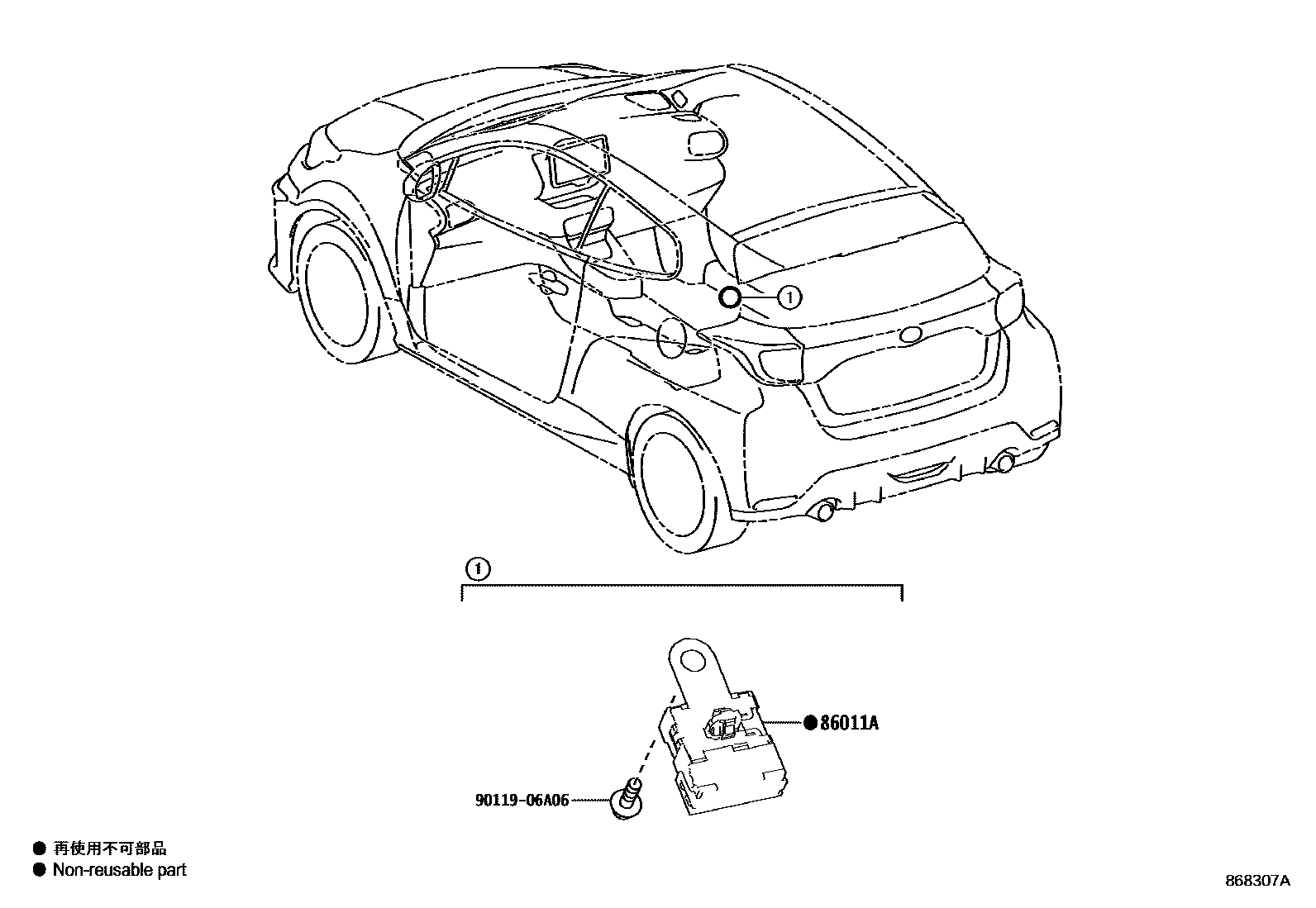

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868307A
收音机、放大器和冷凝器 — 868307A (202008 – 999999)

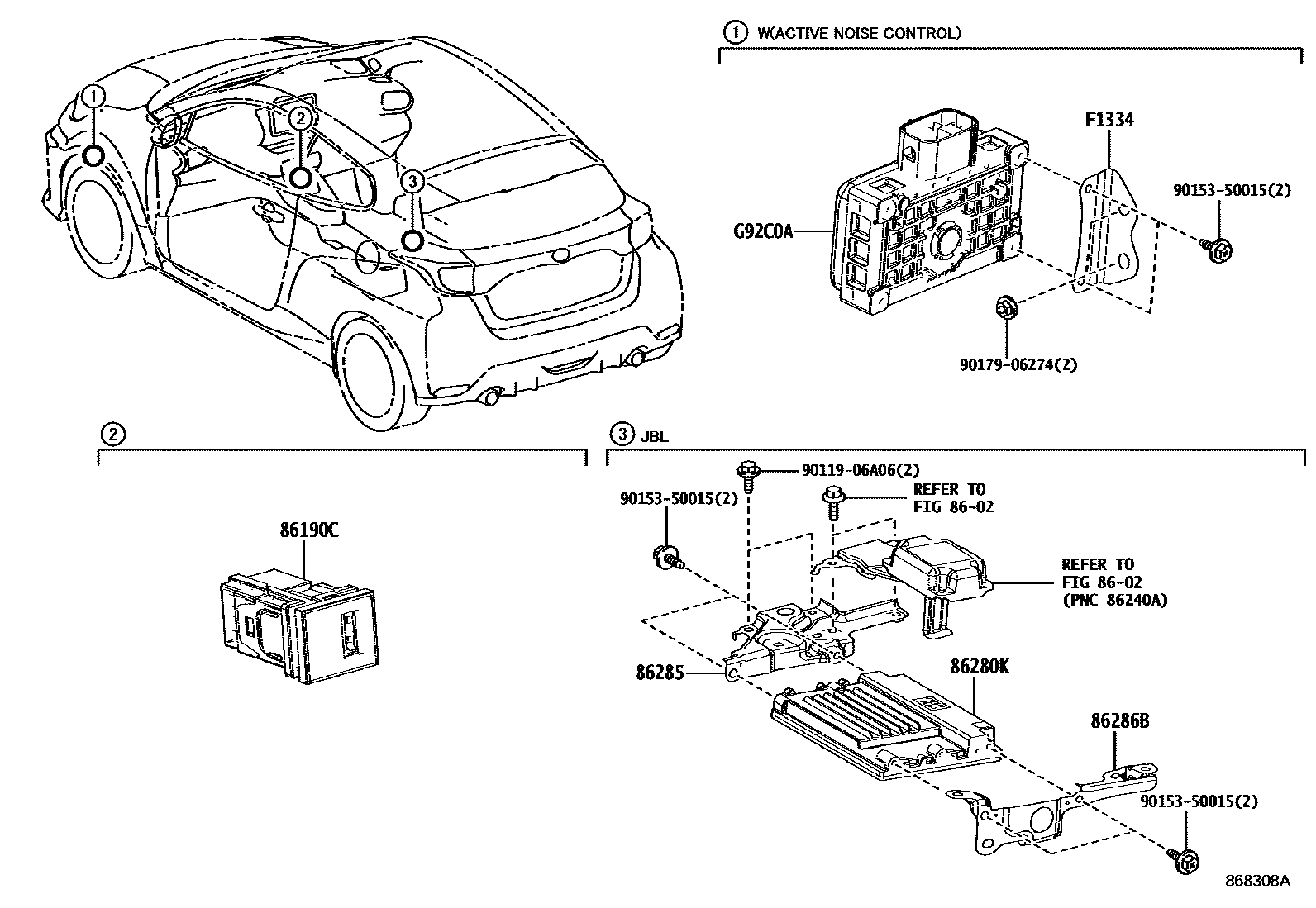

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868308A
收音机、放大器和冷凝器 — 868308A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04189
86190CStereo socket connector assembly No. 186190-12070 · 86190-12080
86280KStereo parts amplifier assembly86280-0WJ00 · 86280-52070
86285Amplifier Stand No. 186285-K0010
86286BAmplifier Stand No. 286286-0W010
F1334SUPPORT, COMMANDE CONVERTISSEUR, NO.1F1334-K0010
G92C0AENS. CONVERTISSEUR, VEHICULE ECO-RUNG92C0-30020
