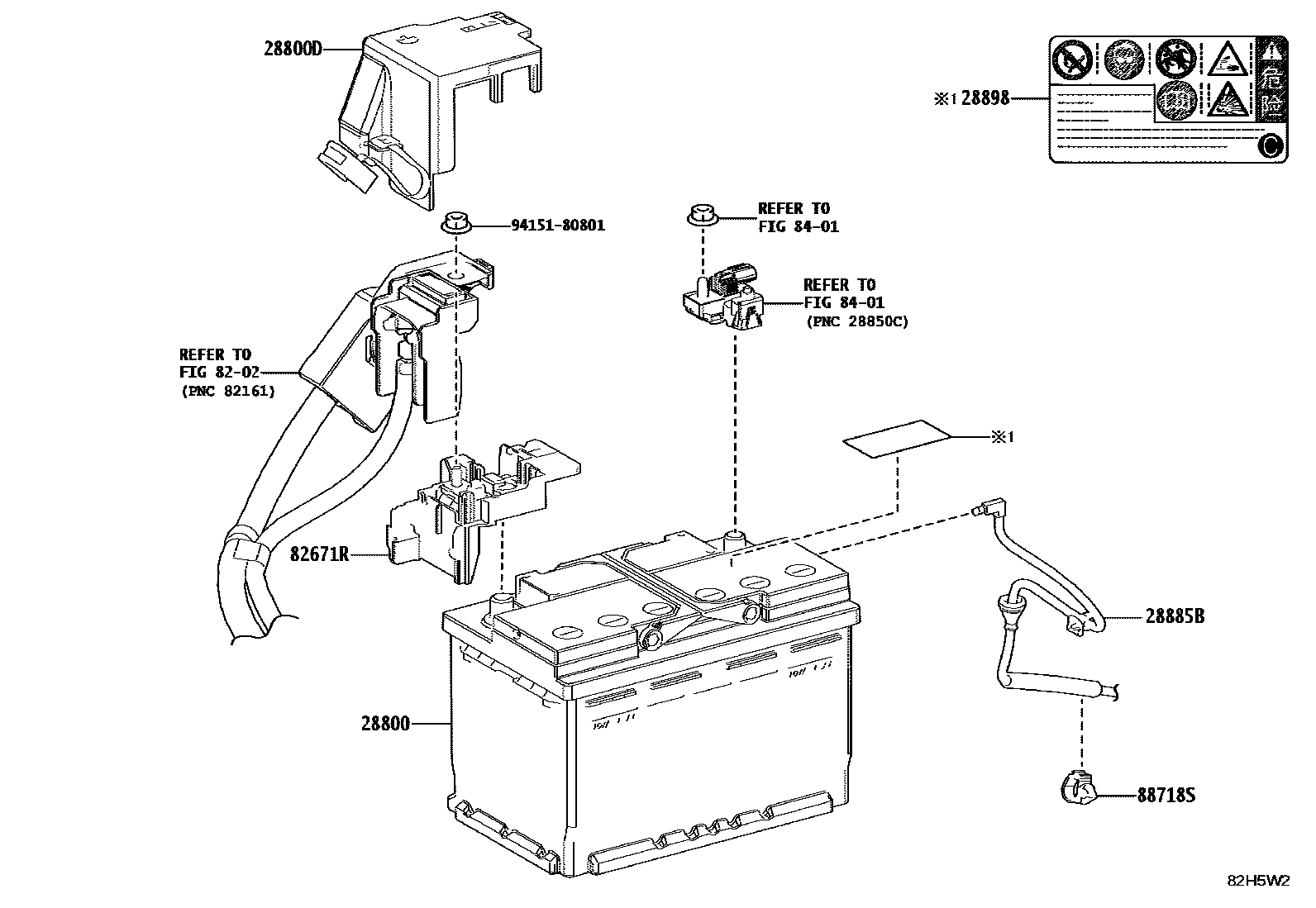

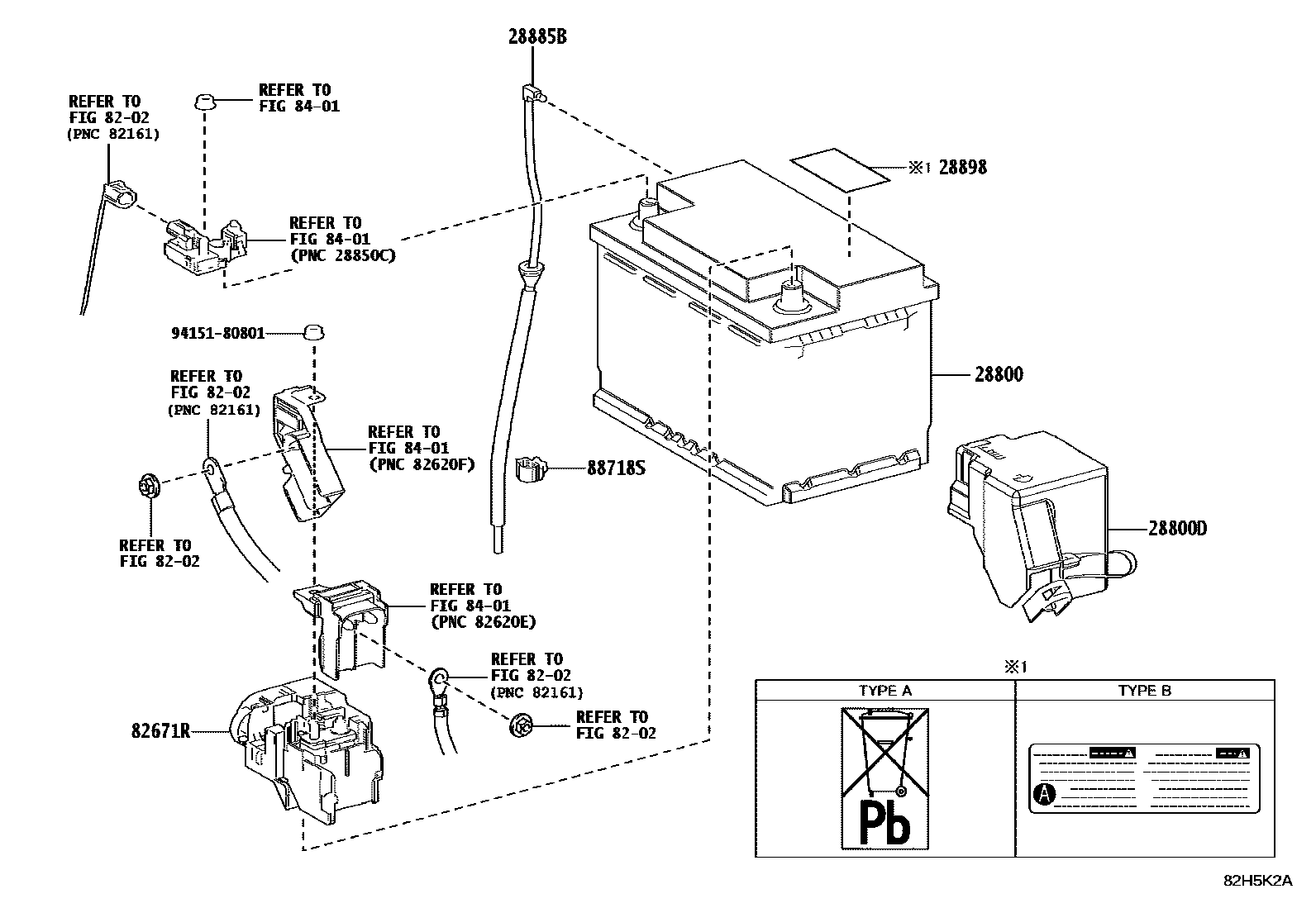

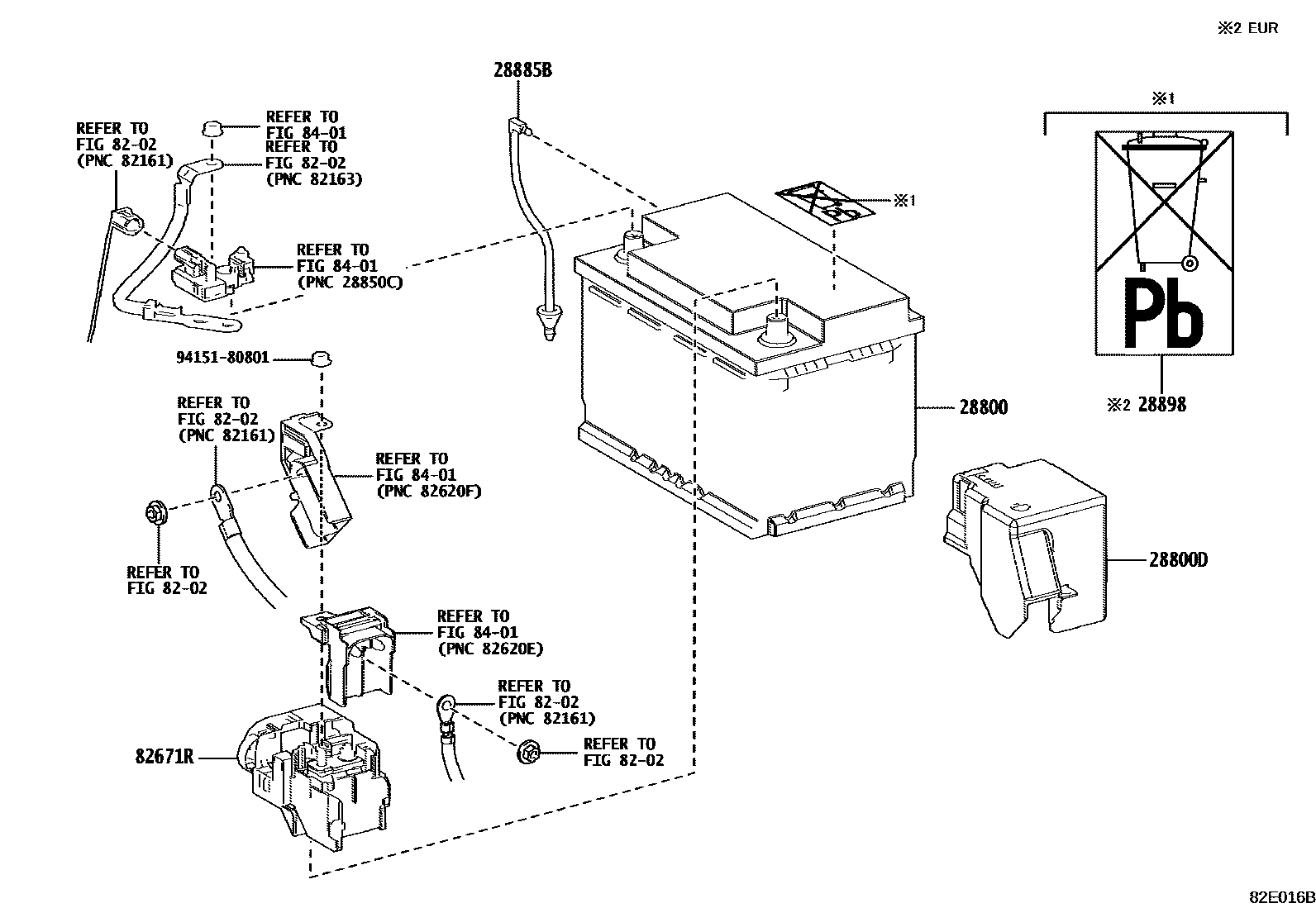

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-31573 · 28800-36220 · 28800-36221 · 28800-36222 |
| 28800D | Connector cover (for battery terminals) | 82821-50730 |
| 28885B | battery hose | 28885-18010 · 28885-18040 · 28885-18060 |
| 28898 | battery plates | 28897-38060 · 28898-16020 |
| 82671R | BUTEE, BORNE BATTERIE | 82651-50010 |
| 88718S | COLLIER, TUYAUTERIE, NO.1 | 82711-1E350 · 82711-52200 |
