Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.

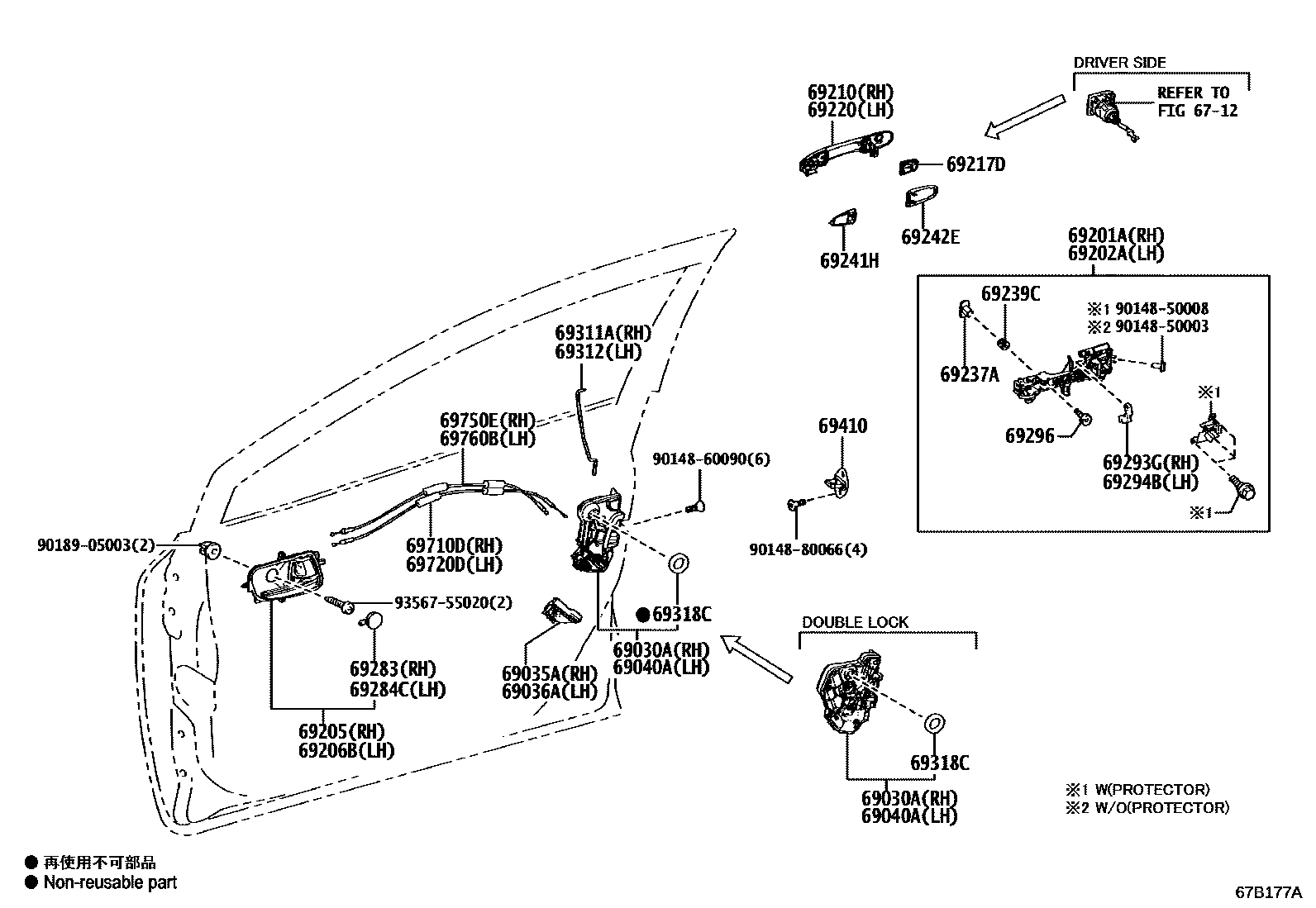

Toyota YARIS 前门锁和车门把手 EPC diagram — 67B177A
前门锁和车门把手 — 67B177A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-52540 · 69030-60290 · 69030-76011 · 69030-76021
69035ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD69035-30010
69036ALeft front door lock cover sub-assembly69036-30010
69040ALeft front door door lock assembly with motor69040-52450 · 69040-52460 · 69040-52470 · 69040-76021 · 69040-76031
69201ARight front door outer handle frame sub-assembly69201-47070 · 69201-52190
69202ALeft front door outer handle frame sub-assembly69202-47040
69217DFront door outer handle cover69217-47020
69237AECROU, POIGNEE PORTE AVANT69237-62010
69239CBAGUE, POIGNEE PORTE AVANT69239-47010
69241HFront door exterior handle pad69241-52030
69242EFront door rear outer handle pad69242-52040
69293GRight front door outer handle buckle69293-12030
69294BLeft front door outer handle buckle69293-12040
69296Car door inner handle screws69296-30010 · 90148-50006
69311ARight front door lock opening lever69311-52270
69312Left front door lock opening lever69312-52240
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-60030
69710DCABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE)69710-52250
69720DCABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE)69710-52250
69750ECABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR)69750-52180
69760BCABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR)69750-52180
