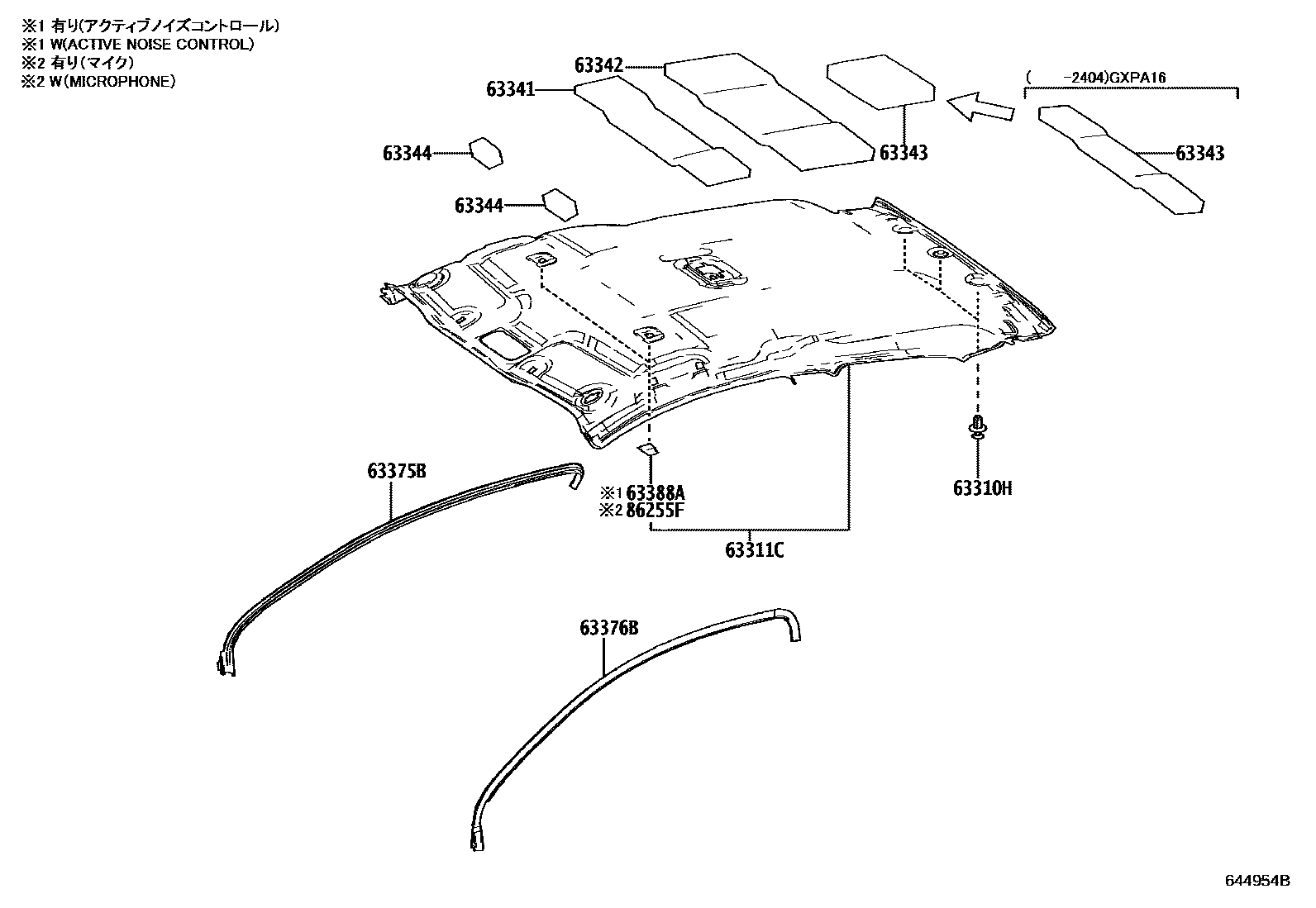

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310H | Clip (for headliner) | 90467-07215 |
| 63341 | No. 1 roof silencer mat | 63341-52250 |
| 63342 | No. 2 roof muffler pad | 63341-52540 |
| 63343 | No. 3 roof muffler pad | 63342-52280 · 63342-52350 |
| 63344 | No. 4 roof silencer mat | 63343-52160 |
| 63375B | No. 1 roof right side lining protective strip | 63375-52010 |
| 63376B | No. 1 roof left lining protective strip | 63376-52020 |
