Toyota YARIS 中央扶手箱和支架 — Figure 5806

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 2 images and 5 PNC and OE references.

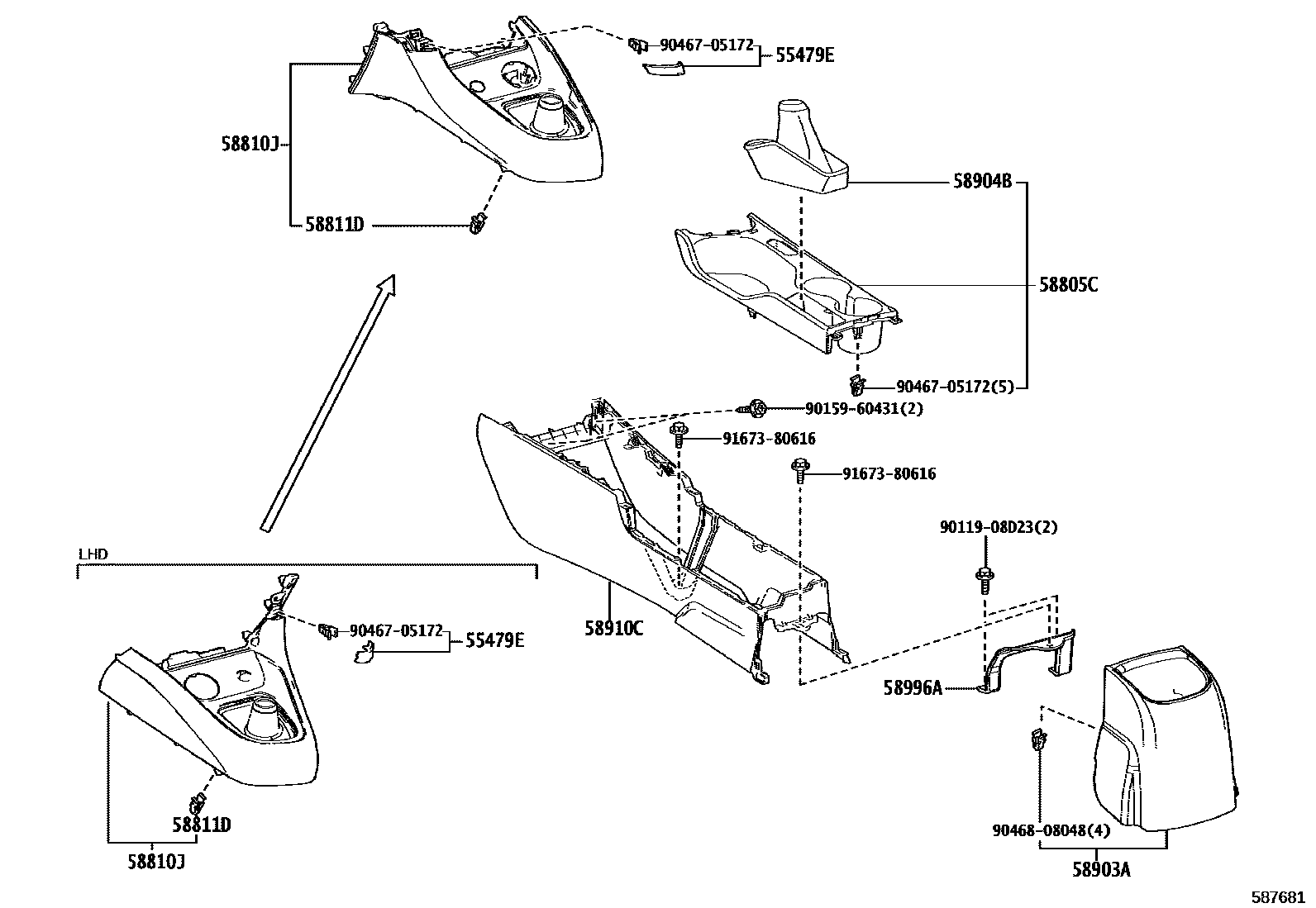

Toyota YARIS 中央扶手箱和支架 EPC diagram — 587681
中央扶手箱和支架 — 587681 (202008 – 202404)

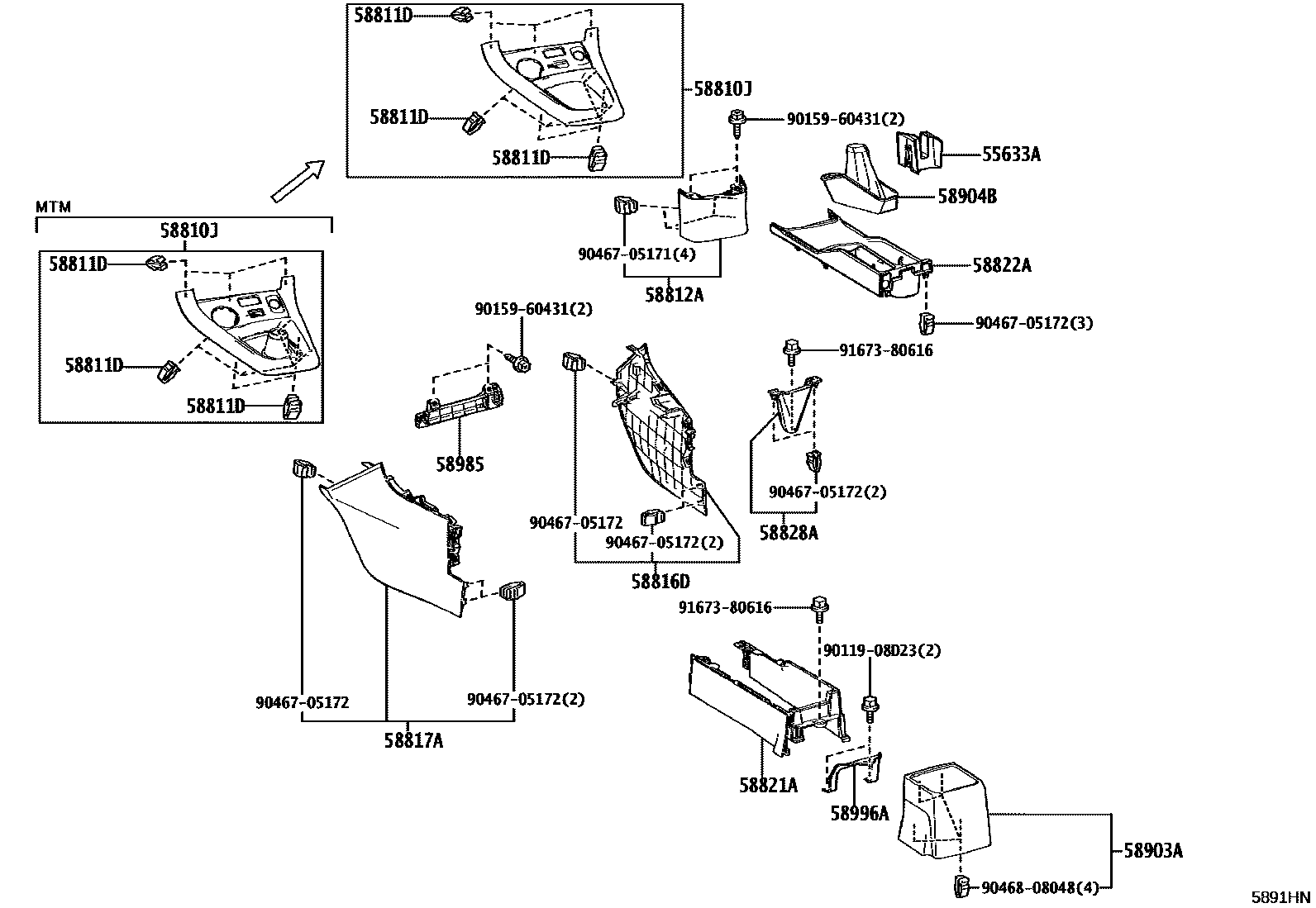

Toyota YARIS 中央扶手箱和支架 EPC diagram — 5891HN
中央扶手箱和支架 — 5891HN (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
55479ECenter instrument panel lower cover55479-K0040
58811DClip (for armrest box)90467-05172
58828AArmrest box lower bracket58828-52050
58985Armrest box fixing bracket58985-52080
58996AArmrest box No. 2 mounting bracket58996-K0020
