Toyota YARIS 地板垫和地毯 — Figure 5804

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 2 images and 6 PNC and OE references.

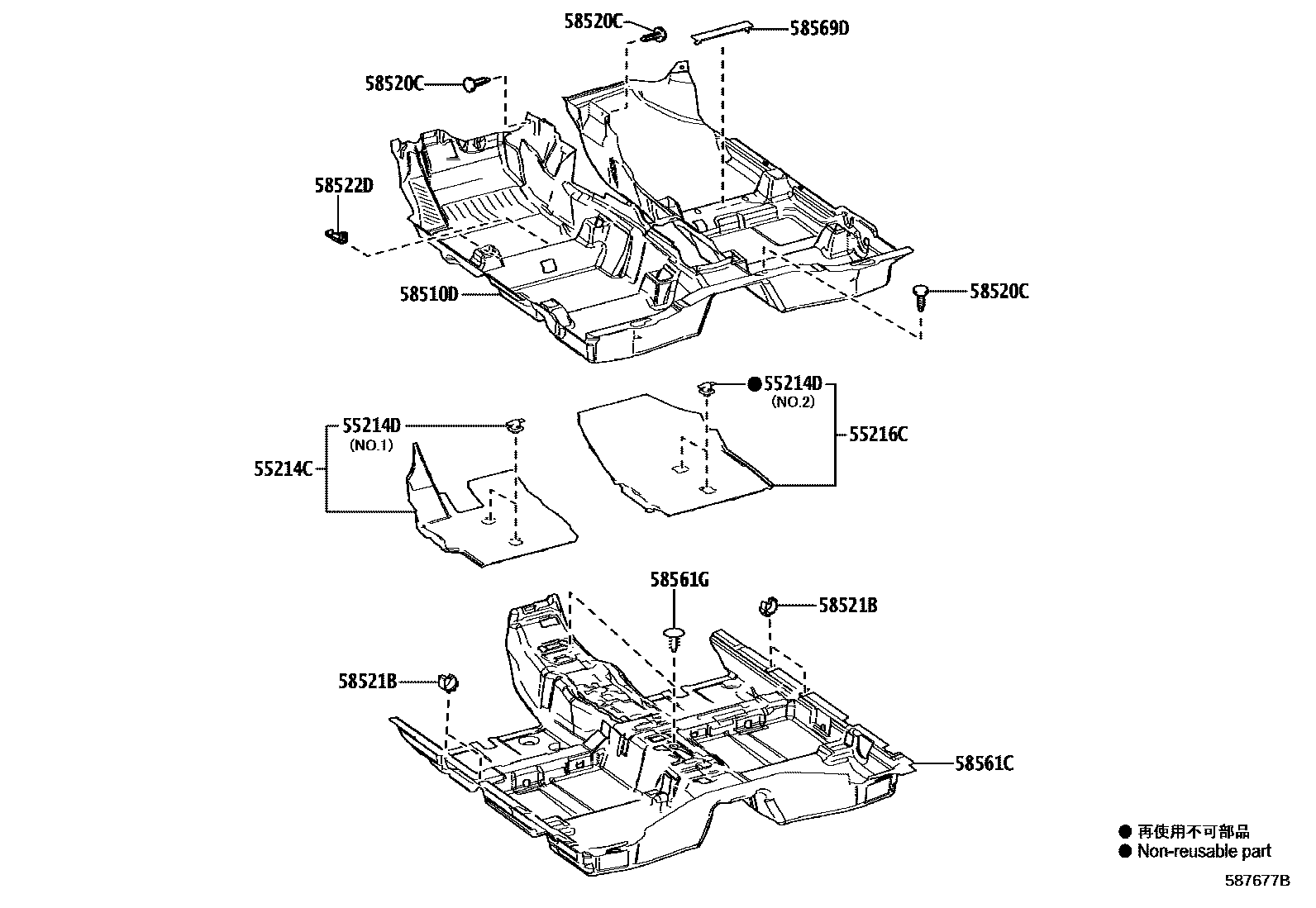

Toyota YARIS 地板垫和地毯 EPC diagram — 587677B
地板垫和地毯 — 587677B (202008 – 999999)

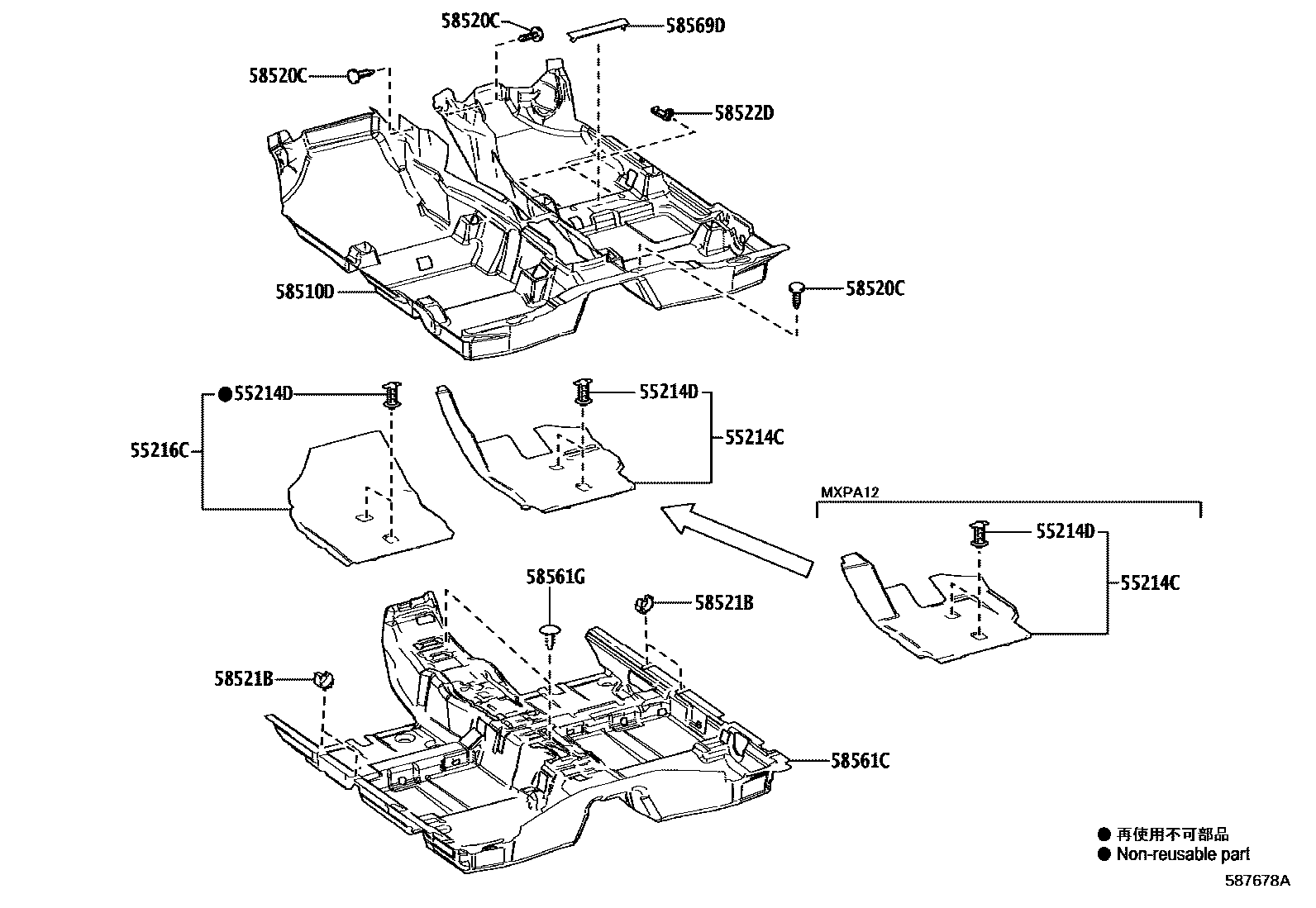

Toyota YARIS 地板垫和地毯 EPC diagram — 587678A
地板垫和地毯 — 587678A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
55214CNo. 2 insulation pad for front wall panel55214-52250 · 55214-52260 · 55214-52360
55214DATTACHE(POUR PLAQUE ISOLANTE DE TABLEAU DE BORD)58198-52020 · 58198-52040
55216CNo. 4 heat insulation pad for front wall55216-52100 · 55216-K0020
58521Bcarpet hook58521-33060
58522DCarpet hook number 258522-52030
58561CFront floor silencer No. 158561-52420 · 58561-52430 · 58561-52470 · 58561-52480
