Toyota YARIS 地板隔热垫 — Figure 5802

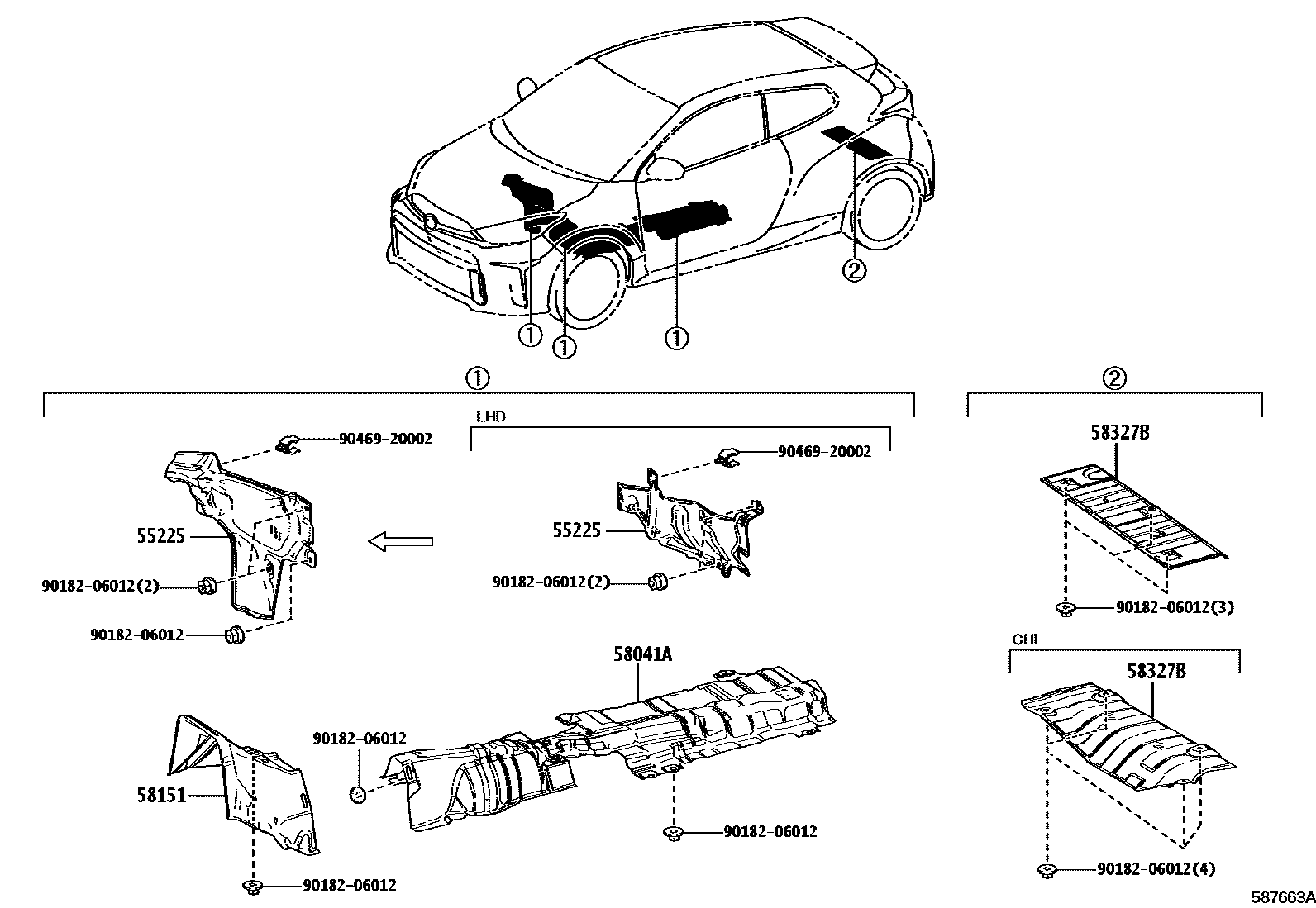

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55225 | Front wall insulation pad | 55225-52010 · 55225-52030 |
| 58041A | Front floor insulation pad sub-assembly No. 1 | 58041-52050 · 58041-52090 |
| 58151 | Front floor insulation mat No. 1 | 58151-52130 |
| 58327B | Main muffler heat insulation pad | 58327-52180 · 58327-52230 |
