Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

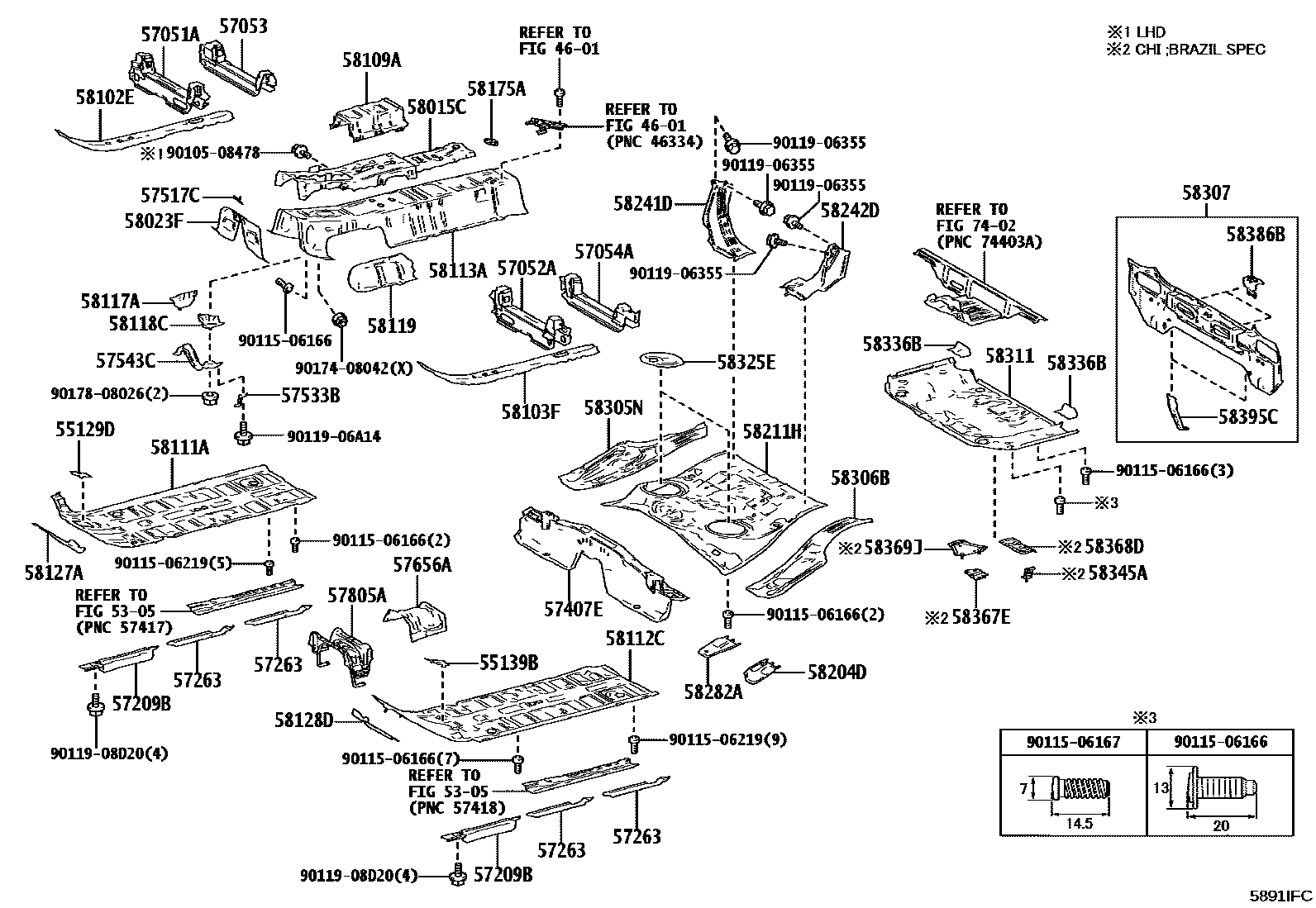

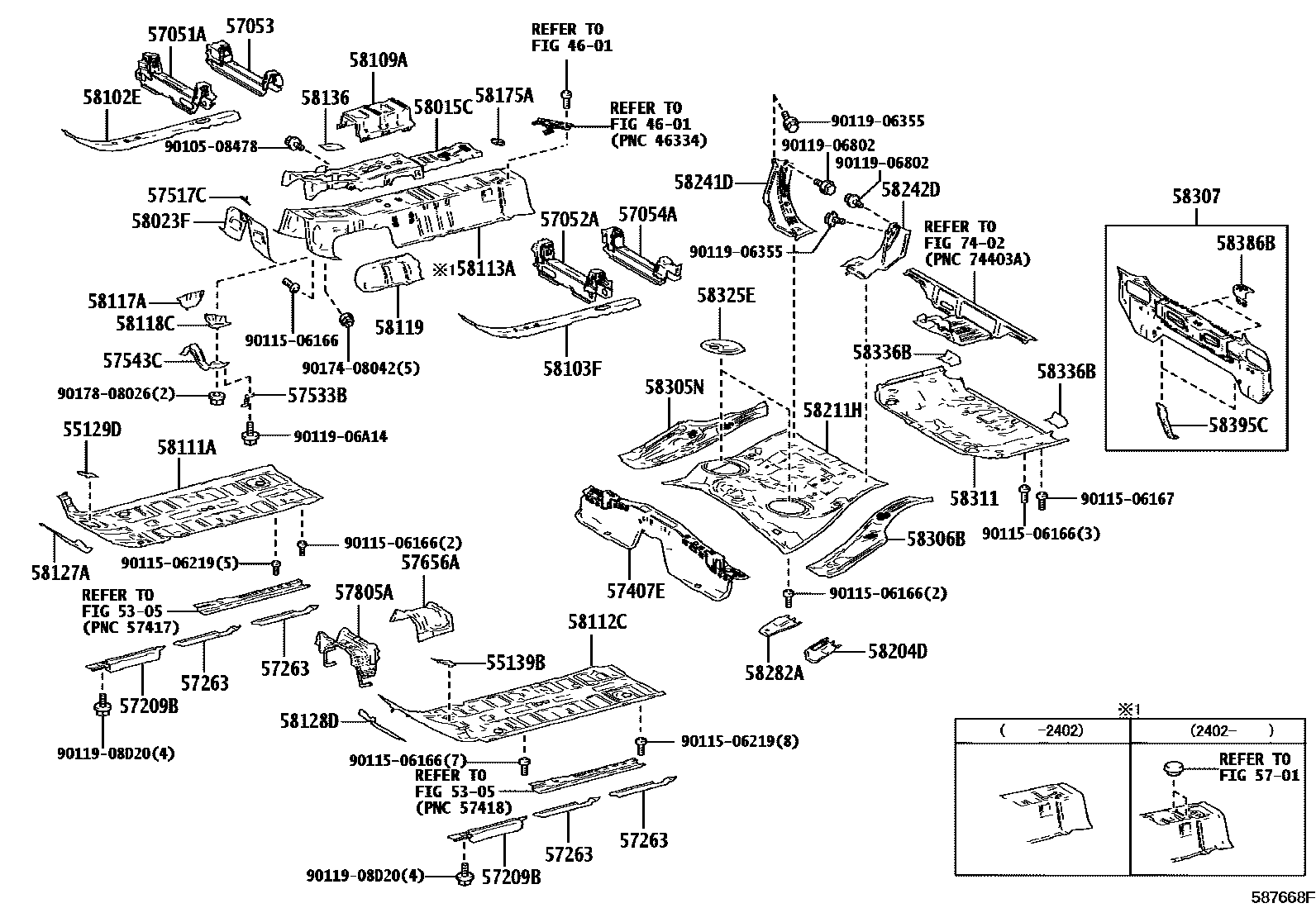

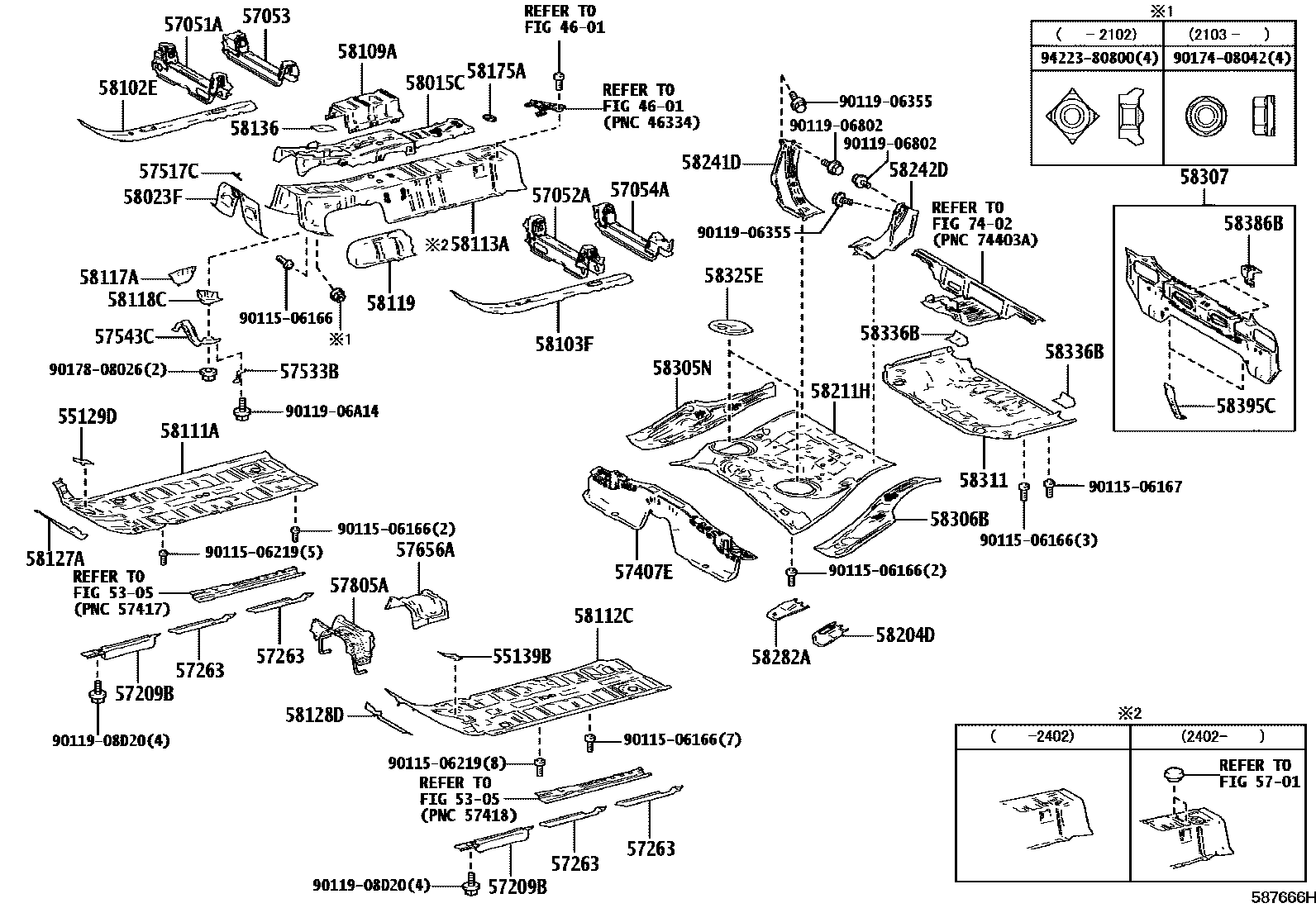

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129D | Right front panel hole cover | 55129-52060 · 55129-K0010 |
| 55139B | Left front panel hole cover | 55139-52030 · 55139-K0010 |
| 57051A | Front floor right cross member sub-assembly | 57051-52090 · 57051-52110 |
| 57052A | Front floor left cross member sub-assembly | 57052-52080 · 57052-52100 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-52030 · 57053-K0010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-52040 · 57054-K0010 |
| 57209B | SOUS-ENS. ELEMENT, BERCEAU-MOTEUR ARR | 57209-52010 |
| 57263 | Engine rear support beam cushion | 57263-52010 |
| 57407E | Center floor beam sub-assembly | 57407-52080 |
| 57517C | PLAQUE, CABLE COMM CHG & SELECT RAPPORT | 57517-52010 |
| 57533B | Front floor center bracket | 57533-52040 |
| 57543C | Center Floor Bracket No. 1 | 57543-52020 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-52140 · 57656-K0020 |
| 57805A | Rear No. 1 seat support No. 1 reinforcement sub-assembly | 57805-K0020 |
| 58015C | SOUS-ENS PANNEAU, LOGEMENT PLANCHER AVANT | 58015-52120 · 58015-K0020 |
| 58023F | SOUS-ENS. PLAT. FIX., CONDUITE FLEXIBLE | 58023-K0010 |
| 58102E | SS-ENS. RENFORT, PLANCHER AVANT, MD | 58102-52020 |
| 58103F | SS-ENS. RENFORT, PLANCHER AVANT, MG | 58103-52080 |
| 58109A | Parking brake fixing sub-assembly | 58109-52010 |
| 58111A | Front floor right bottom panel | 58111-K0010 |
| 58112C | Front floor left bottom panel | 58112-K0010 |
| 58113A | front floor center panel | 58113-52940 · 58113-52941 · 58113-52942 · 58113-52943 · 58113-52944 · 58113-52945 · 58113-52947 |
| 58117A | Front floor right reinforcement | 58117-52100 |
| 58118C | Front floor left reinforcement | 58118-52050 |
| 58119 | front floor front side panel | 58119-52030 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-K0010 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-K0010 |
| 58136 | Front floor hole cover | 58136-52020 |
| 58175A | No. 1 parking brake base reinforcement | 58175-K0020 |
| 58204D | Rear left seat outer hinge bracket sub-assembly | 58204-52110 |
| 58211H | central floor base | 58211-52340 |
| 58241D | Right front wheel housing inner corner panel | 58241-52040 |
| 58242D | Left front wheel housing inner corner panel | 58242-52030 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-52070 |
| 58305N | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, DR | 58305-12060 |
| 58306B | SOUS-ENS D'EXTENSION, PLANCHER ARRIERE A CUSTODE, GA | 58306-12040 |
| 58307 | Body lower back panel sub-assembly | 58302-52220 · 58307-52720 |
| 58311 | rear floor pan | 58311-52914 |
| 58325E | Rear floor access hole cover | 58325-10051 |
| 58336B | Rear floor pan reinforcement | 58336-52020 |
| 58345A | Rear floor insulation pad bracket No. 1 | 58345-12070 |
| 58367E | SUPPORT, TUBE D'ALIMENTATION, NO.1 | 58367-47020 |
| 58368D | SUPPORT, TUBE CHARGEUR, NO.2 | 58368-12020 |
| 58369J | rear floor bracket | 58369-12030 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-47020 |
| 58395C | ARRETOIR, CROCHET TRANSPORT, ARR | 58395-52010 |
