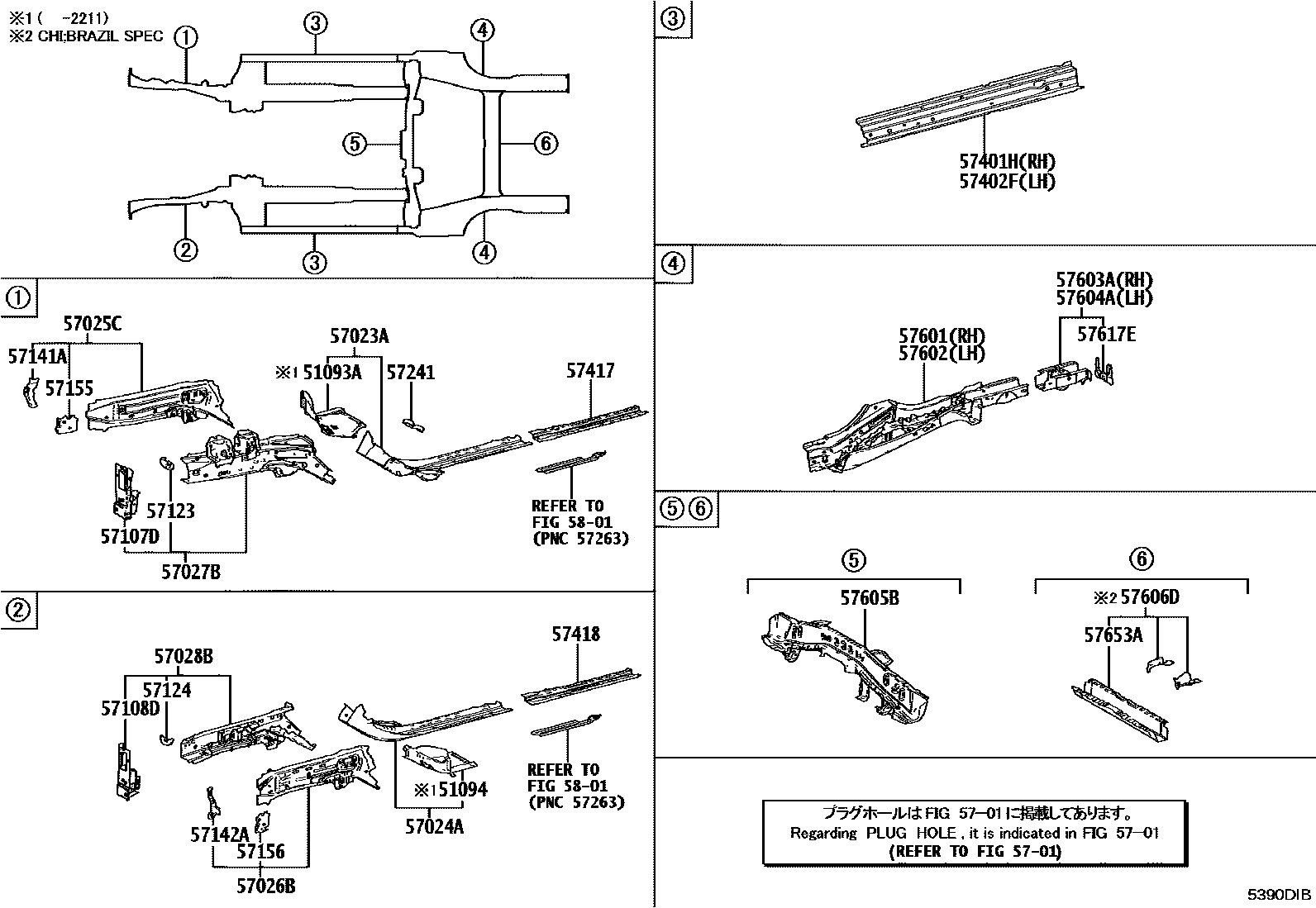

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51093A | SOUS-ENS. CROCHET, TRANSPORT, AVANT MD | 51093-52010 |
| 51094 | SOUS-ENS. CROCHET, TRANSPORT, AVANT MG | 51094-52010 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-52090 · 57023-52091 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-52110 · 57024-52111 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-52030 · 57025-52050 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-52030 · 57026-52050 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-52010 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-52020 · 57028-52060 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-K0010 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-K0010 |
| 57123 | Right front longitudinal beam bracket | 57123-K0010 |
| 57124 | Left front longitudinal beam bracket | 57124-K0010 |
| 57141A | Front bumper arm right bracket | 57141-52020 · 57141-K0010 |
| 57142A | Front bumper arm left bracket | 57142-K0010 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-52060 · 57155-K0010 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-52030 · 57156-K0010 |
| 57241 | No. 5 right front longitudinal beam reinforcement | 57241-52020 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-52250 · 57401-52310 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-52300 · 57402-52350 |
| 57417 | Front floor lower right reinforcement | 57417-52050 |
| 57418 | Front floor lower left reinforcement | 57417-52050 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-52470 · 57601-52560 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-52560 · 57602-52700 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-52160 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-52250 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-52240 · 57605-52300 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-12301 |
| 57617E | PLAQUE, APPUI LONGERON PLANCHER ARR | 57617-52020 |
| 57653A | No. 2 rear floor cross member | 57653-47040 |
